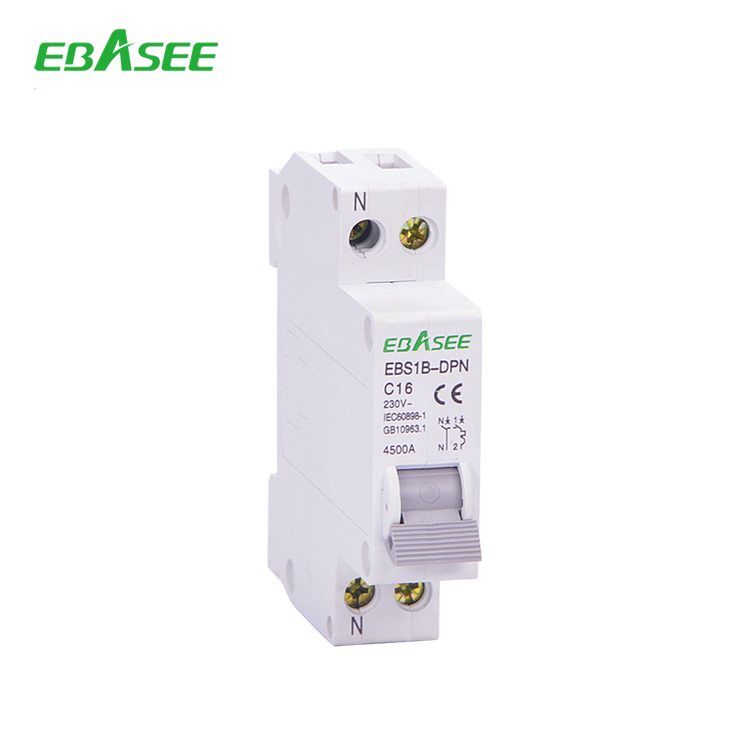

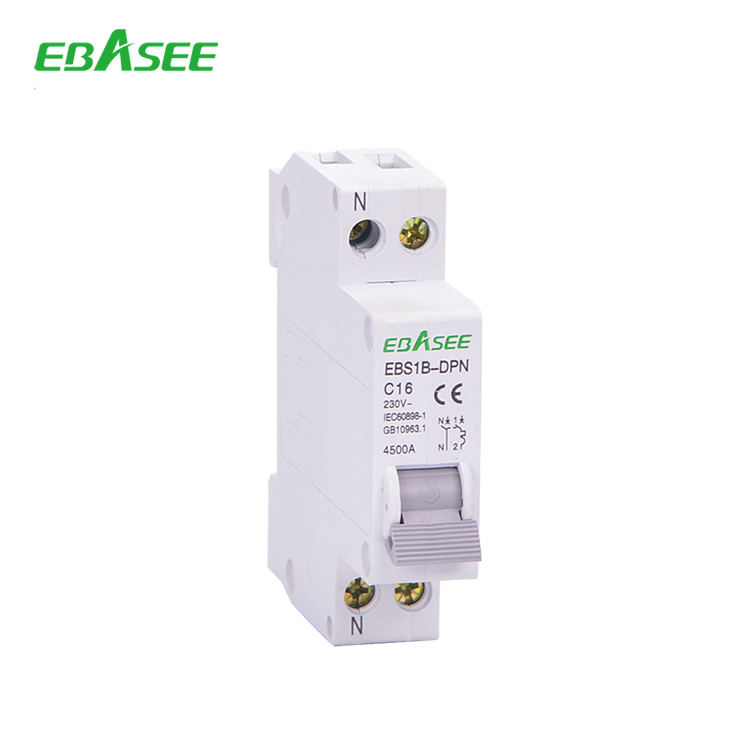

EBS1B DPN Miniature Circuit Breaker

Function

EBS1B DPN Series circuit breaker is used in protection lighting or power distribution system from over-load and short-circuit, apply to the circuit of AC 50Hz/60Hz, rated voltage less than 415V. The product adopt high fire resistant and shockproof plastics, quality metal materials, which is neoteric in structure, light in weight, reliable in performance.
Products comply with IEC/EN60898-1.

Specifications

Type Standard lEC/EN 60898-1












Electrical features

Rated current ln A 1, 2, 4, 6, 10, 16, 20, 25, 32
Poles P 1P+N
Rated voltage Ue V 240
Insulation voltage Ui V 250
Rated frequency Hz 50/60
Rated breaking capacity A 4500
Rated impulse withstand voltage(1.2/50)Uimp V 4000
Dielectric test voltage at ind. Freq. for 1min kV 2
Pollution degree 2
Thermo-magnetic release characteristic B, C








Mechanical features

Electrical life t 4000
Mechanical life t 10000
Protection grade IP20
Reference temperature for setting of thermal element

30

Ambient temperature

(with daily average≤35℃)



-5~+40

Storage temperature -25~+70










Installation

Terminal connection type Cable/Pin-type busbar


Terminal size top / bottom for cable

mm² 16
AWG 18/5


Terminal size top / bottom for busbar

mm² 16
AWG 18/5


Tightening torque

N*m 1.2
In-Ibs 11
Mounting On DIN rail EN 60715(35mm)by means of fast clip device
Connection From top and bottom

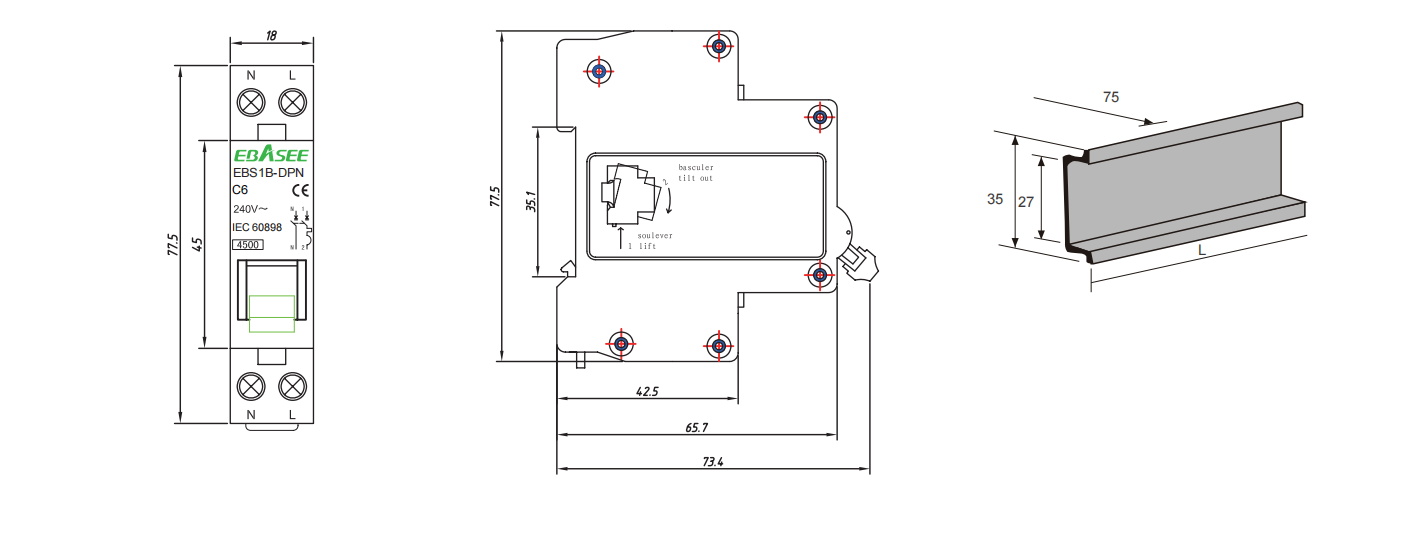

DimensionsDPN circuit breaker 63A 1P Denmission

EBASEE-EBS1B-DPN-miniature-circuit-breaker-MCB-1.pdf
