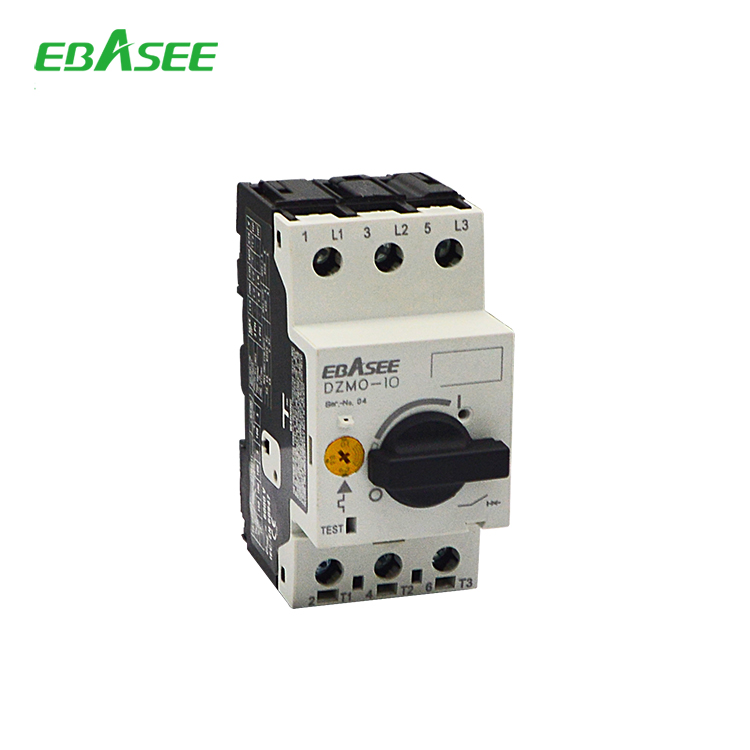

DZMO motor protector apply to AC 50/60Hz,rated insulation voltage 750V,rated operating voltage 660V. Rated operating current 0.1A~25A. It used for the overload and short circuit protection of the motor. It can also directly start and motive power of starter and full pressure rated current from 0.1A to 25A circuit as circuit protection.The product has beautiful appearance and compact structure, small volume, high breaking capacity, long life and other characteristics.
| Type | Power of controlled motor
400V P kW |
Rated operating current
400V le A |
Range of overload tripping current lr A | Rated short-circuit breaking current 400V lq kA |
| DZMO-16 | — | 0.16 | 0.1~0.16 | 100 |
| DZMO-16 | 0.06 | 0.25 | 0.16~0.25 | 100 |
| DZMO-16 | 0.09 | 0.4 | 0.25~0.4 | 100 |
| DZMO-16 | 0.12 | 0.63 | 0.4~0.63 | 100 |
| DZMO-16 | 0.25 | 1 | 0.63~1 | 100 |
| DZMO-16 | 0.55 | 1.6 | 1~1.6 | 100 |
| DZMO-16 | 0.75 | 2.5 | 1.6~2.5 | 100 |
| DZMO-16 | 1.5 | 4 | 2.5~4 | 100 |
| DZMO-16 | 2.2 | 6.3 | 4~6.3 | 100 |
| DZMO-16 | 3 | 6.6 | 6.3~10 | 100 |
| DZMO-16 | 4 | 10 | 6.3~10 | 100 |
| DZMO-16 | 5.5 | 16 | 10~16 | 100 |
| DZMO-16 | 7.5 | 16 | 10~16 | 100 |
| DZMO-16 | 9 | 20 | 16~20 | 100 |
| DZMO-16 | 12.5 | 25 | 20~25 | 100 |
