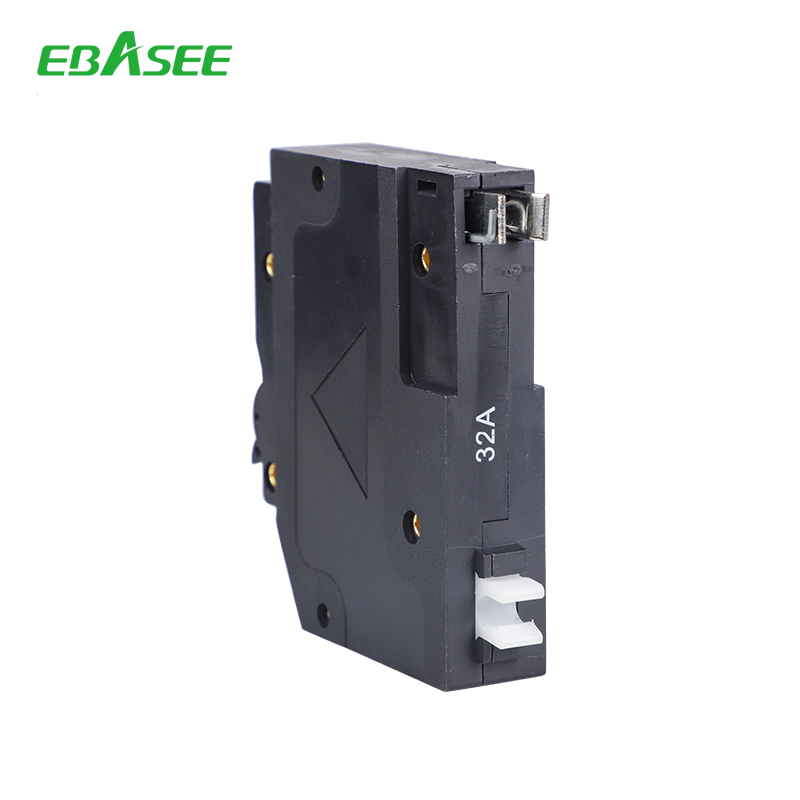

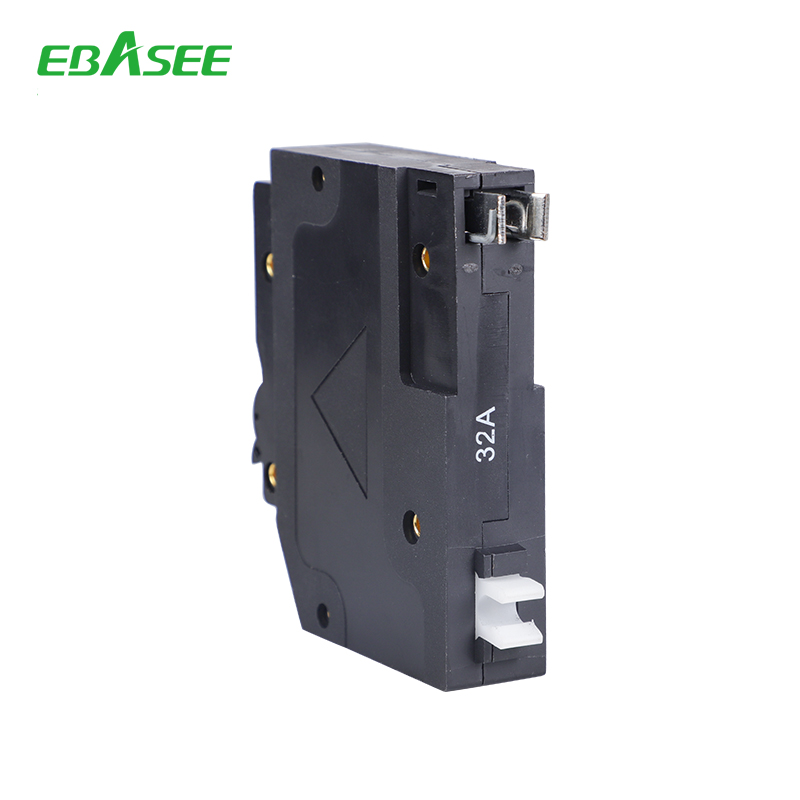

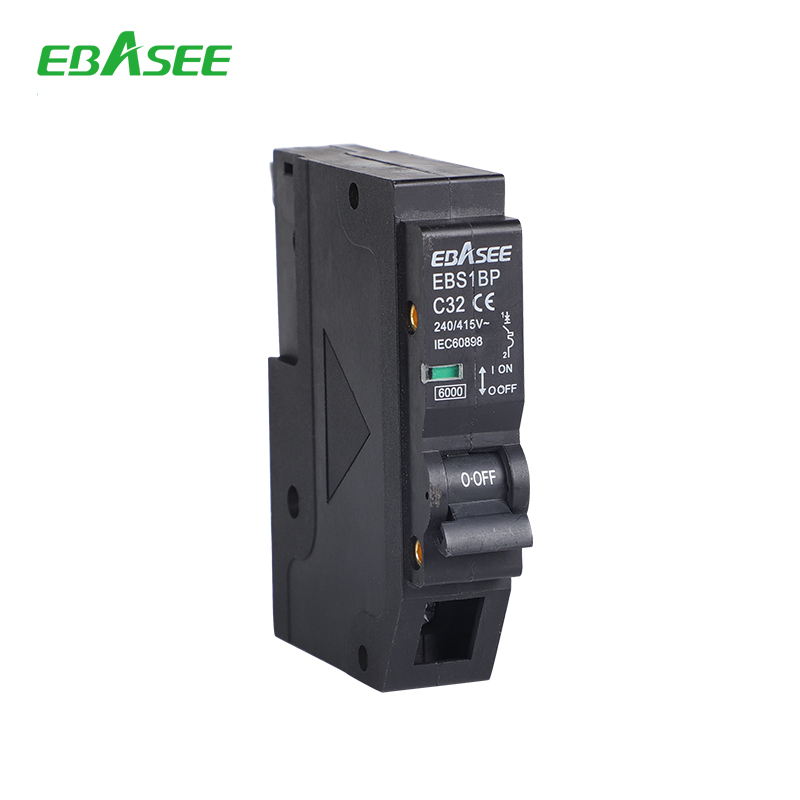

Function
EBS1BP Series Plug-on circuit beaker is used in potection lighting or power distribution system from overload and shot-circuit, apply to the circuit of AC 50Hz/60Hz, rated voltage less than 415V. The product adopt high fire resistant and shockproof plastics, quality metal materials, which is newly-designed in structure, light in weight, reliable in performance.
EBS1BP Plug-on circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication.
Products comply with IEC60898-1.
Specifications
| Standard |
|
lEC/EN 60898-1 |
| Poles |
P |
1P, 2P, 3P, 4P, 1P+N, 3P+N |
| Rated current In(A) |
A |
1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A |
| Rated voltage Un(V) |
V |
240/415V |
| Tripping characteristic |
|
B, C, D |
| Electrical life(times) |
|
6000 |
| Mechnical life(times) |
|
20000 |
| Protection grade |
|
IP20 |
| Installation |
|
Plug-on |
| Breaking capacity |
kA |
6kA |
| Connection capacity |
mm² |
≤25mm² |
| Electro-mechanical endurance |
|
5000 cycles |
| Mechanical durability |
|
20000 cycles |
| Model |
Rated voltage(V) |
Breaking capacity |
|
EBS1BP |
1P: 240/415V |
6000A |
| 2-4P: 415V |
6000A |

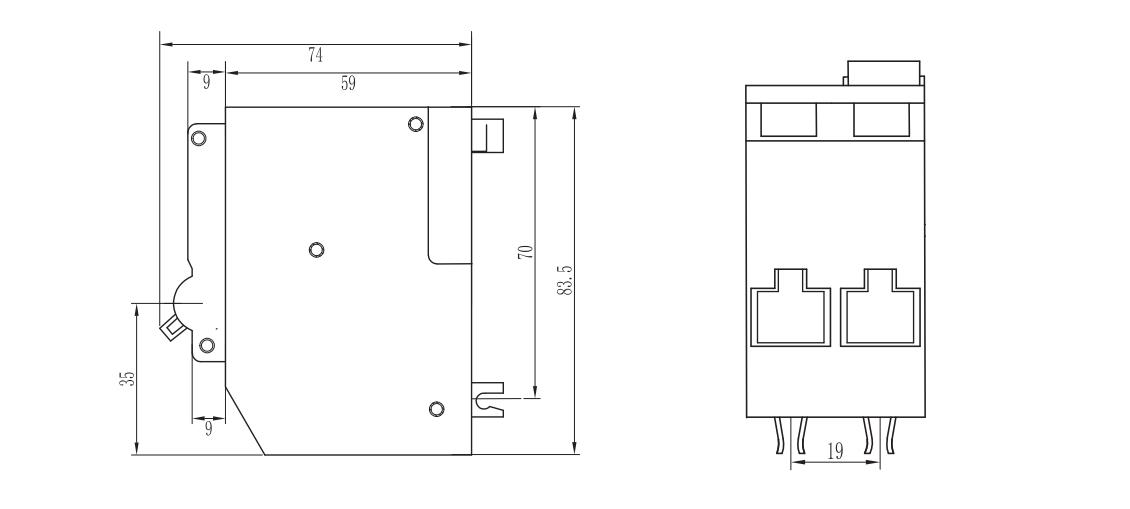

Dimensions
