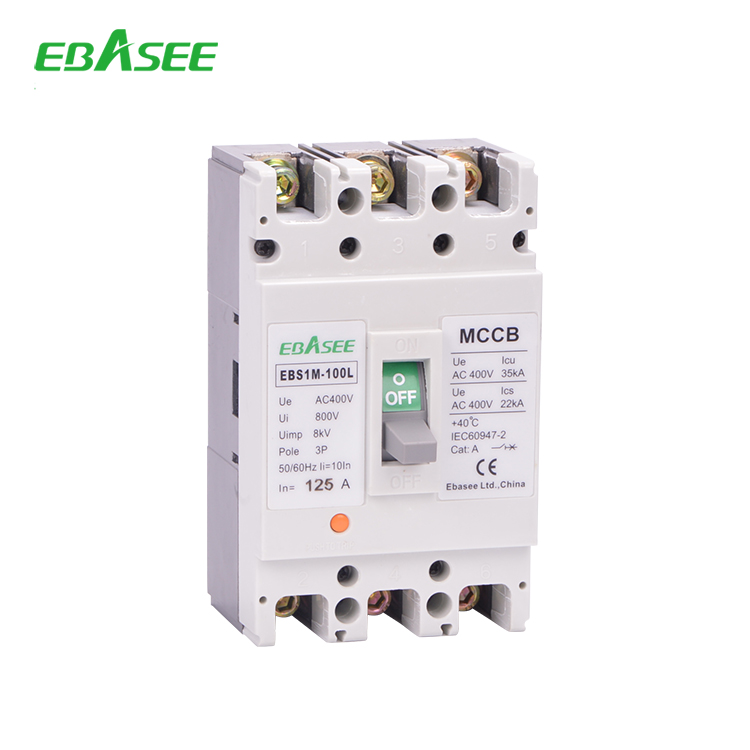

EBS1M Moulded Case Circuit Breaker

Function

EBS1M series moulded case circuit breaker is one of products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage 550V and 800V andused for circuit of AC 50/60Hz,rated operating voltage AC 400V(or below),rated operating current up to 1600A for infrequent changing over and starting of the motors.
The product conforms to IEC60947-2 standard.

Specifications

Type

Rated current(A)





Pole

Rated insulating voltage (V) Rated operating voltage (V) Arcingover distance (mm) Ultimate short circuit breaking capacity(kA) Servies short circuit breaking capacity(kA) Operation performance Utilizatin category
Load Unload
EBS1M-63L (6),10,16,

20,25,32,

40,50,63



3,4



500V

































400V

0 25 18





1500







8500



























A

EBS1M-63M 0 50 35
EBS1M-100L (10),16,20,

25,32,40,

50, 63,80,

100,125

2,3,4























800V

0(≤50) 35 22
EBS1M-100M

3,4

0(≤50) 50 35
EBS1M-100H 0(≤50) 85 50

1000



7000

EBS1M-225L 100,125,

160,180,

200,225,

250

2,3,4 ≤50 35 22
EBS1M-225M







3,4

≤50 50 35
EBS1M-225H ≤50 85 50











1000













4000

EBS1M-400L 225,250,315,

350,400

≤50 50 35
EBS1M-400M ≤100 65 42
EBS1M-630L

400

500

630

≤100 50 35
EBS1M-630M ≤100 65 42
EBS1M-630H ≤100 100 65
EBS1M-800M 630

700

800









3

≤100 75 50
EBS1M-800H ≤100 100 65
EBS1M-1250M 1000

1250

≤100 100 65
EBS1M-1250H ≤100 125 75
EBS1M-1600M 1600 ≤100 150 80



Dimensions

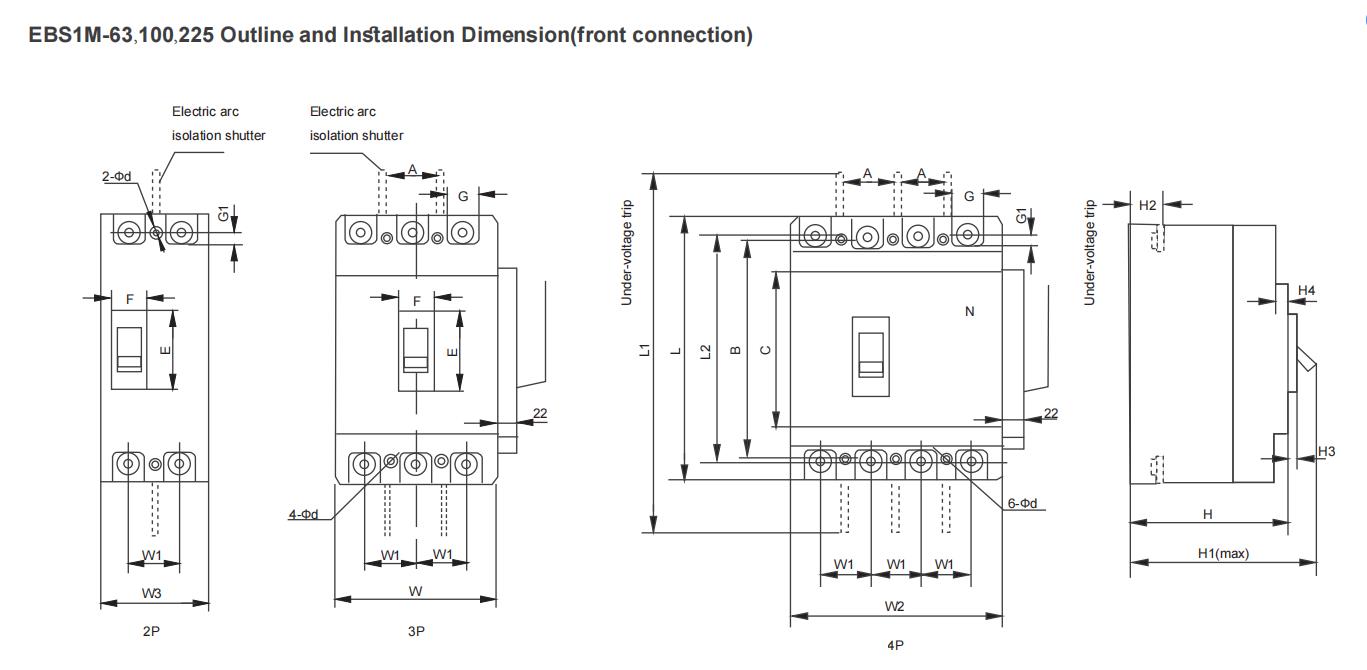

EBS1M Moulded Case Circuit Breaker Dimensions

EBASEE-EBS1M-Moulded-Case-Circuit-Breaker-MCCB.pdf
11 MB
