BXPH7 Plug-in Circuit Breaker


A plug-in circuit breaker is a type of electrical protection device that is designed to easily snap into a panel board and provide overcurrent protection for a circuit. It has a plug-like design that allows for quick and easy installation and replacement, making it a popular choice for both residential and commercial applications.
Plug in circuit breakers come in various sizes and amperages, and can be used for different types of circuits, including lighting, HVAC, and appliances. They can also be used in combination with other protection devices, such as surge protectors or ground fault circuit interrupters (GFCIs), to provide comprehensive electrical protection.

We are a professional Plug-in circuit breaker manufacturer and supplier. We can also provide plug on circuit breaker, residential plug-in circuit breaker, commercial plug-in circuit breaker, industrial plug-in circuit breaker.

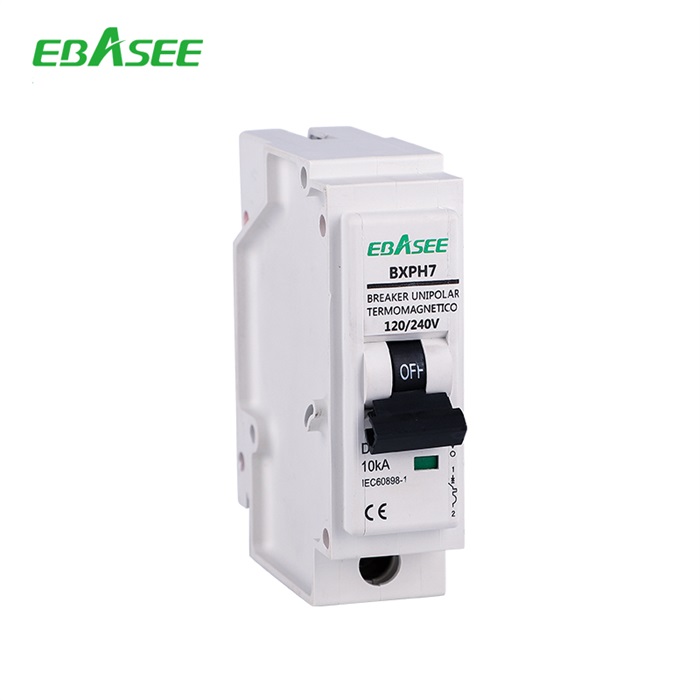

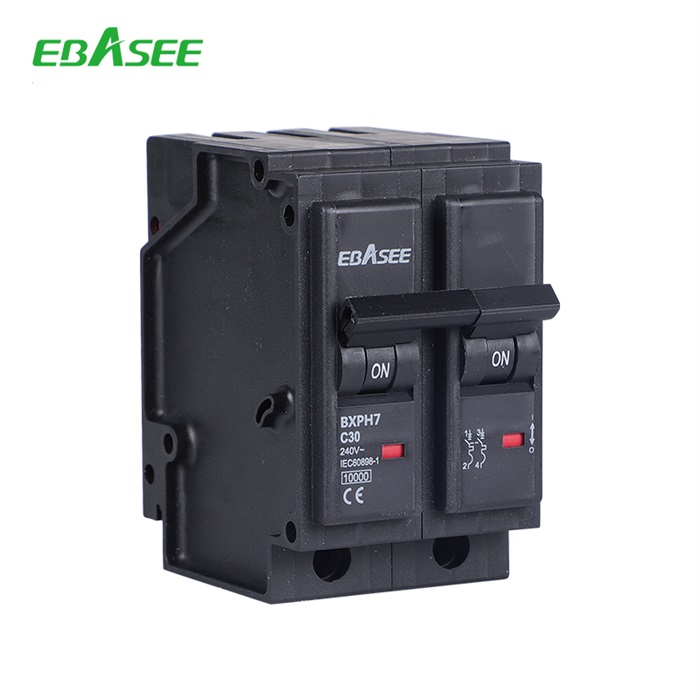

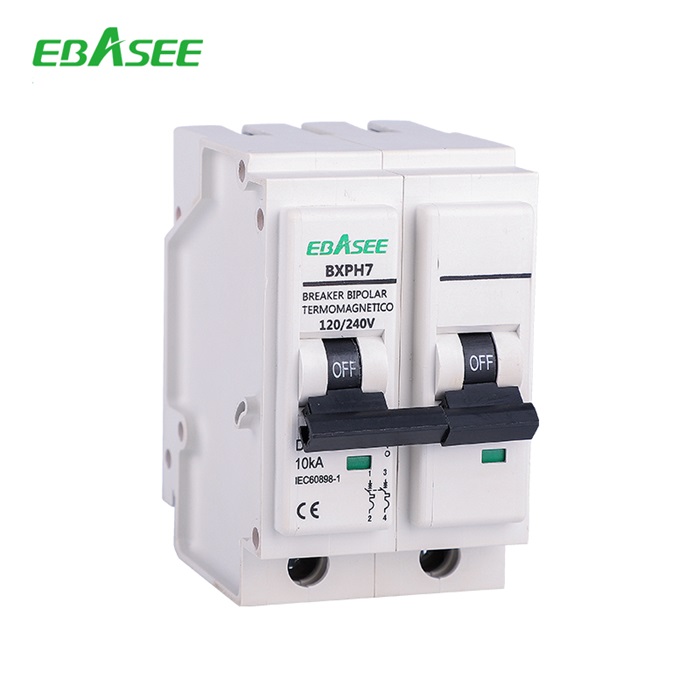

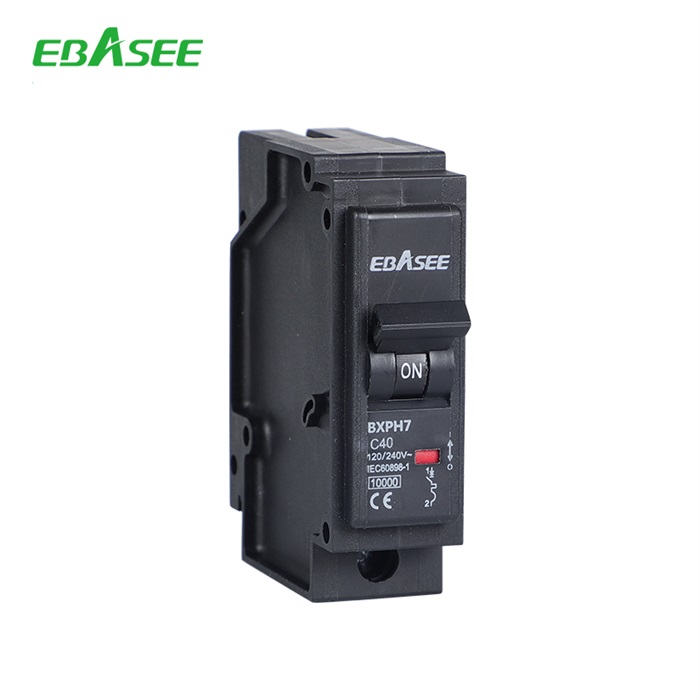

BXPH7 series miniature circuit breaker is mainly used for overload and shortcircuit  protection.Mainly application for commercial and industrial lighting and distribution. With features of good shape, lightweight, reliable performance and high breaking capacity. Shell and parts are composed of fire-resisted and shake-proof plastics, with long working life. This product is available in overload and shortcircuit protection of 50/60Hz AC circuit, rated voltage(single pole) of 240V, (two and three poles) of 415V. Also used for abnormal circuit exchange and normal lighting. This product complies with IEC60898-1.


Standard lEC/EN 60898-1
Poles P 1P, 2P, 3P, 4P, 1P+N, 3P+N
Rated current In (A) A 1, 2, 3, 4, 6, 10, 15, 16, 20, 25, 30, 32, 40, 50, 60, 63A
Rated voltage Un (V) V 240/415V
Tripping characteristic B, C, D
Protection grade IP20
Installation Plug-on
Breaking capacity kA 6
Connection capacity mm² ≤25mm²
Electrical life (times) 4000
Mechanical life (times) 10000
