Function
GMC Contactor is suitable for the circuits of AC 50Hz or 60Hz, rated insulating voltage is 660V, rated operating voltage is up to 690V,rated
operating voltage is 380/400V in AC-3 type, rated operating current is up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & mechanical interlocking device, it is used as the delay contactor, echanical
interlocking contactor, star-delta starter. With the thermal relay, it is combined into the DOL starter. The contactor complies with IEC60947-4
standard.
Specifications
1.GMC 9-100A Characteristic
- Four rated current levels of a frame 3 pairs of main contacts
- Design of safety cover against electric shock Guide rail or screw installation
- Small size: 44mm wide 1NO+1NC auxiliary contacts
- Attachments can be mounted on the top/side
- Can be directly plugged with thermal overload relay
- 3-pole contactor (AC coil)
| Model |
Rated current |
AC3 (IEC60947-4) |
AC1
lth |
Auxiliary contact (standard) |
| 220~240V |
380~440V |
500~550V |
690V |
| GMC-9 |
9A |
2.5kW
11A |
4kW 9A |
4kW 7A |
4kW 5A |
25A |
1NO+1NC |
| GMC-12 |
12A |
3.5kW
13A |
5.5kW
12A |
7.5kW
12A |
7.5kW
9A |
25A |
1NO+1NC |

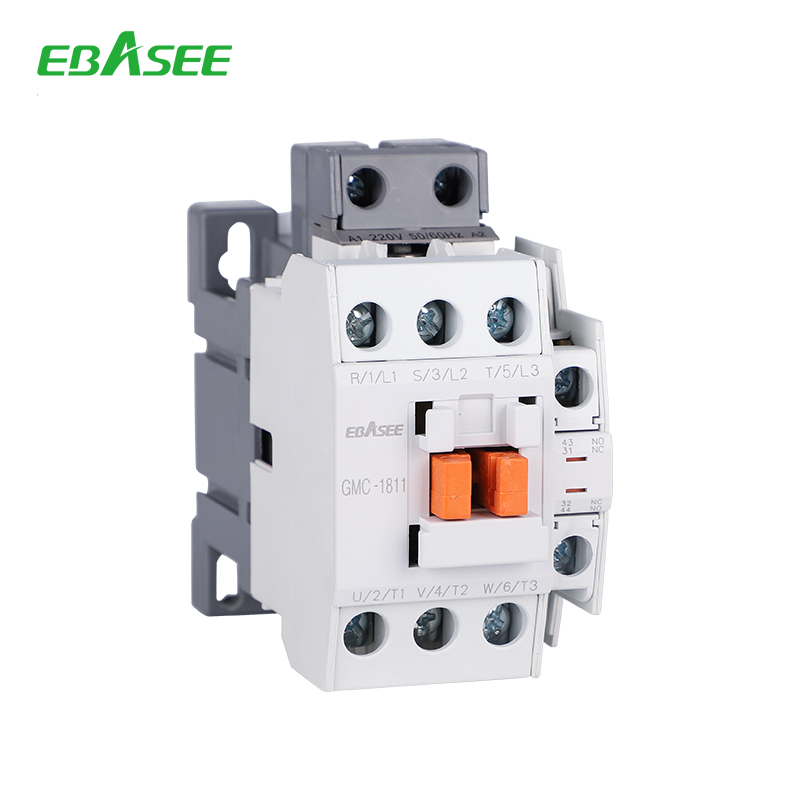

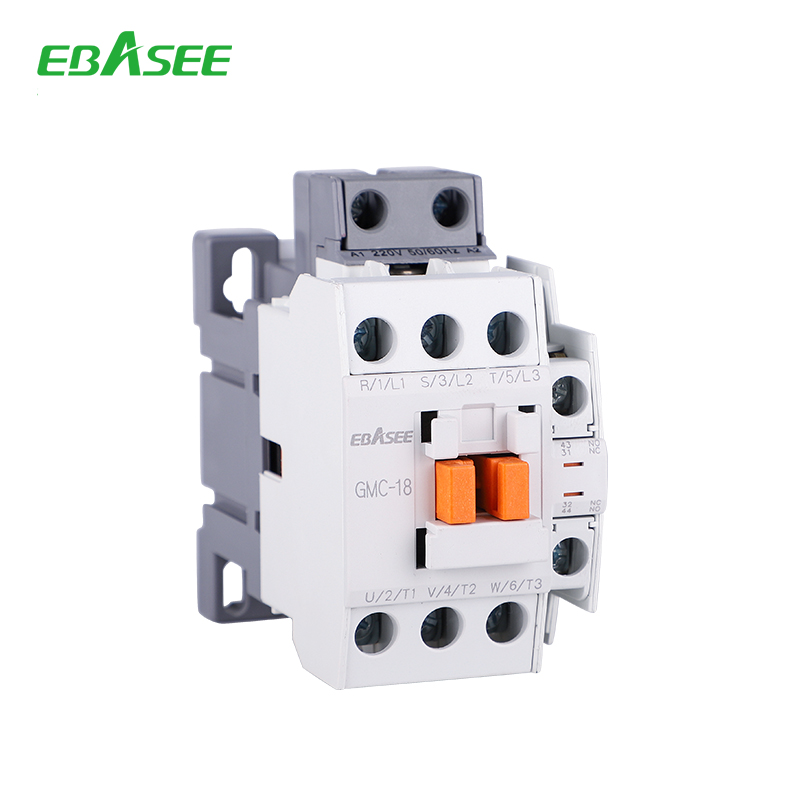

| GMC-18 |
18A |
4.5kW
18A |
7.5kW
18A |
7.5kW
13A |
7.5kW
9A |
40A |
1NO+1NC |
| GMC-22 |
22A |
5.5kW
22A |
11kW
22A |
15kW
22A |
15kW
18A |
40A |
1NO+1NC |

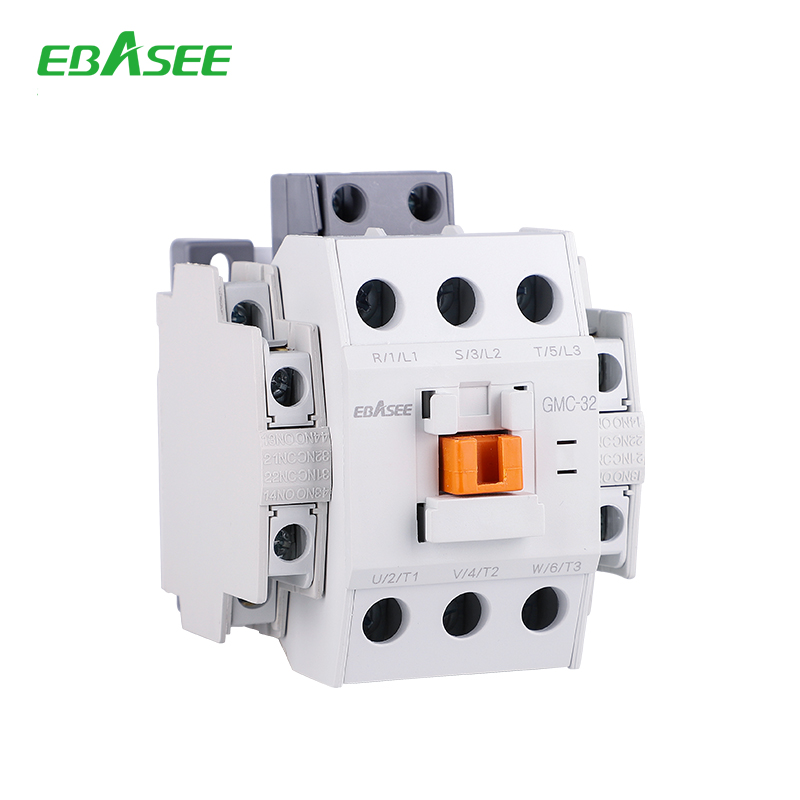

| GMC-32 |
32A |
7.5kW
32A |
15kW
32A |
18.5kW
28A |
18.5kW
20A |
50A |
1NO+1NC |
| GMC-40 |
40A |
11kW
40A |
18.5kW
40A |
22kW
32A |
22kW
23A |
60A |
1NO+1NC |

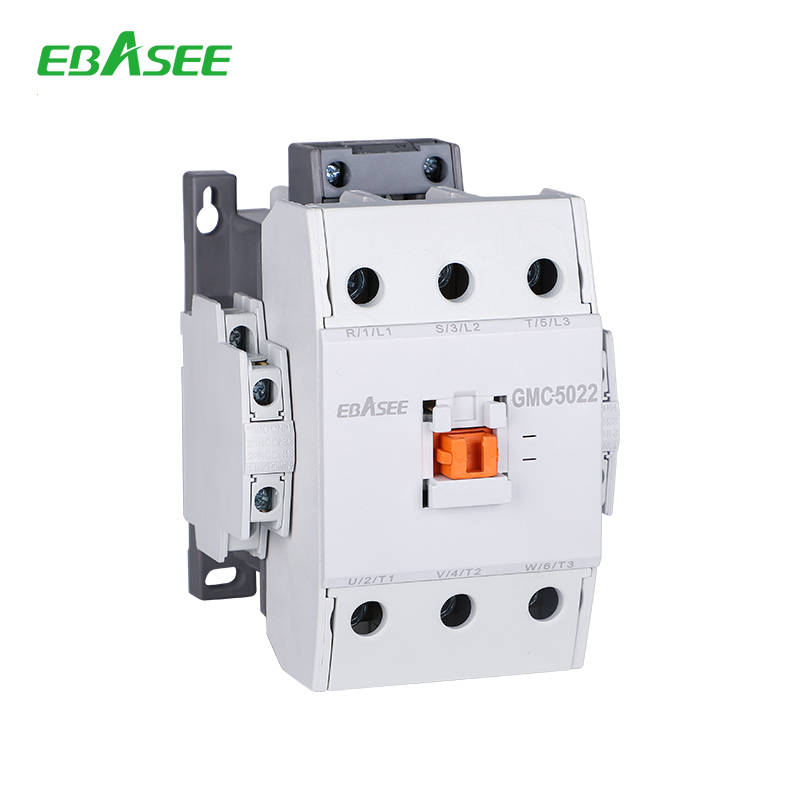

| GMC-50 |
50A |
15kW
55A |
22kW
50A |
30kW
43A |
30kW
28A |
80A |
1NO+1NC |
| GMC-65 |
65A |
18.5kW
65A |
30kW
65A |
33kW
60A |
33kW
35A |
100A |
1NO+1NC |
| GMC-75 |
75A |
22kW
75A |
37kW
75A |
37kW
64A |
37kW
42A |
110A |
1NO+1NC |

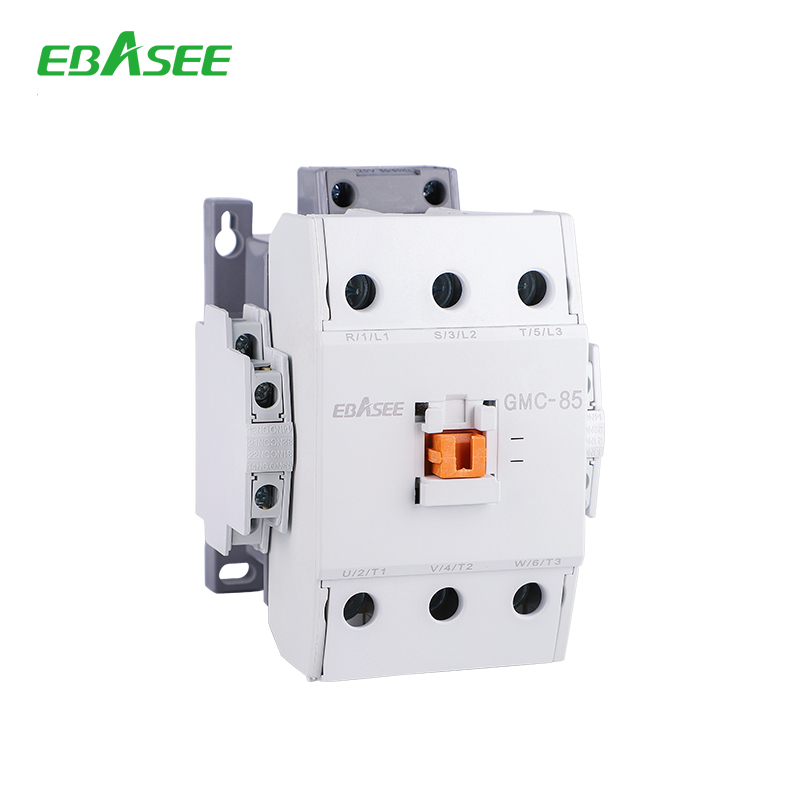

| GMC-85 |
85A |
25kW
85A |
45kW
85A |
45kW
75A |
45kW
45A |
135A |
1NO+1NC |
| GMC-100a |
100A |
25kW
105A |
45kW
105A |
50kW
85A |
50kW
65A |
160A |
2NO+2NC |
| Model |
Rated current |
AC3 (IEC60947-4) |
AC1
lth |
Auxiliary contact (standard) |
| 220~240V |
380~440V |
500~550V |
690V |
| GMC-100 |
100A |
30kW
105A |
55kW
105A |
55kW
85A |
55kW
65A |
160A |
2NO+2NC |
| GMC-125 |
125A |
37kW
125A |
60kW
120A |
60kW
90A |
60kW
70A |
160A |
2NO+2NC |
| GMC-150 |
150A |
45kW
150A |
75kW
150A |
90kW
140A |
90kW
100A |
210A |
2NO+2NC |
| GMC-180 |
180A |
55kW
180A |
90kW
180A |
110kW
180A |
110kW
120A |
230A |
2NO+2NC |
| GMC-220 |
220A |
75kW
250A |
132kW
250A |
132kW
200A |
132kW
150A |
275A |
2NO+2NC |
| GMC-300 |
300A |
90kW
300A |
160kW
300A |
160kW
250A |
200kW
220A |
350A |
2NO+2NC |
| GMC-400 |
400A |
125kW
400A |
220kW
400A |
225kW
350A |
250kW
300A |
450A |
2NO+2NC |
| GMC-600 |
600A |
190kW
630A |
330kW
630A |
330kW
500A |
330kW
420A |
660A |
2NO+2NC |
| GMC-800 |
800A |
220kW
800A |
440kW
800A |
550kW
720A |
500kW
630A |
900A |
2NO+2NC |
Coil voltage, AC50/60Hz
- 50Hz: 24, 36, 42, 48, 100, 110, 220, 240, 380, 400, 415, 440, 500, 550V
- 60Hz: 24, 48, 110, 120, 208, 220, 240, 277, 380, 440, 480, 600V
- 50/60Hz: 24, 36, 42, 48, 100, 110, 120, 200, 208, 220, 230, 240, 277, 380, 400, 415, 480, 500, 550, 600V
Coil voltage, DC
- 12, 20, 24, 48, 60, 80, 100, 110, 125, 200, 220, 250V
2.GMC 100-800A Characteristic
- 3 pairs of main contacts
- Design of safety cover against electric shock Guide rail or screw installation
- 2NO+2NC auxiliary contacts
- Attachments can be mounted on the top/side
- Can be directly plugged with thermal overload relay
3-pole contactor (AC/DC universal coil)
| Model |
Rated current |
AC3 (IEC60947-4) |
AC1
lth |
Auxiliary contact (standard) |
| 220~240V |
380~440V |
500~550V |
690V |
| GMC-100 |
100A |
30kW
105A |
55kW
105A |
55kW
85A |
55kW
65A |
160A |
2NO+2NC |
| GMC-125 |
125A |
37kW
125A |
60kW
120A |
60kW
90A |
60kW
70A |
160A |
2NO+2NC |
| GMC-150 |
150A |
45kW
150A |
75kW
150A |
90kW
140A |
90kW
100A |
210A |
2NO+2NC |
| GMC-180 |
180A |
55kW
180A |
90kW
180A |
110kW
180A |
110kW
120A |
230A |
2NO+2NC |
| GMC-220 |
220A |
75kW
250A |
132kW
250A |
132kW
200A |
132kW
150A |
275A |
2NO+2NC |
| GMC-300 |
300A |
90kW
300A |
160kW
300A |
160kW
250A |
200kW
220A |
350A |
2NO+2NC |
| GMC-400 |
400A |
125kW
400A |
220kW
400A |
225kW
350A |
250kW
300A |
450A |
2NO+2NC |
| GMC-600 |
600A |
190kW
630A |
330kW
630A |
330kW
500A |
330kW
420A |
660A |
2NO+2NC |
| GMC-800 |
800A |
220kW
800A |
440kW
800A |
550kW
720A |
500kW
630A |
900A |
2NO+2NC |
Coil, AC/DC universal coil.
| Nominal voltage |
AC 50/60Hz |
DC |
Rated current |
| 24V |
24-25V |
24V |
100-220A |
| 48V |
48-50V |
48V |
100-220A |
| 100/200V |
100-240V |
100-220V |
100-800A |
| 300V |
265-347V |
– |
100-800A |
| 400V |
380-450V |
– |
100-800A |
| 500V |
440-575V |
– |
100-800A |
