EBS6CH Modular Contactor

Function

EBS6CH series mini contactor mainly apply to the condition of 50Hz ( or 60Hz) , 400V or less rated operation voltage, 100A or less rated current under AC-7a application, or, 32A or less rated current under AC-7b application, 6kA or less rated breaking current, which is to control the household appliances, low or micro inductive reactance load, or household motor load as well. Its main performance indices comply with IEC 61095.

Specifications

Design code Modules Contact quantity Usage type Rated

insulation voltage

Rated

working voltage

Control voltage Rated

working

current

Control power
EBS6CH-16 EBS6CH-20

EBS6CH-25



1M



10, 01, 11, 20













AC-7a













500V



250V













220/240V AC 50Hz

16/6 2.8/1
20/7 4/1.2
25/8.5 5.4/1.5
EBS6CH-16 EBS6CH-20

EBS6CH-25



2M

30, 03, 22, 31, 40

13, 04



400V

16/6 2.8/1
20/7 4/1.2
25/8.5 5.4/1.5
EBS6CH-32 EBS6CH-40

EBS6CH-63



2M



10, 01, 11, 20, 02



250V

32/12 6.5/1.9
40/15 8.4/2.4
63/25 13/3.8
EBS6CH-32 EBS6CH-40

EBS6CH-63



3M

30, 03, 22, 31, 40

13, 04



400V

32/12 6.5/1.9
40/15 8.4/2.4
63/25 13/3.8

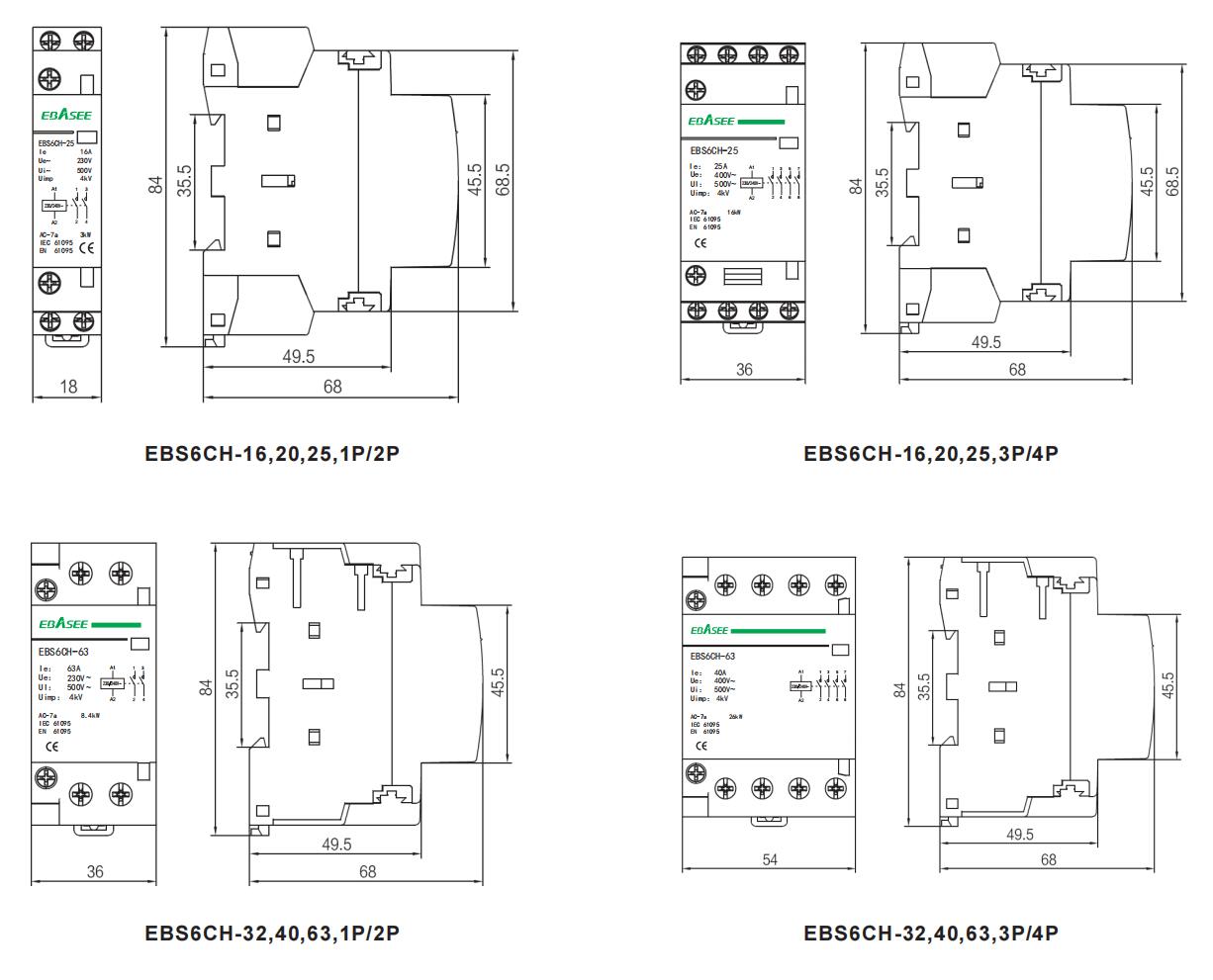

Dimensions

EBASEE-EBS6CH-63-AC-CONTACTOR.pdf
3 MB
Mini Contactor EBS6CH-CE Certificate
