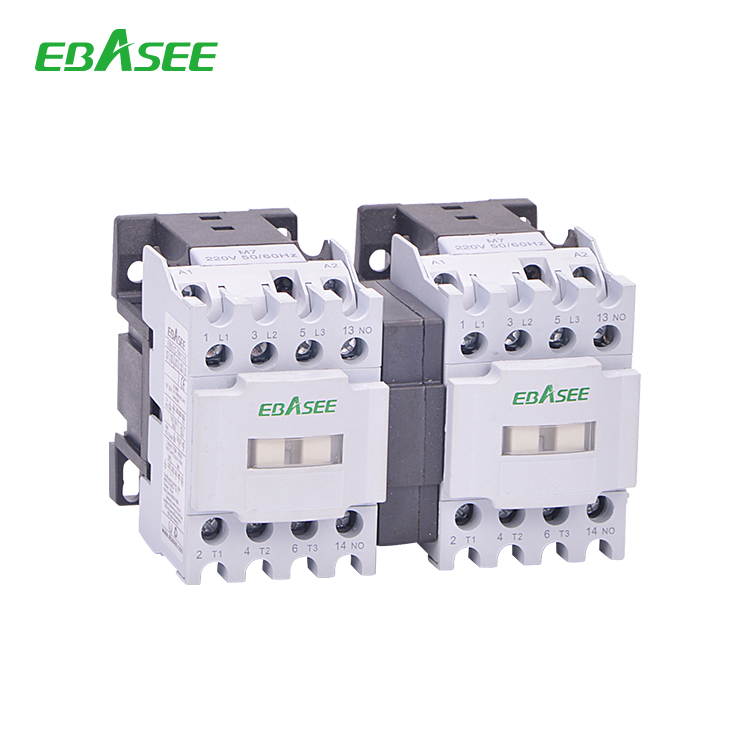

EBS1C-D/N AC Contactor

Function

EBS1C-D/N series reversible contactors are mainly used for controlling reversible operation or reverse braking motors in circuits with AC 50/60Hz and rated insulation pad 690V and rated current up to 380V A under AC-3 category, which can prevent phase-to-phase short circuit of motors during commutation and is more reliable than electric interlocking only. They are combined with thermal relays of corresponding specifications to protect possible load circuits. This product uses IEC60947-4-1.

Specifications

Rated operating current

380V AC- 3





220V  230V

Standard power ratings of     3-phase motors 50- 60Hz AC- 3



660V   690V

kW

Poles Type code

230V 50Hz

Please contact us for

other coil voltage .

380V 400V        415V        440V
A kW kW                kW            kW
9 2.2 4                   4 4 5.5 3 1C-D/N9P5
12 3 5.5                5.5 5.5 7.5 3 1C-D/N12P5
18 4 7.5                  9 9 10 3 1C-D/N18P5
25 5.5 11                  11 11 15 3 1C-D/N25P5
32 7.5 15                  15 15 18.5 3 1C-D/N32P5
40 11 18.5 22 22 30 3 1C-D/N40P5
50 15 22                 25 30 33 3 1C-D/N50P5
65 18.5 30                 37 37 37 3 1C-D/N65P5
80 22 37                 45 45 45 3 1C-D/N80P5
95 25 45                 45 45 45 3 1C-D/N95P5

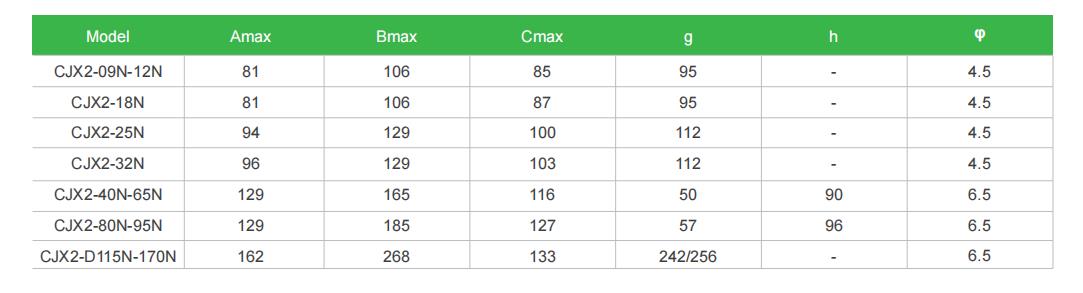

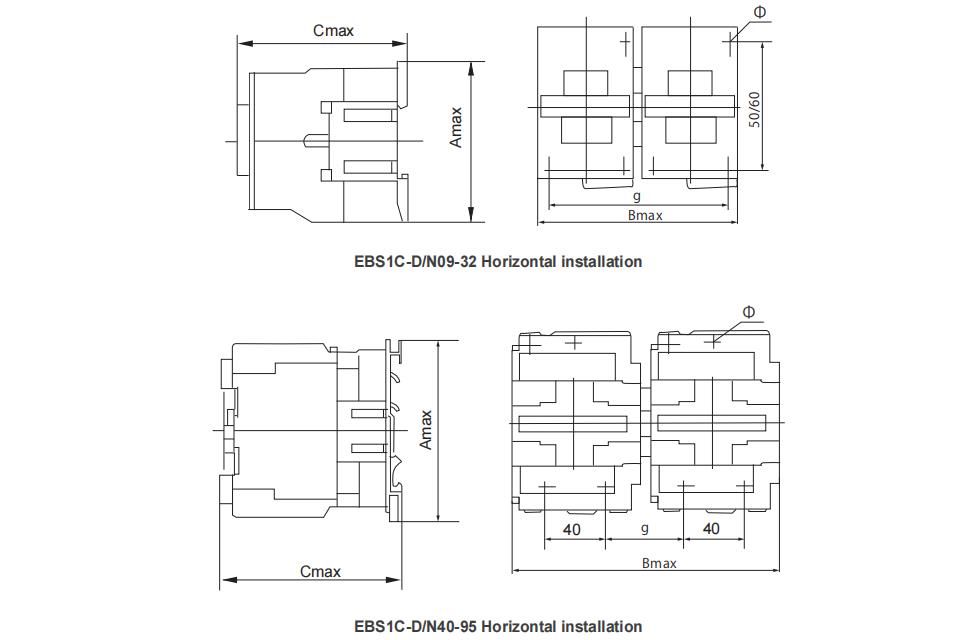

Dimensions



EBASEE-EBS1C-D-N-AC-Contactors.pdf
6 MB
