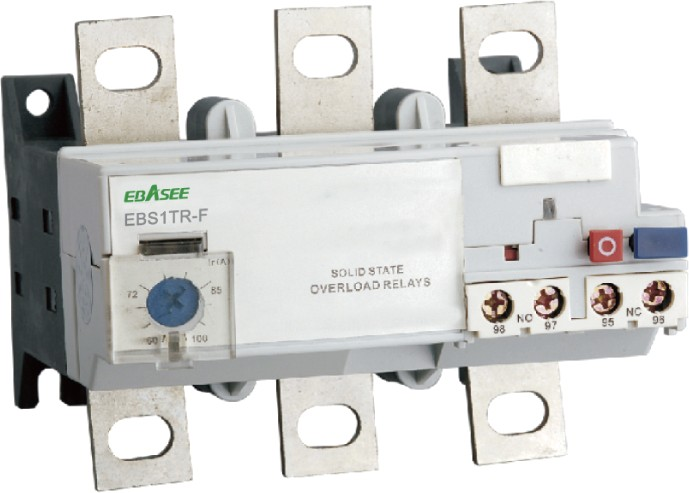

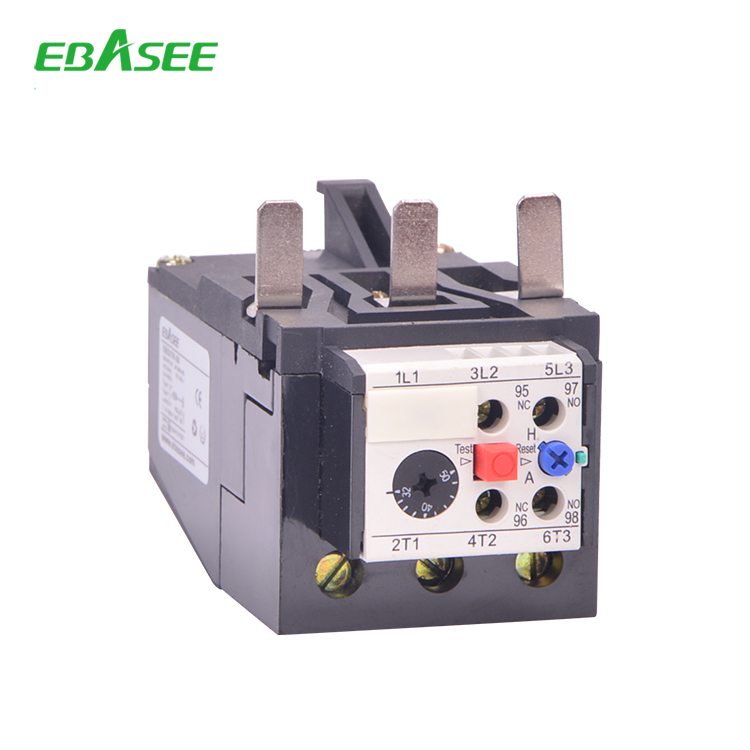

EBS1TR-F thermal overload relays are designed for use with contactors from EBS1C-115 to EBS1C-330. In addition to the protection provided by modular thermal overload relays EBS1TR, they offer the following special features:
| Ty pe | Number | Setti ng r ange( A) | For contactor |
|
EBS1TR-F53 |
F5357 | 30~50 | 1C-F115~F185 |
| F5363 | 48~80 | 1C-F115~F185 | |
| F5367 | 60~100 | 1C-F115~F185 | |
| F5369 | 90~150 | 1C-F115~F185 | |
| F5371 | 132~220 | 1C-F225~F265 | |
|
EBS1TR-F73 |
F7357 | 200~330 | 1C-F225~F500 |
| F7379 | 300~500 | 1C-F225~F500 | |
| F7381 | 380~630 | 1C-F400~F630 |
|
Relay setting range(A) |
Fuses to be used with selected relay Maximum rating |
Contactor |
Type code |
||
| aM Type(A) | gG Type(A) | ||||
|
30~50 | 50 | 80 | 1C- F 115…F 185 | 1TR F 53/50 |
| 48~80 | 80 | 125 | 1C- F 115…F 185 | 1TR F 53/80 | |
| 60~100 | 100 | 200 | 1C- F 115…F 185 | 1TR F 53/100 | |
| 90~150 | 160 | 250 | 1C- F 115…F 185 | 1TR F 53/150 | |
| 132~220 | 250 | 315 | 1C- F 225…F 265 | 1TR F 53/220 | |
| 200~330 | 400 | 500 | 1C- F 225…F 500 | 1TR F 73/330 | |
| 300~500 | 500 | 800 | 1C- F 225…F 500 | 1TR F 73/500 | |
| 380~630 | 630 | 800 | 1C- F 400…F 630 | 1TR F 73/630 | |
