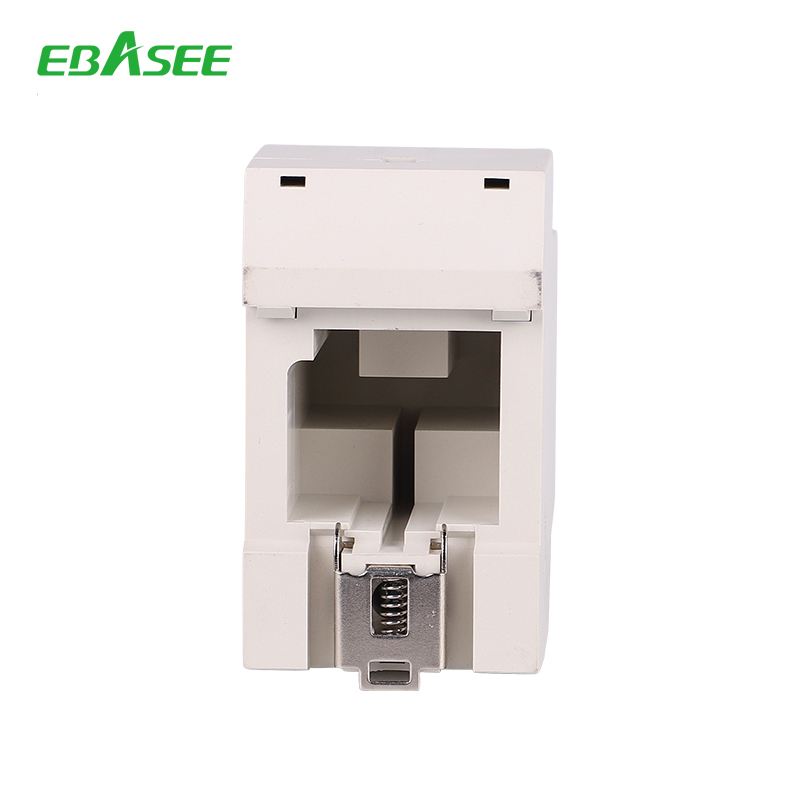

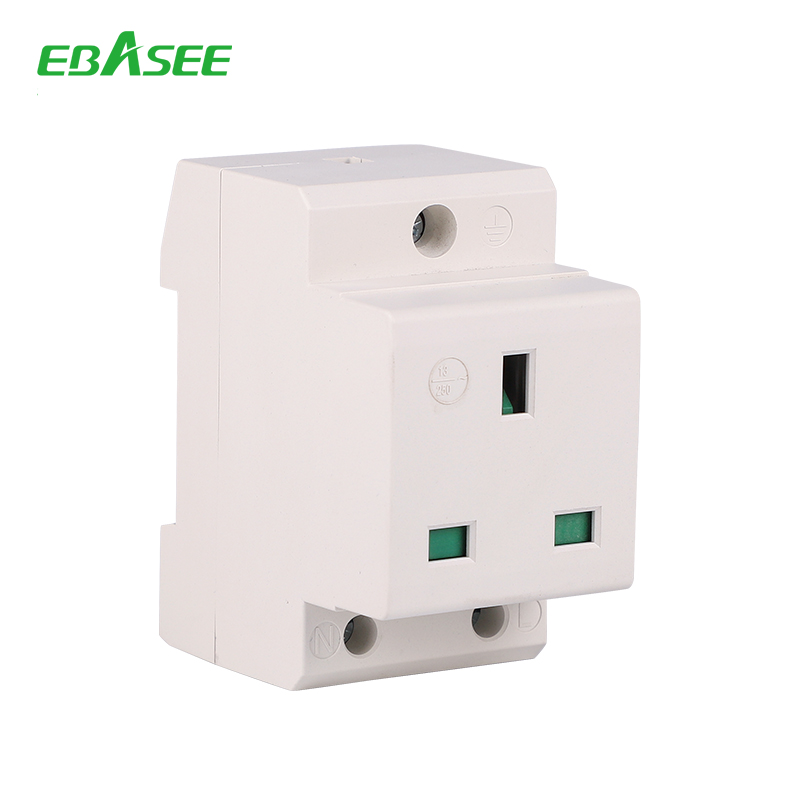

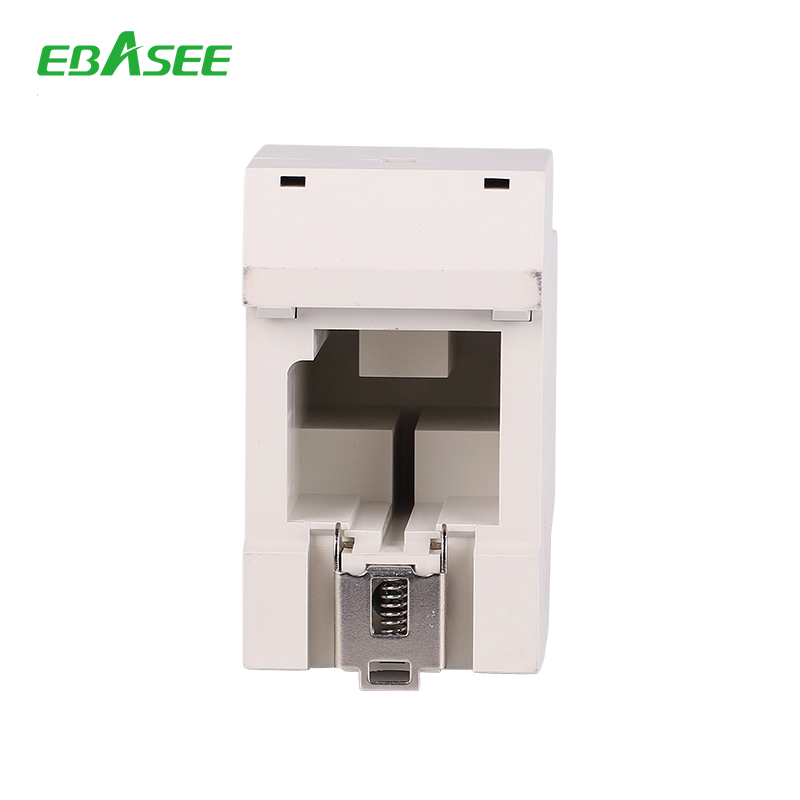

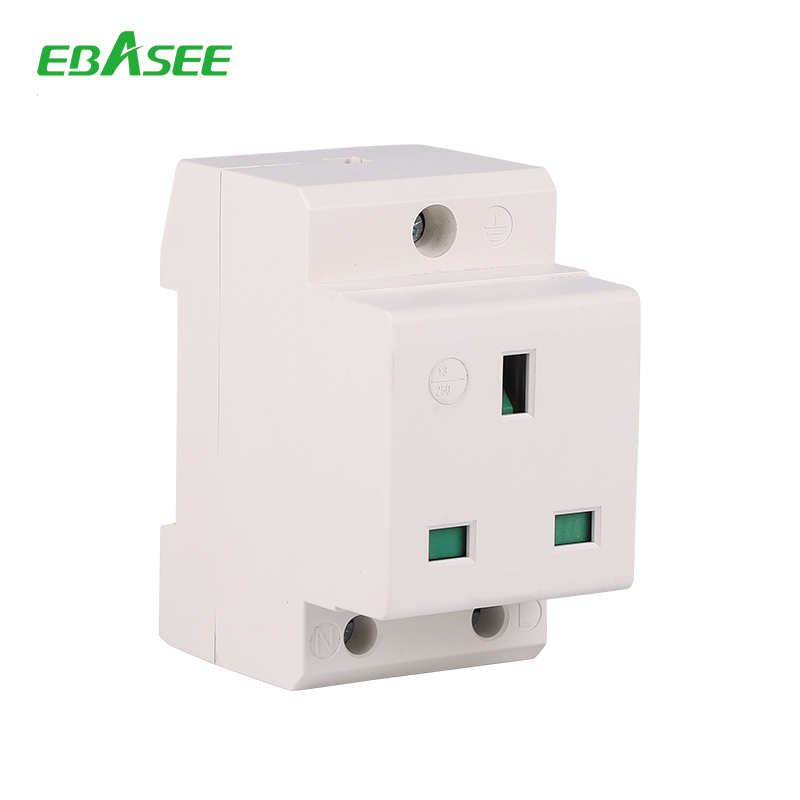

EBSA5 DIN Rail Mountable UK Socket Modular Socket

Introduction

EBASEE has a very wide range of modular sockets, which conforming to 5 national standards – Italian, French, German, English, Swiss – suitable for use in around 180 countries. The modular sockets have quality approvals, attesting their conformity with applicable regulations.

Function

Modular socket applies to circuit of AC 50/60 Hz,voltage 230/400V,current up to 25A.It is mainly used for family, office, farm, distribution box, lighting box, light industry etc, also available for non-specialists using.Life is longer than others with phosphor copper and flame retardant plastics material. It conforms to IEC 60884-1;GB 1002;GB2009.1 stardand.

Specifications

Standard EBSA5
Rated current In 10, 16, 25A
Width(mm) mm 45
Connection capacity mm² ≤4mm²
Frequency Hz 50/60Hz
Electrical life times 5000
Rated Insulation voltage Ui V 5000V
Protection grade IP20
Standard mounting mm 35mm DIN rail
Ambient temperature -5℃  to +40℃



Dimensions

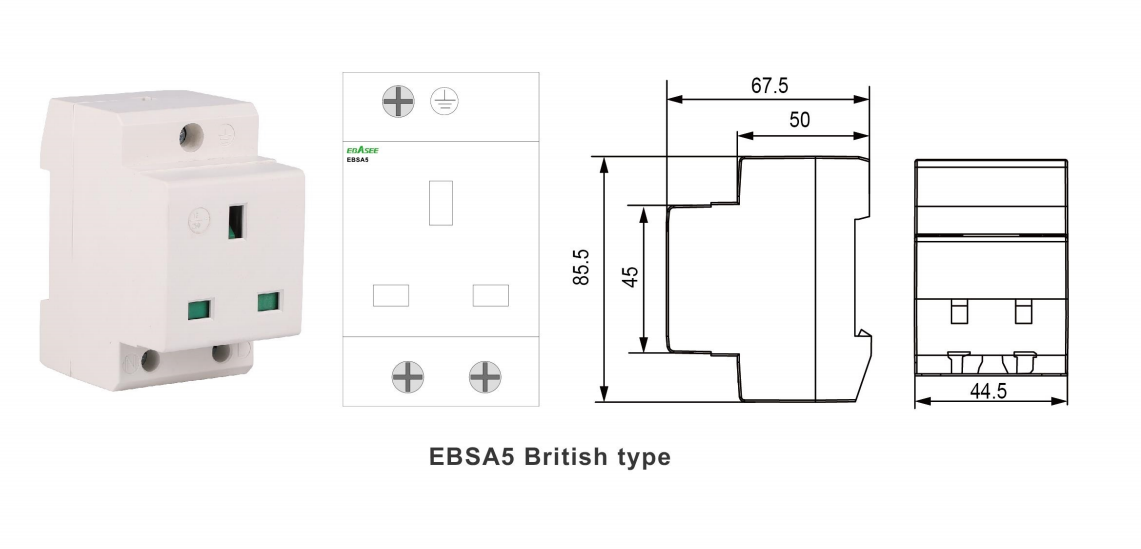

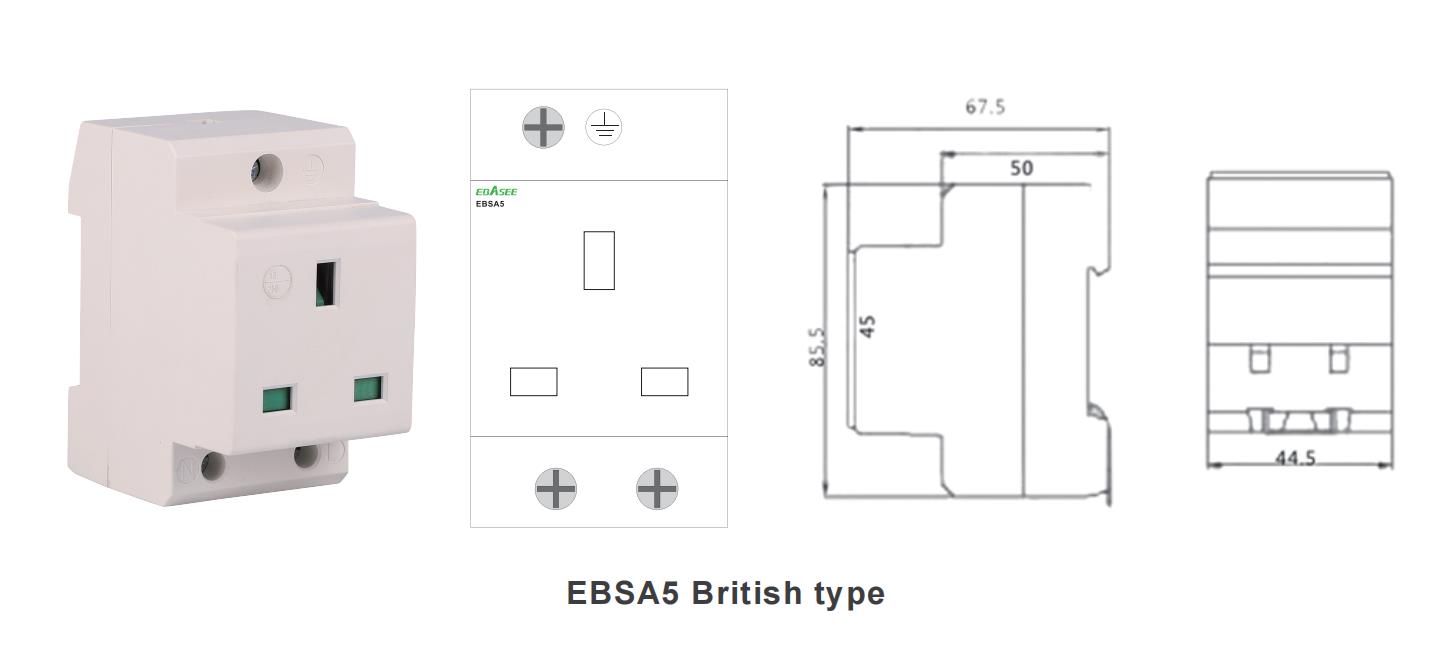

EBSA5 British Type Dimension

EBASEE-EBSA2-A3-A4-A5-A6-A7-Modular-Socket.pdf
11 MB
