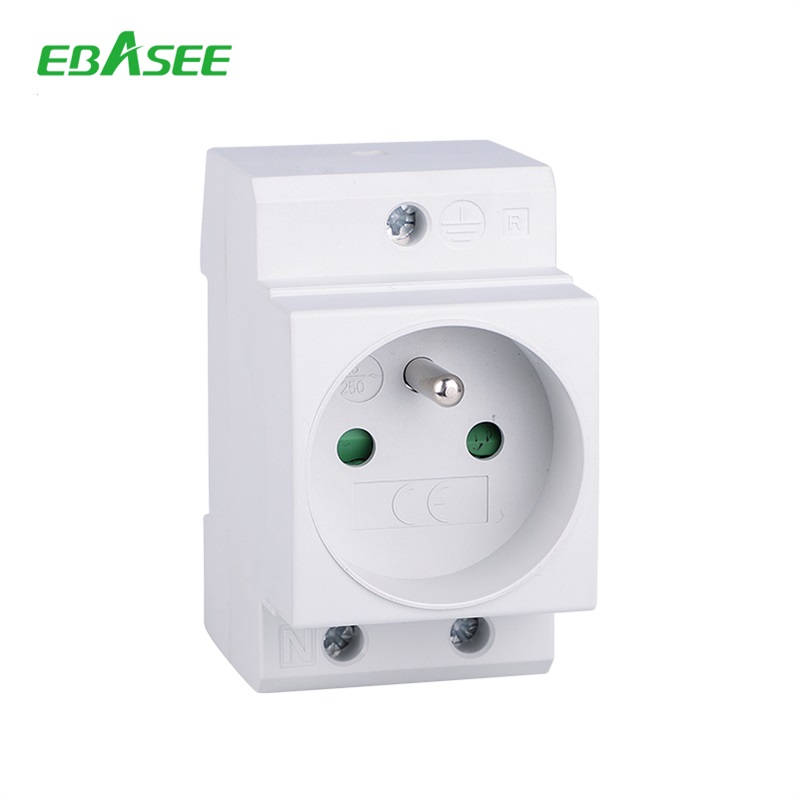

EBSA2 Din Rail Socket-French Standard

Introduction

EBASEE has a very wide range of modular sockets, which includes 38 models conforming to 5 national standards – Italian, French, German, English, Swiss –
suitable for use in around 180 countries. The modular sockets have local quality approvals, attesting their conformity with applicable regulations.

Function

Modular  socket  applies  to  circuit  of AC  50/60 Hz,voltage 230/400V,current up to 25A.It is mainly used for family, office, farm,  distribution  box,  lighting  box,  light  industry  etc,  also available for non-specialists using.Life is longer than others with phosphor copper and flame retardant plastics material. It conforms to IEC 60884-1 ;GB 1002;GB2009.1 stardand.

Specifications

Standard EBSA2
Rated current In 10, 16, 25A
Width(mm) mm 45
Connection capacity mm2 ≤4mm2
Frequency Hz 50/60Hz
Electrical life 5000 times
Rated Insulation voltage Ui V 5000V
Protection class IP20
Standard mounting mm 35mm DIN rail
Ambient temperature C -5C to +40C

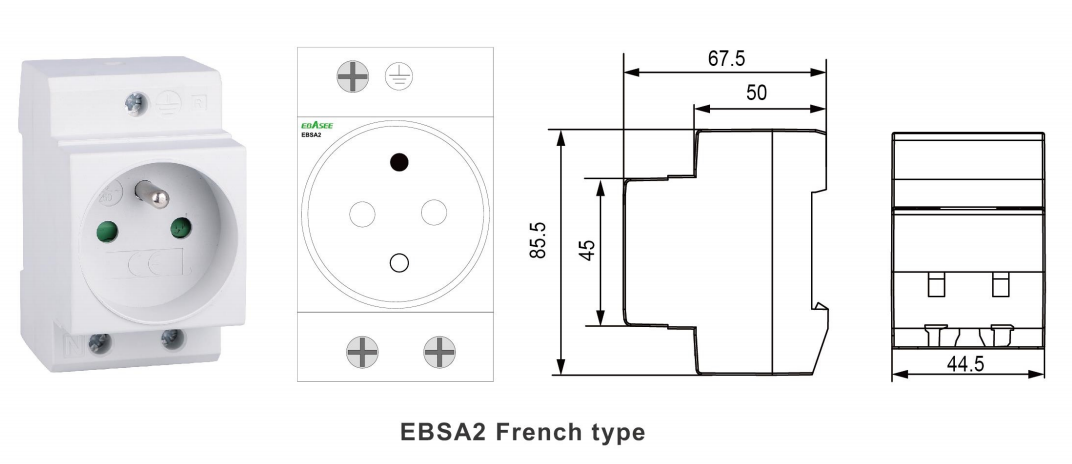

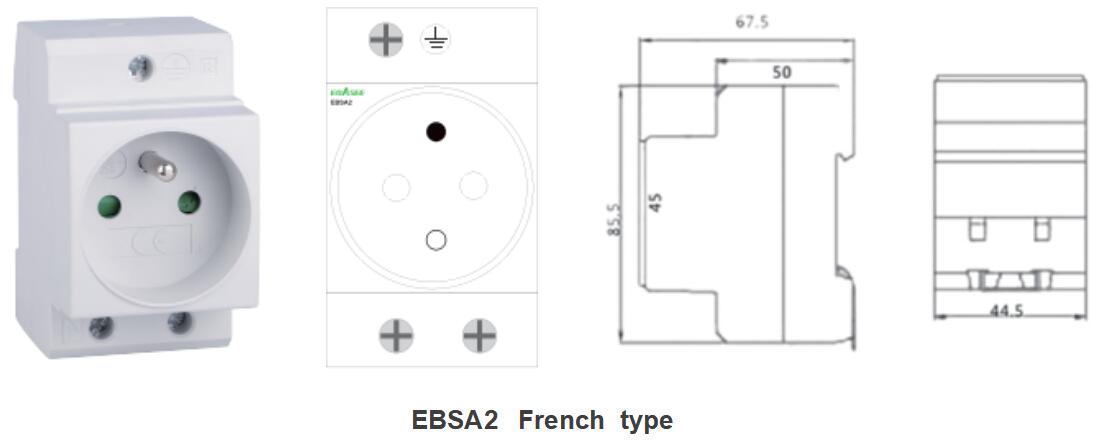

Dimensions



EBASEE-EBSA2-A3-A4-A5-AC30-Modular-Socket-1.pdf
4 MB
Modular Socket EBSA1 EBSA2 EBSA3-ROHS Certificate
Modular Socket EBSA2-CE Certificate
