Products

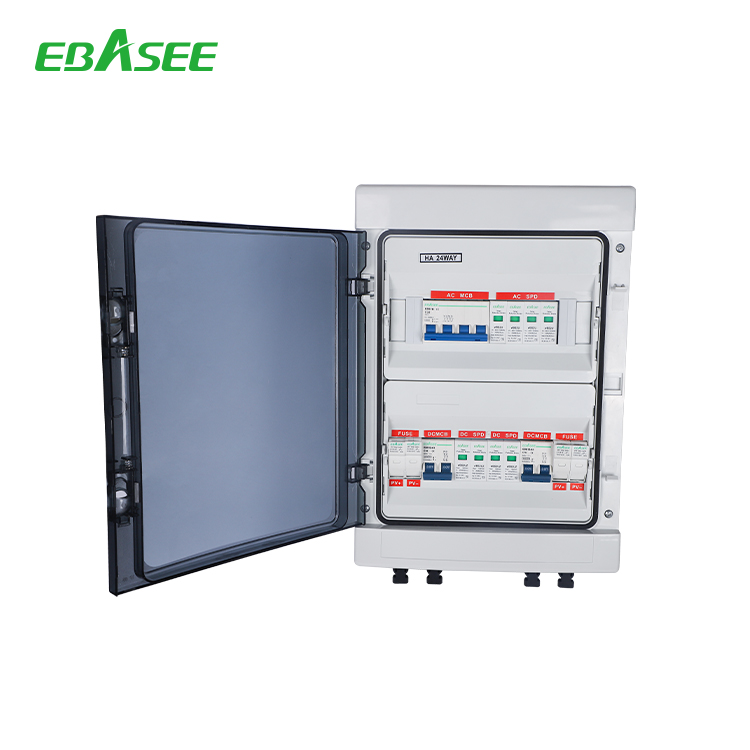

PV Combiner box is a complete set of low-voltage products newlydeveloped for the distribution electricity market. Standardized productdesign, unified brand image and all-round customer experienceimprovement all stem from the initial intention of creating value for
customers.
PV Combiner box meets IEC7251.1 standard. It can be used inhousehold solar panels to generate electricity to confluence components,and the components are output to inverter and energy storage, and afterinverter, they can be used in various scenarios such as AC powerdistribution, motor control and lighting control.There are different installation methods, such as wall-mounted surfaceinstallation and wall-mounted concealed installation. At the same time,it can meet the requirements of different installation sites for indoorinstallation and outdoor installation.
PV Combiner box is assembled with high-quality PC/ABS materials bymolding and assembling, with humanized design, reasonable structural
layout and novel and beautiful appearance.
| Product Name | Model | Product name | Description | No. |

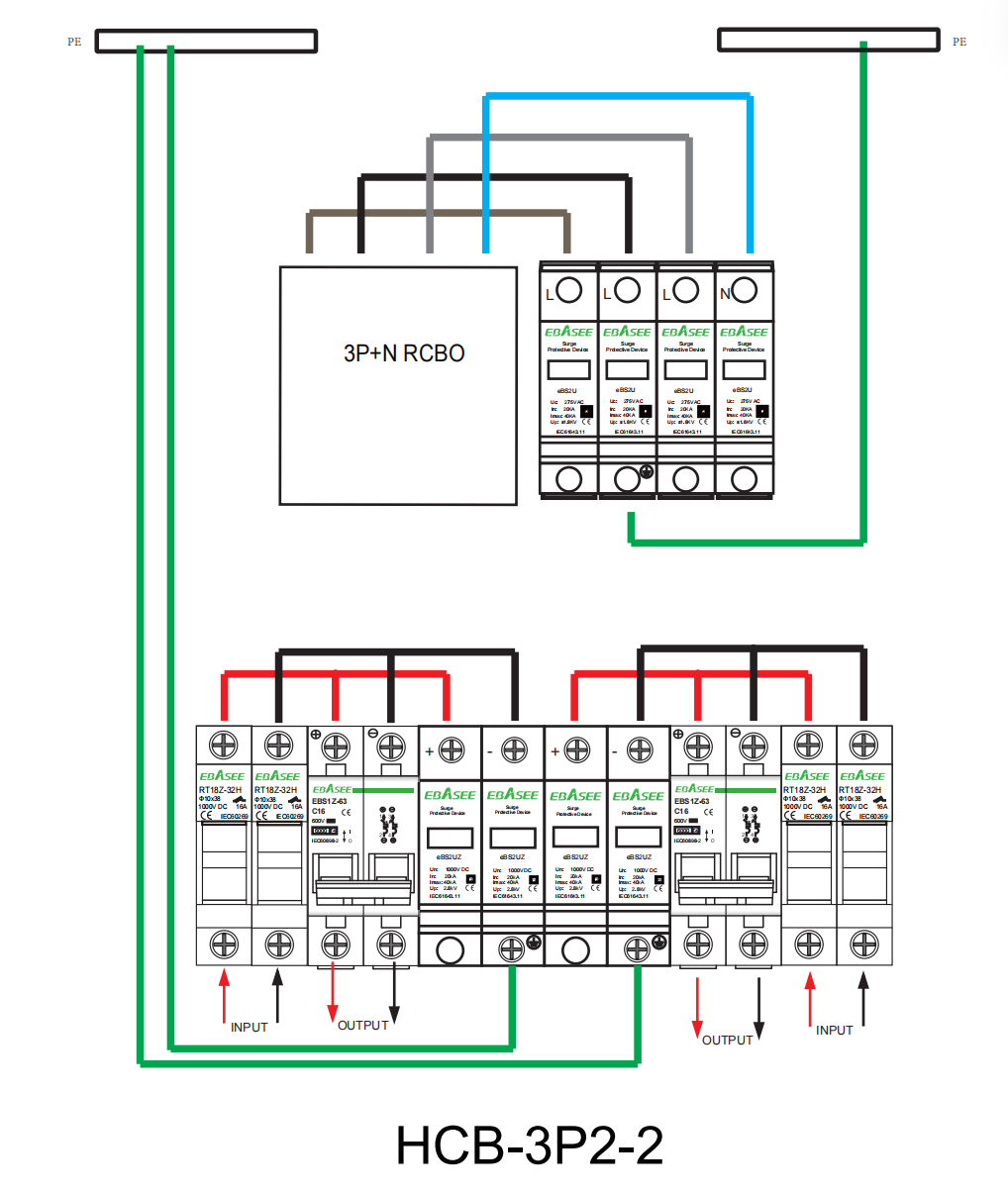

| Combiner box
HCB-3P2-2 |
EBS-HA-24 | waterproof box | 24Way*1pcs
DC wire:4m2 AC Wire : 6mm2 Cooper termial: 6*9mm AC /DC |
1 |
| MC4 | PV Cable contactor | M9 *1pcs | 1 | |
| MC4 | PV Cable contactor | M13.5**4pcs | 4 | |
| MC4 | PV Cable contactor | M19*3pcs | 3 | |
| EBS1Z | DC MCB | 2P 16A*2pcs DC600V | 2 | |
| RT18Z-32H | DC Fuse | 1P 32A*4pcs DC1000V | 4 | |
| RO15 | DC fuse link | 10*38 16A *4pcs | 4 | |
| eBS2UZ | DC SPD | 2P 20-40kA 1000V *2pcs | 2 | |
| eBS2U | AC SPD | 4P 20-40kA 440V*1pcs | 1 |
