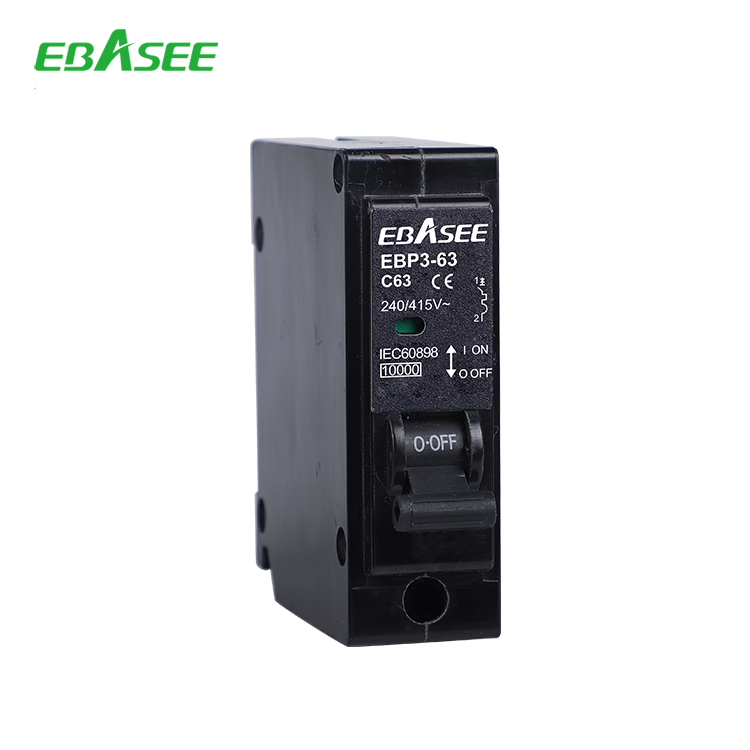

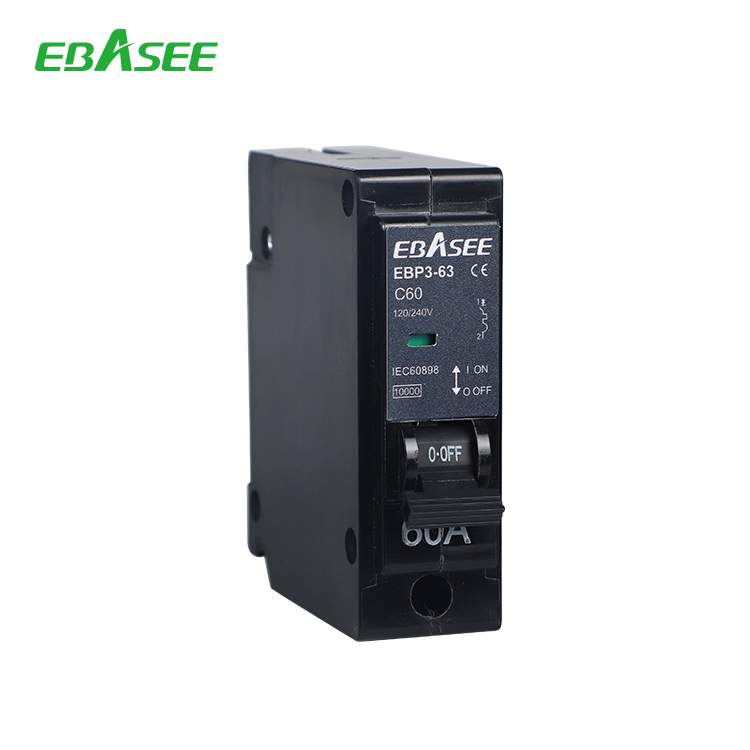

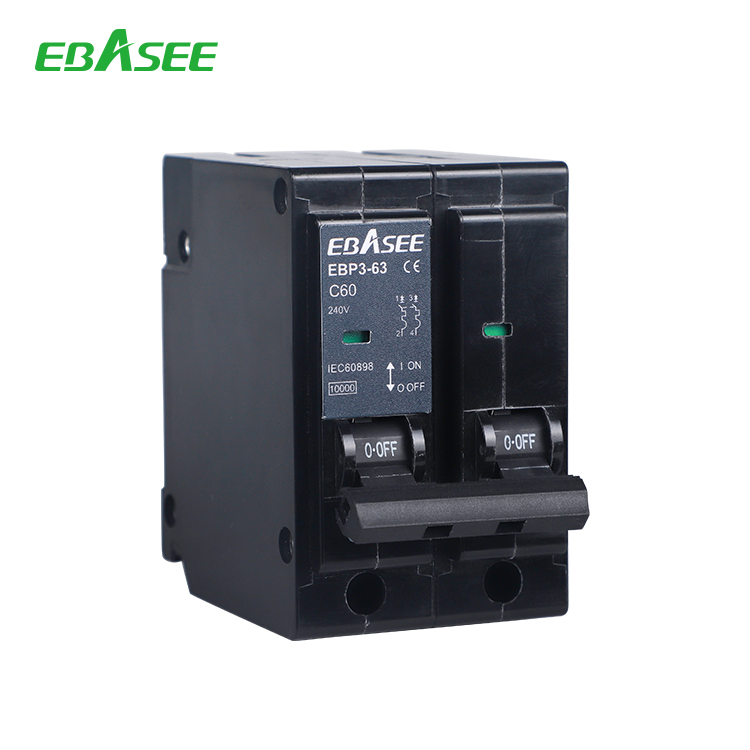

EBP3 Plug-in Circuit Breaker

Function

EBP3 series miniature circuit breaker is mainly used for overload and short circuit protection. Mainly application for commercial and industrial lighting and distribution. With features of good shape, light weight, reliable performance and high breaking capacity. Shell and parts are composed of fire-resisted and shake-proof plastics, with long working life. This product is available in overload and short circuit protection of 50/60Hz AC circuit,rated voltage(single pole) of 240V, (two and three poles) of 415V. Also used for abnormal circuit exchange and normal lighting.

This product complies with IEC60898-1.

Specifications

Standard lEC/EN 60898-1
Poles P 1P, 2P, 3P, 4P, 1P+N, 3P+N
Rated current In (A) A 1, 2, 3, 4, 6, 10, 15, 16, 20, 25, 30, 32, 40, 50, 60, 63A
Rated voltage Un (V) V 240/415V
Tripping characteristic B, C, D
Protection grade IP20
Installation Plug-on
Breaking capacity kA 6
Connection capacity mm² ≤25mm²
Electrical life (times) 4000
Mechanical life (times) 10000
Model Rated voltage(V) Breaking capacity


EBP3

1P: 120/240/415V 6000A
2-4P: 120/240/415V 6000A

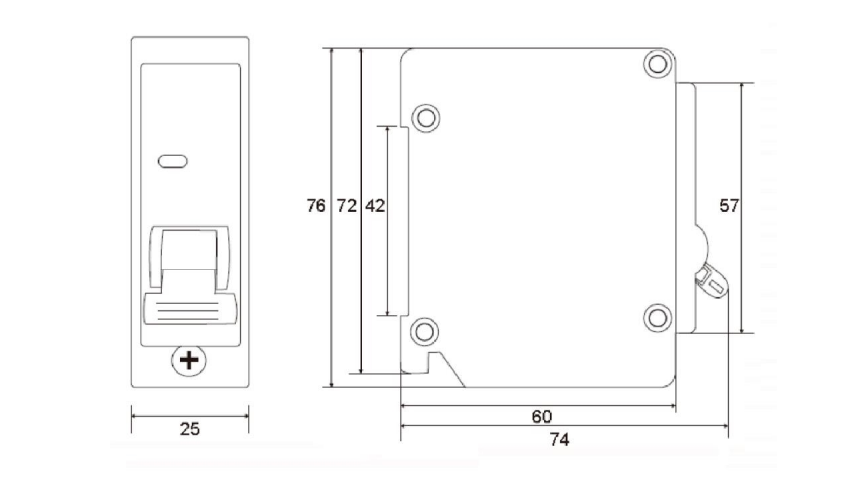

Dimensions

EBP3 Dimensions
