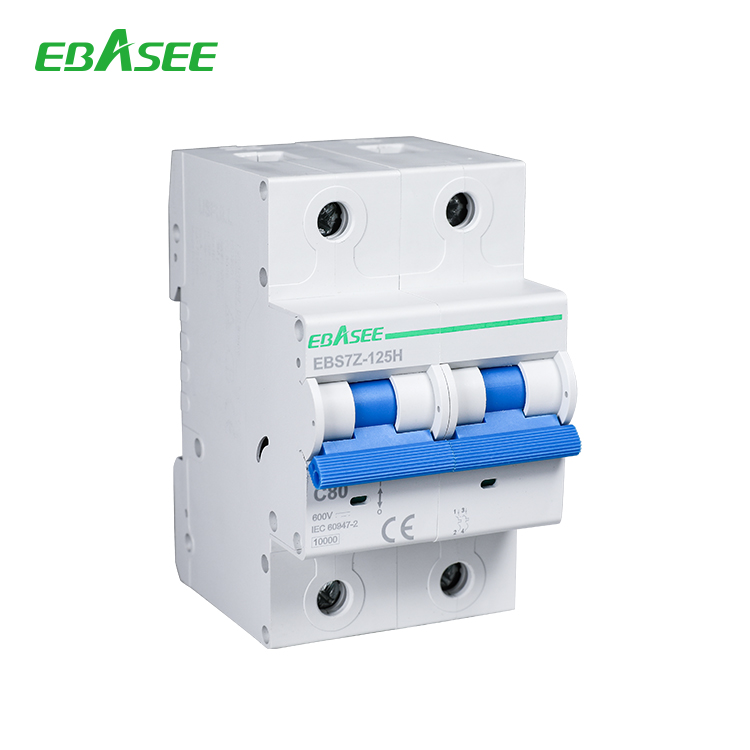

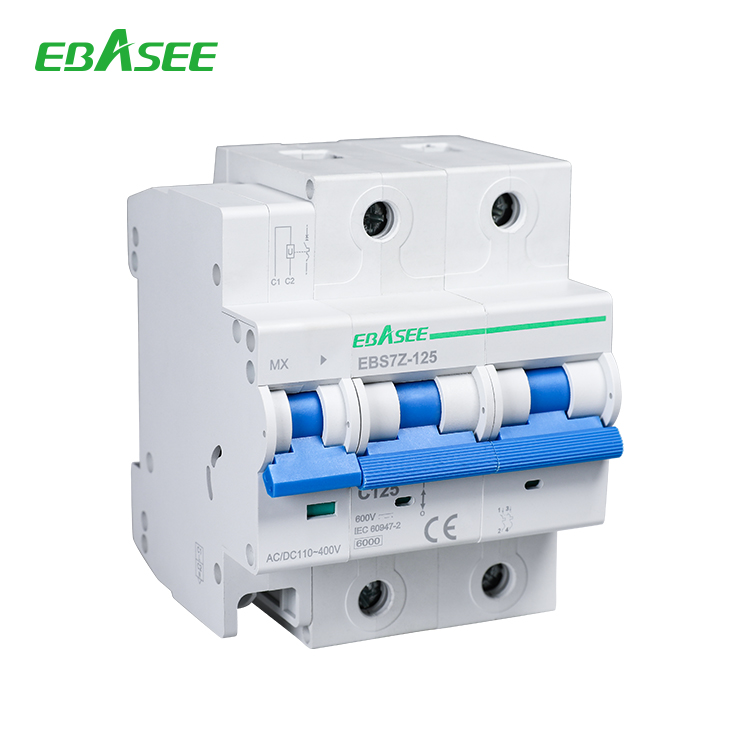

Protection of DC circuits against short-circuit and overload currents,switching and isolation.EBS7Z-125H DC mini circuit breakers are suitable for higher-currentDC power distribution systems and electrical equipment, includingphotovoltaic, energy storage and other DC applications.
Technical data of the DC system at the point considered: rated voltage,rated current, number of poles and prospective short-circuit current.The prospective short-circuit current at the circuit-breaker installation
point must not exceed the breaking capacity of the device.
The appropriate tripping curve should be selected according to the load characteristics:
B curve (4In-7In)
Suitable for circuits with relatively low inrush current.
C curve (6In-10ln)
Suitable for general circuits and loads with moderate inrush current.
D curve (10In-14In)
Suitable for circuits supplying loads with high inrush current.
EBS7Z-125H adopts a non-polarized design, allowing flexible wiring without polarity restrictions.
| Standard | IEC60947-2 | |
| Rated frame current | A | 125 |
| Rated insulation voltage Ui | V | DC 1000V |
| Rated impulse withstand Uimpvoltage Uimp | kV | 6kV |
| Rated current | 32, 40, 50, 63, 80, 100, 125 | |
| Rated voltage | V | DC250V(1P), DC500V(2P), DC750V(3P), DC1000V(4P) |
| Tripping curve | B: (4In-7In), C: 8In±20%, D: 12In+20% | |
| Poles | 1P, 2P, 3P, 4P | |

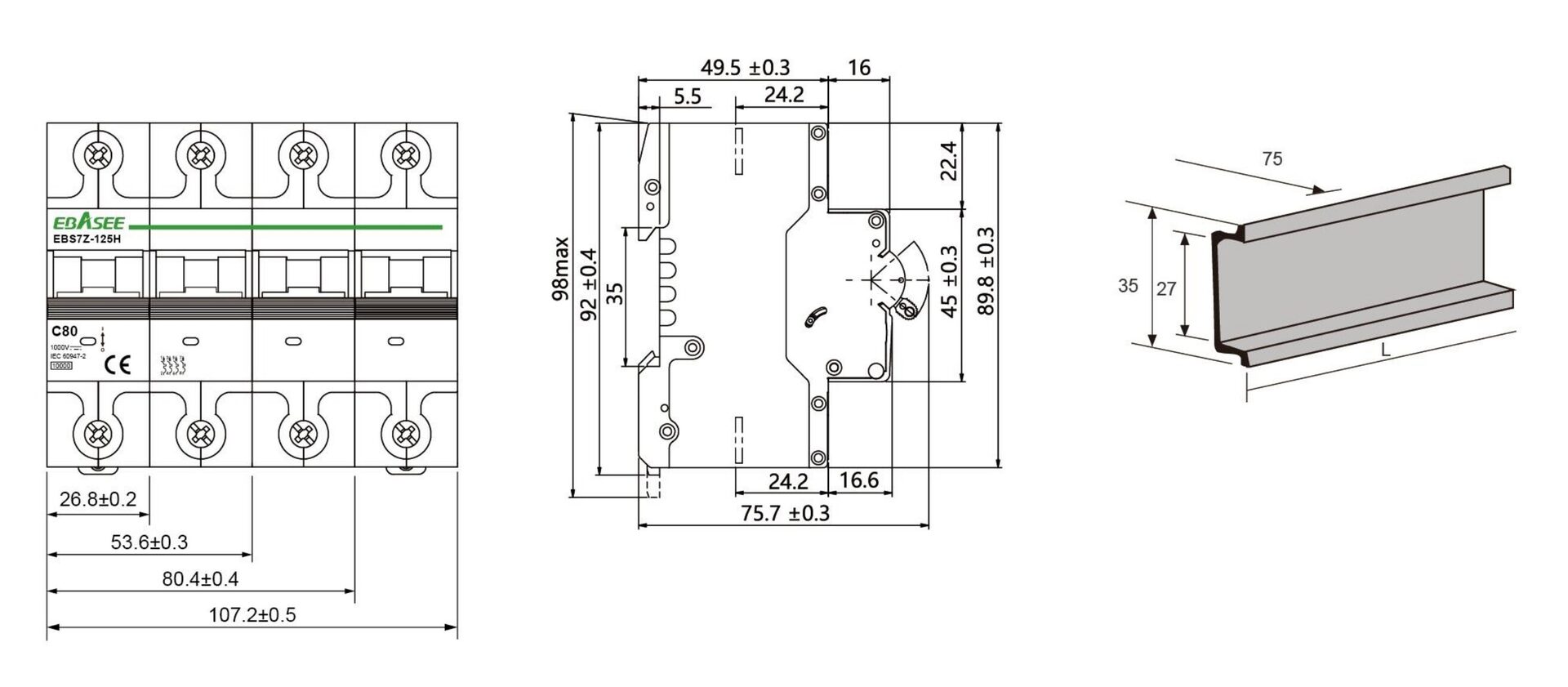

| Unipolar width | mm | 27 |
| Ultimate short-circuitbreaking capacity Icu | kA | 10 |
| Operating short-circuit breaking capacity Ics | kA | 7.5 |
| Reference temperature | °C | 30°C |
| Usage Category | A | |
| Mechanical life | 20,000/order | |
| Electrical lifespan | 1500/more than once | |
| Protection grade | IP20 | |
| Wiring capacity | mm² | 50 |
| Connection | Both upper and lower incoming lines are acceptable |
Solar PV Systems, Battery Energy Storage Systems , DC Distribution Systems, Telecommunication Systems , Industrial Control Systems,DC Control Systems
Q1: Can I get samples for testing?
Yes. Samples are available for quality and performance testing.
Q2: Do you support OEM/private labeling?
Yes. We support OEM/ODM, including private labeling and customized packaging.
Q3: What certifications are available for this model?
CE, CB, TÜV and other certifications are available depending on the model. Please contact us for details.
Q4: Can you supply different poles and tripping curves?
Yes. Different poles and B/C/D tripping curves are available depending on the model.
Q5: What is the typical production lead time?
Typically around 35 days, depending on order quantity and customization requirements.
 |
|||
