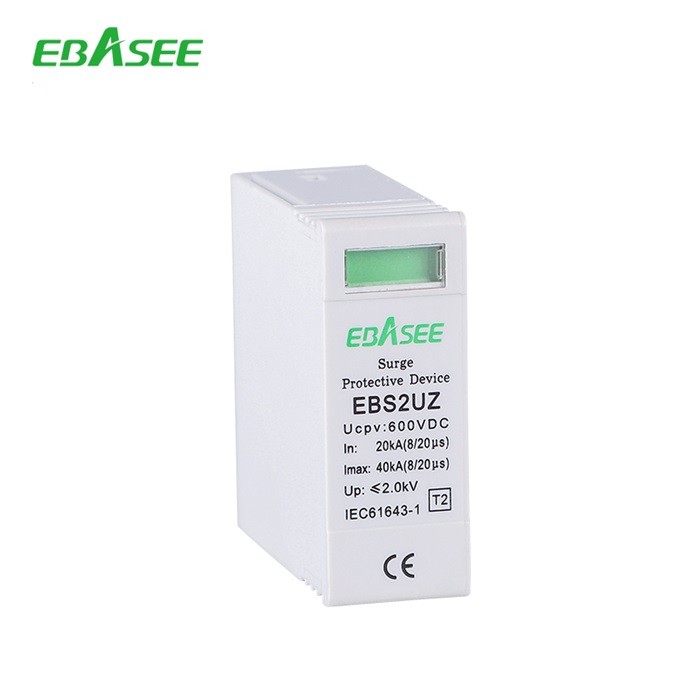

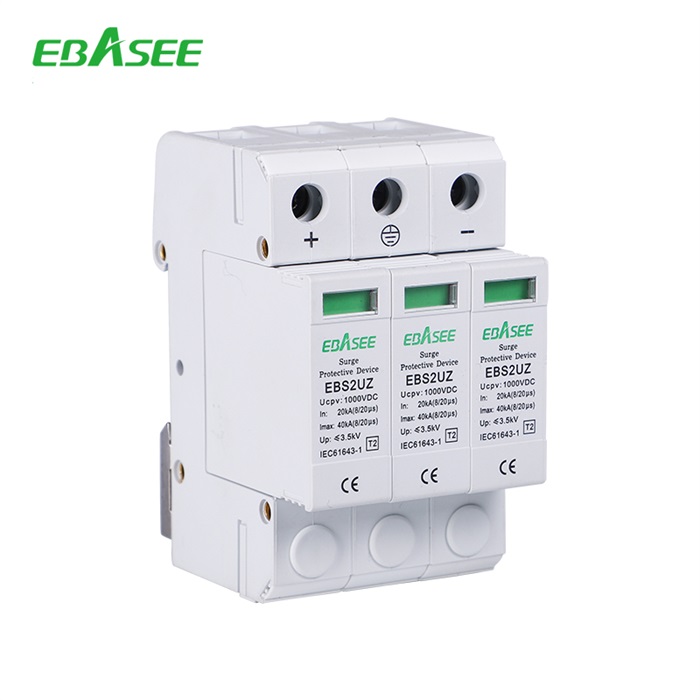

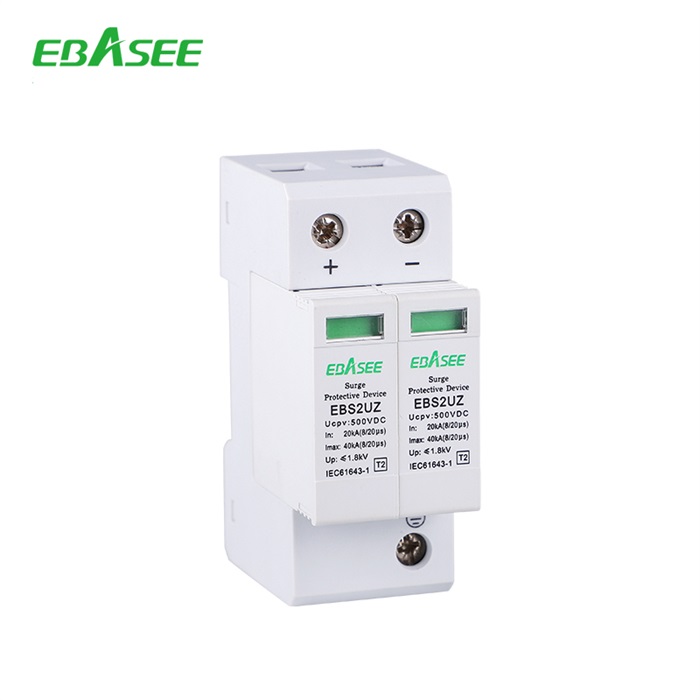

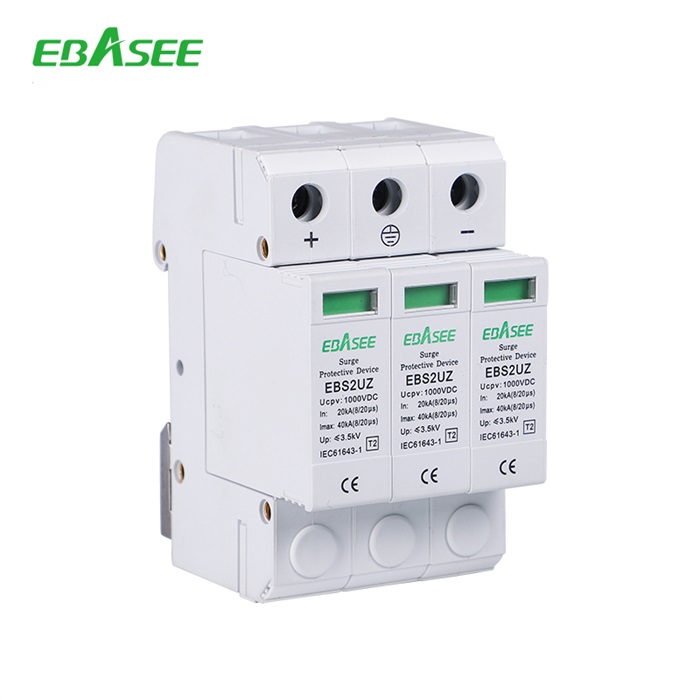

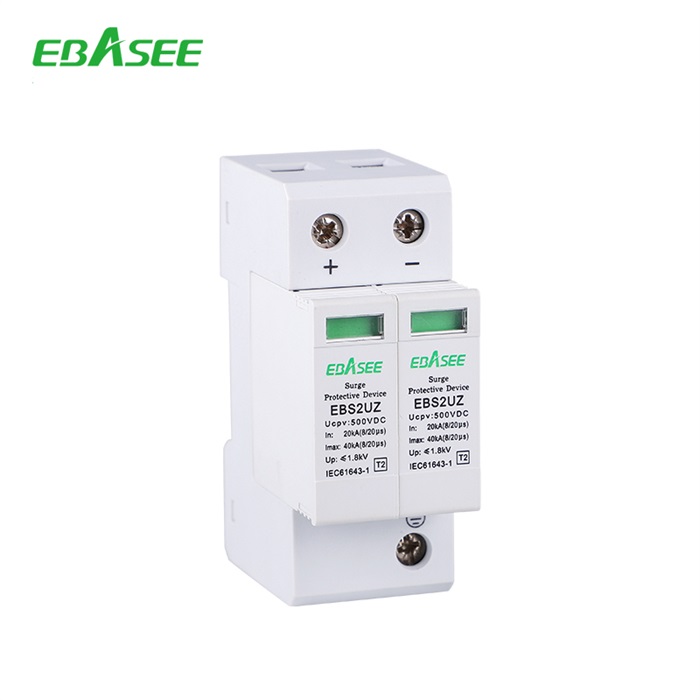

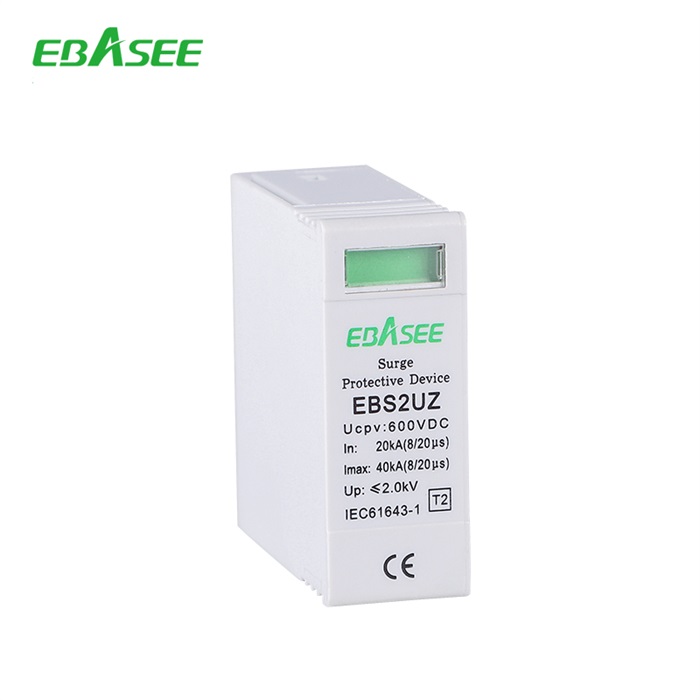

EBS2UZ DC surge arrester is to be installed in 1000V DC system for PV application and other DC application.The product is to installed in lightning protection zone between LPZ1 to LPZ2 for PV system DC side and other DC distribution box. It will provide surge protection against lighting strike and other surge current.
| Type | Standard | lEC/EN 61643-1 | |||
| Electrical features | SPD Type | TYPE2 | |||
| Max. Continuous operating a.c.voltageVoltage UCPV | V | DC1000 | |||
| Norminal discharge current (8/20µs) In | A | 20k | |||
| Max. discharge current (8/20µs) Imax | A | 40k | |||
| Voltage protection level Up | V | <3.8kV | |||
| Short circuit withstand ISCPV | A | 1000 | |||
| Location | Indoor | ||||
| SPD failure behavier | open circuit mode | ||||
| Residual current IPE ac. and dc. | 500µA; 50µA | ||||
| Response time | 25ns | ||||
| Follow current extinguishing capability a.c. | No follow current | ||||
| Operating temperature and humidity | C | -40~+70 5% to 95% | |||
| Enclosure material | PA-6V0 | ||||
| Protection Level | IP2X | ||||
| Terminal connection type | Cable | ||||
| Terminal size top / bottom for cable | mm² | 25 | |||
| AWG | 18-3 | ||||
| Installation | Terminal size top / bottom for busbar | mm² | 25 | ||
| AWG | 18-3 | ||||
| Tightening torque | N*m | 2.5 | |||
| In-Ibs | 18 | ||||
| Mounting | On DIN rail EN 60715(35mm)by means of fast clip device | ||||
| Connection | From top and bottom | ||||

Suitable for residential, commercial, and industrial distribution systems, including distribution panels and electrical equipment protection against lightning and switching surges.
Q1: What types of surge protection are available?
A: The EBS series offers Type 2 surge protection for low-voltage AC distribution systems.
Q2: What discharge current ratings are available?
A: The series offers nominal discharge currents (In) from 5kA to 50kA and maximum discharge currents (Imax) up to 100kA, depending on the model.
Q3: Is the SPD compatible with different electrical systems?
A: Yes. It supports TT, TN-C, TN-S, TN-C-S, and IT earthing systems, with multiple pole configurations available.
Q4: How is the SPD installed and maintained?
A: It supports 35mm DIN rail mounting and features a green/red status indicator for easy maintenance.
Q5: Can the SPD be customized for different project requirements?
A: Different pole configurations, discharge current ratings, and optional remote signaling are available to meet project requirements.
![]() |
|||
