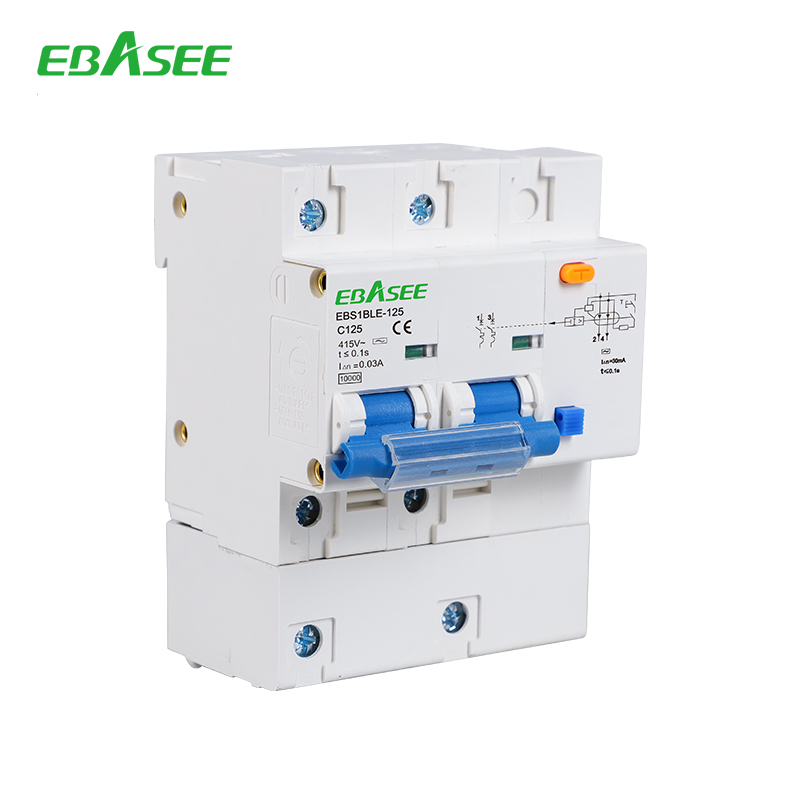

EBS1BLE-125 Residual Current Circuit Breaker with Over Current Protection

Function

Suitable for industrial, commercial, high-rise and civil residences circuit protection.
•Overload& short circuit protection
•Protect people against indirect contacts and additional protection against direct contacts.
•Protect installations against fire hazard due to insulation faults.
•Control electric circuits

Specifications

Type Standard IEC/EN 61009-1














Electrical features

Poles P 1, 2, 3, 4, 1P+N, 3P+N
Type(wave form of the earth leakage sensed) AC
Thermo-magnetic release characteristic 8-12In, C, D
Rated current In A 63, 80, 100, 125
Rated voltage Ue V 240/415
Rated sensitivity lΔn A 0.03, 0.05, 0.1, 0.3
Rated short-circuit capacity lcn A 6000, 10000
Break time under lΔn s ≤0.1
Rated frequency Hz 50/60
Rated impulse withstand voltage(1.2/50)Uimp V 4000
Dielectric test voltage at ind.Freq.for 1min kV 2
Insulation voltage Ui V 500
Pollution degree 2






Mechanical features

Electrical life t 1500
Mechanical life t 8000
Contact position indicator Yes
Protection degree IP20
Ambient temperature(with daily average≤35℃) -5~+40
Storage temperature -25~+70










Installation

Terminal connection type Cable/Pin-type busbar


Terminal size top/bottom for cable

mm² 35
AWG 18-1/0


Terminal size top/bottom for busbar

mm² 35
AWG 18-1/0


Tightening torque

N*m 2.5-4
In-Ibs 31
Mounting On DIN rail EN60715(35mm)by means of fast clip device
Connection From top



Dimensions

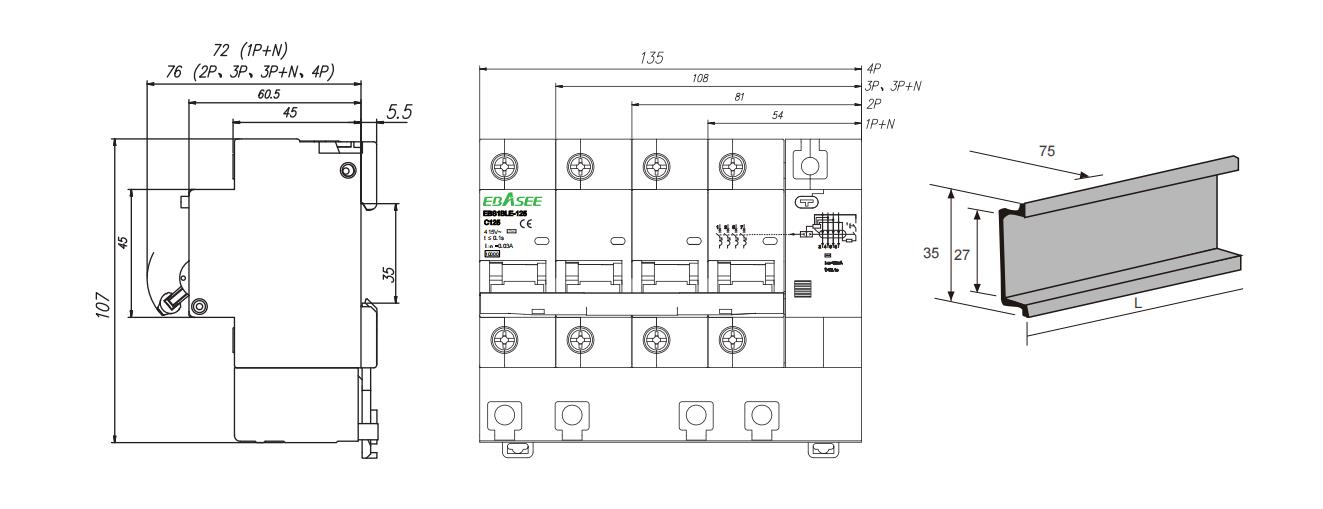

EBASEE EBS1BLE-125 RCBO Dimensions

EBASEE-EBS1BLE-125-RCBO.pdf
7 MB
