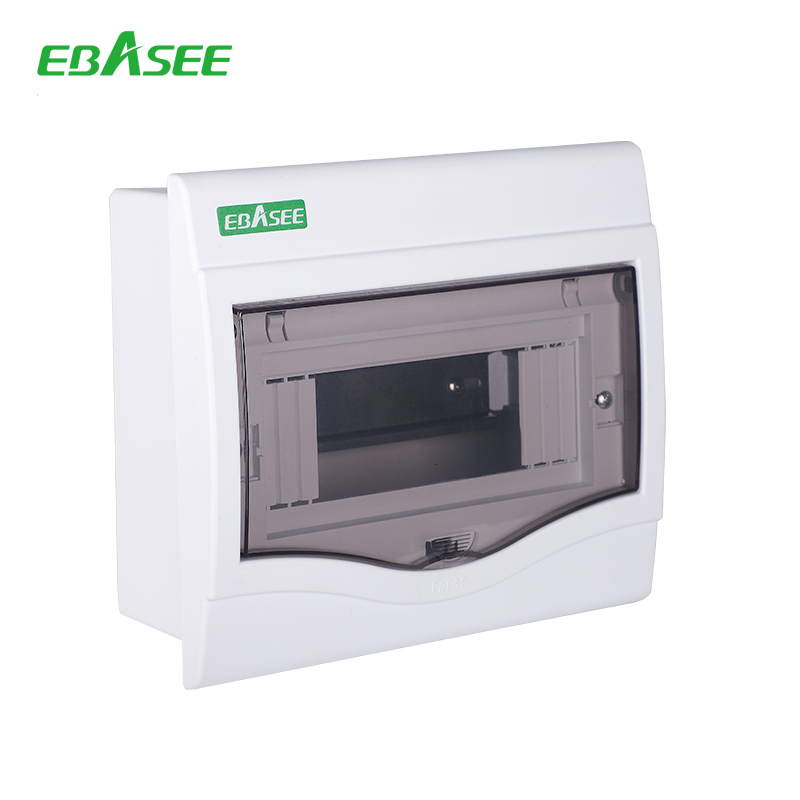

EBS10D Switch Distribution Box

Function

EBS10D series lighting box is divided into two kinds,flush mounted type and surface mounted type.

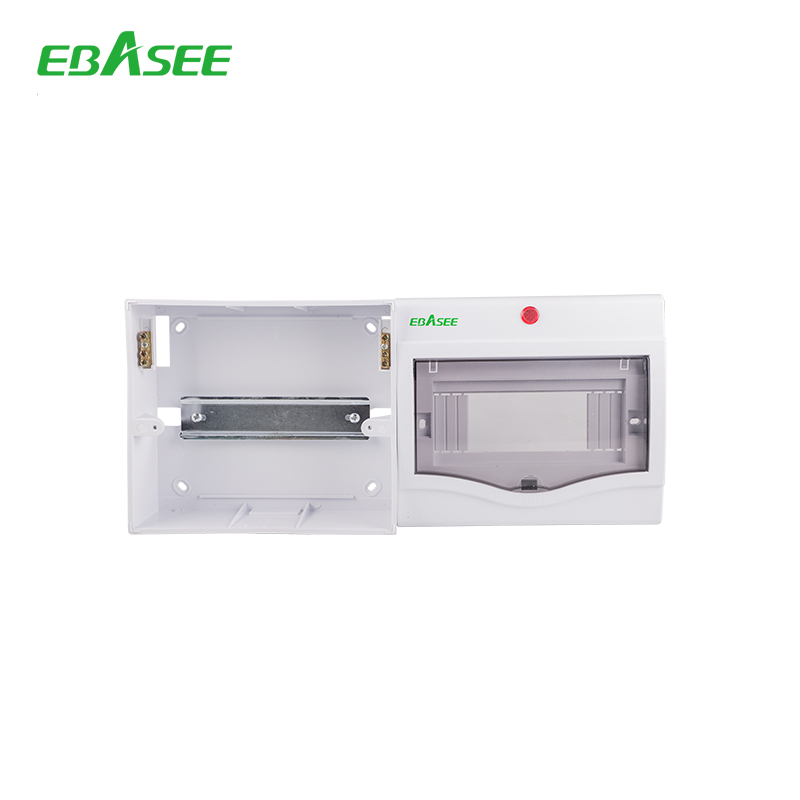

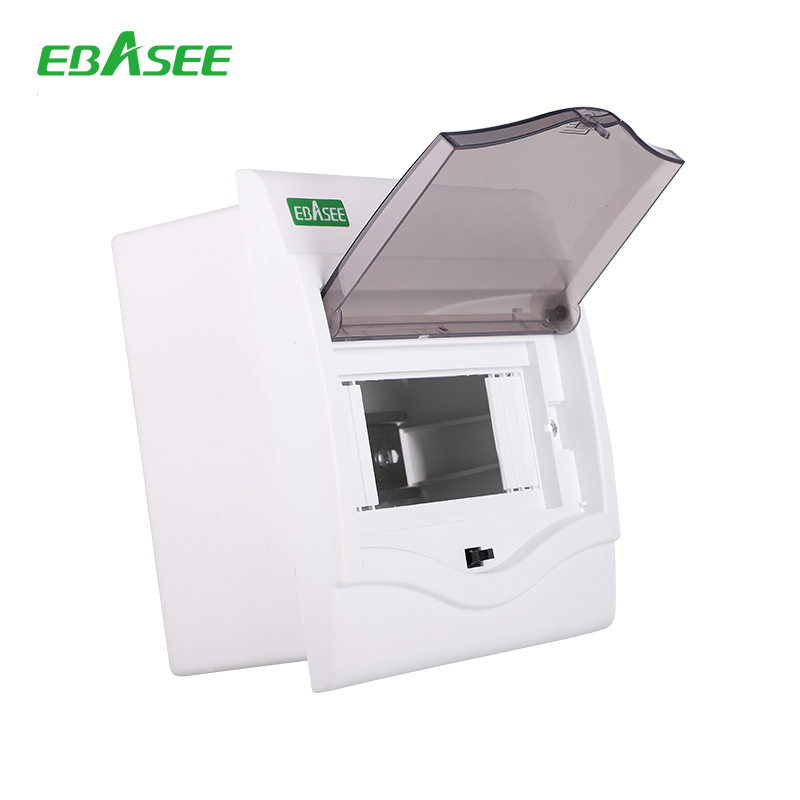

It is with plastic panel and iron bottom, up-down pushbutton auto-opening type. The din-rail can be adjustable.Two terminals(ground connection and zero connection)in the box are easy for the user wiring and routing .This product is applicable to the modular terminal circuit
with AC of 50Hz,rated voltages of 220V and 380V.

Specifications

Model

Specification



Panel size



Surface mounted bottom box size (mm)



Concealed bottom box size (mm)



Back box material



Panel

material



Clamshell plastic material

EBS10D-4 2-4way 142×160 131×149×72 120×137×72 ABS ABS ABS
EBS10D-8 5-8way 217×210 206×200×72 186×180×72 ABS ABS ABS
EBS10D-12 9-12way 270×210 206×200×72 240×180×72 ABS ABS ABS
EBS10D-16 13-16way 343×210 343×210×72 312×180×72 ABS ABS ABS
