Protection of DC circuits against short-circuit and overload currents,switching and isolation.

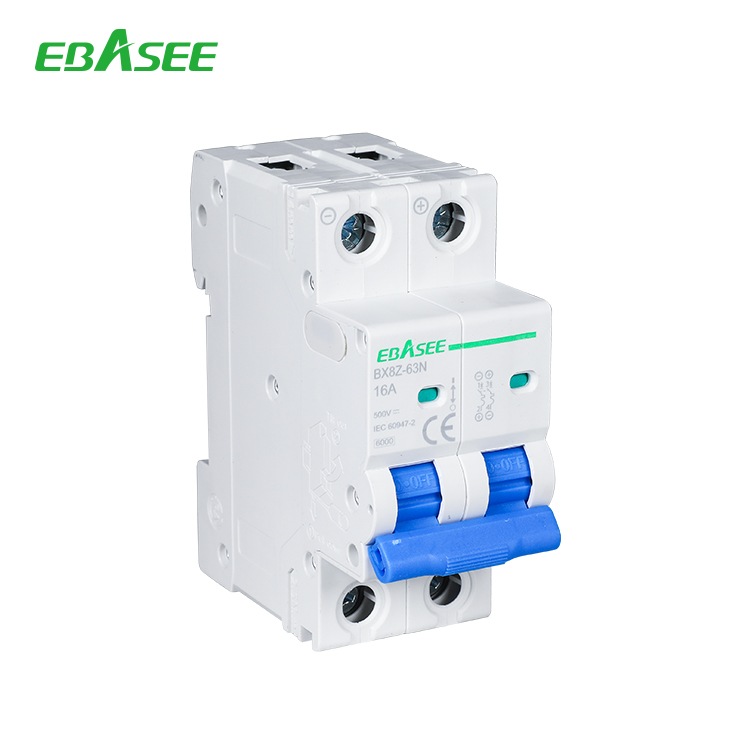

BX8Z-63 DC mini circuit breakers are suitable for DC power distribution systems and electrical equipment, including photovoltaic, energystorage and other DC applications.
Technical data of the DC system at the point considered: rated voltage,rated current, number of poles and prospective short-circuit current.The prospective short-circuit current at the circuit-breaker installation point must not exceed the breaking capacity of the device.
The appropriate tripping curve should be selected according to the load characteristics:
C curve (8.5In+/-20%)
Suitable for general circuits and loads with moderate inrush current.
D curve (10In+/-20%)
Suitable for circuits supplying loads with high inrush current.
Both polarized and non-polarized versions are available according to different DC system and wiring requirements.

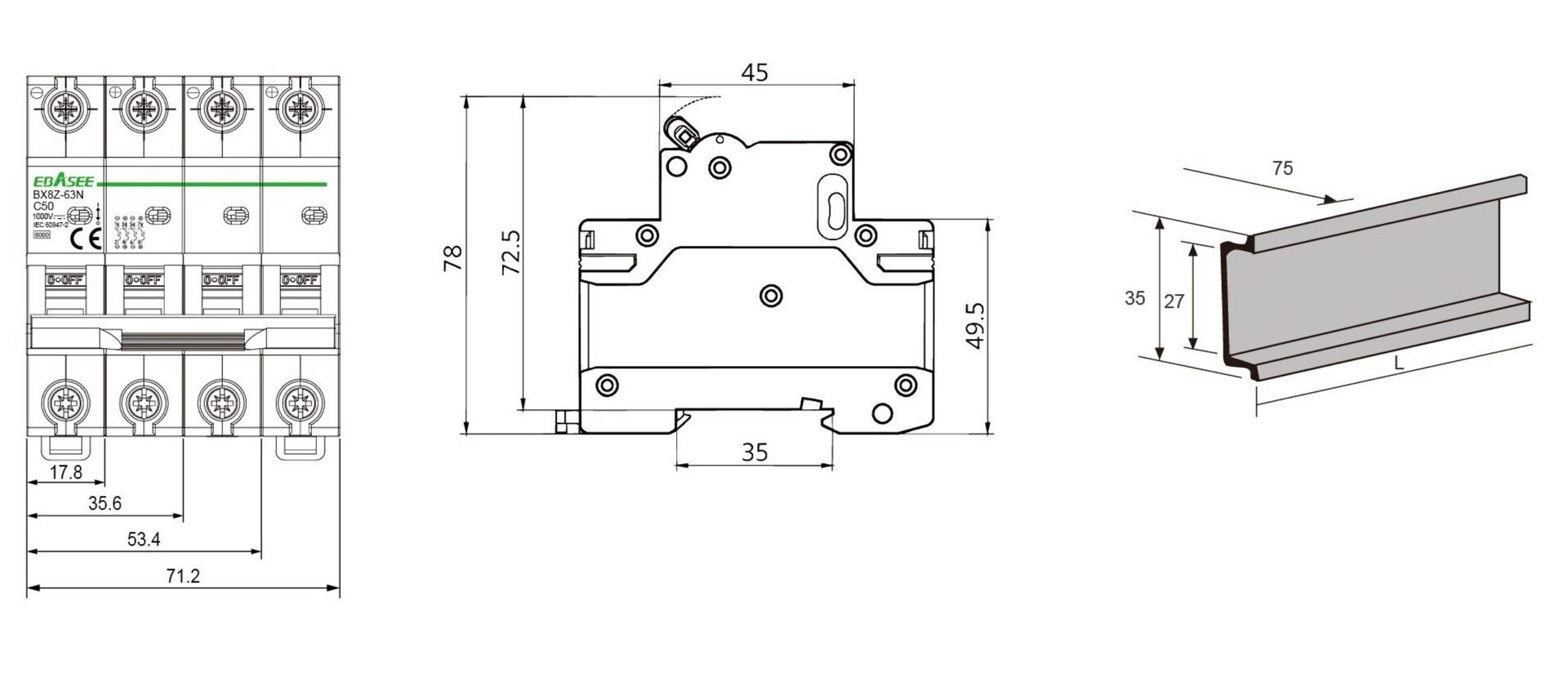

| Standard | IEC60947-2 | ||
| Model | BX8Z-63N | BX8Z-63H | |
| Rated frame current | A | 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63 | |
| Rated insulation voltage Ui | V | Polarized DC250V(1P), DC500V(2P), DC750V(3P), DC1000V(4P) | |
| Rated impulse withstand Uimpvoltage Uimp | kV | 6kV | |
| Rated current | 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63 | ||
| Rated voltage | V | DC250V(1P), DC500V(2P), DC750V(3P), DC1000V(4P) | |
| Tripping curve | C: 8.5In±20%, D: 10In±20% | ||
| Poles | 1P, 2P, 3P, 4P | ||
| Unipolar width | mm | 18 | |
| Ultimate short-circuitbreaking capacity Icu | kA | 6 | 10 |
| Reference temperature | °C | 30°C | |
| Usage Category | A | ||
| Mechanical life | 20,000/order | ||
| Electrical lifespan | 1000/order | ||
| Protection grade | IP20 | ||
| Wiring capacity | mm² | 25 | |
| Accessories | OF, SD, MX, MN, MV+MN | ||
