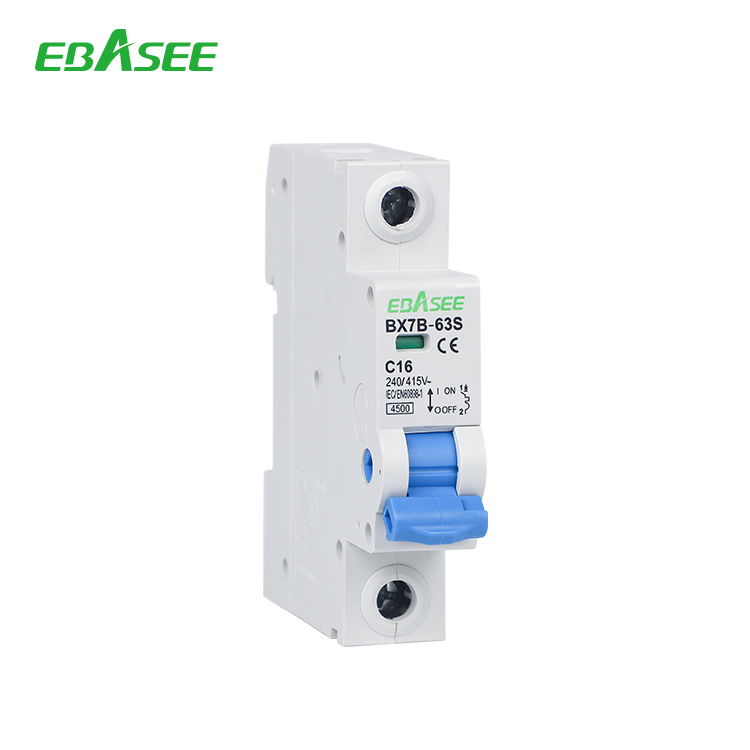

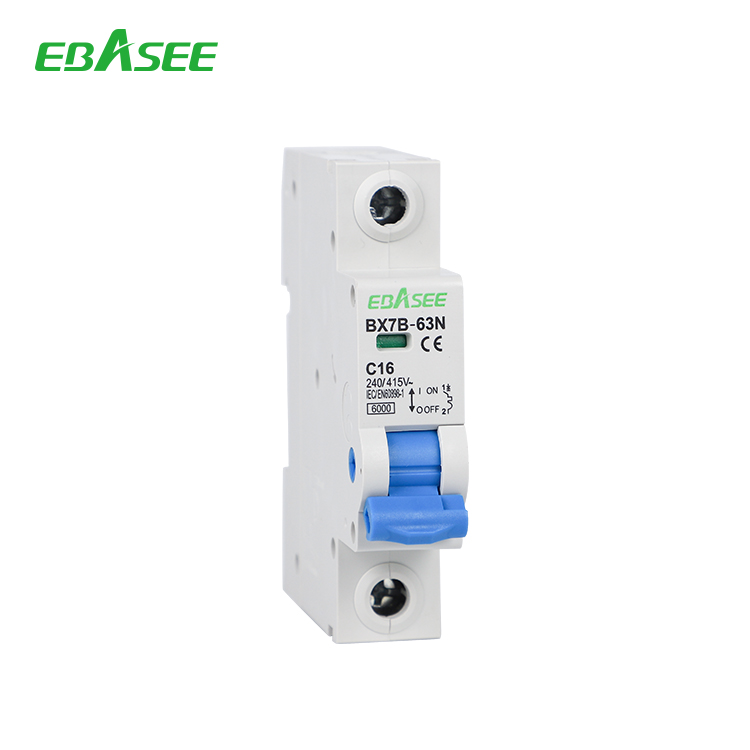

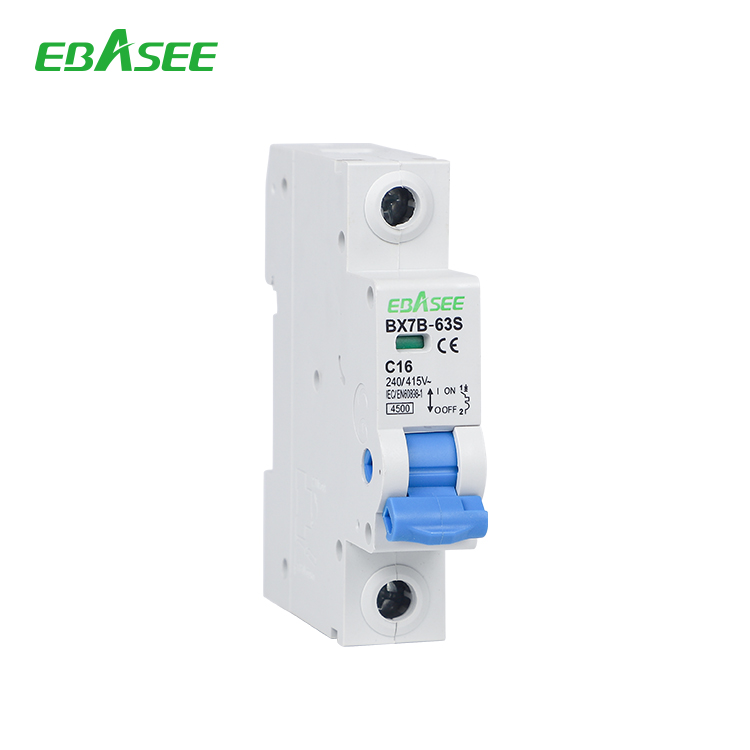

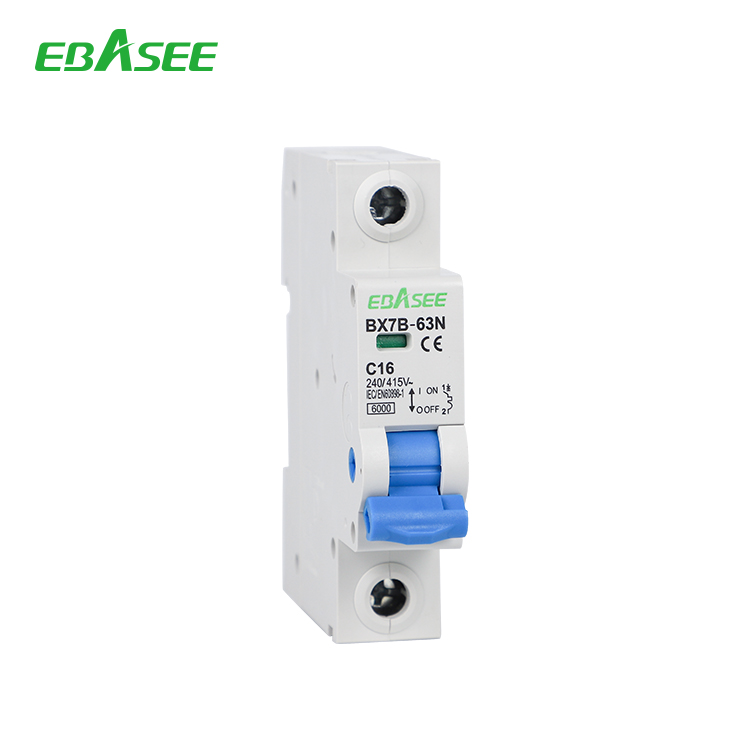

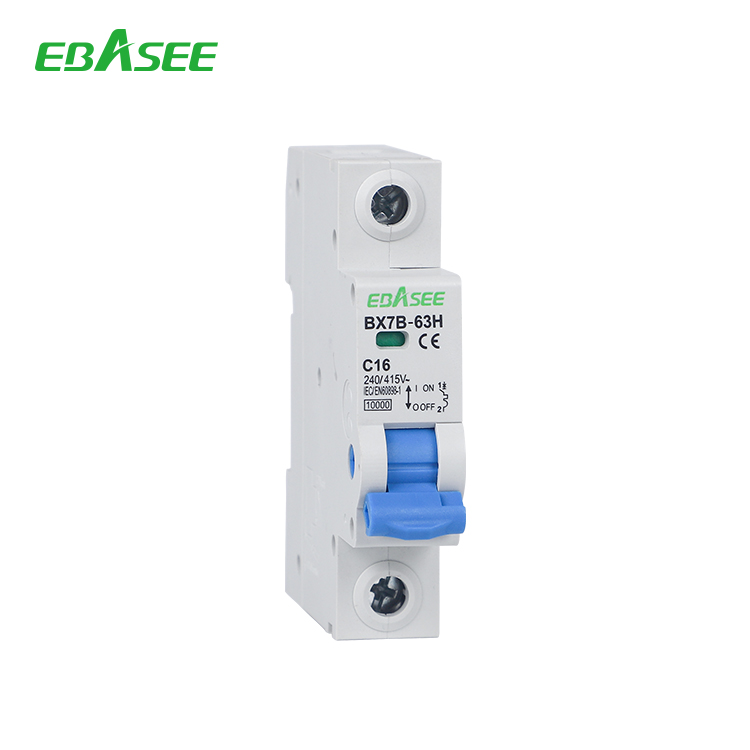

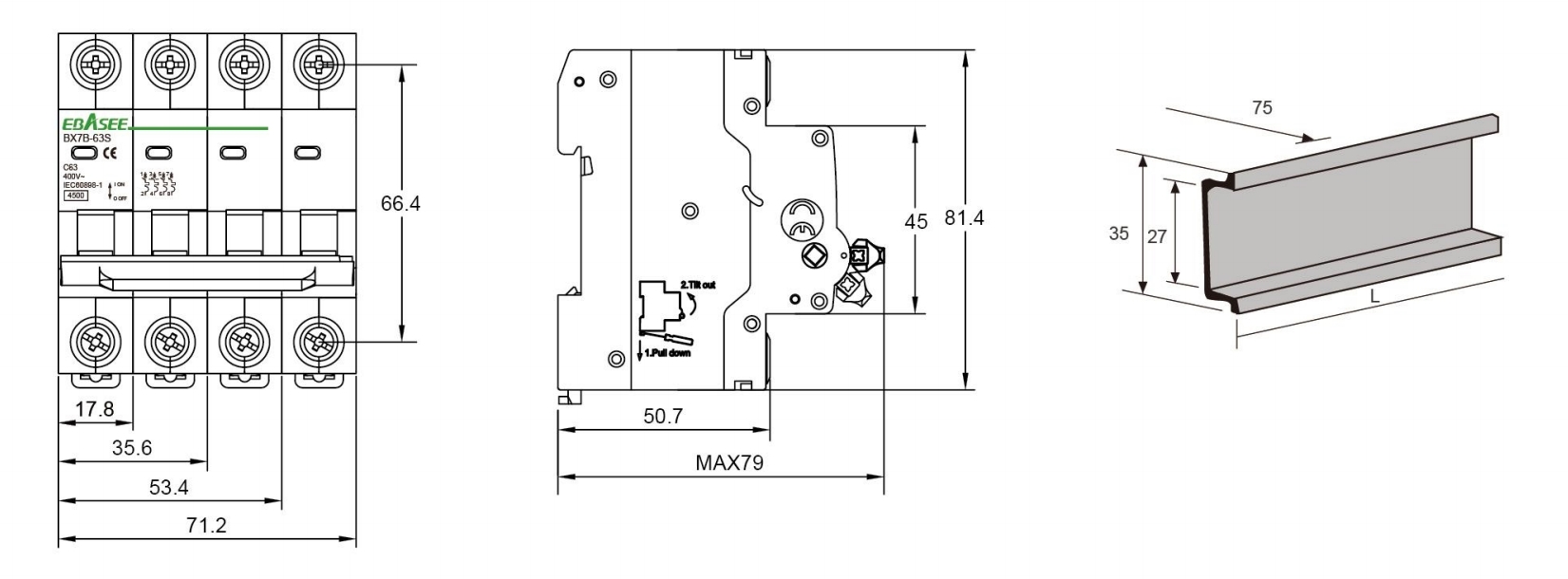

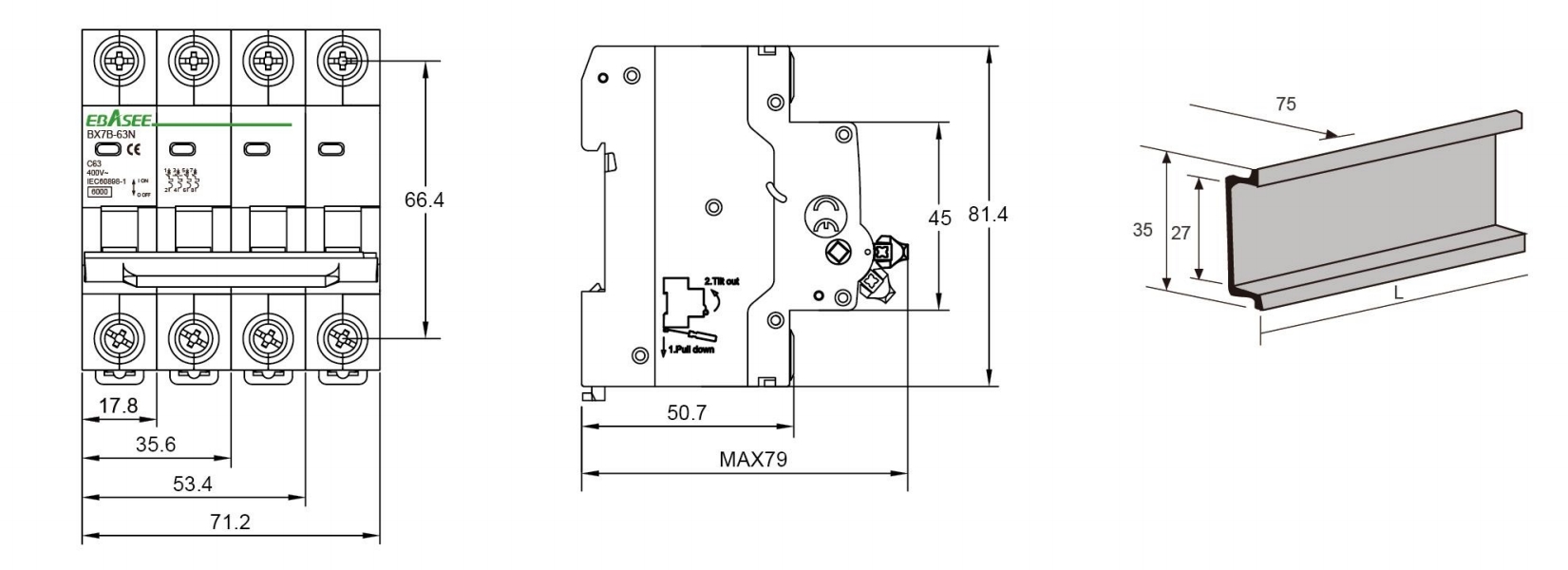

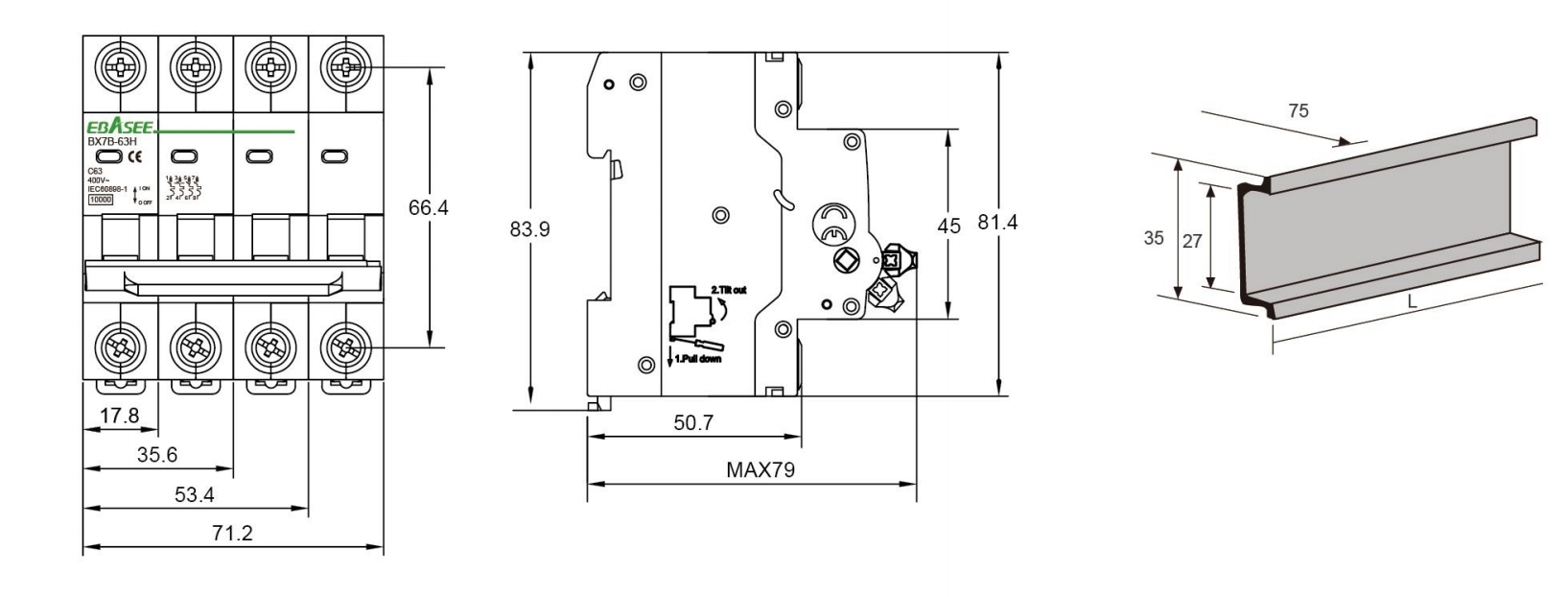

BX7B Series circuit breaker is used in protection lighting or power distribution system from over-load and short-circuit, apply to the circuit of AC 50Hz/60Hz, rated voltage less than 415V. The product adopt high fire resistant and shock proof plastics, quality metal materials, which is neoteric in structure, light in weight, reliable inperformance.
Products comply with IEC/EN60898-1.
| Type | Standard | lEC/EN 60898-1 | |
|
Electrical features |
Rated current ln | A | 1, 2, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63 |
| Poles | P | 1, 2, 3, 4, 1P+N, 3P+N | |
| Rated voltage Ue | V | 240/415 | |
| Insulation voltage Ui | V | 500 | |
| Rated frequency | Hz | 50/60 | |
| Rated breaking capacity | A | H:10000; N:6000; S:4500 | |
| Rated impulse withstand voltage(1.2/50)Uimp | V | 6000 | |
| Dielectric test voltage at ind. Freq. for 1min | kV | 2 | |
| Pollution degree | 2 | ||
| Thermo-magnetic release characteristic | B, C, D | ||
|
Mechanical features |
Electrical life | t | 6000 |
| Mechanical life | t | 20000 | |
| Protection grade | IP20 | ||
| Reference temperature for setting of thermal element | °C | 30 | |
| Ambient temperature
(with daily average≤35°C) |
°C | -5~+40 | |
| Storage temperature | °C | -25~+70 | |
|
Installation |
Terminal connection type | Cable/Pin-type busbar | |
| Terminal size top / bottom for cable | mm² | 35 | |
| AWG | 18/2 | ||
| Terminal size top / bottom for busbar | mm² | 35 | |
| AWG | 18/2 | ||
| Tightening torque | N*m | 2 | |
| In-Ibs | 18 | ||
| Mounting | On DIN rail EN 60715(35mm)by means of fast clip device | ||
| Connection | From top and bottom |



Residential Buildings · Commercial Buildings · Industrial Facilities · Distribution Panels · Lighting Circuits · Power Distribution · Solar PV Systems
Q1: Can I get samples for testing?
Yes. Samples are available for quality and performance testing.
Q2: Do you support OEM/private labeling?
Yes. We support OEM/ODM, including private labeling and customized packaging.
Q3: What certifications are available for this model?
CE, CB, TÜV and other certifications are available depending on the model. Please contact us for details.
Q4: Can you supply different poles and tripping curves?
Yes. Different poles and B/C/D tripping curves are available depending on the model.
Q5: What is the typical production lead time?
Typically around 35 days, depending on order quantity and customization requirements.
![]() |
|||
