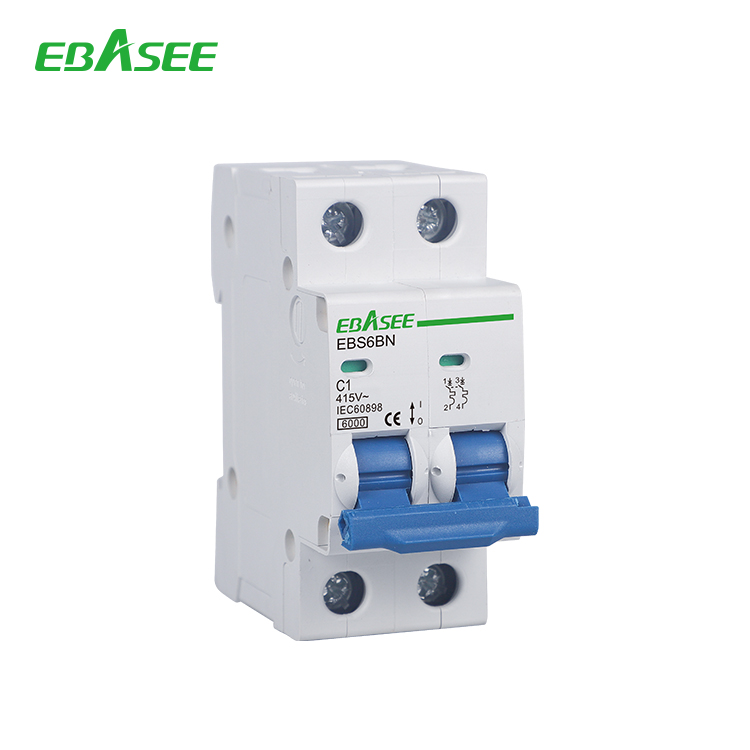

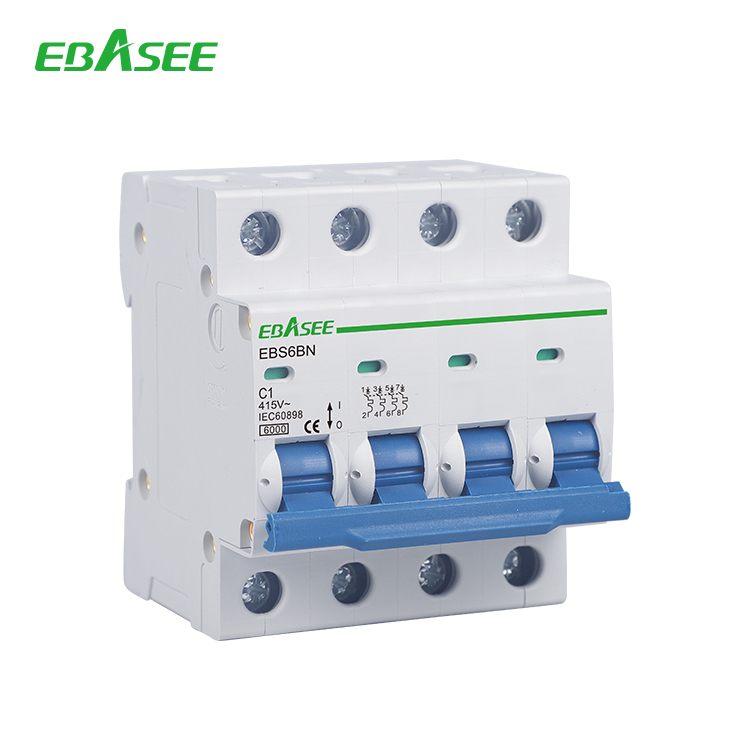

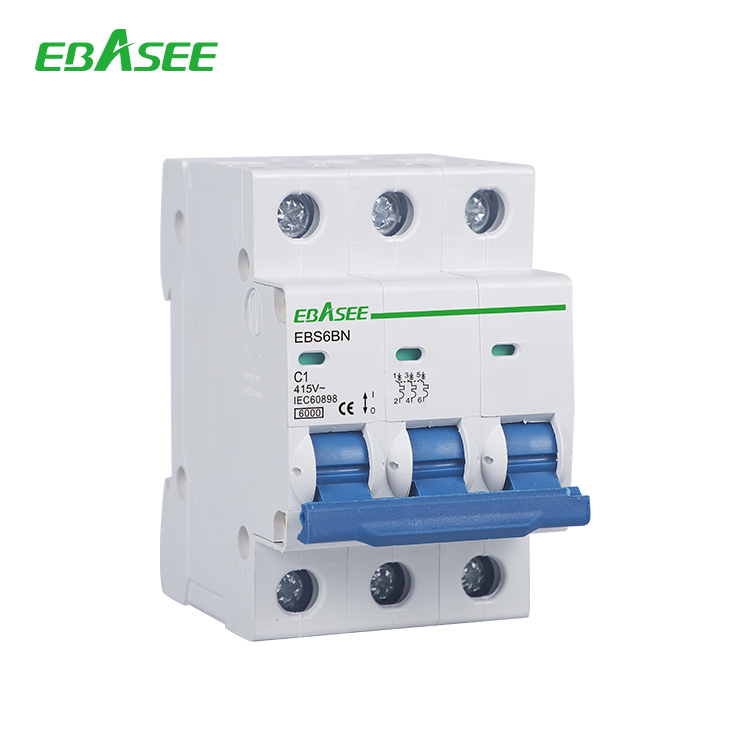

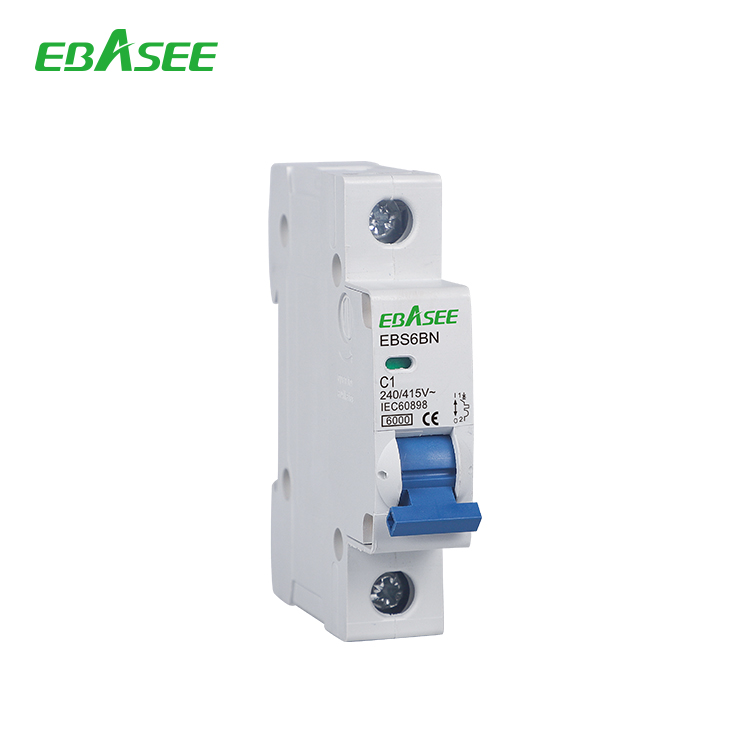

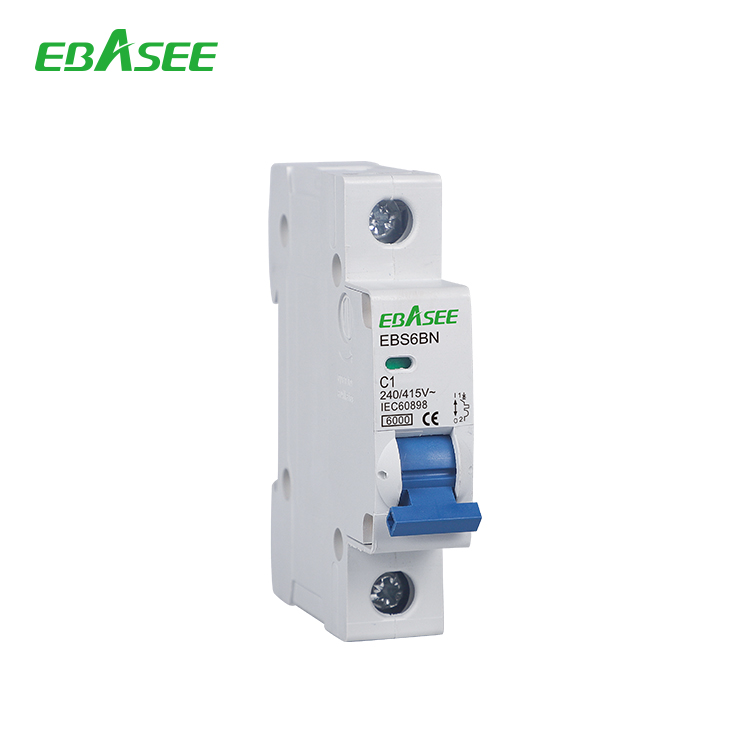

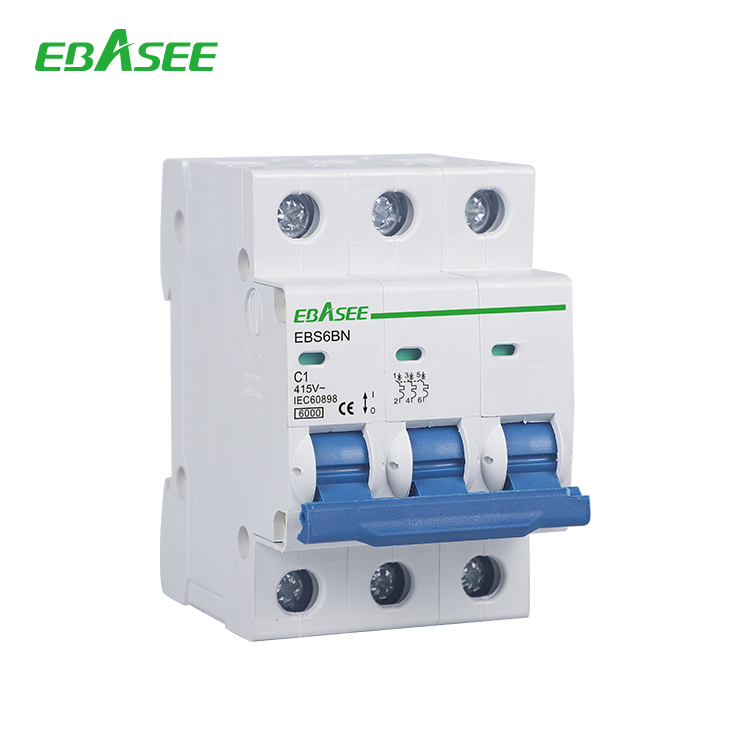

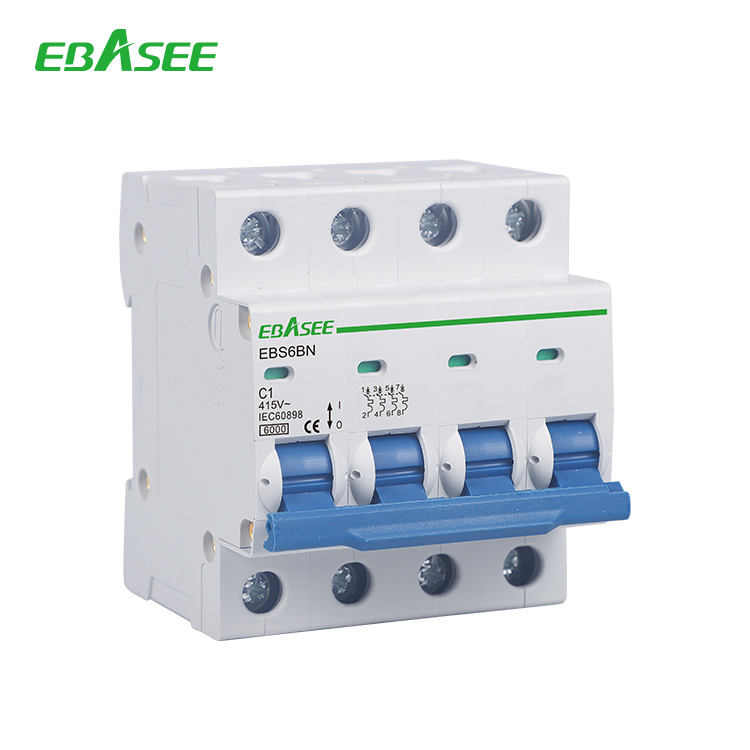

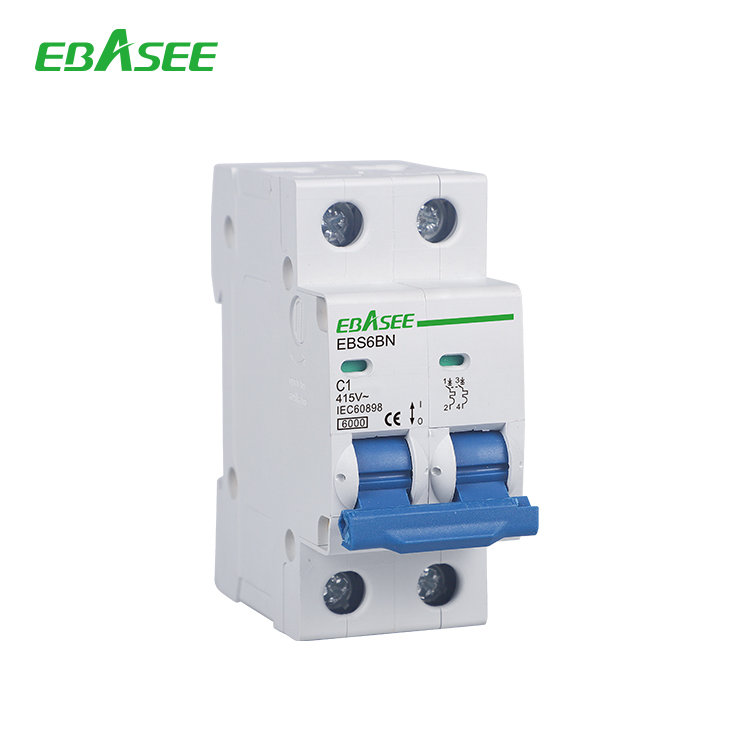

EBS6BN Miniature Circuit Breaker

Function

EBS6BN Series circuit breaker is used in protection lighting or power distribution system from over-load and short-circuit, apply to the circuit of AC 50Hz/60Hz, rated voltage less than 415V.The product adopt  high  fire  resistant  and  shockproof  plastics,quality  metal materials, which is neoteric in structure, light in weight, reliable in performance.

Products comply with  IEC/EN60898-1.

Specifications

Type Standard lEC/EN 60898-1










Electrical

features

Rated current ln A 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63
Poles P 1, 2, 3, 4, 1P+N, 3P+N
Rated voltage Ue V 240/415
Insulation voltage Ui V 500
Rated frequency Hz 50/60
Rated breaking capacity A 6000
Rated impulse withstand voltage(1.2/50)Uimp V 6000
Dielectric test voltage at ind. Freq. for 1min kV 2
Pollution degree 2
Thermo-magnetic release characteristic B, C, D






Mechanical

features

Electrical life t 4000
Mechanical life t 10000
Protection grade IP20
Reference temperature for setting of thermal element ℃ 30
Ambient temperature

(with daily average≤35℃)

℃ -5~+40
Storage temperature ℃ -25~+70








Installation

Terminal connection type Cable/Pin-type busbar/U-type bar
Terminal size top / bottom for cable mm² 25
AWG 18/3
Terminal size top / bottom for busbar mm² 25
AWG 18/3
Tightening torque N*m 2.5
In-Ibs 22
Mounting On DIN rail EN 60715(35mm)by means of fast clip device
Connection From top and bottom

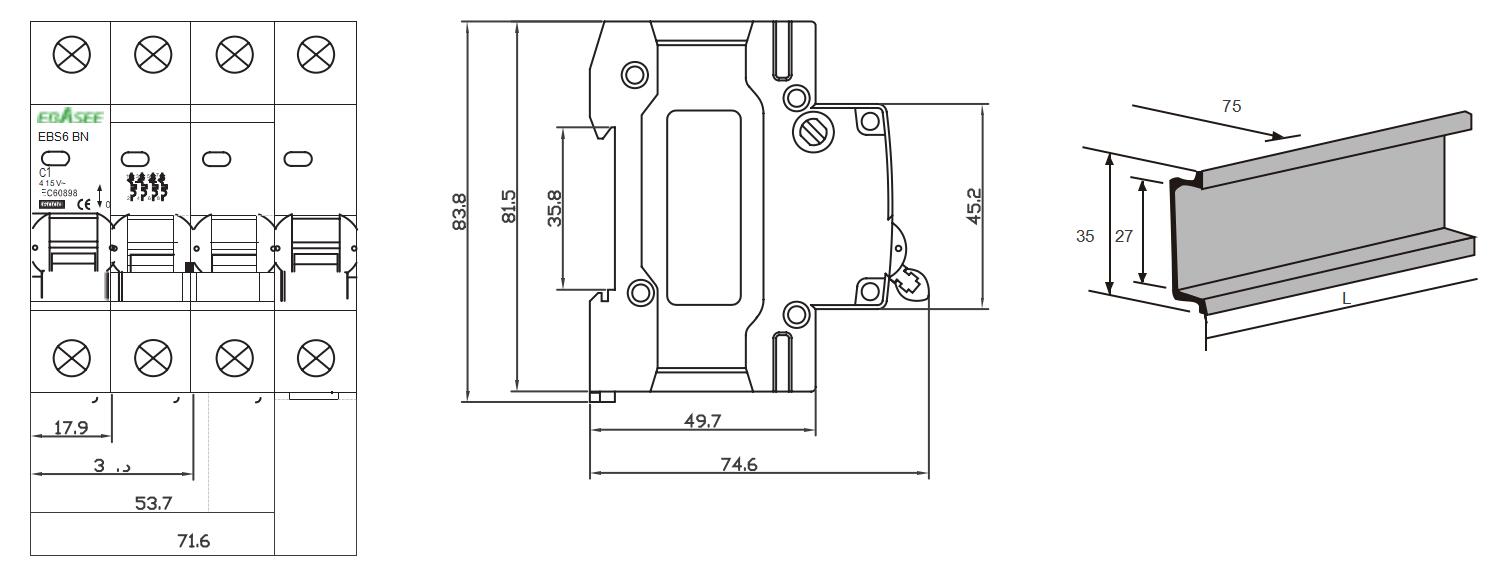

Dimensions

Application

Residential Buildings · Commercial Buildings · Industrial Facilities · Distribution Panels · Lighting Circuits · Power Distribution · Solar PV Systems

FAQ

Q1: Can I get samples for testing?
Yes. Samples are available for quality and performance testing.

Q2: Do you support OEM/private labeling?
Yes. We support OEM/ODM, including private labeling and customized packaging.

Q3: What certifications are available for this model?
CE, CB, TÜV and other certifications are available depending on the model. Please contact us for details.

Q4: Can you supply different poles and tripping curves?
Yes. Different poles and B/C/D tripping curves are available depending on the model.

Q5: What is the typical production lead time?
Typically around 35 days, depending on order quantity and customization requirements.
