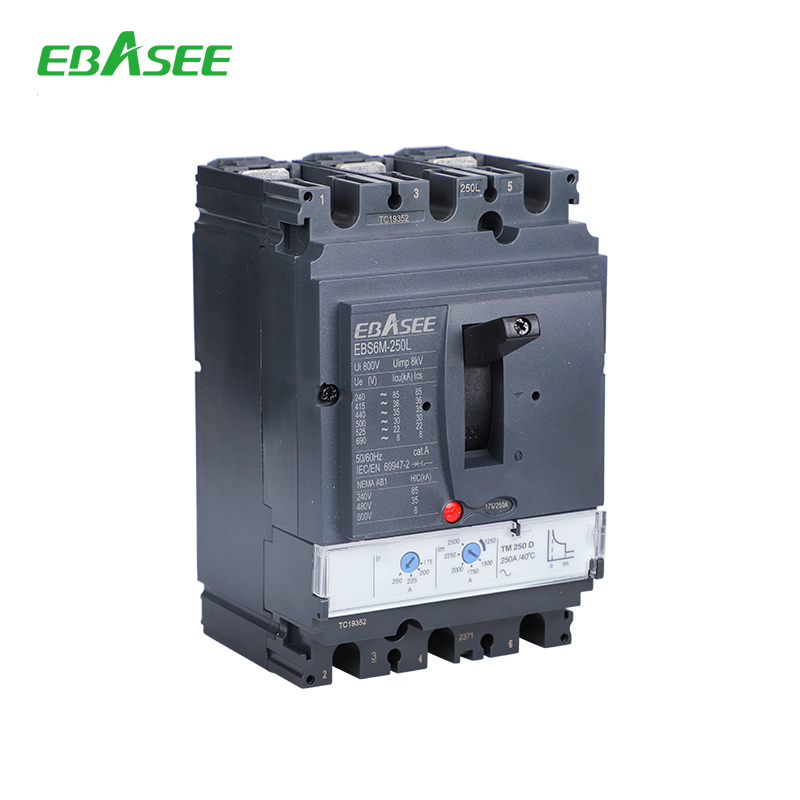

EBS6M series moulded case circuit breaker is one of breaker which adopts international advanced design,manufacture technology to develop,The rated insulating voltage is750V,suitable for AC50/60Hz,rated working voltage 690V or below,rated working current is 12.5A to 1600A of circuit and used in distributing electric energy,and non-frequent breaking in the normal conditions, protecting the circuit & equipment from overload & under voltage, circuit breaker with rated frame current 400A or below,can be used in mousecage motor’s non-frequent start,breaking during working,protecting motor from overload,short circuit&undervoltage,the product conforms to IEC60947-2 standard.
| Type |
Pole |
Rated insulating voltage (V) | Rated operating voltage (V) | Rated ultimate short circuit breaking capacity Icu(KA)at380/415V | Rated service short circuit breaking capacity Ics(KA)at380/415V | Operation performance |
Utilization category |
|
| ON | OFF | |||||||
| EBS6M-100N |
1,3,4 pole |
750 |
690 or below |
25 | 25 |
1500 |
8500 |
A |
| EBS6M-100H | 70 | 70 | ||||||
| EBS6M-100L | 150 | 150 | ||||||
| EBS6M-160N | 36 | 36 |
1000 |
7000 |
||||
| EBS6M-160H | 70 | 70 | ||||||
| EBS6M-160L | 150 | 150 | ||||||
| EBS6M-250N | 36 | 36 |
1000 |
7000 |
||||
| EBS6M-250H | 70 | 70 | ||||||
| EBS6M-250L | 150 | 150 | ||||||
| EBS6M-400N |
3,4 pole |
45 | 45 |
1000 |
4000 |
|||
| EBS6M-400H | 70 | 70 | ||||||
| EBS6M-400L | 150 | 150 | ||||||
| EBS6M-630N | 45 | 45 |
1000 |
4000 |
||||
| EBS6M-630H | 70 | 70 | ||||||
| EBS6M-630L | 150 | 150 | ||||||
| EBS6M-1250N | 3 pole | 50 | 37.5 |
1000 |
4000 |
|||
| EBS6M-1600N | 50 | 37.5 | ||||||
