A range of 10x38mm fuse links are specifically designed for protecting photovoltaic strings, these fuse links are capable of interrupting low overcurrents associated with faulted photovoltacic string arrays (reverse current, multi-array fault) rated insulated voltage up to 690V, conventional free air thermal current up to 32A; compliant with IEC60269-1 and IEC60269-6.
| Standard | IEC60269-1, IEC60269-6 |

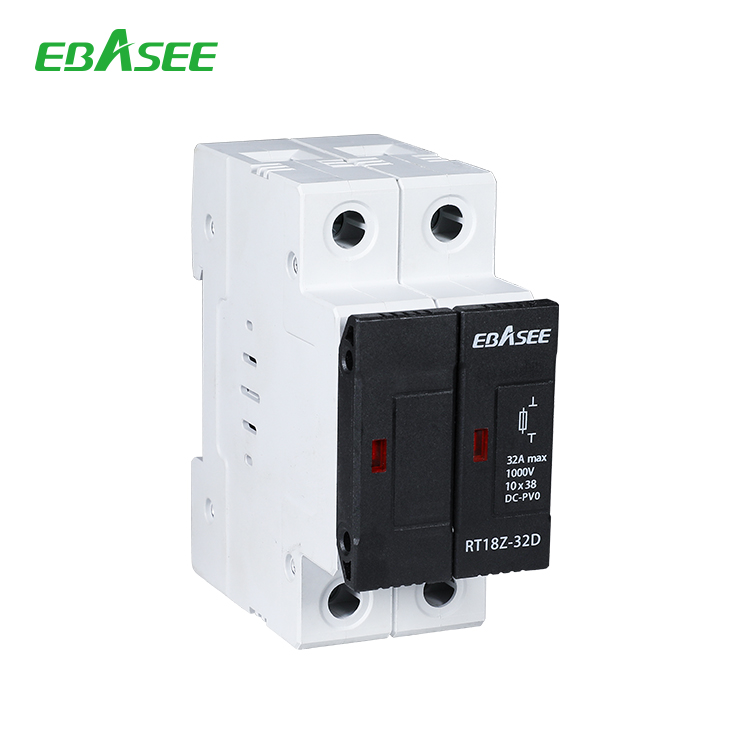

| Fuse base | RT18Z-32D |
| Fuse link | 10X38mm |
| Pole | 1P, 2P, 3P, 4P |
| Class of operation | gPV |
| Time constant | 1-3ms |
| Rated voltage Ue(V DC) | 1000 |
| Rated Current In(A) | 1-32A |
| Biggist block ability(kA) | 20 |
| The most high power consumption(W) | 3.5 |
Solar PV Systems, Battery Energy Storage Systems , DC Distribution Systems, Telecommunication Systems , Industrial Control Systems,DC Control Systems
Q1: Can I get samples for testing?
Yes. Samples are available for quality and performance testing.
Q2: Do you support OEM/private labeling?
Yes. We support OEM/ODM, including private labeling and customized packaging.
Q3: What certifications are available for this model?
CE, CB, TÜV and other certifications are available depending on the model. Please contact us for details.
Q4: Can you supply different poles ?
Yes. Different poles are available depending on the model.
Q5: What is the typical production lead time?
Typically around 35 days, depending on order quantity and customization requirements.
 |
|||
