This fuse series apply to AC 50Hz,rated voltage to 1140V and rate current to 1250A. It is mainly used for overload and short circuit protection in electrical devices. It can break any current during the minimum melting current to 120kA reliably. and also be derived for semiconductor devices Its complete sets of equipment of short circuit protection (aR) and motor short circuit protection (aM).
This series fuse conforms to IEC60269.
| Cat. NO. | Model of fuse link |
Rated voltage(v) |
Rated current(A) |
Weight (g) |
See figure |
Dimensions /sizes(mm) |
|||
| The company | Domestic and similar products | ||||||||
| General
(gG) |
Quick speed
(aR) |
General
(gG) |
Quick speed
(aR) |
||||||
| 0201 | NH00C |
— |
— |
— |

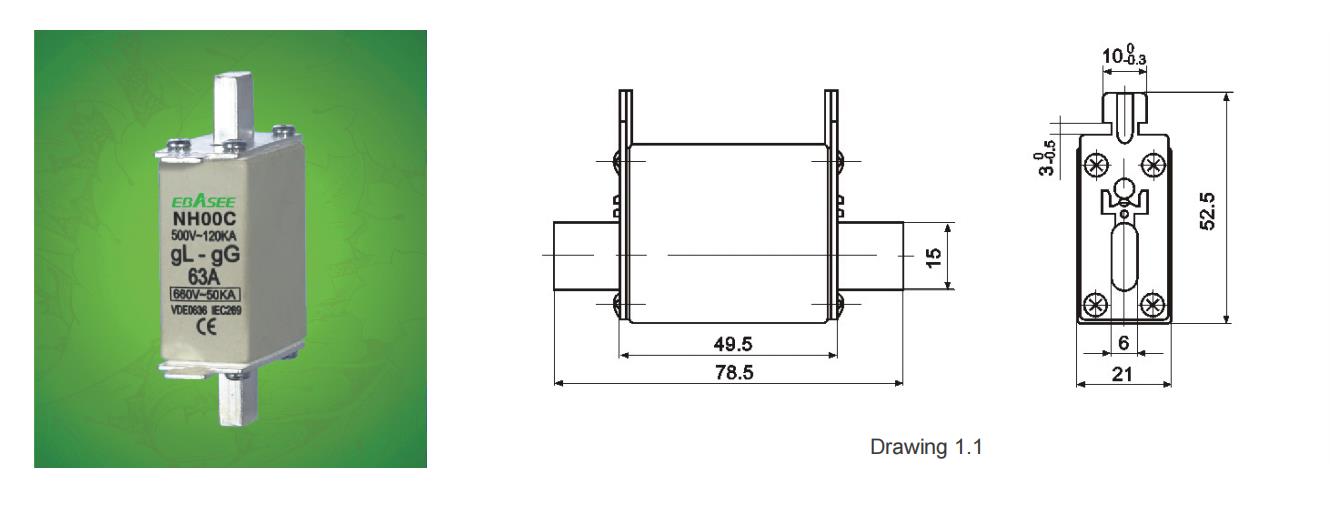

500/660 | 4~100 | 132 | 1.1 | Refer to drawing 1.1 for detailed data |
