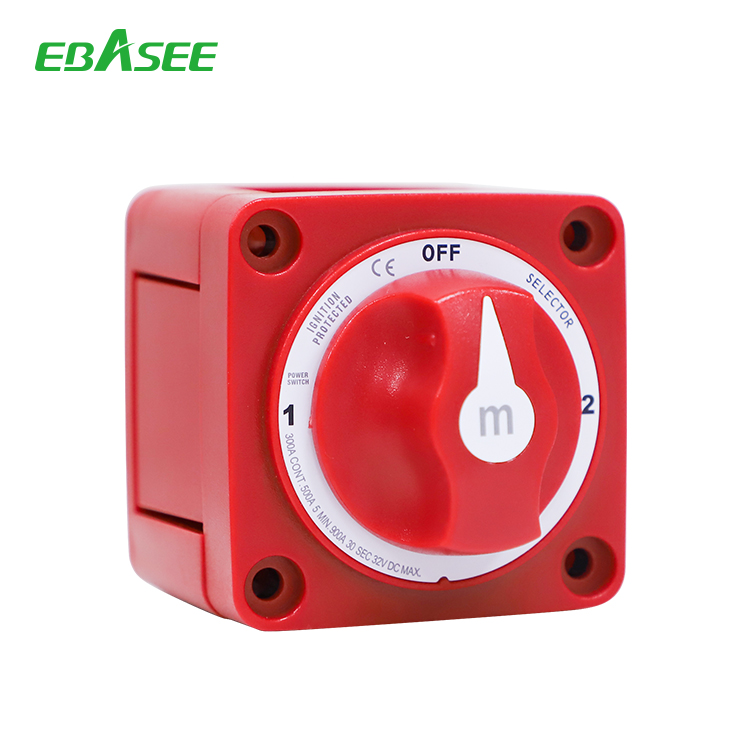

Manual connection, disconnection and isolation of battery circuits.The battery switch provides reliable control of DC power and allows the battery to be safely disconnected during maintenance, storage or emergency conditions. It is suitable for vehicles, RVs, marine equipment, energy storage systems and other DC battery applications.
Select the appropriate model according to the system voltage, current requirements and switching function.
Maximum voltage: 32V DC or 48V DC, depending on the model.
Continuous rating: 300A
Intermittent rating: 500A (5 min)
Cranking rating: 900A (30 sec)
Different switching configurations are available for different battery connection and isolation requirements.
| Model | G6008 | G6007 | G6006 |
| Maximum Voltage | 32V DC | 32V DC | 48V DC |
| Stud Size | 3/8″ | 3/8″ | 3/8″ |
| Stud Torque | 120 in-lb / 13.56 Nm | 120 in-lb / 13.56 Nm | 120 in-lb / 13.56 Nm |
| Continuous Rating | 300A | 300A | 300A |
| Intermittent Rating | 500A / 5min | 500A / 5min | 500A / 5min |
| Cranking Rating | 900A / 30s | 900A / 30s | 900A / 30s |
| Stud Material | Tinned Copper | Tinned Copper | Tinned Copper |
| Terminal Stud Size | 3/8″-16 (M10) | 3/8″-16 (M10) | 3/8″-16 (M10) |
| Switch position | 1-OFF-2 | 1-OFF-2-1+2 | ON-OFF |
Automotive, RVs & Campers , Marine Equipment , Energy Storage Systems , DC Battery Systems
Q1: Can I get samples for testing?
Yes. Samples are available for quality and performance testing.
Q2: Do you support OEM/private labeling?
Yes. We support OEM/ODM, including private labeling and customized packaging.
Q3: What certifications are available for this model?
CE, CB, TÜV and other certifications are available depending on the model. Please contact us for details.
Q4: Can you supply different poles ?
Yes. Different poles are available depending on the model.
Q5: What is the typical production lead time?
Typically around 35 days, depending on order quantity and customization requirements.
 |
|||
