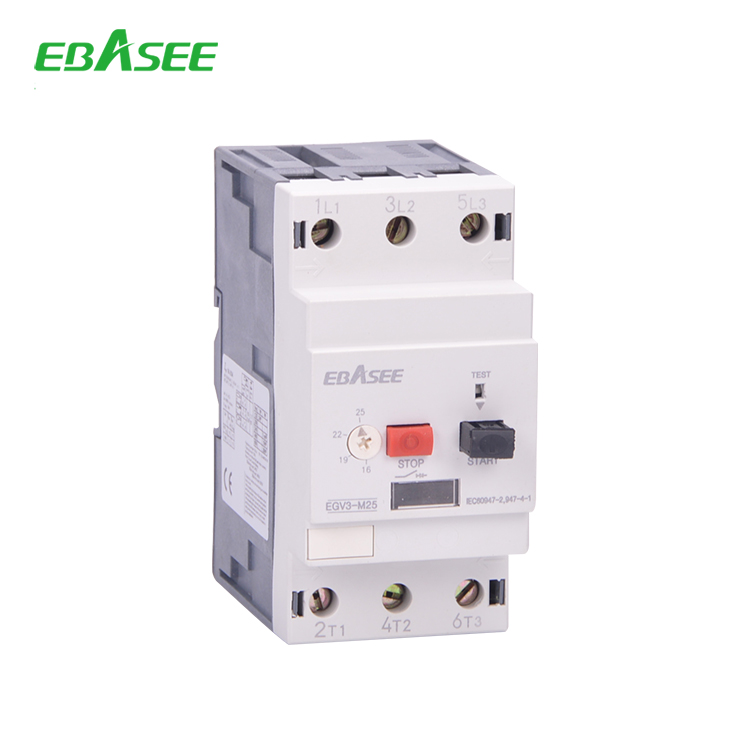

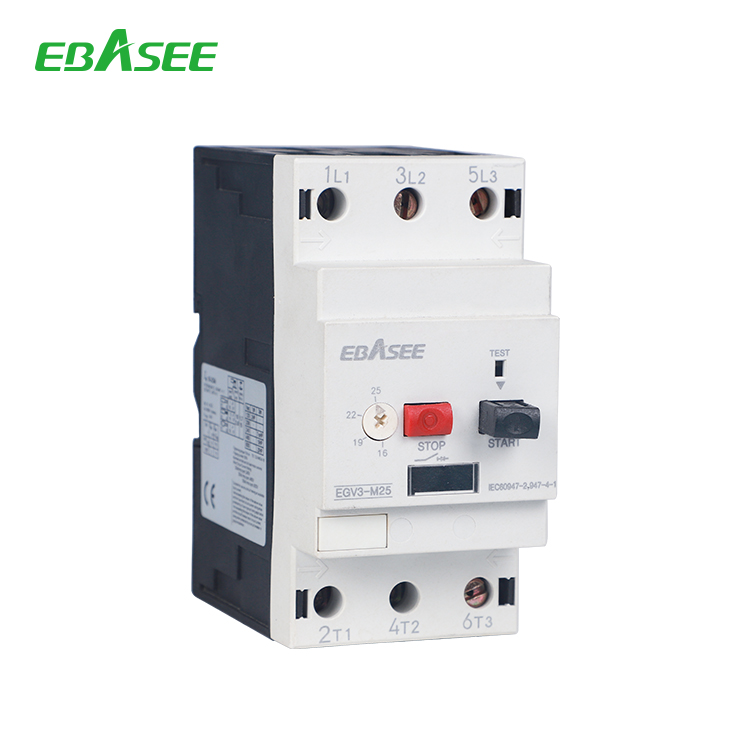

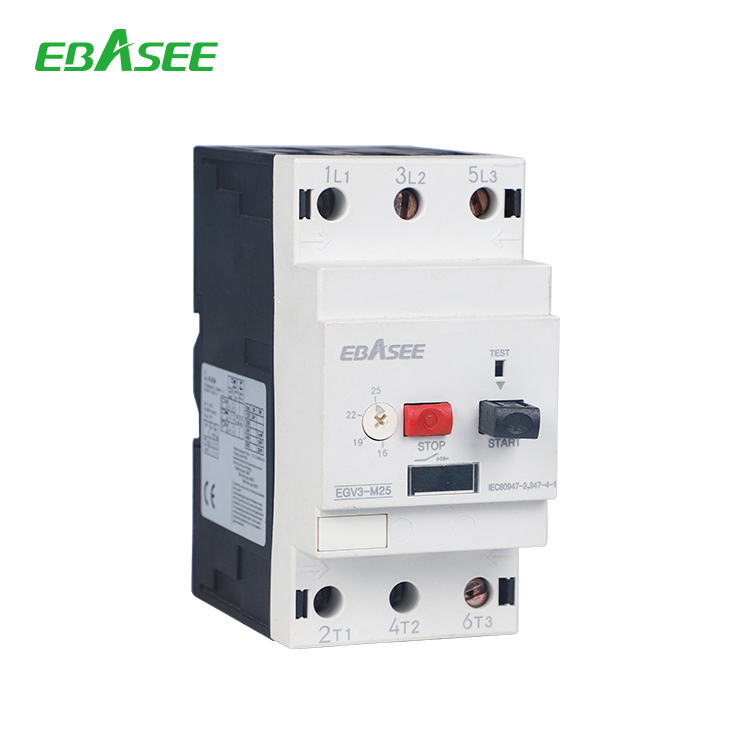

EGV3 Motor Protection Circuit Breaker

Product Category

Modular Din Rail Products 
Moulded Case Circuit Breaker 
- Air Circuit Breaker
- Moulded Case Circuit Breaker (MCCB)
- Automatic Transfer Switch Series
Control Electric 
- AC Contactors
- Thermal Relay
- Switched Capacitor
- DOL Starter
- Motor Protector
- AC Fuse
- Time Relay
- Universal Changover Switch
- Pushbutton Switch & Indicator
Solar Energy System 
- DC Moulded Case Circuit Breaker
- DC MCB
- DC Surge Protector Devices
- DC Fuse
- DC Isolator Switch
- DC Combiner Box
- Photovoltaic DC Connector
- Electric Vehicle Charging Box

Whatsapp
Leave Message

Overview Catalog Certificate Manual

Function

EGV3 Motor protection circuit breaker suitable for AC voltage to 690V,1-80A current. As a three-phase squirrel-cage asynchronous motor overload, short circuit protection, phase and not frequently start control protection.

Specifications

1.M-Push button type 2.ME-New type

Model	EGV3-M Rated fixed current (A)	EGV3-ME Rated fixed current (A)
EGV3-M10	6～10A	6～10A
EGV3-M16	10～16A	10～16A
EGV3-M20	14～20A	14～20A
EGV3-M25	16～25A	16～25A
EGV3-M40	25～40A	25～40A
EGV3-M63	40～63A	40～63A
EGV3-M80	56～80A	56～80A
