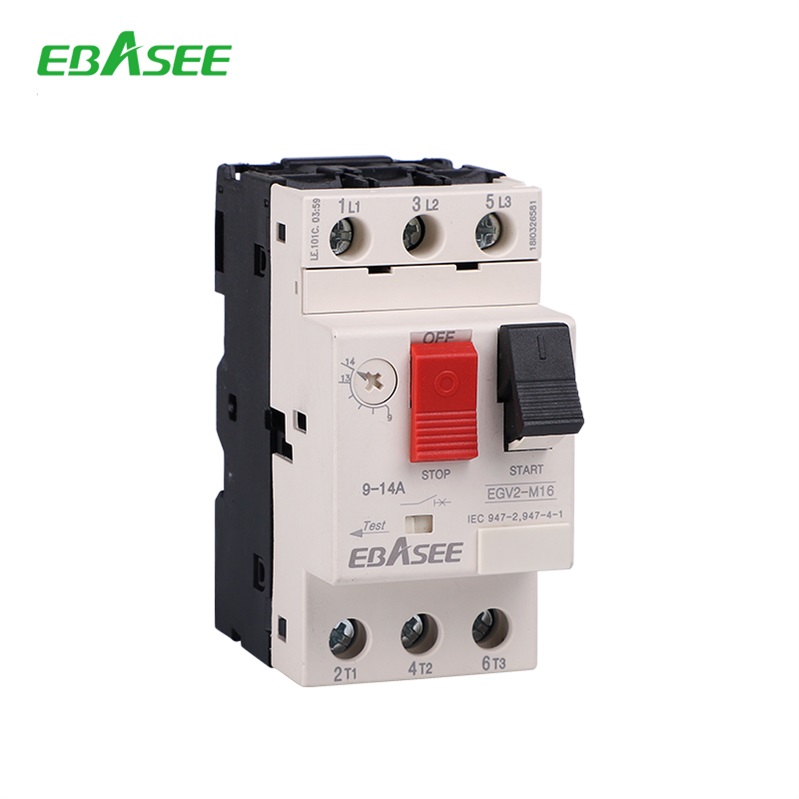

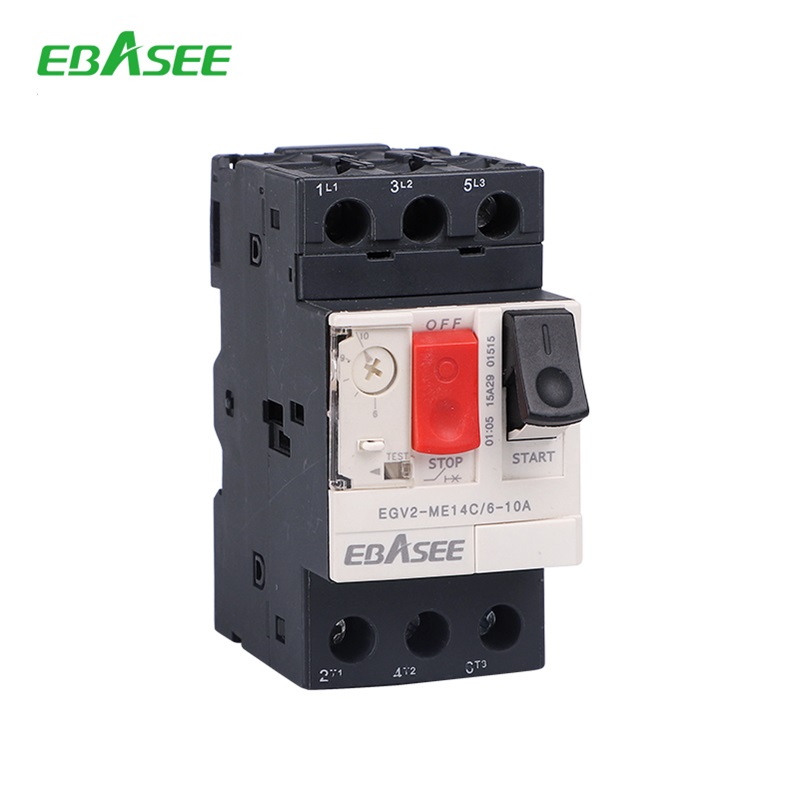

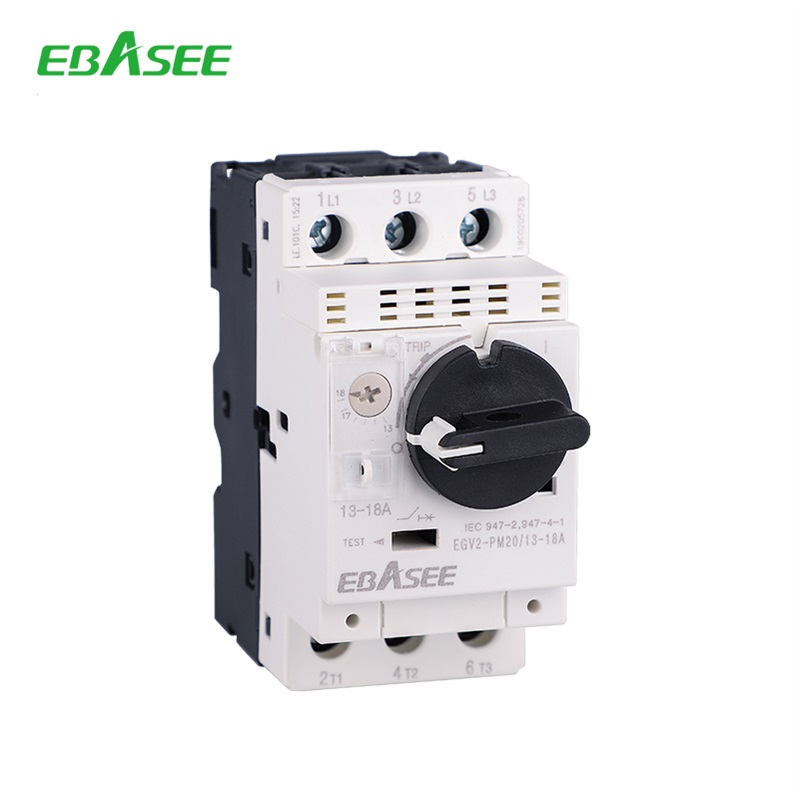

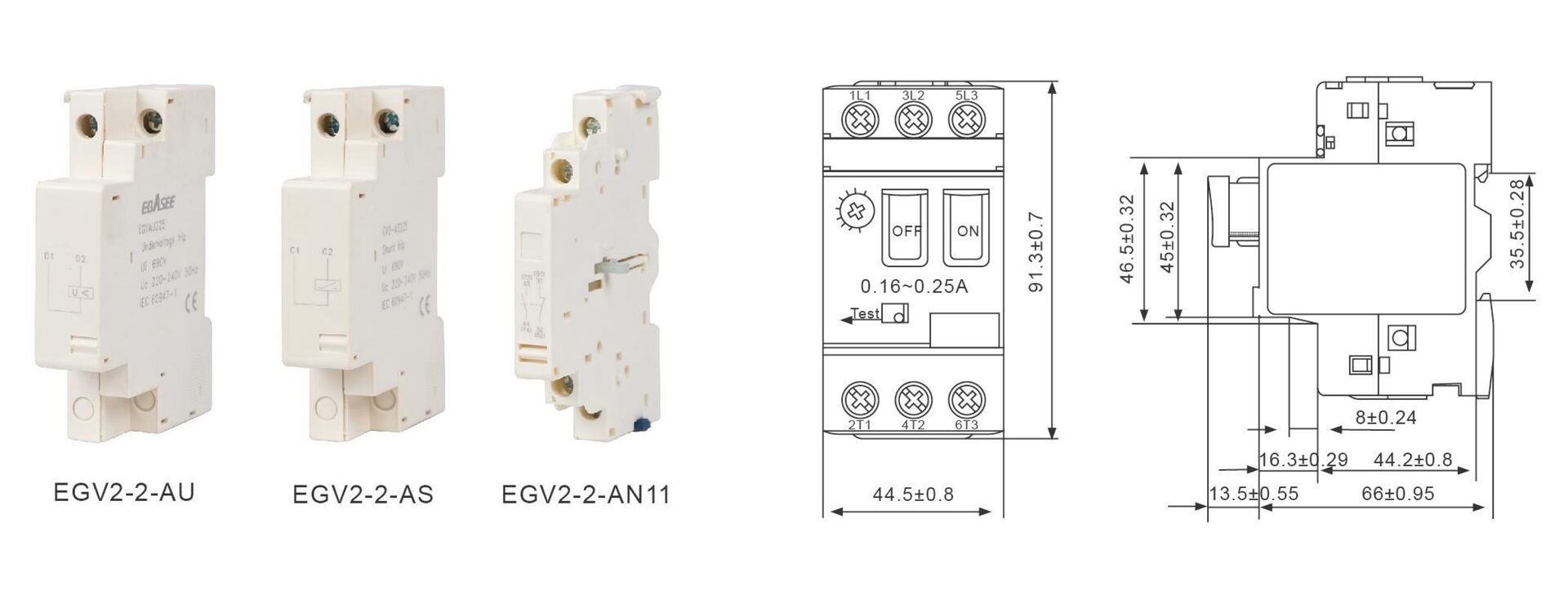

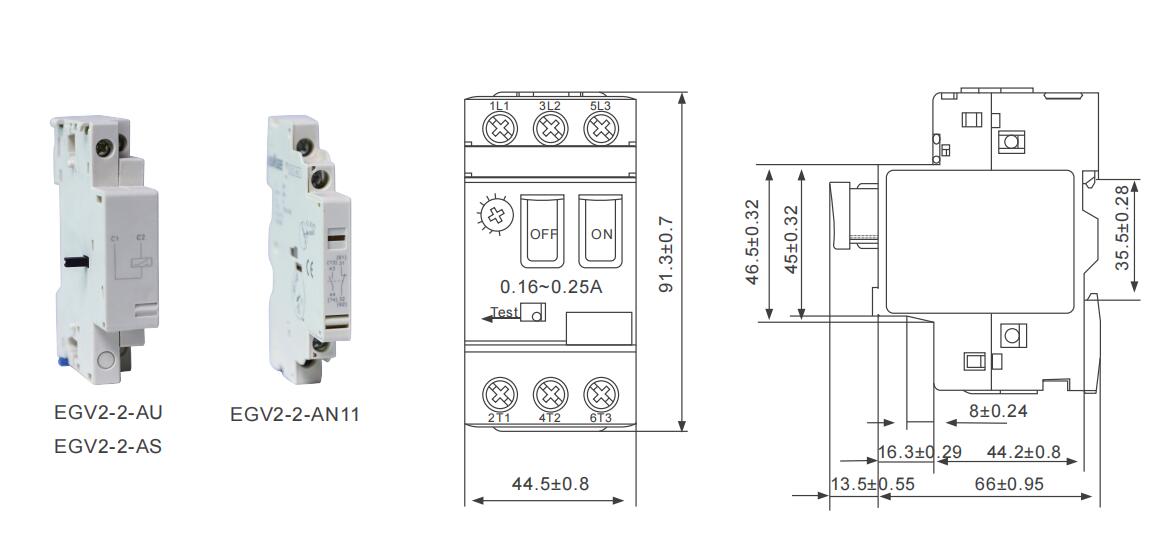

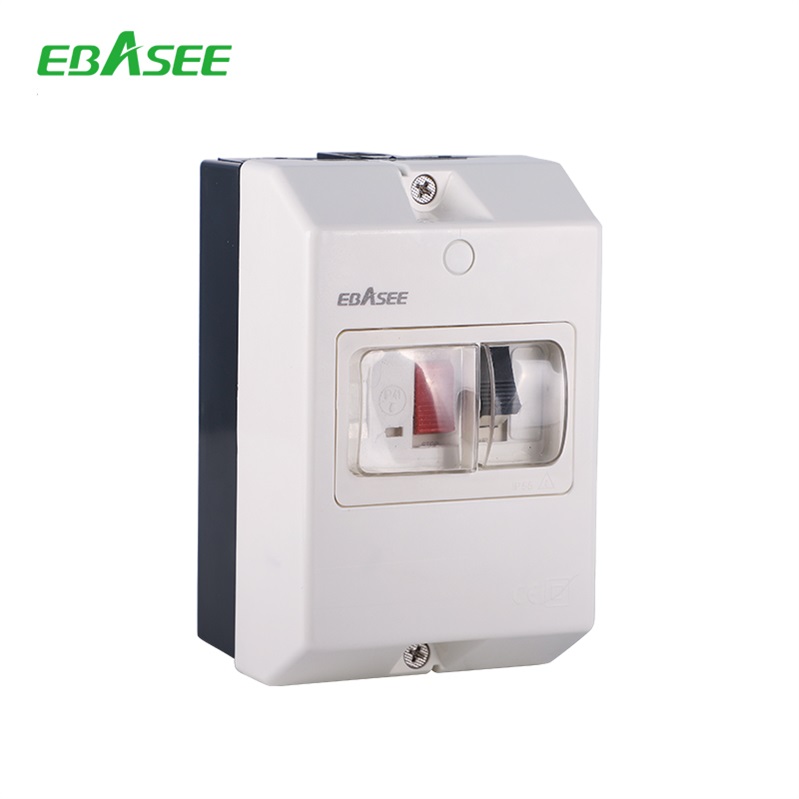

EGV2 series motor protection circuit breakers are mainly used for the overload and short circuit protection of the motor AC 50/60Hz, up to 660V, 0.1-80A, as a full voltage starter to start and stop the motor, under the AC3 load or for the overload and short circuit protection of the equipment.
| Type | Standard power ratings of 3- phase motors 50/60Hz in category AC-3 | Rated current | Setting range | The rated current commuting value in instant field | |||||
| 230/240V | 400V | 415V | 440V | 500V | 690V | InA | A | InA | |
| kW | kW | kW | kW | kW | kW | ||||
| EGV2- M01 | — | — | — | — | — | — | 0.16 | 0 . 1-0 . 16 | 1.5 |
| EGV2- M02 | — | — | — | — | — | — | 0.25 | 0 . 16-0 .25 | 2.4 |
| EGV2- M03 | — | — | — | — | — | — | 0.4 | 0 .25-0 .40 | 5 |
| EGV2- M04 | — | — | — | — | — | 0.37 | 0.63 | 0 .40-0 .63 | 8 |
| EGV2- M05 | — | — | — | 0.37 | 0.37 | 0.55 | 1 | 0 .63- 1 | 13 |
| EGV2- M06 | — | 0.37 | — | 0.55 | 0.75 | 1.1 | 1.6 | 1-1.6 | 22.5 |
| EGV2- M07 | 0.37 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 2.5 | 1.6-2.5 | 33.5 |
| EGV2- M08 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 4 | 2 .5-4 | 51 |
| EGV2- M10 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 6.3 | 4-6.3 | 78 |
| EGV2- M14 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 10 | 6-10 | 138 |
| EGV2- M16 | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 9 | 14 | 9-14 | 170 |
| EGV2- M18 | 4 | 7.5 | 7.5 | 7.5 | 10 | 11 | 16 | 10-16 | 223 |
| EGV2- M20 | 4 | 7.5 | 9 | 9 | 9 | 11 | 18 | 13- 18 | 223 |
| EGV2- M21 | 5.5 | 11 | 11 | 11 | 11 | 15 | 23 | 17-23 | 327 |
| EGV2- M22 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 25 | 20-25 | 327 |
| EGV2- M32 | 7.5 | 15 | 15 | 15 | 18.5 | 23 | 32 | 24-32 | 416 |
| EGV2- RS01 | — | — | — | — | — | — | 0.16 | 0 . 1-0 . 16 | 1.5 |
| EGV2- RS02 | — | — | — | — | — | — | 0.25 | 0 . 16-0 .25 | 2.4 |
| EGV2- RS03 | — | — | — | — | — | — | 0.4 | 0 .25-0 .40 | 5 |
| EGV2- RS04 | — | — | — | — | — | 0.37 | 0.63 | 0 .40-0 .63 | 8 |
| EGV2- RS05 | — | — | — | 0.37 | 0.37 | 0.55 | 1 | 0 .63- 1 | 13 |
| EGV2- RS06 | — | 0.37 | — | 0.55 | 0.75 | 1.1 | 1.6 | 1-1.6 | 22.5 |
| EGV2- RS07 | 0.37 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 2.5 | 1.6-2.5 | 33.5 |
| EGV2- RS08 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 4 | 2 .5-4 | 51 |
| EGV2- RS10 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 6.3 | 4-6.3 | 78 |
| EGV2- RS14 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 10 | 6-10 | 138 |
| EGV2- RS16 | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 9 | 14 | 9-14 | 170 |
| EGV2- RS18 | 4 | 7.5 | 9 | 9 | 9 | 11 | 16 | 10-16 | 223 |
| EGV2- RS20 | 4 | 7.5 | 9 | 9 | 9 | 11 | 18 | 13- 18 | 223 |
| EGV2- RS21 | 5.5 | 11 | 11 | 11 | 11 | 15 | 23 | 17-23 | 327 |
| EGV2- RS22 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 25 | 20-25 | 327 |
| EGV2- RS32 | 7.5 | 15 | 15 | 15 | 18.5 | 23 | 32 | 24-32 | 416 |
| EGV2- LS03 | — | — | — | — | — | — | 0.4 | 5 | |
| EGV2- LS04 | — | — | — | — | — | 0.37 | 0.63 | 8 | |
| EGV2- LS05 | — | — | — | 0.37 | 0.37 | 0.55 | 1 | 13 | |
| EGV2- LS06 | — | 0.37 | — | 0.55 | 0.75 | 1.1 | 1.6 | 22.5 | |
| EGV2- LS07 | 0.37 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 2.5 | 33.5 | |
| EGV2- LS08 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 4 | 51 | |
| EGV2- LS10 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 6.3 | 78 | |
| EGV2- LS14 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 10 | 138 | |
| EGV2- LS16 | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 9 | 14 | 170 | |
| EGV2- LS18 | 4 | 7.5 | 9 | 9 | 9 | 11 | 16 | 223 | |
| EGV2- LS20 | 4 | 7.5 | 9 | 9 | 9 | 11 | 18 | 223 | |
| EGV2- LS21 | 5.5 | 11 | 11 | 11 | 11 | 15 | 23 | 327 | |
| EGV2- LS22 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 25 | 327 | |
