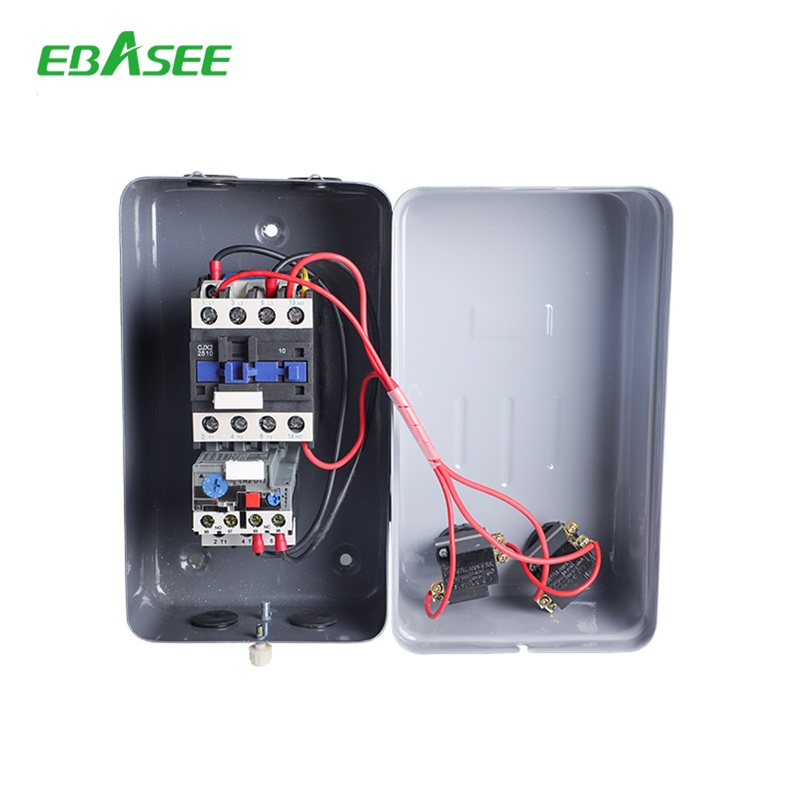

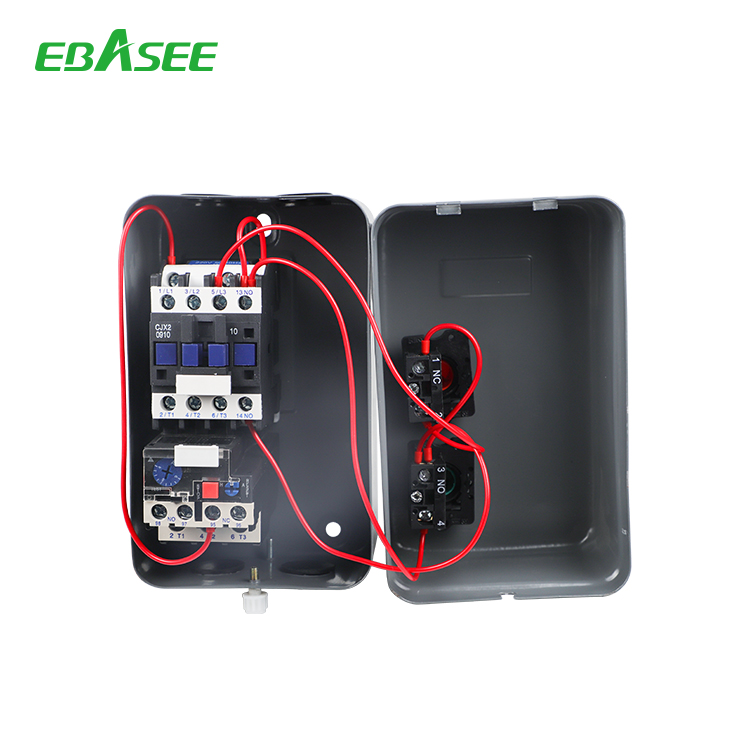

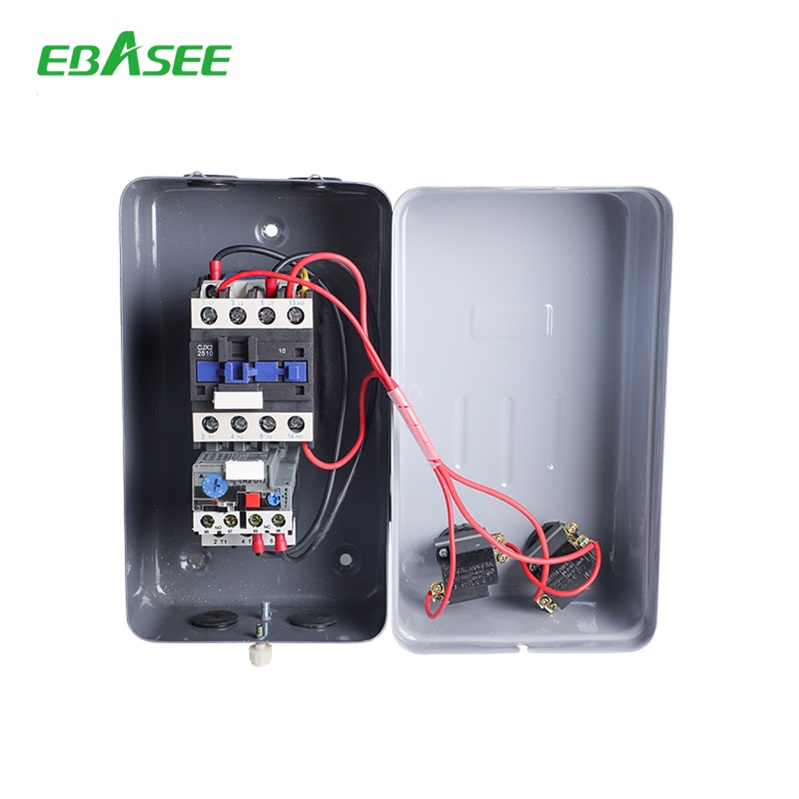

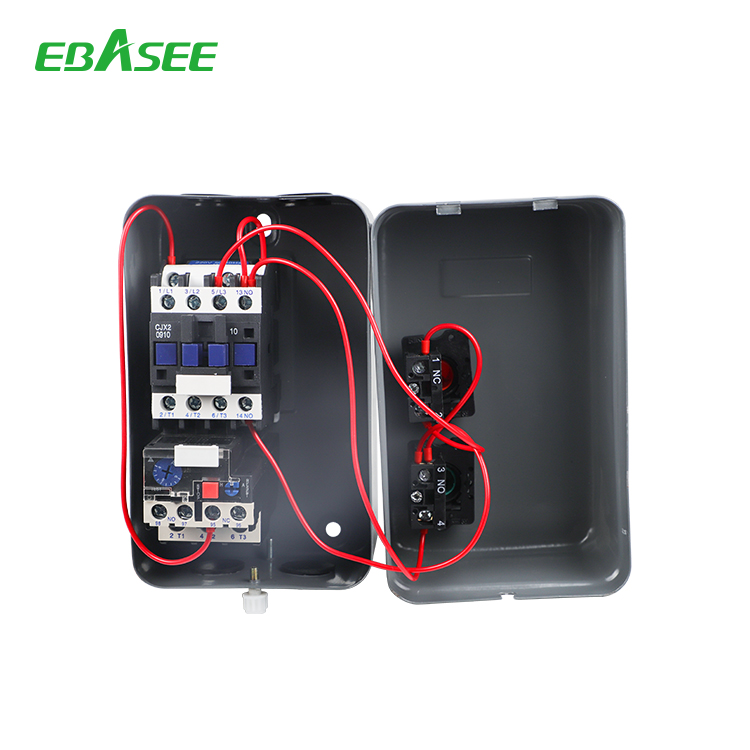

EBSE2 DOL Starter

Function

EBSE2 DOL starter mainly applies to circuit of AC 50 or 60Hz,voltage up to 550V for remote making and breaking circuit and frequently starting and controlling motor.It features small volume light weight, low power consumption, high efficiency,safe and reliable performance etc. EBSE2 DOL starter mainly applies to circuit of AC 50 or 60Hz, voltage up to 550V for remote making and breaking circuit and  frequently starting and controlling motor.It features small volume light weight, low power consumption, high efficiency,safe and reliable performance etc.

Specifications

Type Standard   IEC60947-4-1, IEC60439-1




Electrical

features

Rated current ln A 09, 12, 18, 25, 32, 40, 50, 65, 80, 95
Rated insulating voltage V 690
Control   1-green: start button “I”
(Two pushbuttons mounted on enclosure cover)   2-red: stop/reset button “O”
Rated frequency Hz 50/60
Connections   Pre-wired power and control circuit connections
Protection degree   IP65








Mechanical

features

Material   metal


Working form

(with daily average≤35C)





C

8 hours

uninterrupted duty

intermittent periodic duty:  600 time/hour without thermal relay at 40%t

power access rate 15

times/hour with thermal relay

Mechanical life   6×106 times
Electrical life   6×105 times
A mbient air temperature C   – 5~+40
meter   2000
Pollution degree   3
Installation category   3
Standard pow er ratings of 3- phase motors 50- 60H z in category AC – 3 R ated current C onventional  heating

current  Ith (A)

Matched

thermal relay(1)

Type code
220V 230V

kW

380V 400V

kW

660V  690V

kW

380V

A

    230V  50HZ

Please contact us for other coil voltage .

2.2 4 5.5 9 20 1TR-25 E1 09P5
3 5.5 7.5 12 20 1TR-25 E1 12P5
4 7.5 9 18 32 1TR-25 E1 18P5
5.5 11 15 25 40 1TR-25 E1 25P5
7.5 15 18.5 32 50 1TR-36 E1 32P5
11 18.5 30 40 60 1TR-93 E1 40P5
15 22 33 45 80 1TR-93 E1 50P5
18.5 30 37 65 80 1TR-93 E1 65P5
22 37 45 85 110 1TR-93 E1 85P5
25 45 45 95 125 1TR-93 E1 95P5

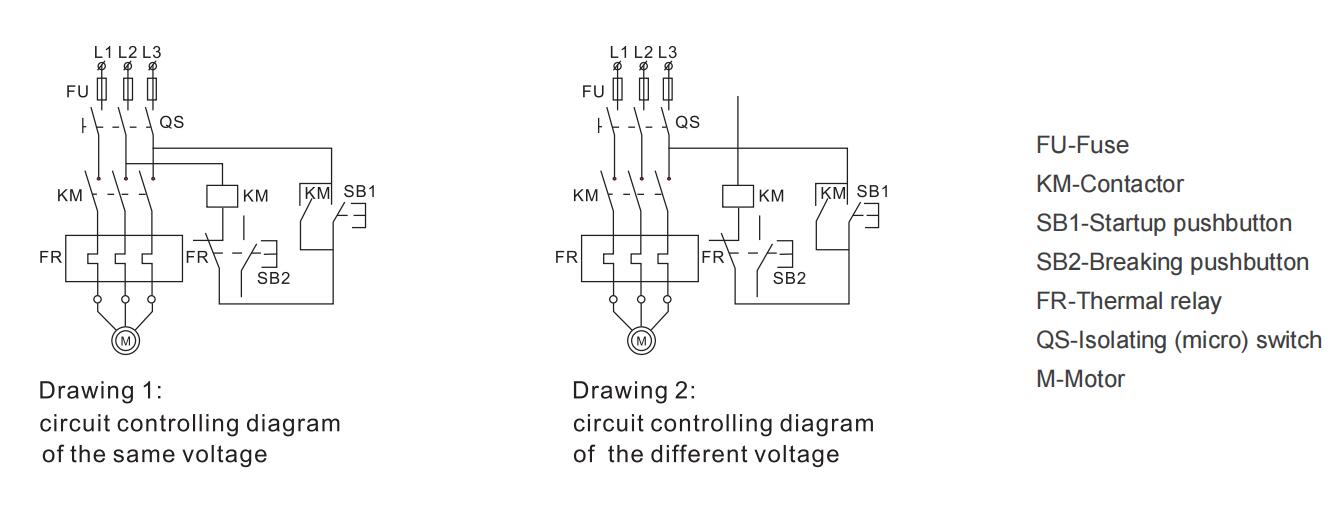

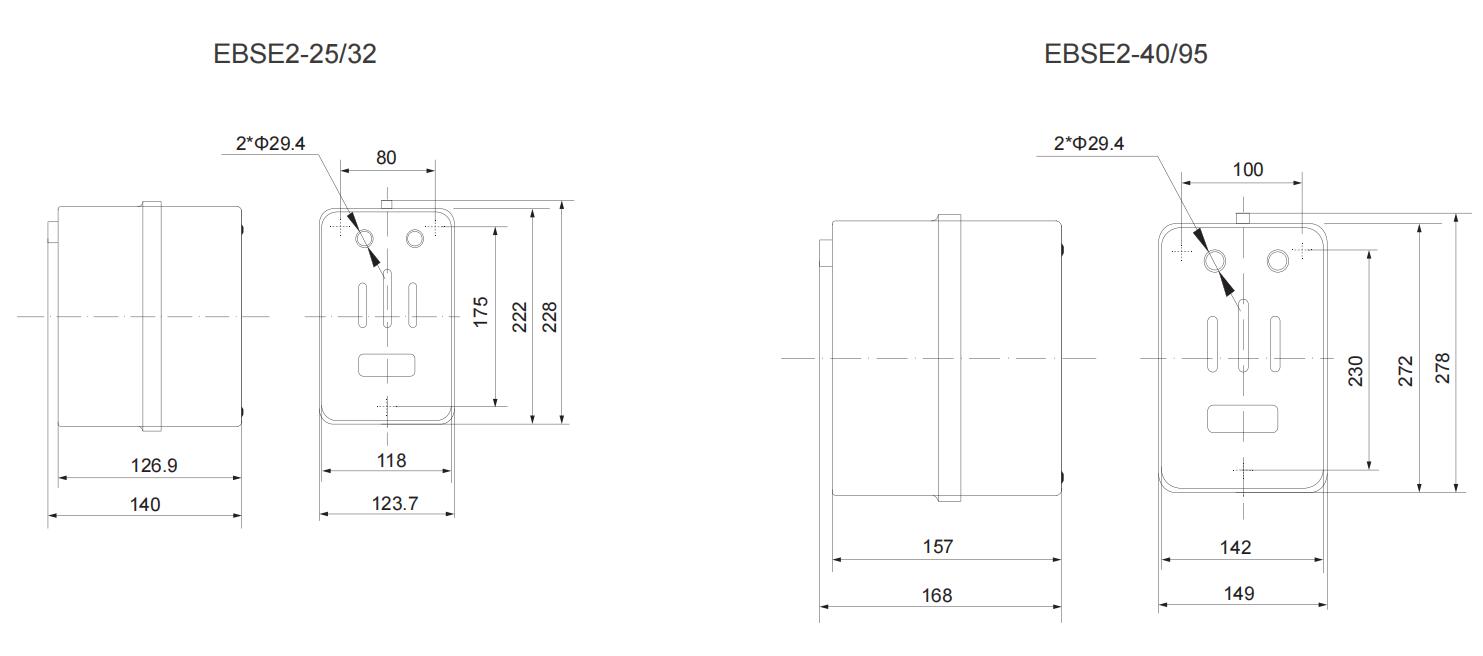

Dimensions
