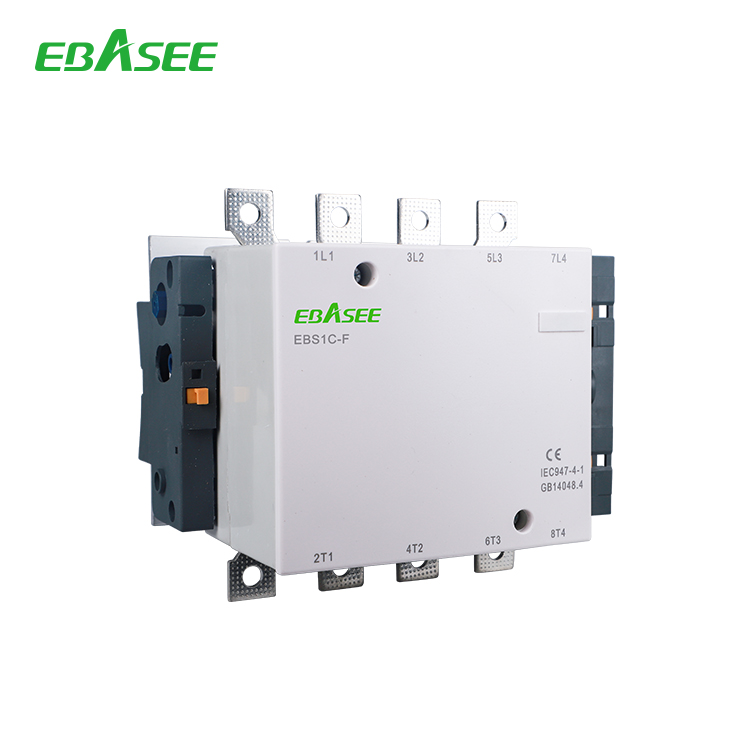

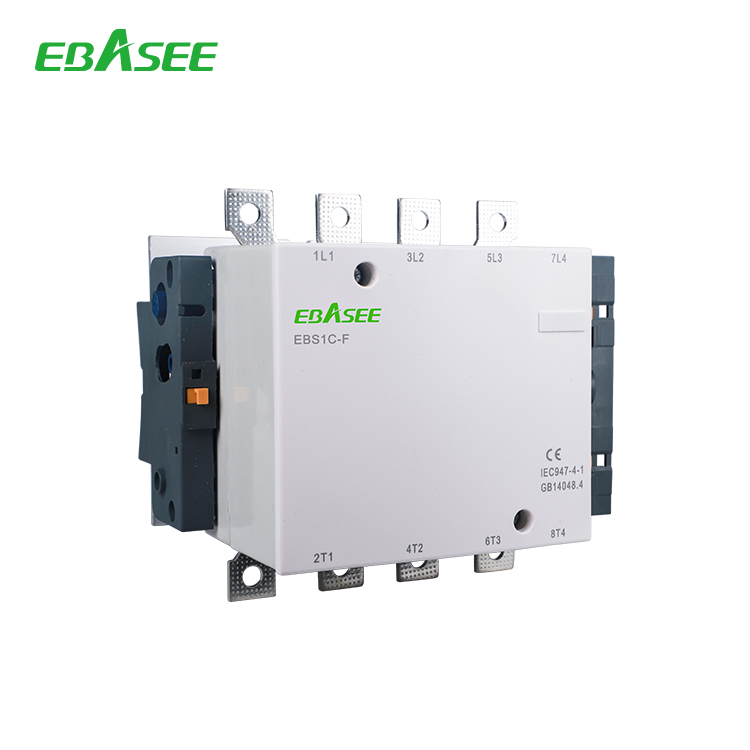

EBS1C-F AC Contactor

Function

EBS1C-F series AC Contactor is applicable to the circuits up to the rated voltage 1000V AC 50Hz or 60Hz, rated current up to 780A, for long
distance breaking circuit and frequently starting or controlling the motor.

Specifications

Contactor Model Appointed

thermal

current

(A)

Rated operation current (A) T he max.power or controllable  3-phase squirrel-cage motor(kw) Weight (kg) Mechanical life Electric life Mechanical life
Operation Time

×104

Operation Time

×104

Model Rated
380V 660V 1000V 220V 380V 660V 1000V


EBS1C- F115



200



115



65



40

kW kW kW kW

3.6



1200



300



1200



120



RT16- 2



250

30 55 80 65
HP.Ch HP.Ch HP.Ch HP.Ch
40 75 110 85


EBS1C- F150



220



150



80



50

kW kW kW kW

3.7



1200



300



1200



120



RT16- 2



355

40 75 100 65
HP.Ch HP.Ch HP.Ch HP.Ch
53 100 136 85


EBS1C- F185



275



185



95



65

kW kW kW kW

4.6



600



300



1200



60



RT16- 3



425

55 90 110 100
HP.Ch HP.Ch HP.Ch HP.Ch
75 125 150 135


EBS1C- F225



315



225



115



80

kW kW kW kW

4.7



600



300



600



60



RT16- 3



500

68 110 120 100
HP.Ch HP.Ch HP.Ch HP.Ch
90 150 175 136
EBS1C- F265 350 265 150 95 kW kW kW kW

7.1



600



100



300



60



RT16- 3



630

75 132 160 147
HP.Ch HP.Ch HP.Ch HP.Ch
100 180 220 200


EBS1C- F330



400



330



185



115

kW kW kW kW 8.5 600 100 300 60 RT16- 4 800
100 165 220 160
HP.Ch HP.Ch HP.Ch HP.Ch
135 221 300 220


EBS1C- F400



500



400



225



150

kW kW kW kW

8.5



600



100



300



60



RT16- 4



800

115 200 280 185
HP.Ch HP.Ch HP.Ch HP.Ch
155 270 380 250


EBS1C- F500



700



500



265



185

kW kW kW kW

10.8



600



100



300



60



RT16- 4



1000

147 250 335 335
HP.Ch HP.Ch HP.Ch HP.Ch
200 340 450 450


EBS1C- F630



1000



630



330



225

kW kW kW kW

17.4



600



100



300



60



RT16



1250

200 335 450 425
HP.Ch HP.Ch HP.Ch HP.Ch
270 450 610 570


EBS1C- F780



1500



780



450



300

kW kW kW kW

40



600



100



300



60



RT16



160

220 400 475 450
HP.Ch HP.Ch HP.Ch HP.Ch
300 540 635 605



Poles Type Code
Rated operating current

380V AC- 3

A



Conventional

thermal current



A

Standard power ratings o 3 phase motors 50- 60Hz AC- 3

230V 50Hz

Please contact us for other coil voltage .

220V

230V

380V

400V

415V

440V

KW KW KW
115 200 30 55 60 3

4

1C- F 1 15/3P5

1C- F 1 15/4P5

150 220 40 75 80 3

4

1C- F 150/3P5

1C- F 150/4P5

185 275 55 90 100 3

4

1C- F 185/3P5

1C- F 185/4P5

225 315 63 110 120 3

4

1C- F 225/3P5

1C- F 225/4P5

265 350 75 132 140 3

4

1C- F 265/3P5

1C- F 265/4P5

330 400 100 165 180 3

4

1C- F 330/3P5

1C- F 330/4P5

400 500 115 200 220 3

4

1C- F 400/3P5

1C- F 400/4P5

500 700 147 250 280 3

4

1C- F 500/3P5

1C- F 500/4P5

630 1000 200 335 375 3

4

1C- F 630/3P5

1C- F 630/4P5

780 1500 220 400 425 3

4

1C- F 780/3P5

1C- F 780/4P5
