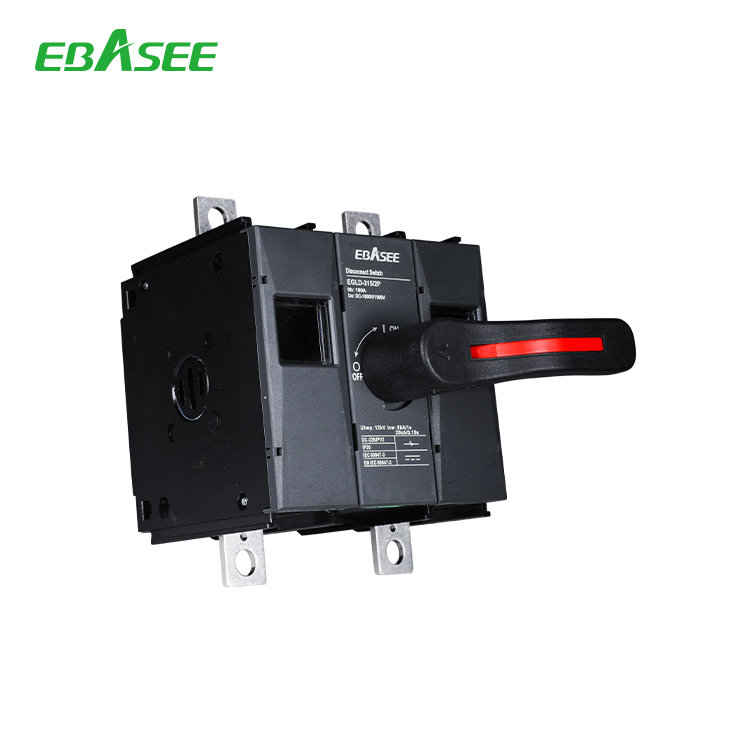

The EGLD series DC disconnectors are suitable for power systems with a rated voltage of DC1000V/DC1500V or below and a ratedoperating current of 630A or below. The product can be used for infrequent switching on and off, functioning to isolate and interrupt circuits to facilitate equipment maintenance or overhaul. It is widely applied in various industries such as construction, electric power, andmetallurgy.
The contacts adopt a rotating double-end contact structure, ensuring the safe distance of the disconnector, meeting the requirement ofreliable isolation, and the contacts have a self-cleaning function.
· Double-spring operating mechanism: The double-spring energy storage mechanism realizes fast switching on and off. The switching effect is not affected by the operator’s speed, improving the breaking speed.
· The shell is made of glass fiber unsaturated polyester resin, which has excellent flame retardancy, dielectric properties, anti-carbonization performance, and impact resistance.
· Complies with the latest EU RoHS directive.
·The operating mechanism supports front-side and side-side operation.
· The arc-extinguishing system adopts the arc-extinguishing principle of permanent magnetism to increase arc voltage, improving the breaking performance.
| Standard | IEC 60947-3 | |
| Poles | 2P | |
| Frame rating current | A | 315 / 630 |
| Rated current | A | 80, 100, 125, 160, 200, 225, 250, 275, 315, 325, 400, 500, 630 |
| Rated voltage | V | DC1000 / DC1500 |
| Rated insulation voltage (Ui) | V | 2000 |
| Rated short-circuit making capacity (Icm) | Frame 315: 10 kA, Frame 630: 20 kA | |
| Rated short-time withstand current (Icw) | Frame 315: 8 kA/1s, 20 kA/0 .15s
Frame 630: 10 kA/1s, 20 kA/0 .15s |
|
| Rated impulse withstand voltage Uimp | kV | 12 |
| Protection level | Inside cabinet: IP20, Outside cabinet: IP65 | |
| Operation mode | Front-side operation / Side-side operation (extended operation mode) | |
| Terminal tightening torque | M8 screw: 6 N·m; M12 screw: 14 N·m | |
| Electrical life | ≤315 A: 500 times, >315 A: 400 times | |
| Mechanical life | Front-side operation: 10,000 times
Side-side operation: 3,000 times |
|
| Service category | DC-22B / PV2 | |
| Operating torque | For 315 frame: Front-side operation 4–7 N·mm,
Side-side operation 6–11 N·mm For 630 frame: Front-side operation 8–13 N·mm, Side-side operation 12–23 N·mm |

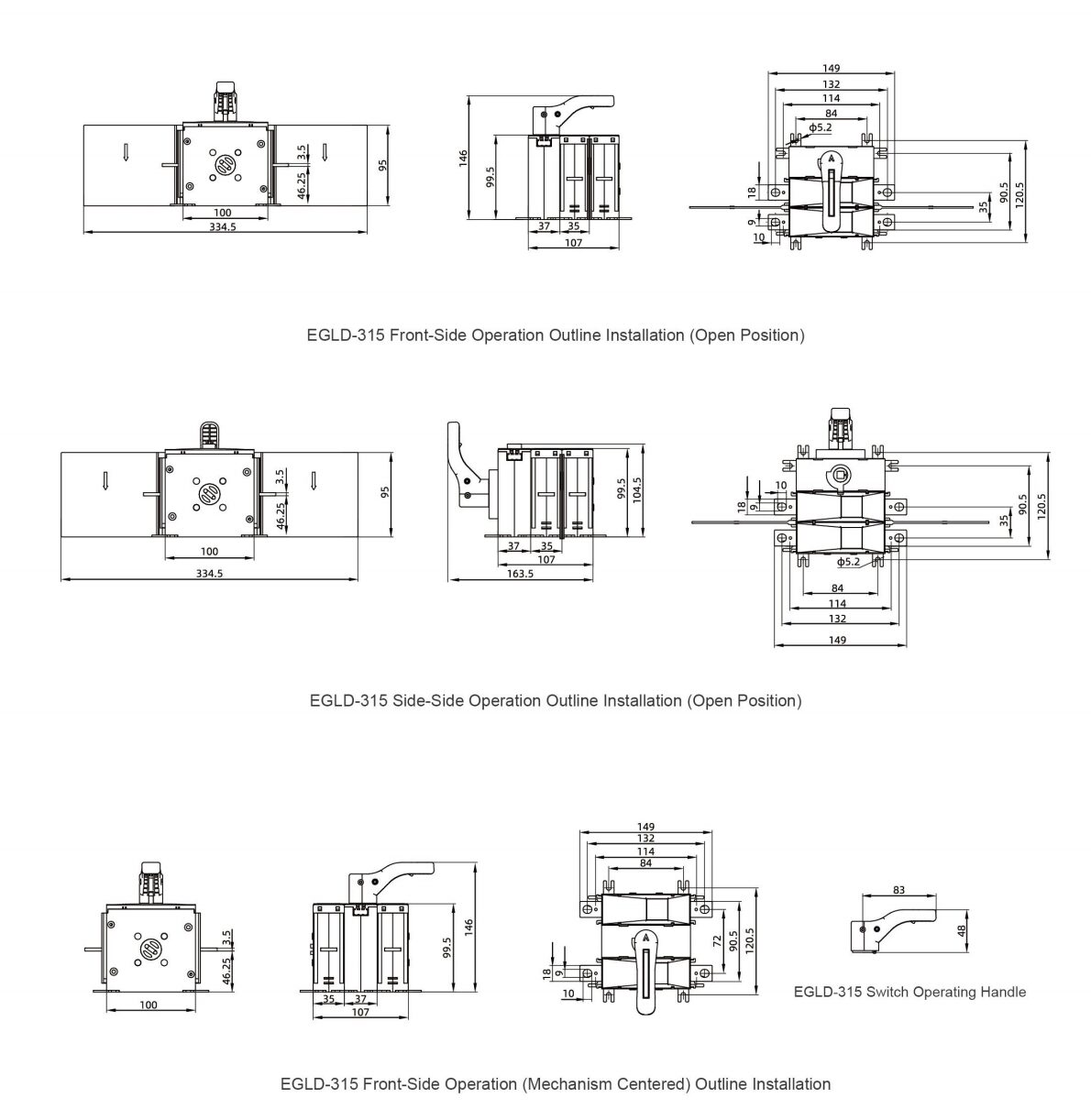

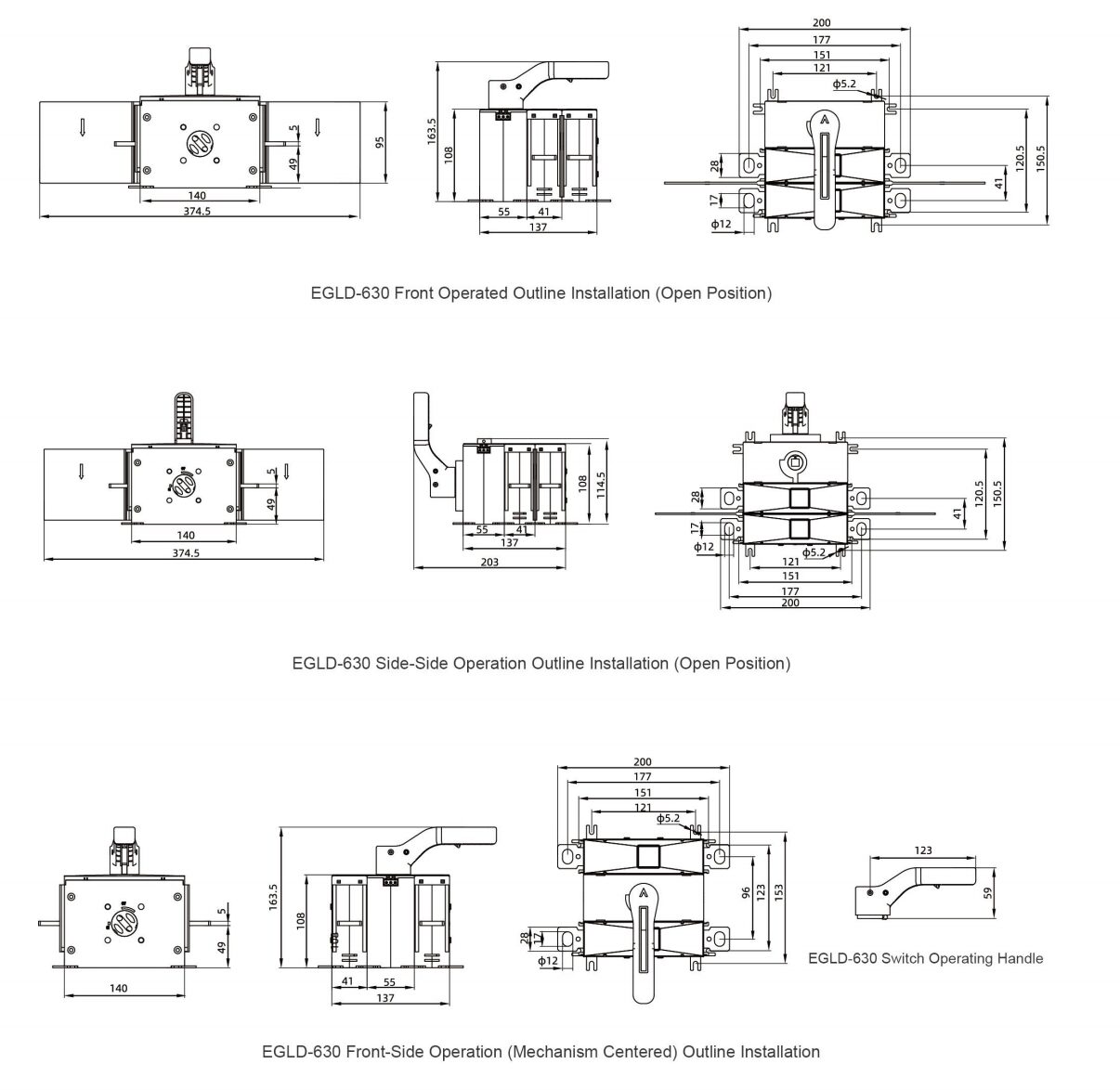

Solar PV Systems, Battery Energy Storage Systems , DC Distribution Systems, Telecommunication Systems , Industrial Control Systems,DC Control Systems
Q1: Can I get samples for testing?
Yes. Samples are available for quality and performance testing.
Q2: Do you support OEM/private labeling?
Yes. We support OEM/ODM, including private labeling and customized packaging.
Q3: What certifications are available for this model?
CE, CB, TÜV and other certifications are available depending on the model. Please contact us for details.
Q4: Can you supply different poles ?
Yes. Different poles are available depending on the model.
Q5: What is the typical production lead time?
Typically around 35 days, depending on order quantity and customization requirements.
 |
|||
