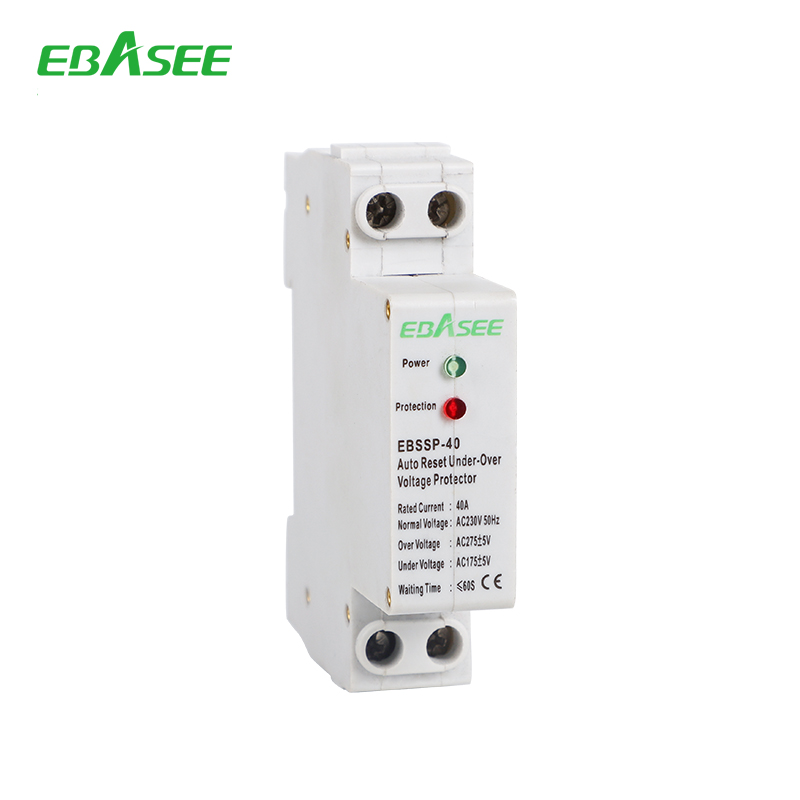

Self-recovery Over&Under Voltage Delay Protector is EBASEE’s development of a new generation of products. It has reasonable design, assembling imported components and domestic famous components, with advanced manufacturing process. It can cut off power supply quickly and reliably under the condition of high voltage surge and under-voltage, to protect household appliances, when the voltage recovery normal, it can connect circuits automatically after a delay, to recover power, which can protect electric appliance to avoid the impact of the moment when the power supply is connected, all the functions of automation, no need manual operations, select and use double lights indicator.
| Specification | Frame
level (A) |
Rated current (A) | Rated voltage(V) | Rated frequency(Hz) | Over-voltage
action cut-off value (V) |
Normal-voltage
action cut-off value (V) |

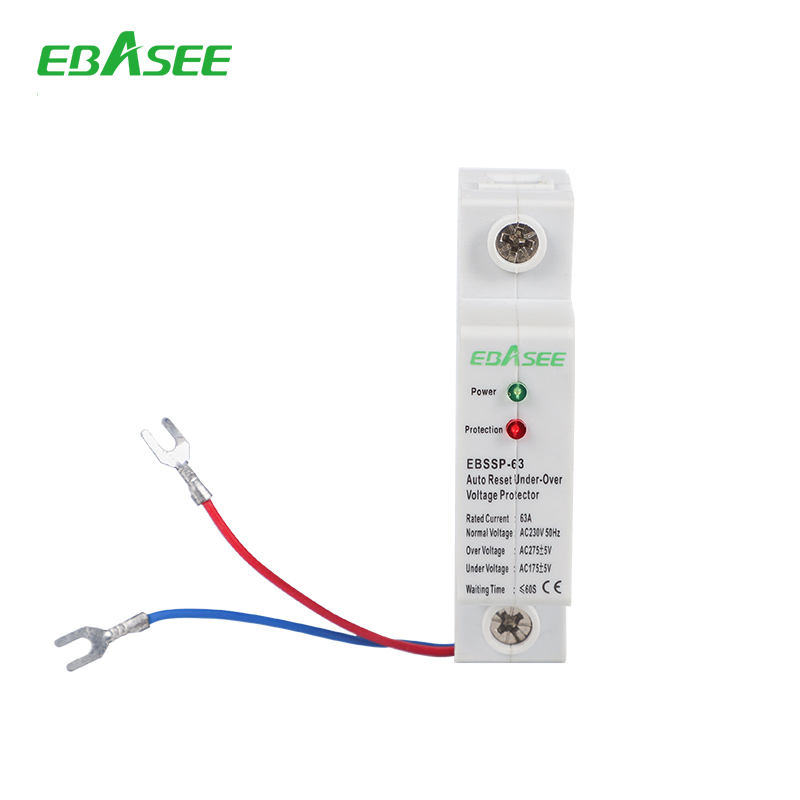

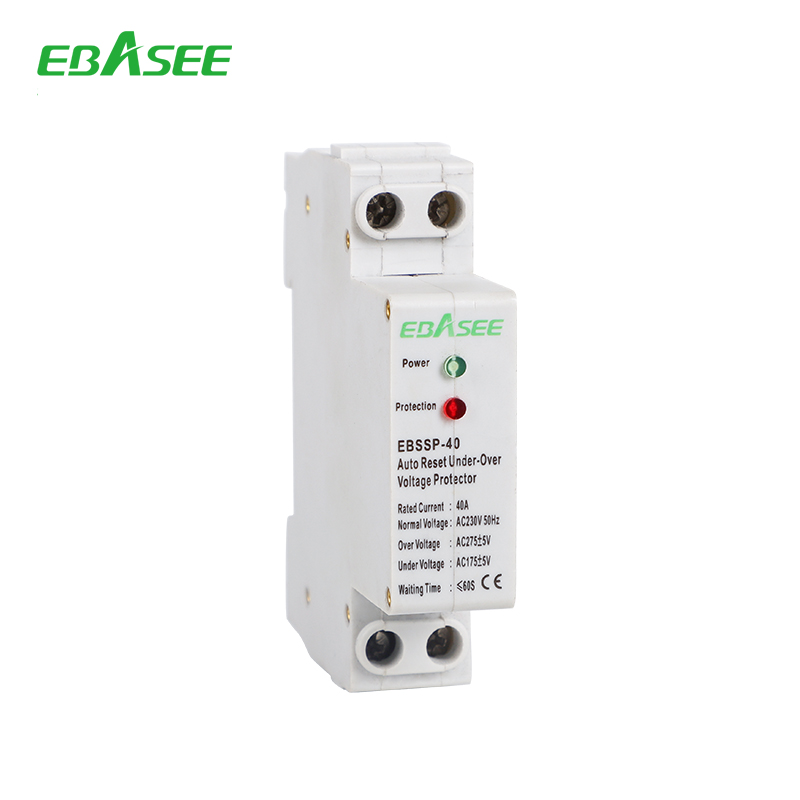

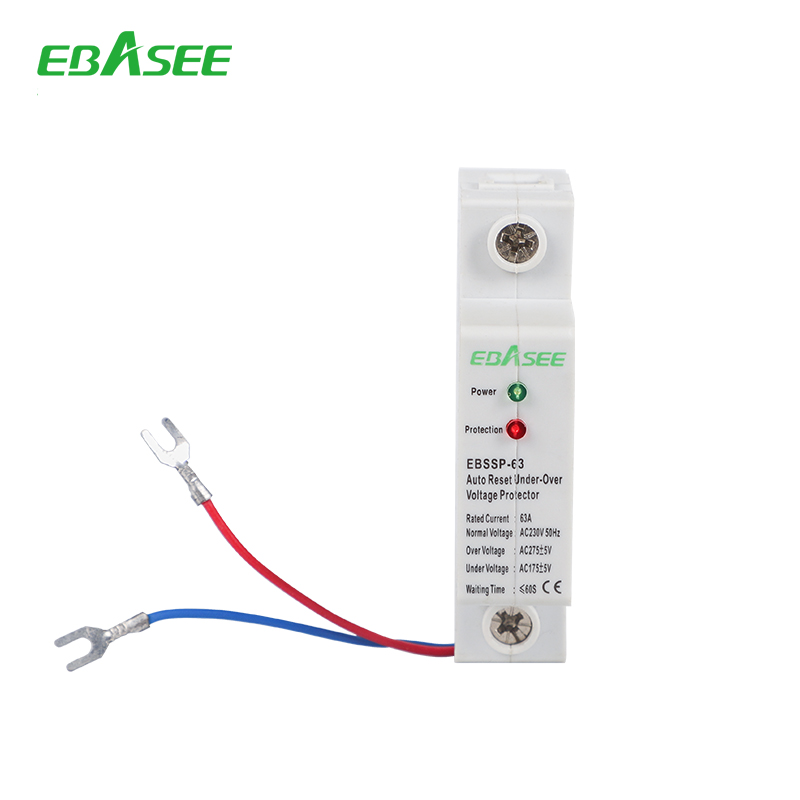

| EBSSP | 63 | 32, 40, 63 |
230 AC |
50/60 |
275±5 |
240~260 |

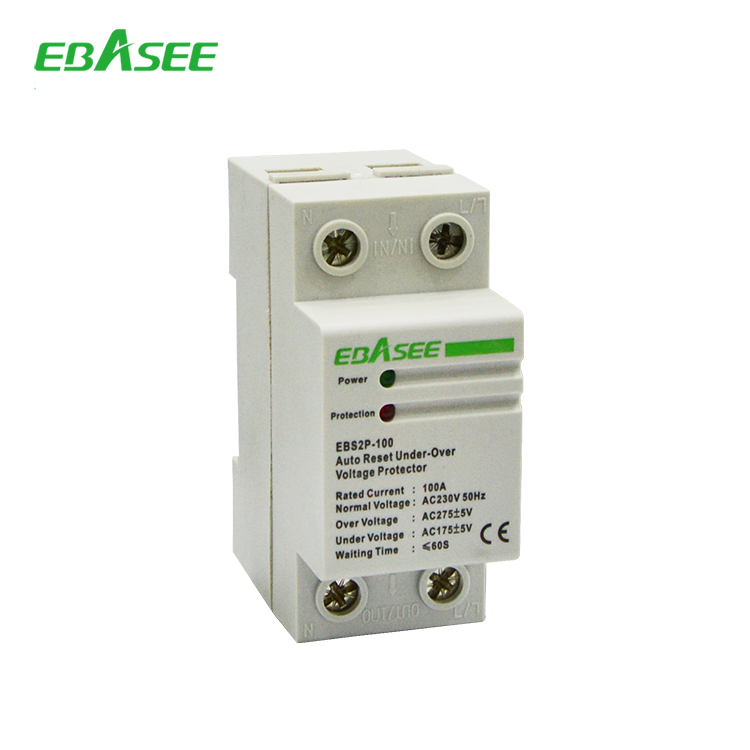

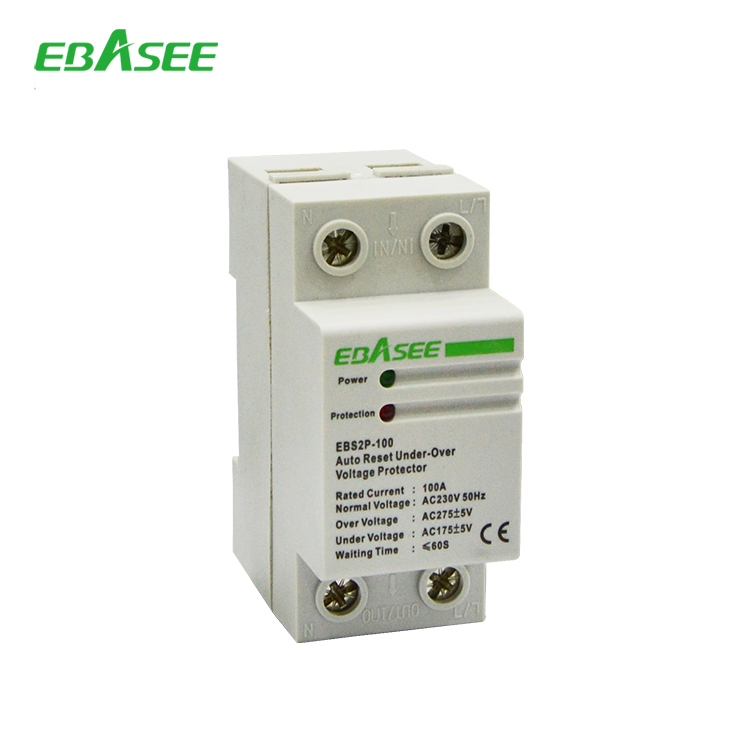

| EBS2P | 100 | 32, 40, 63, 80, 100 | ||||

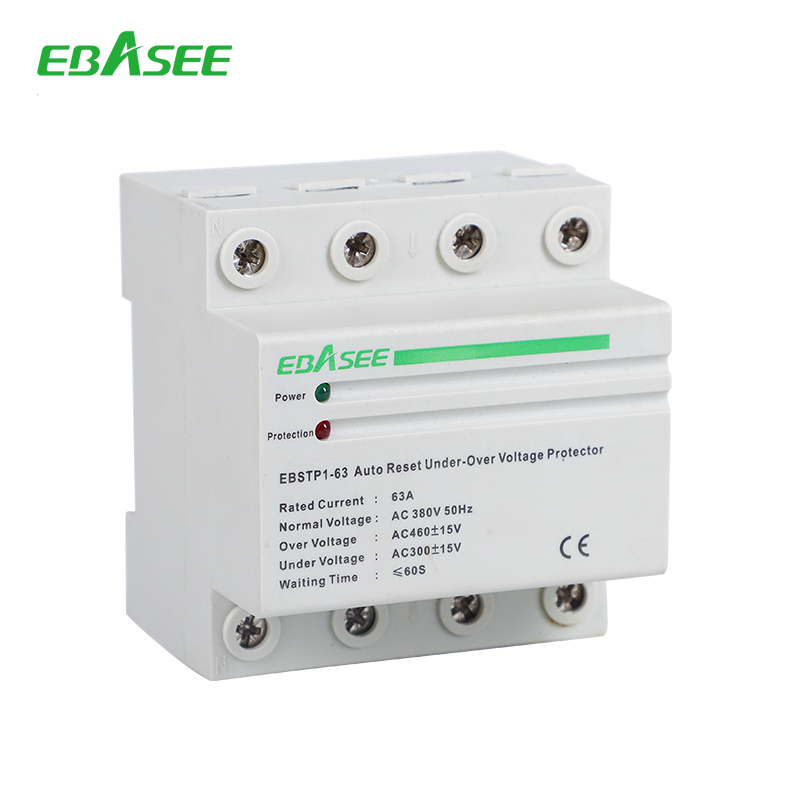

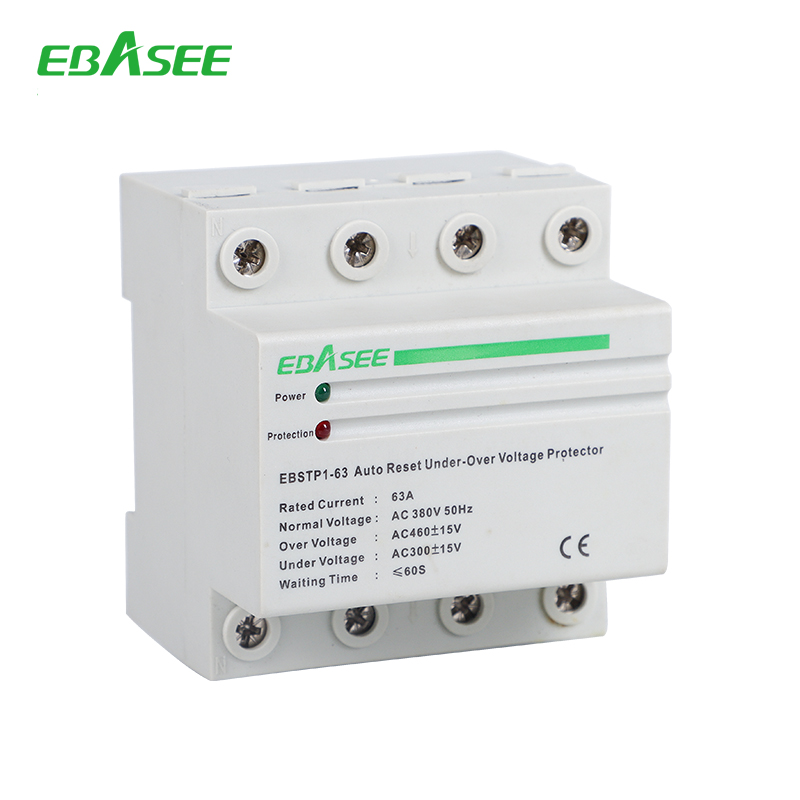

| EBSTP | 100 | 32, 40, 63, 80, 100 | 380 AC | 460±15 | 420~440 |
| Specification | Under-voltage
action cut-off value(V) |
Normal-voltage
action cut-off value(V) |
Electricity transmitting
delay after cut-off (S) |
Self power consumption(W) | Mechanical life
(times) |
| EBSSP |
175±5 |
190±5 |
≤60s |
<1 |
>100,000 |
| EBS2P | <1 | ||||
| EBSTP | 300±15 | 335±10 | <2 |
