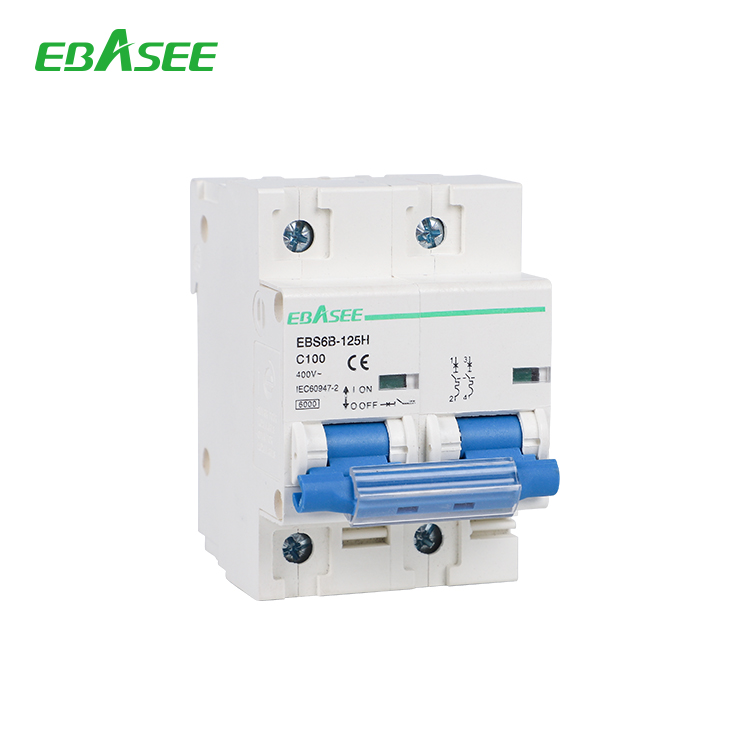

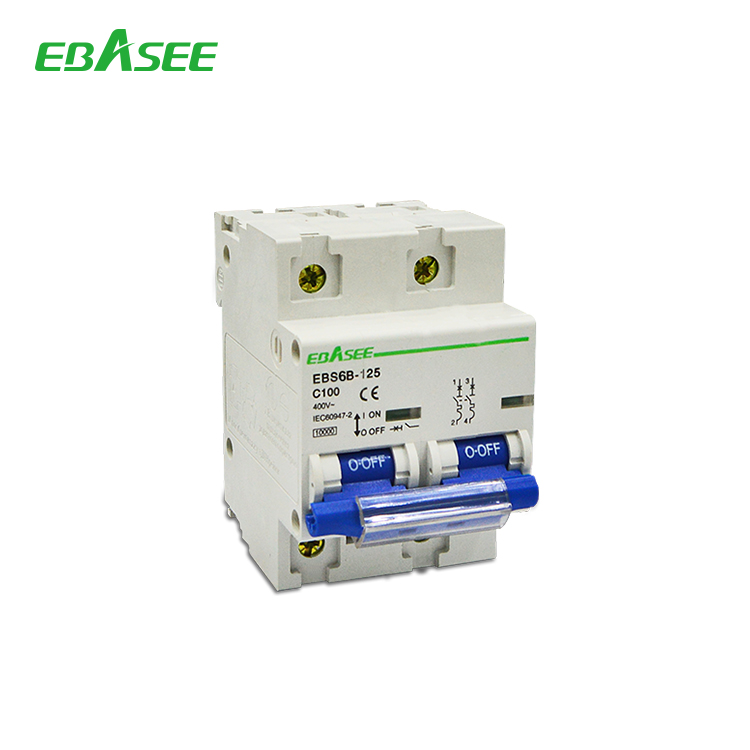

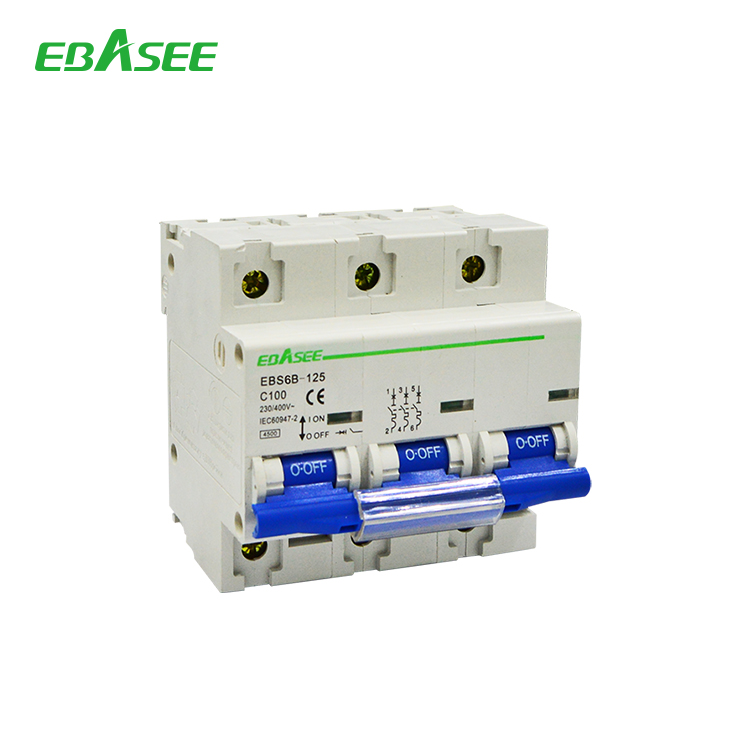

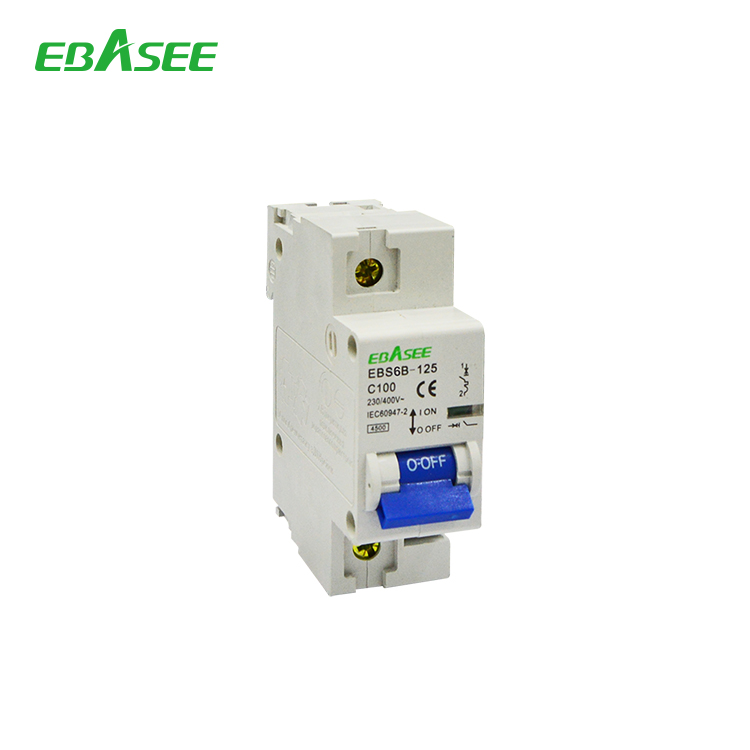

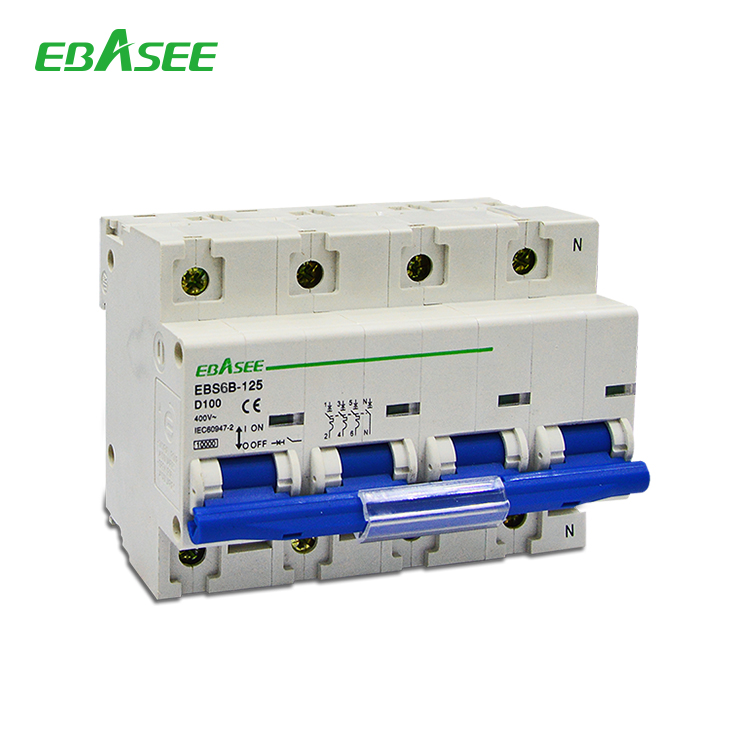

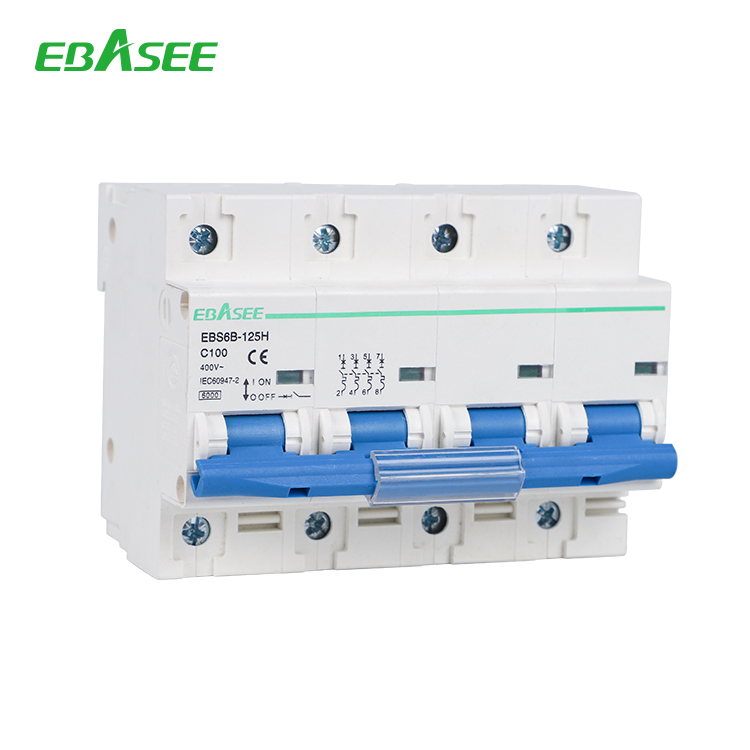

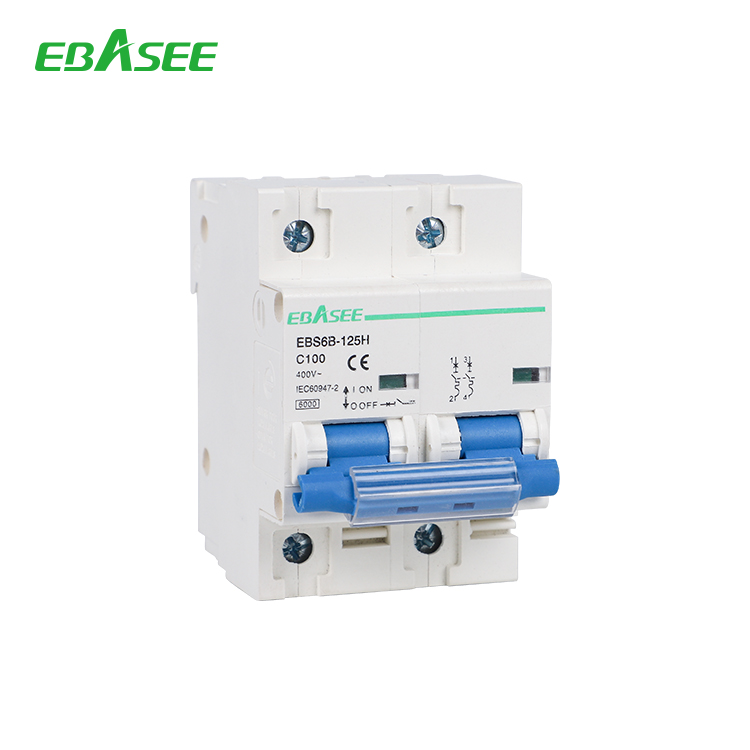

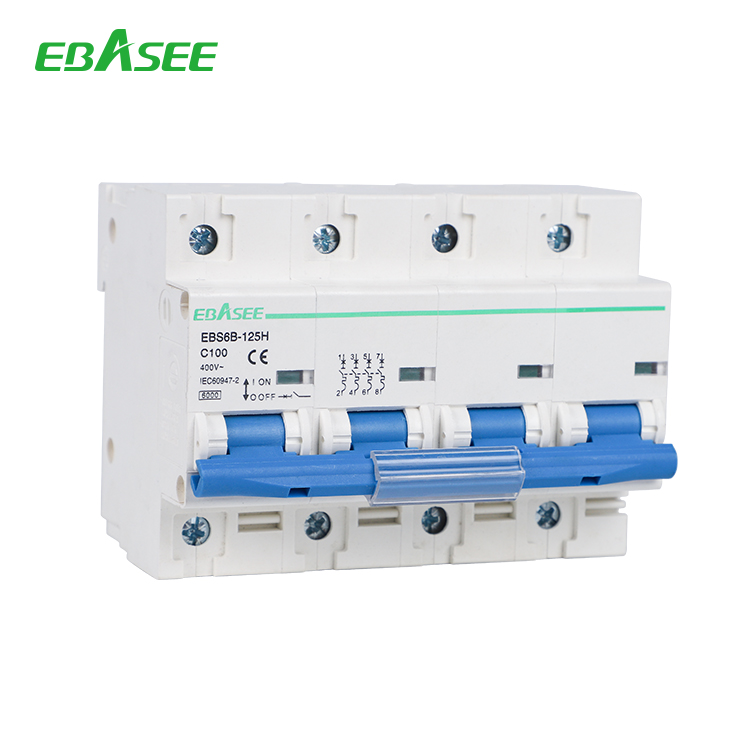

EBS6B-125H Miniature Circuit Breaker

Function

EBS6B-125H Series circuit breaker is used in protection lighting or power distribution system from over-load and short-circuit, apply to the circuit of AC 50Hz/60Hz, rated voltage less than 415V. The product adopt high fire resistant and shockproof plastics, quality metal materials, which is neoteric in structure, light in weight, reliable in performance.
Products comply with IEC/EN60898-1.

Specifications

Type Standard lEC/EN 60947-2;IEC/EN60898-1












Electrical features

Rated current ln A 63, 80, 100, 125
Poles P 1, 2, 3, 4, 1P+N, 3P+N
Rated voltage Ue V 240/415
Insulation voltage Ui V 500
Rated frequency Hz 50/60
Rated breaking capacity A 10000(For:H);6000(For:/)
Rated impulse withstand voltage(1.2/50)Uimp V 6000
Dielectric test voltage at ind. Freq. for 1min kV 2.5
Pollution degree 3
Thermo-magnetic release characteristic C, D








Mechanical features

Electrical life t 1500
Mechanical life t 8000
Protection grade IP20
Reference temperature for setting of thermal element ℃

30

Ambient temperature

(with daily average≤35℃)

℃

-5~+40

Storage temperature ℃ -25~+70










Installation

Terminal connection type Cable/Pin-type busbar


Terminal size top / bottom for cable

mm² 35
AWG 18-1/0


Terminal size top / bottom for busbar

mm² 35
AWG 18-1/0


Tightening torque

N*m 3.5
In-Ibs 31
Mounting On DIN rail EN 60715(35mm)by means of fast clip device
Connection From top and bottom

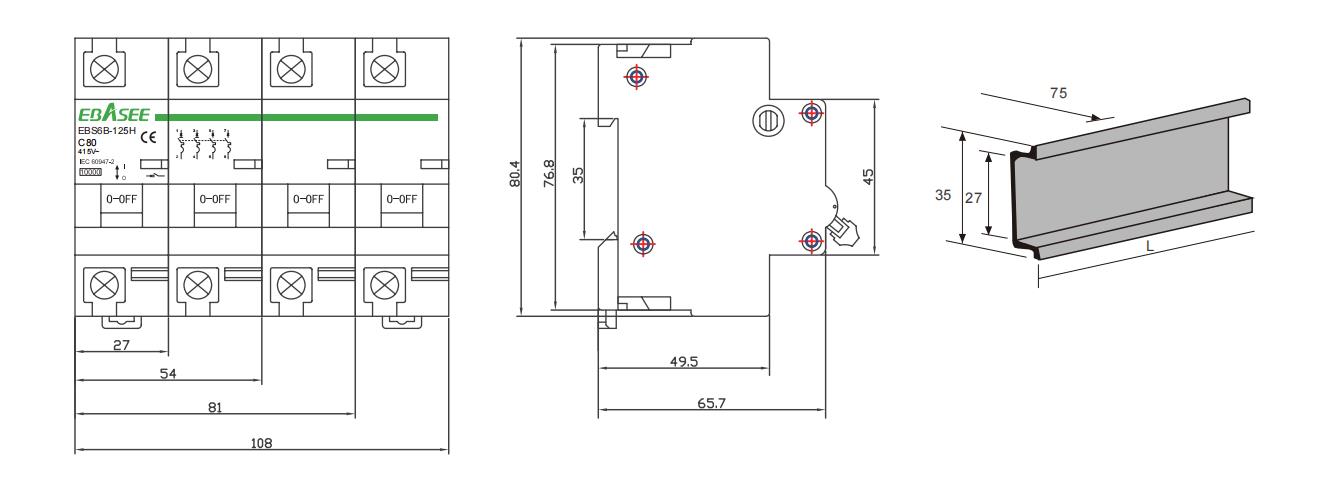

Dimensions

Application

Residential Buildings · Commercial Buildings · Industrial Facilities · Distribution Panels · Lighting Circuits · Power Distribution · Solar PV Systems

FAQ

Q1: Can I get samples for testing?
Yes. Samples are available for quality and performance testing.

Q2: Do you support OEM/private labeling?
Yes. We support OEM/ODM, including private labeling and customized packaging.

Q3: What certifications are available for this model?
CE, CB, TÜV and other certifications are available depending on the model. Please contact us for details.

Q4: Can you supply different poles and tripping curves?
Yes. Different poles and B/C/D tripping curves are available depending on the model.

Q5: What is the typical production lead time?
Typically around 35 days, depending on order quantity and customization requirements.
