The EBASEE modular contactor (hereinafter referred to as contactor) ismainly suitable for AC 50Hz (or 60Hz), rated working voltage to 400V andrated current operation in the circuit up to 63A, it can control the low-induc-tance and low-inductance load of household appliances and similarpurposes; it can also be used to control the load of household motors. Thepower should be reduced accordingly.

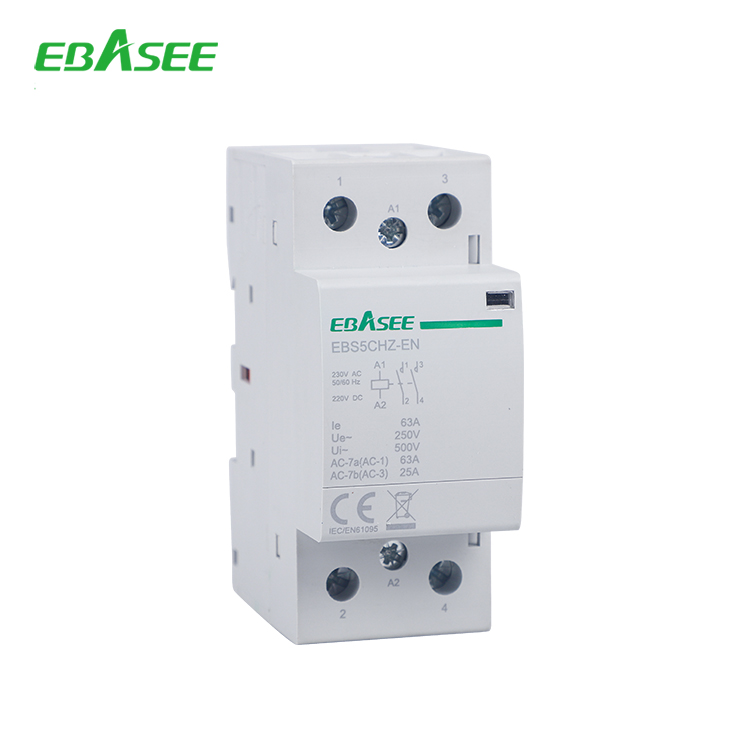

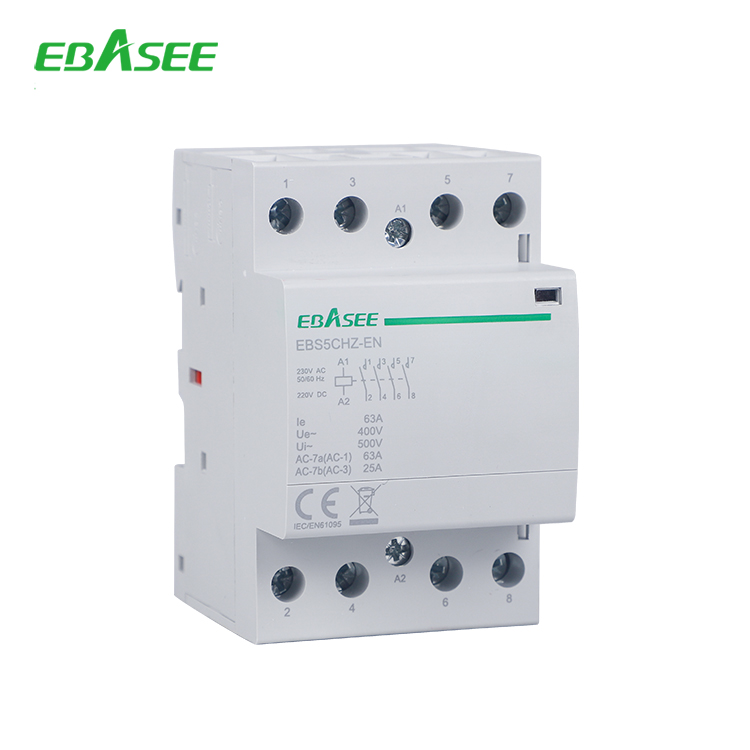

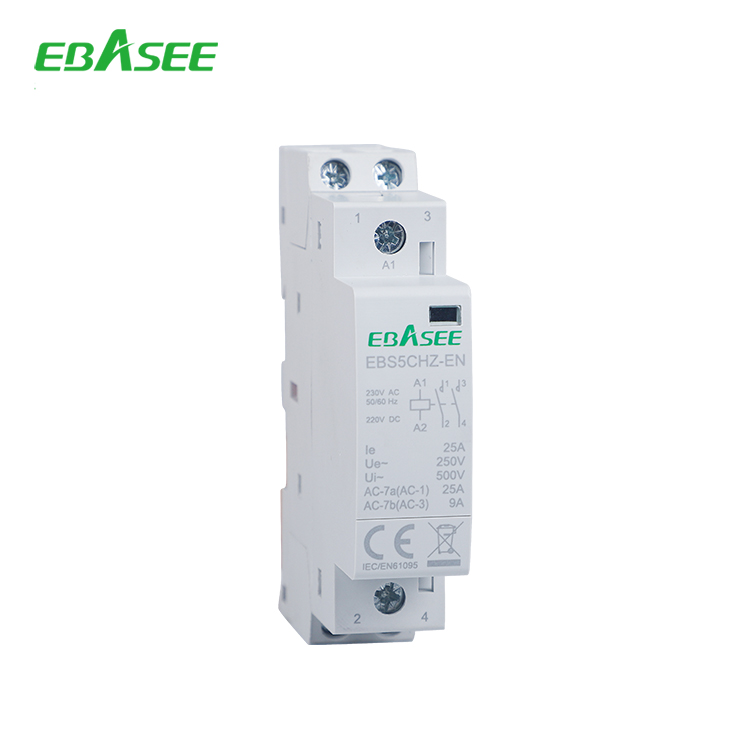

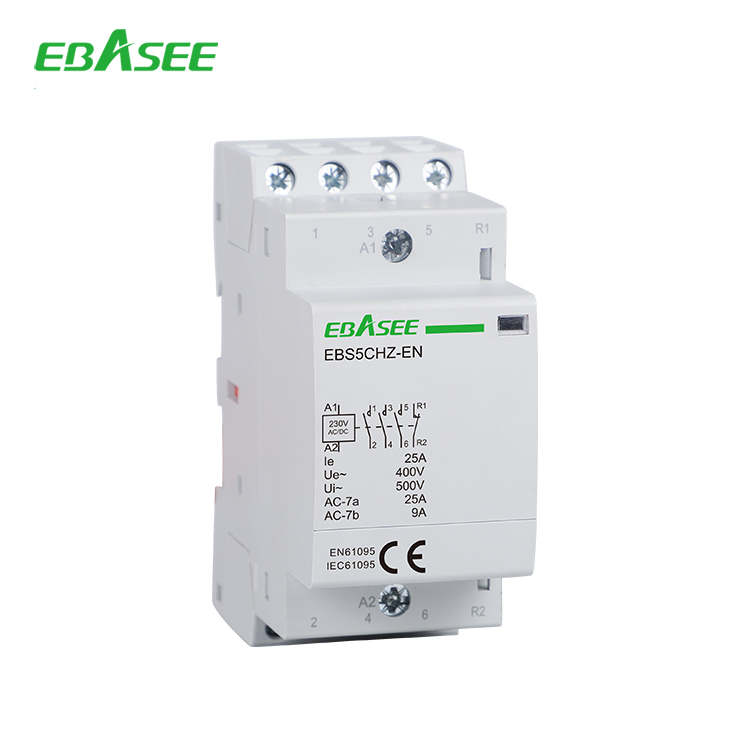

The EBS5CHZ-EN contactors according to standard IEC/EN61095IEC60947-4-1 and are used mainly in buildings for switching andcontrolling lighting, heating, ventilation and pumps. They are part of thecomplete range of Din rail products and can be integrated easily in
dedicated panels.
| Power circuit | ||
| Voltage rating(Ue) | 1P,2P | 250V AC |
| 3P,4P | 400V AC | |
| Frequency | 50/60Hz | |
| Endurance(O-C) | 1,000,000 cycles | |
| Electrical | 100,000 cycles | |
| Maximum number of switching operation a day | 100 | |
| Insulation vwltage(Ui) | 500 V AC | |
| Pollution degree | 2 | |
| Rated impulse withstand voltage(Uimp) | 2.5kV (4kV for 12/24/48VAC) | |
| Degree of protection
(IEC 60529) |
Device only | IP20 |
| Device in modular enclosure | IP40 | |
| Operating temperature | -5℃~+60℃ | |
| Storage temperature | -40℃~+70℃ | |
| Tropicalization(IEC 60068.1) | Treatment 2 (relative humidity 95% at 55℃) | |
| ELSV compliance(Extra Low Safety Voltage)for 12/24/48vac versions | ||
| The product control conforms to the SELV(safety extra low voltage)requirements | ||
