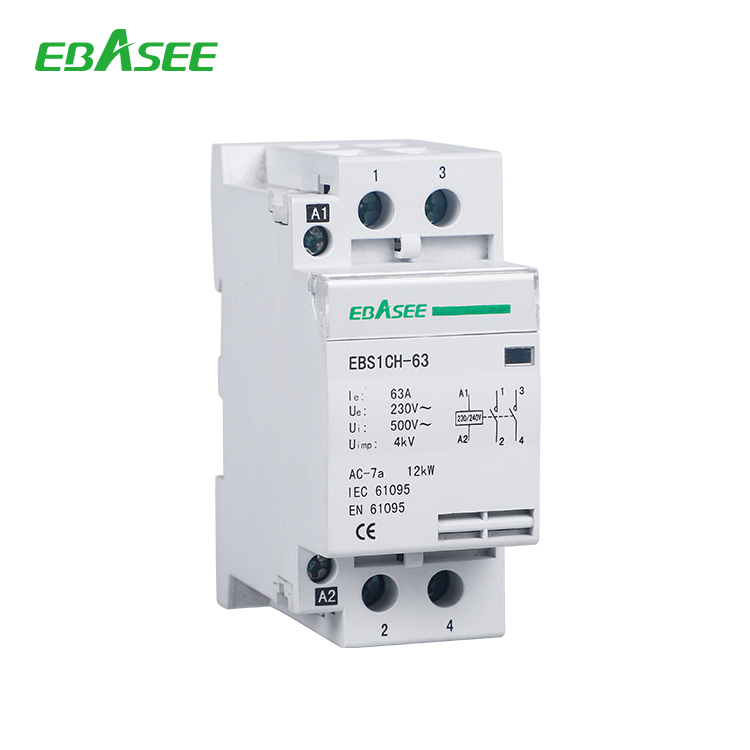

EBS1CH Modular Contactor

Function

EBS1CH series mini contactor mainly apply to the condition of 50Hz ( or 60Hz) , 400V or less rated operation voltage, 63A or less rated current under AC-7a application, or, 32A or less rated current under AC-7b application, 6kA or less rated breaking current, which is to control the household appliances, low or micro inductive reactance load, or household motor load as well.
Its main performance indices comply with IEC 61095.

Specifications

Design code Width

(multiples ofamm



Contact quantity



Usage type

Rated

insulation

voltage

Rated

working voltage



Control voltage

Rated

working

current



Control power

EBS1CH-16

EBS1CH-20

EBS1CH-25



2



10.01.11.20.02























AC-7a























500V



250V





















220/240V AC

50Hz

16/6 2.8/1
20/7 4/1.2
25/8.5 5.4/1.5
EBS1CH-16

EBS1CH-20

EBS1CH-25



4



30,21,12,03,40 31.22.13,04



400V

16/6 2.8/1
20/7 4/1.2
25/8.5 5.4/1.5
EBS1CH-32

EBS1CH-40

EBS1CH-63



4



10,01,11,20,02



250V

32/12 6.5/1.9
40/15 8.4/2.4
63/25 13/3.8
EBS1CH-32

EBS1CH-40

EBS1CH-63



6



30,21,12,03,40

31.22.13.04



400V

32/12 6.5/1.9
40/15 8.4/2.4
63/25 13/3.8

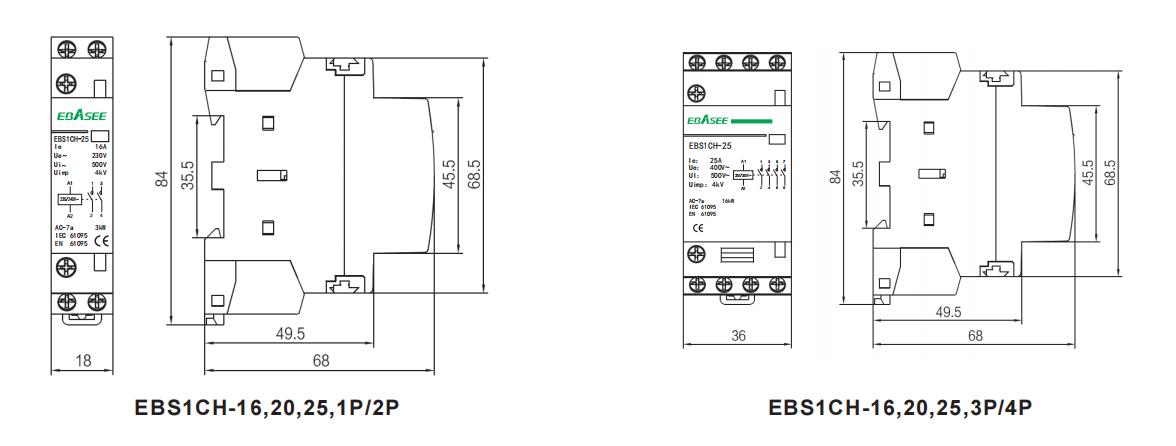

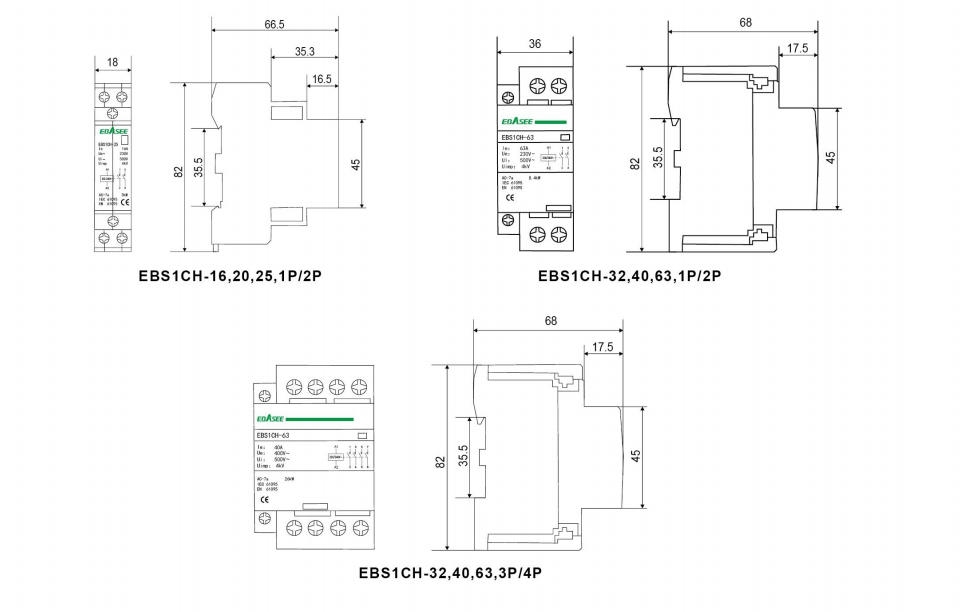

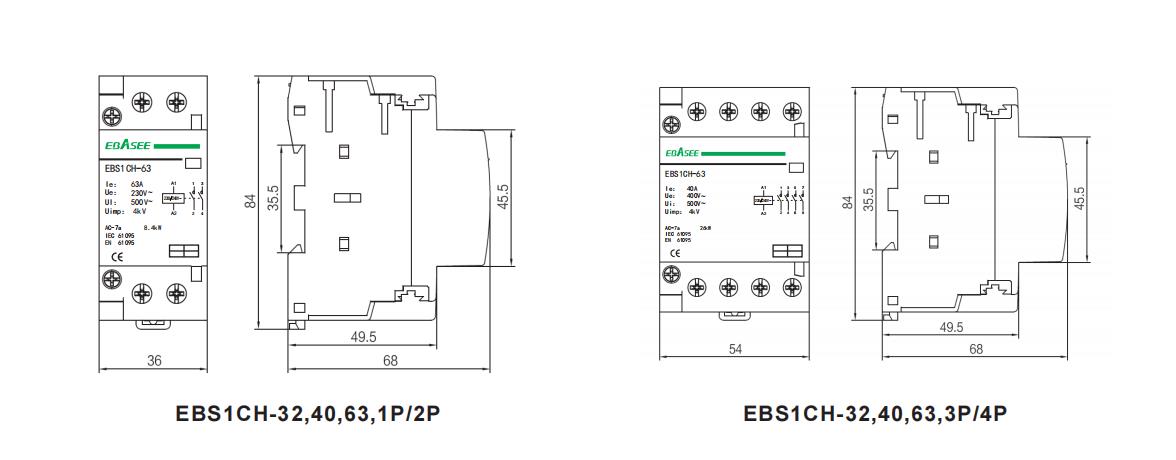

Dimensions



EBS1CH Dimension

EBASEE-EBS1CH-Modular-Contactor.pdf
10 MB
