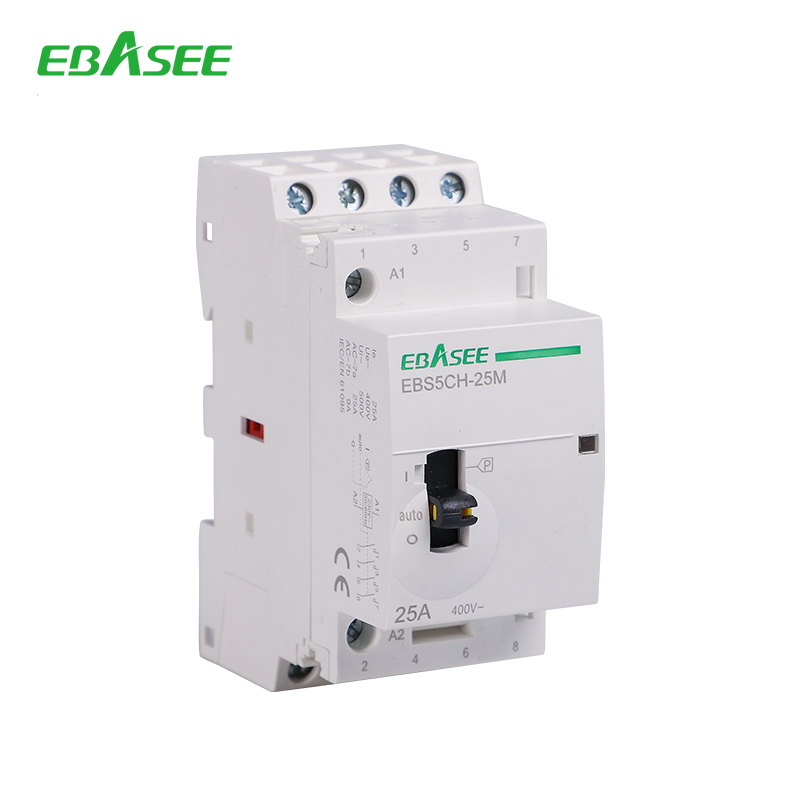

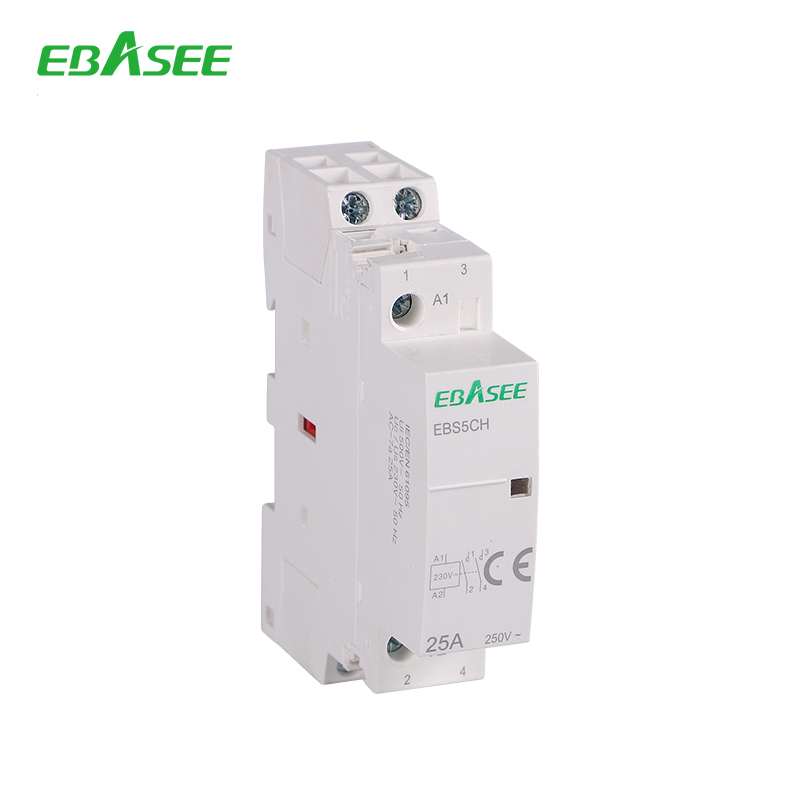

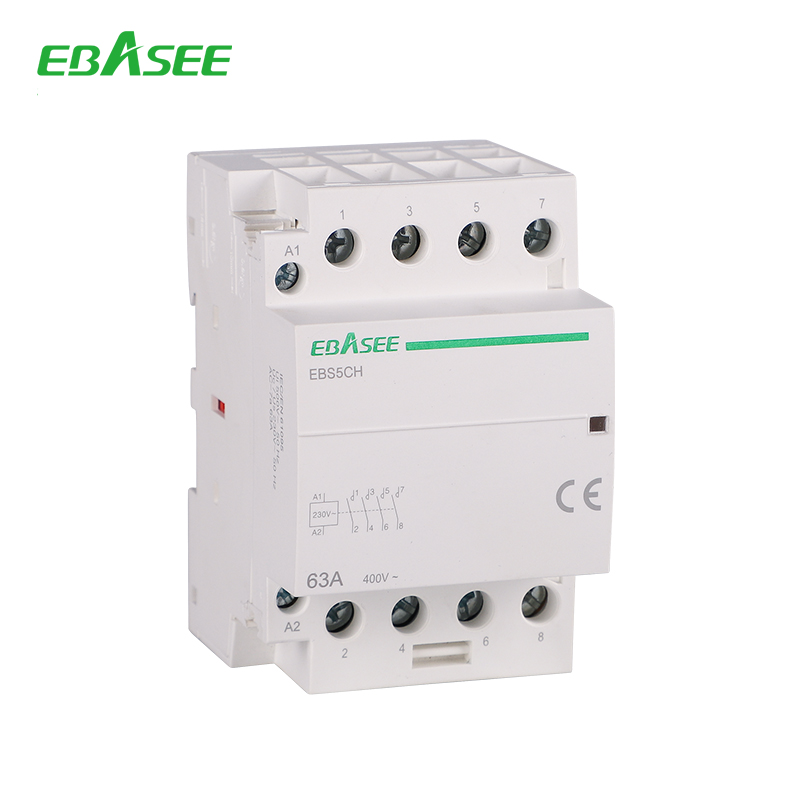

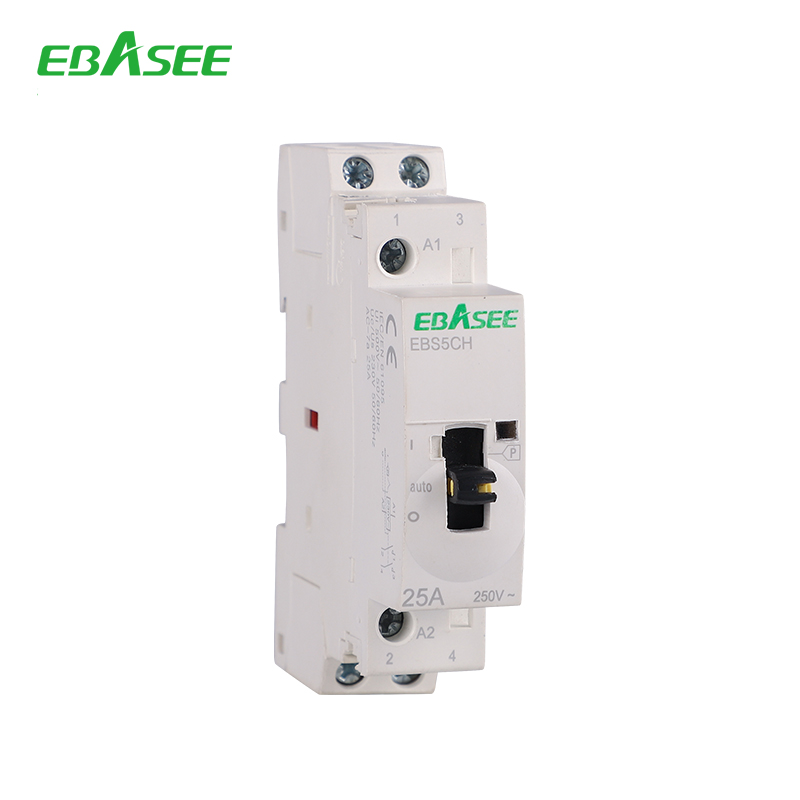

EBS5CH series mini contactor mainly apply to the condition of 50Hz ( or 60Hz) , 400V or less rated operation voltage, 100A or less rated current under AC-7a application, or, 32A or less rated current under AC-7b application, 6kA or less rated breaking current, which is to control the household appliances, low or micro inductive reactance load, or household motor load as well.
Its main performance indices comply with IEC 61095.
| Desian code | Width
(multiples of 9mm) |
Contact quantity |
Usage type |
Rated
insulation voltage |
Rated working
voltage |
Control voltage |
Rated
working curren |
Control power |
| EBS5CH-16/V EBS5CH-20/M EBS5CH-25/V |
2 |
10,01,11,20,02 |
AC-7a |
500V |
250V |
220/240V AC 50Hz |
16/6 | 2.8/1 |
| 20/7 | 4/1.2 | |||||||
| 25/8.5 | 5.4/1.5 | |||||||
| FBS5OH 1e
EBS5CH-20/M EBS5CH-25/M |
4 |
30.21,12.03,40 31,22,13,04 |
400V |
16/6 | 2.8/1 | |||
| 20/7 | 4/1.2 | |||||||
| 25/8.5 | 5.4/1.5 | |||||||
| EBS5CH-32/M EBS5CH-40/M
EBS5CH-63/M |
4 |
10,01,11,20,02 |
250V |
32/12 | 6.5/1.9 | |||
| 40/15 | 8.4/2.4 | |||||||
| 63/25 | 13/3.8 | |||||||
| EBS5CH-32/M EBS5CH-40/M EBS5CH-63/V |
6 |
30,21,12,03,40 31,22,13,04 |
400V |
32/12 | 6.5/1.9 | |||
| 40/15 | 8.4/2.4 | |||||||
| 63/25 | 13/3.8 | |||||||
| ERS5CH
-100/M |
6 | 10,01,11,20,02 | 250V | 100/40 | 13/3.8 | |||
| EBS5CH
-100/M |
12 |
30,21,12,03,40
31,22,13,04 |
400V |
100/40 | 26/7.6 |
