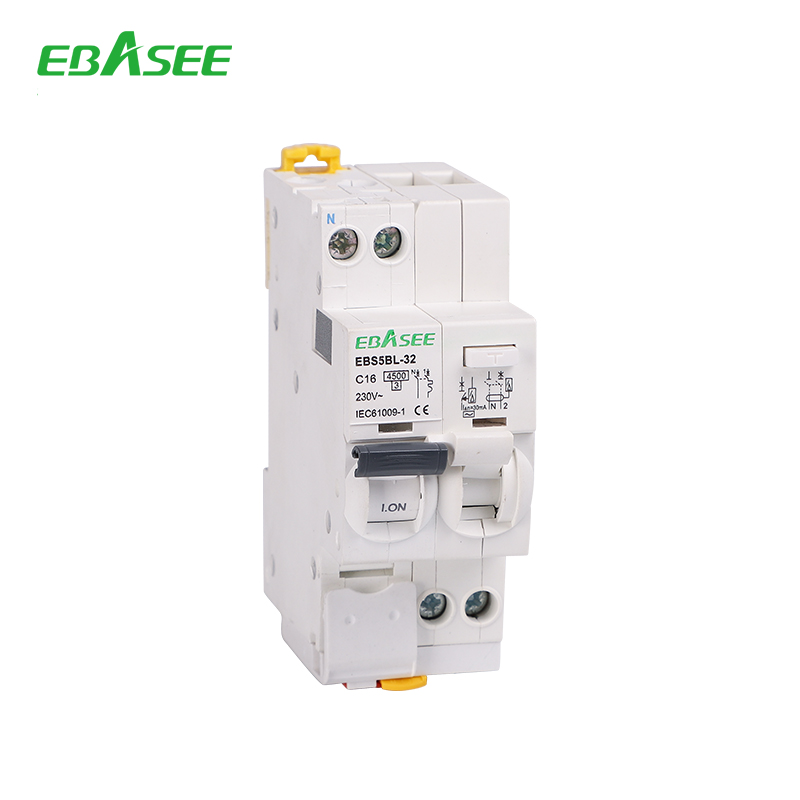

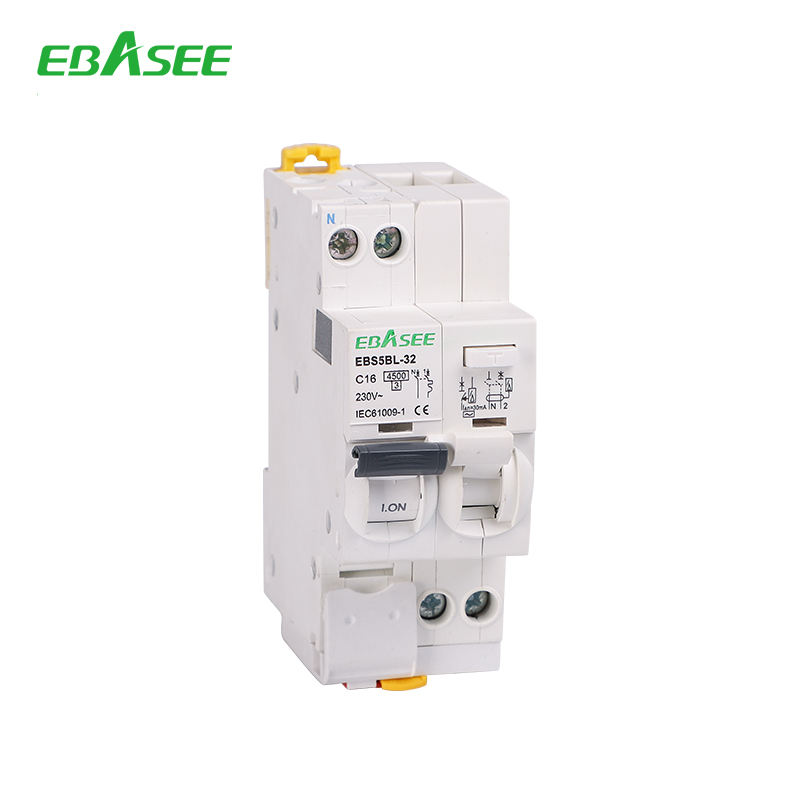

EBS5BL Residual Current Circuit Breaker with Over Current Protection

Function

Suitable for industrial, commercial, high-rise and civil residences circuit protection.
•Overload& short circuit protection
•Protect people against indirect contacts and additional protection against direct contacts.
•Protect installations against fire hazard due to insulation faults.
•Control electric circuits

Specifications

Type Standard lEC/EN 61009-1


















Electrical features

Poles P 1P+N
Type(wave form of the earth leakage sensed) A, AC
Thermo-magnetic release characteristic B, C
Rated current In A 1, 2, 4, 6, 10, 16, 20, 25, 32, 40
Rated voltage Ue V 240
Rated sensitivity lΔn A 0.03, 0.1, 0.3
Rated residual making and

breaking capacity lΔm

A 500(In≤40A)
Rated short-circuit capacity lcn A 4500, 6000
Break time under lΔn s ≤0.1
Rated frequency Hz 50/60
Rated impulse withstand voltage(1.2/50)Uimp V 4000
Dielectric test voltage at ind. Freq. for 1min kV 2
Insulation voltage Ui V 500
Pollution degree 2






Mechanical features

Electrical life t 2000
Mechanical life t 10000
Contact position indicator Yes
Protection degree IP20
Ambient temperature

(with daily average≤35℃)



-5~+40

Storage temperature -25~+70










Installation

Terminal connection type Cable/Pin-type busbar/U-type bar


Terminal size top / bottom for cable

mm² 16
AWG 18/5


Terminal size top / bottom for busbar

mm² 16
AWG 18/5


Tightening torque

N*m 1.2
In-Ibs 11
Mounting On DIN rail EN 60715(35mm)by means of fast clip device
Connection From top and bottom



Dimensions

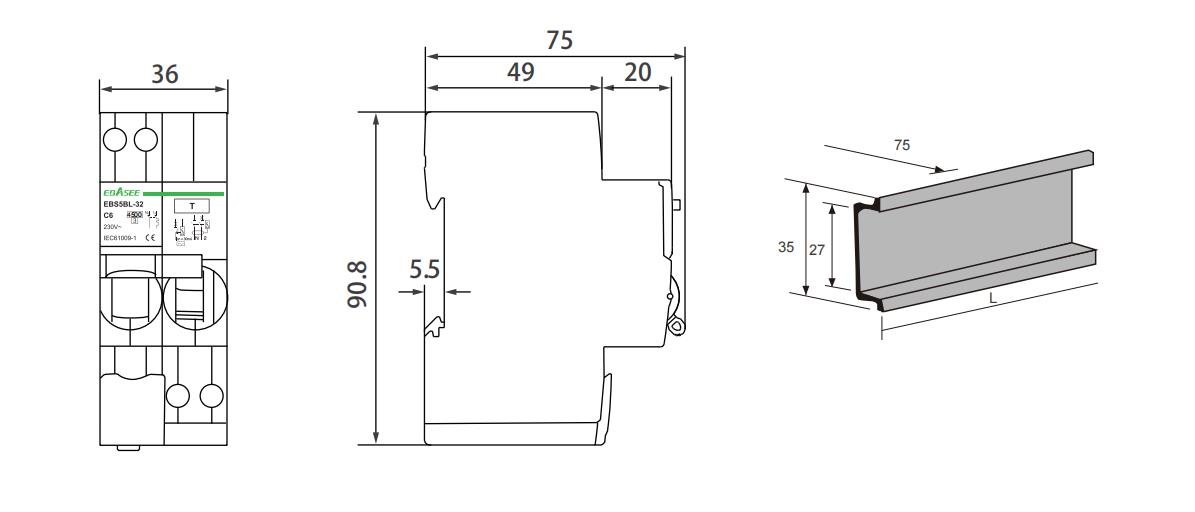

EBASEE EBS5BL RCBO Dimensions

EBASEE-EBS5BL-RCBO-1.pdf
11 MB
Residual Current Circuit Breaker with Overcurrent Protection EBS5BL -ROHS Certificate
Residual Current Circuit Breaker with Overcurrent Protection EBS5BL-CE Certificate
