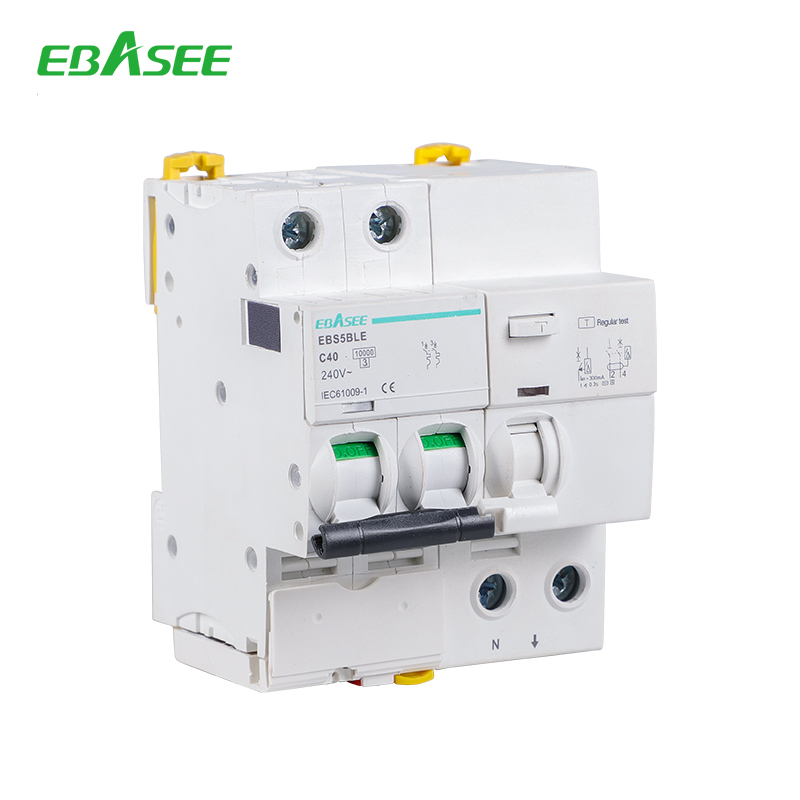

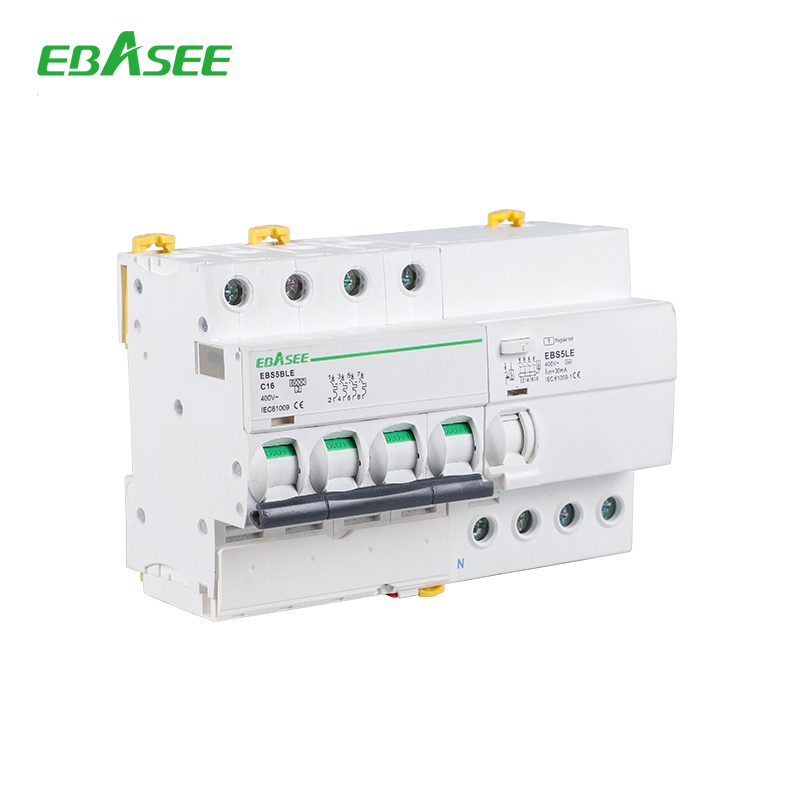

EBS5BLE Residual Current Circuit Breaker with Over Current Protection

Function

Suitable for industrial, commercial, high-rise and civil residences circuit protection.
•Overload& short circuit protection
•Protect people against indirect contacts and additional protection against direct contacts.
•Protect installations against fire hazard due to insulation faults.
•Control electric circuits

Specifications

Type Standard   lEC/EN 61009-1


















Electrical features

Poles P 1P+N, 3P+N
Type(wave form of the earth leakage sensed)   A, AC, S
Thermo-magnetic release characteristic   B, C
Rated current In A 6, 10, 16, 20, 25, 32, 40, 50, 63
Rated voltage Ue V 230/400
Rated sensitivity lΔn A 0.03, 0.05, 0.1, 0.3
Rated residual making and

breaking capacity lΔm

A 500(In≤40A) 630(In>40A)
Rated short-circuit capacity lcn A 10000
Break time under lΔn s ≤0.1
Rated frequency Hz 50/60
Rated impulse withstand voltage(1.2/50)Uimp V 4000
Dielectric test voltage at ind. Freq. for 1min kV 2
Insulation voltage Ui V 500
Pollution degree   2






Mechanical features

Electrical life t 4000
Mechanical life t 10000
Contact position indicator   Yes
Protection degree   IP20
Ambient temperature

(with daily average≤35℃)



-5~+40

Storage temperature -25~+70










Installation

Terminal connection type   Cable/Pin-type busbar/U-type bar


Terminal size top / bottom for cable

mm² 25
AWG 18-3


Terminal size top / bottom for busbar

mm² 25
AWG 18-3


Tightening torque

N*m 2
In-Ibs 18
Mounting   On DIN rail EN 60715(35mm)by means of fast clip device
Connection   From top



Dimensions

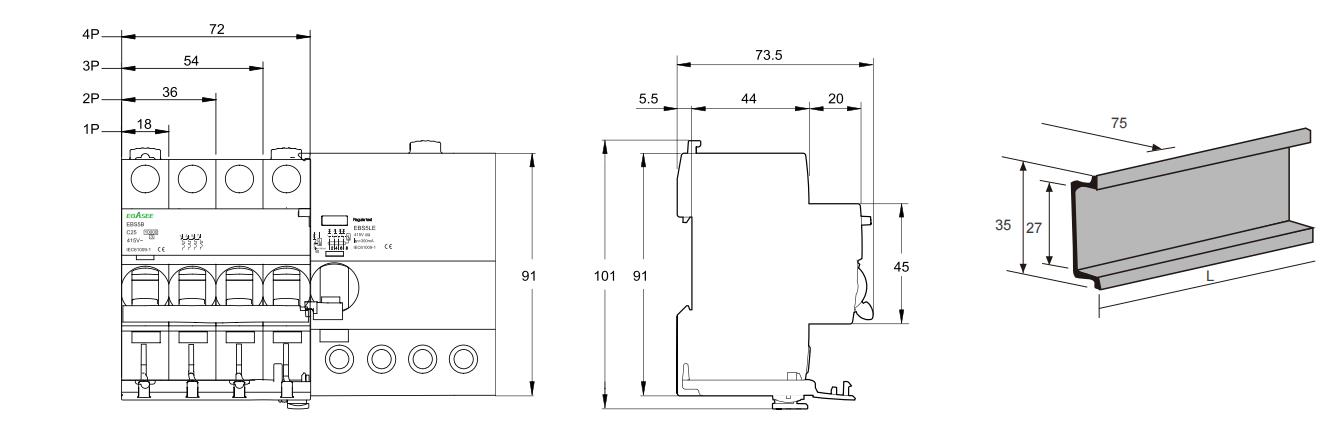

EBS5BLE RCBO Dimensions

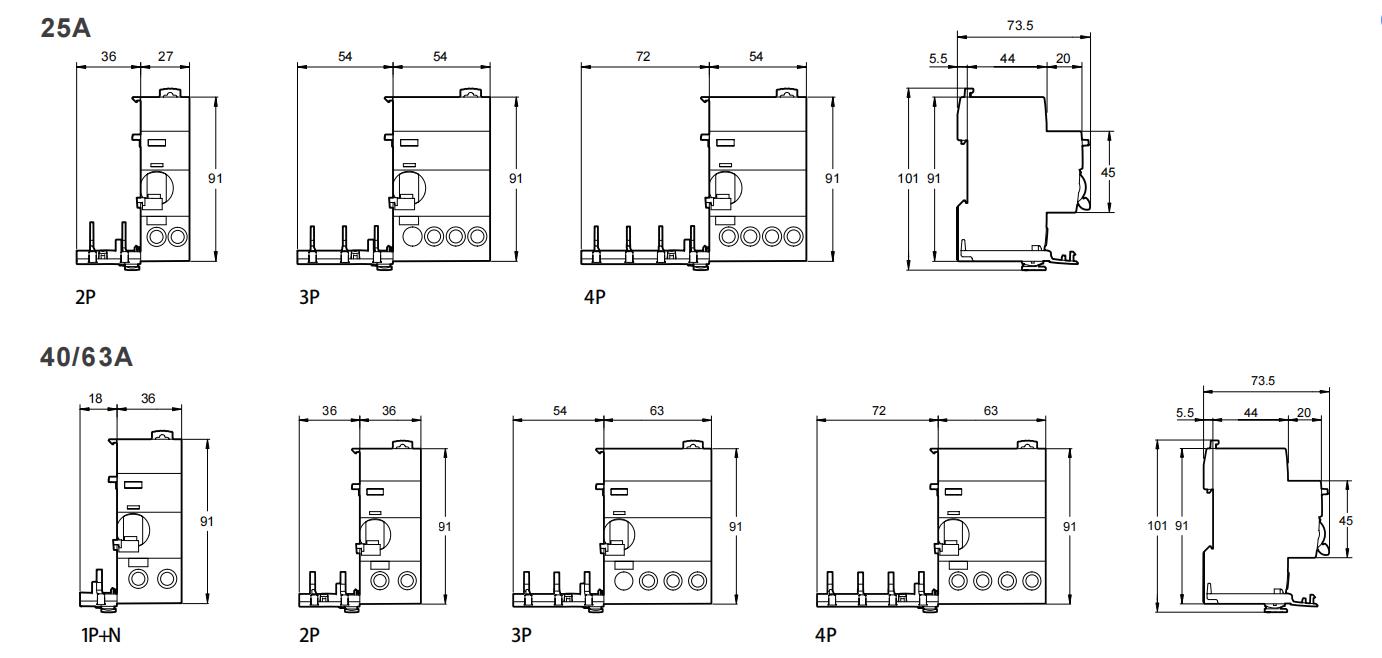

EBS5BLE RCBO Dimensions

EBASEE-EBS5BLE-RCBO.pdf
7 MB
