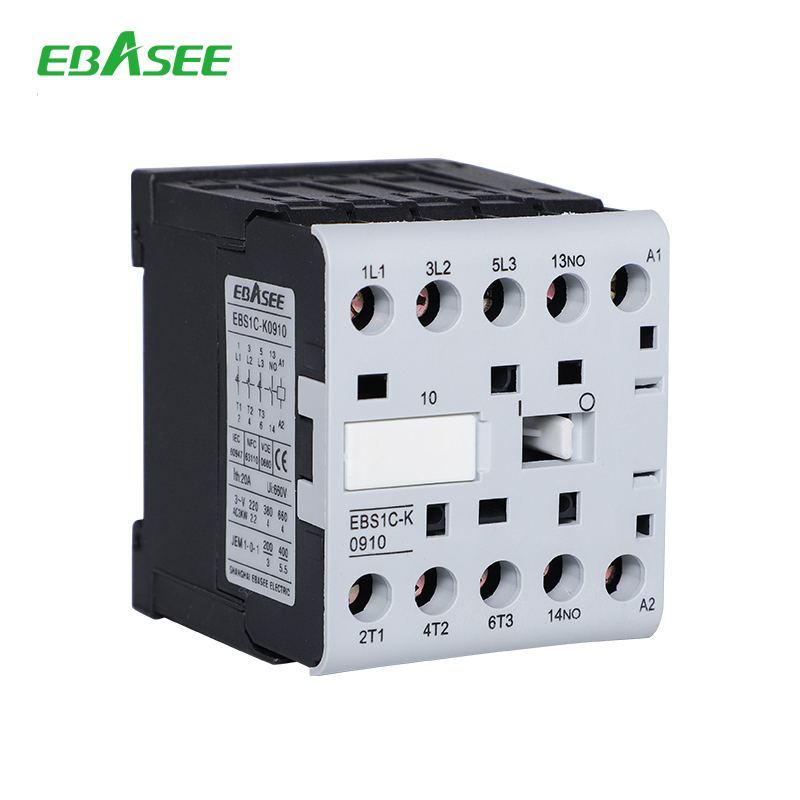

EBS1C-K/E series AC contactor is suitable for using in the circuits up to rated voltage 660V, AC 50Hz or 60Hz, DC rated voltage 220V and rated current 12A in AC-3/380V load circuits, for remote control of circuit making and breaking. Combined with related type of thermal relay or electronic protector, it becomes the electromagnetic starter or mechanical interlocking starter.
| Model
Parameter |
EBS1C-06K | EBS1C-09K | EBS1C-12K | EBS1C-06E | EBS1C-09E | ||||
| Rated voltage(V) | 660(690) | ||||||||
| Rated current(A) | 380V | AC-3 | 6 | 9 | 12 | 6 | 9 | ||
| AC-4 | 2.6 | 3.5 | 5 | 2.6 | 3.5 | ||||
| Agreed thermal current(A) | 20 | 20 | 20 | 16 | 16 | ||||
| Max. making- current(A) | 380V | 60 | 90 | 120 | 60 | 90 | |||
| 660V | 72 | 108 | 144 | 72 | 108 | ||||
| Max. breaking-current(A) | 380V | 48 | 72 | 96 | 48 | 72 | |||
| 660V | 60 | 90 | 120 | 60 | 90 | ||||
| Controllable 3-phase
squirrel- cage motor power AC3 (kW) |
220V | 1.5 | 2.2 | 3 | 1.5 | 2.2 | |||
| 380V | 2.2 | 4 | 5.5 | 2.2 | 4 | ||||
| 660V | 3 | 5.5 | 7.5 | 3 | 5.5 | ||||
| Operation frequency (times/h) | Electrical life | AC-3 | 1200 | ||||||
| AC-4 | 300 | ||||||||
| Electrical life (10 4 times) | AC-3 | 100 | |||||||
| AC-4 | 20 | ||||||||
| Mechanical life(10 4 times) | 1000 | ||||||||
| AC coil consumed power(W) | 2 | ||||||||
| DC coil consumed power(W) | 4 | ||||||||
| Wire (mm2) | 1.5 | ||||||||
| Suitable fuse | NTOO-16 | ||||||||
| Standard | IEC60947-4 | ||||||||
Contactor Auxiliary Contact and Auxiliary Contact Block
| Type | Rated voltage(V) | Rated current(A) | Controlling capacity | Agreed thermal current A | Service life | |
| making | Breaking | |||||
| AC-15 | 380 | 0.95 | 360VA | 360VA | 10 | Same as main |
| DC-13 | 220 | 0.15 | 33W | 33W | contact | |
