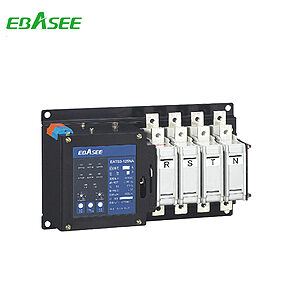

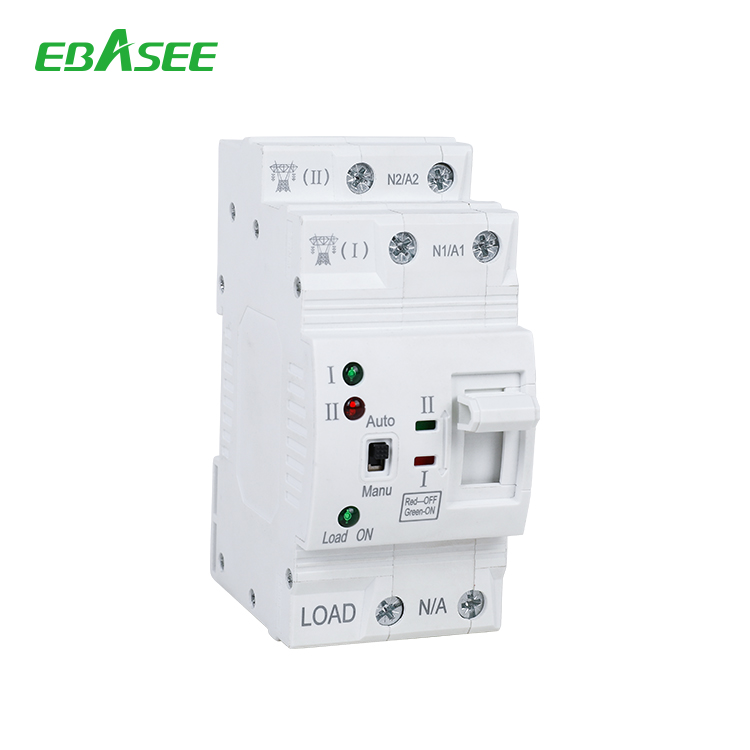

EATS7 series automatic transfer switch is a PC class infrequent change-over switch, with two-station design (commonly used for A and standby for B) suitable for AC systems with AC 50-60Hz and rated current 6A-63A. The main function is when the main power (common power supply A) fails, the ATS will automati- cally switch to the backup power (Backup power supply B) to continue working (switching speed <50 milliseconds), which can effectively solve the troubles caused by power outages. Standard IEC 60947-6-1.
| Item | Specification | |
| Rated operational current (Ie) | A | 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A |
| Rated insulation voltage (Ui) | V | 690V |
| Rated impulse withstand voltage (Uimp) | kV | 8kV |
| Rated operational voltage (Ue) | V | AC110V / AC220V / AC400V |
| Rated frequency | Hz | 50 / 60Hz |
| Class | PC class (can be switched on and loaded without
generating short-circuit current) |
|
| Pole number | P | 2P, 4P |
| Rated short-time withstand current(Icw) | kA | 5kA |
| Short-circuit protection device (fuse) | RT16-00-80A | |
|
Control voltage |
Rated control voltage Us: AC220V/110V, 50/60Hz.
Normal working conditions: 85%Us – 110%Us. You must use an inverter with a power output of at least 3000W (please use a sine wave). Severe electromagnetic interference may cause malfunction. |
|
|
Over / under voltage protection |
220V/50Hz:
Undervoltage value: 175V, Recovery value: 190V. Overvoltage value: 270V, Recovery value: 250V (±5V). 110V/50Hz: Undervoltage value: 85V, Recovery value: 90V. Overvoltage value: 140V, Recovery value: 135V (±5V). |
|
| Mechanical life | ≥ 8000 times | |
| Electrical life | ≥ 1500 times | |
| Utilization category | AC-31B |
1.The temperature range of the operating environment is -5°C ~ +40°C, and the average temperature within 24 hours shall be lower than +35°C. And the temperature range of the storage environment is -25°C ~ +55°C, which can reach +70°C in a short time (within 24 hours).
2.The altitude of the installation site should be lower than 2000m.
3.The relative humidity at the installation site shall not exceed 50% when the ambient air temperature is +40°C. Higher relative humidity is possible at lower temperatures. For example: when the average minimum temperature of the wettest month is +20°C, the monthly average maximum relative humidity of that month can reach 90%. Appropriate measures should be taken to prevent condensation due to temperature changes.
4.ATS can be installed vertically or horizontally in the cabinet.
5.Protection grade: IP30
6.Polution grade: III
