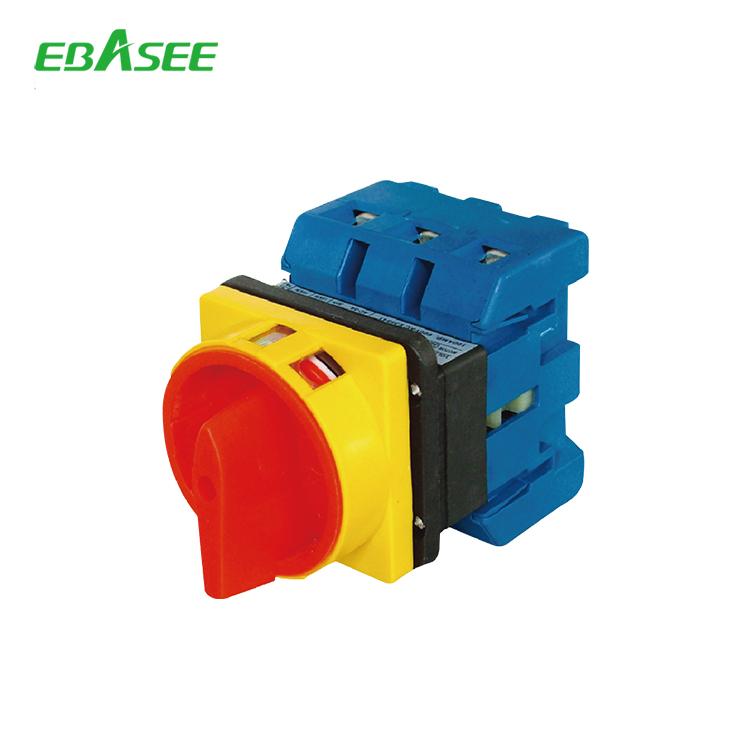

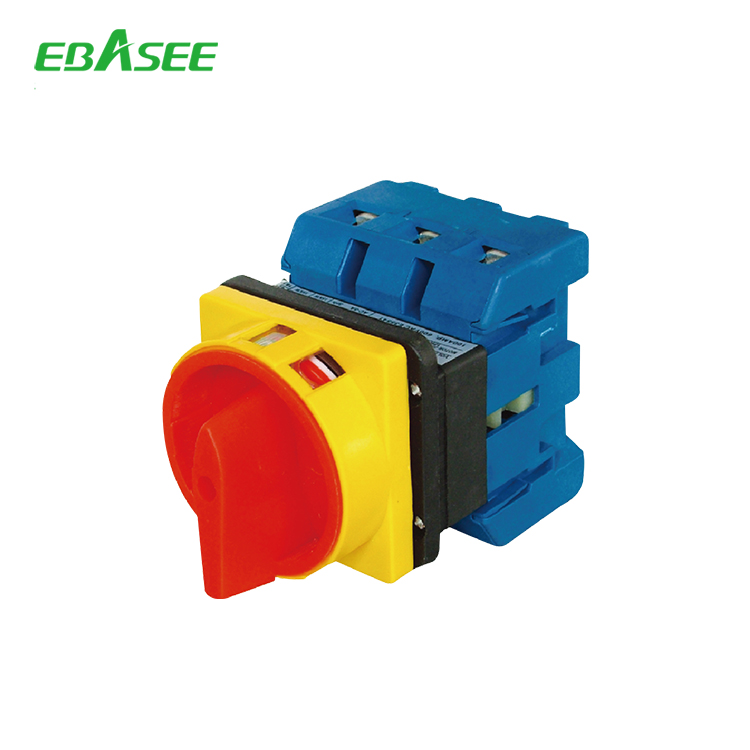

D11 Main Switches

Product Category

Modular Din Rail Products 
Moulded Case Circuit Breaker 
- Air Circuit Breaker
- Moulded Case Circuit Breaker (MCCB)
- Automatic Transfer Switch Series
Control Electric 
- AC Contactors
- Thermal Relay
- Switched Capacitor
- DOL Starter
- Motor Protector
- AC Fuse
- Time Relay
- Universal Changover Switch
- Pushbutton Switch & Indicator
- Industrial socket box
Solar Energy System 
- DC Moulded Case Circuit Breaker
- DC MCB
- DC Surge Protector Devices
- DC Fuse
- DC Isolator Switch
- DC Combiner Box
- Photovoltaic DC Connector
- Electric Vehicle Charging Box

Whatsapp
Leave Message

Overview Catalog Certificate Manual

Function

D11 main switches conform to IEC60974-3. They meet the requirements of disconnectors, main switch and maintenance switch which is suitable for ventilation, air-conditioning, water pump system, industrial unitized device, safety isolation and other distribution switches.

Characteristic

Reliability
The breaking contact of switch has long insulation, reaching 13-14mm that far more than safety requirement of VDE0113. In most cases, our
switch’s safety rating surpass most existing switches.
Flexible Mounting
The switches are both suitable for panel mounting and base mounting. Base mounting can be installed convenientiy and safely with screw and
35mm Din Rail. This switch system owns the largest flexibility and adaptability. We need not remove switch when adding attached contactor
and neutral terminal.
Convenient Mounting
Built-in screw can avoid the trackslip in doing manual operation, enabling air operated and power-driven tool to give full play to their
performance, ensuring the safety and speed of mounting.

Controlled Using current or category power Type	IEC/BS/VDE Rated nominal value
	Thermal current(Ith)	Resistance load(AC21)	AC23 Occasionaly changover motor or high inductance load		AC3 Direct online start motor
	Thermal current(Ith)	Resistance load(AC21)	3×220~240V	3×380~440V	3×220~240V	3×380~440V
D11-25	25A	25A	4kW	7.5kW	3kW	5.5kW
D11-32	32A	32A	5.5kW	11kW	4kW	7.5kW
D11-40	40A	40A	7.5kW	15kW	73.5kW	11kW
D11-63	63A	63A	11kW	22kW	11kW	12.5kW
D11-80	80A	80A	18.5kW	30kW	15kW	22kW
D11-100	100A	100A	22kW	73kW	18.5kW	30kW

Attention:
>With adjustable rotation shaft, max length-200mm
>Above types all belong to grounding type
>P-pole, N- neutral, E-grounding termianl

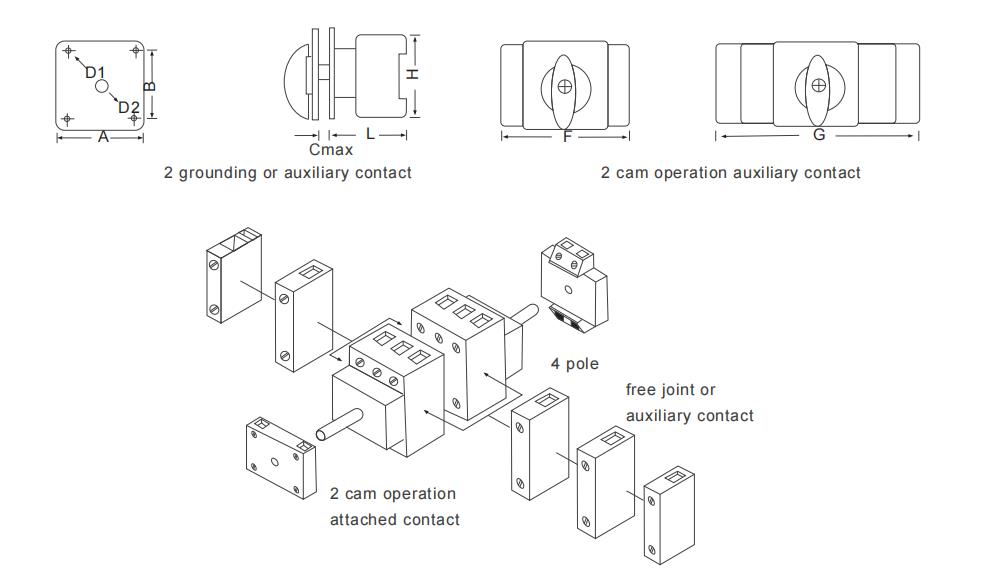

>All above type can chose accessories; side-mounting auxiliary contact, top-mounting
auxiliary contact, protective cover, pad-lock handle, door inter-lock and etc.
