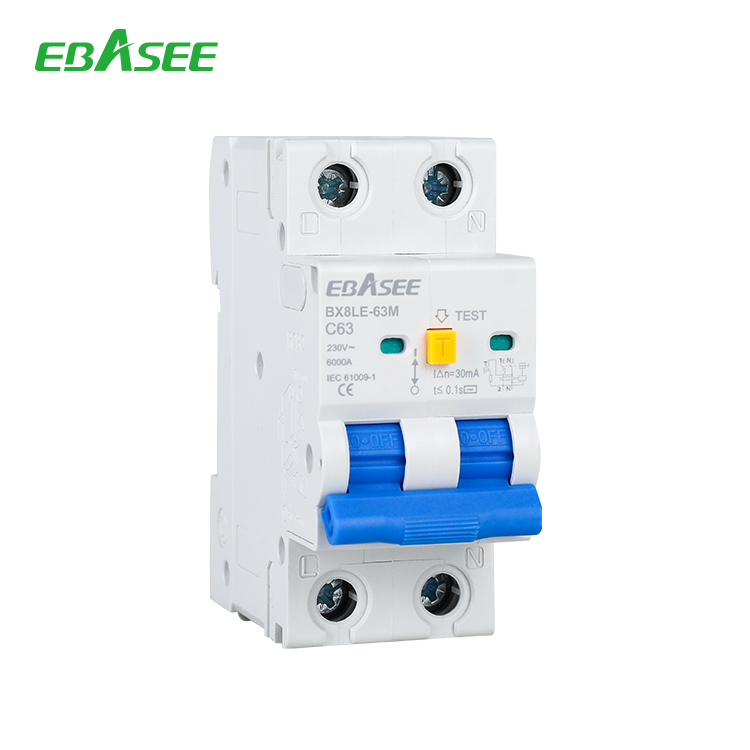

The system supports activation and deactivation of residual current protection, short- circuit protection, overload protection,and leakage trip functions.
It features a trip window indicator for short-circuit and overload protection. In environments where power interruption is prohibitedor during fault maintenance, the leakage protection device enters a locked state, rendering it incapable of triggering leakage protec-tion trips.
The material used is flame-retardant material of V-0 grade.
High breaking capacity and strong versatility of accessories.
A finger protection combined terminal with red and green safety indicators for enhanced safety.
The housing and some functional components are manufactured from imported plastics that exhibit high flame retardancy, heat resistance, and impact resistance.
The leakage current detection function is optional and suitable for various environments.
Both the L pole and N pole feature overload protection functionality.

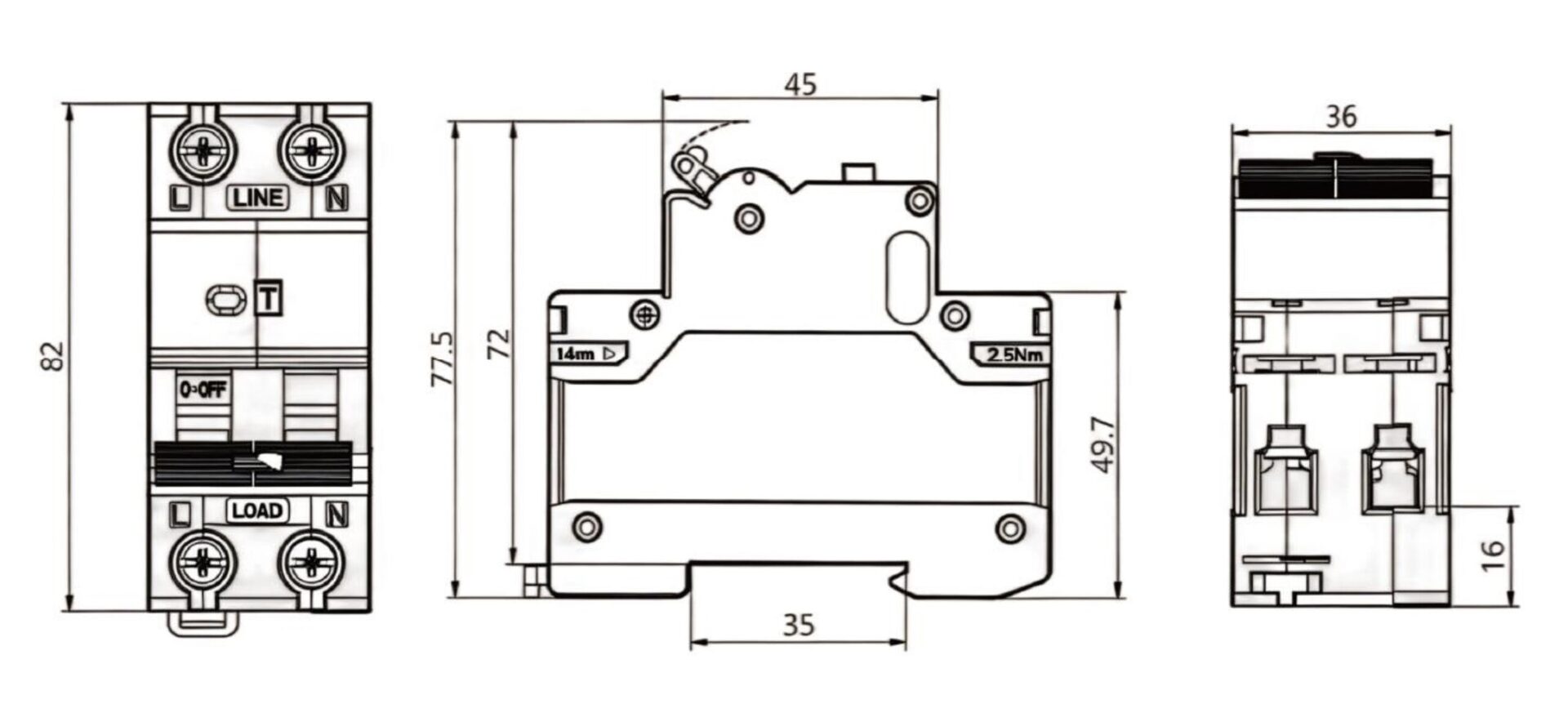

| Standard | GB/T 16917.1 and IEC 61009-1 | ||
| Poles | P | 1P+N, 3P+N | |
| Shell and frame grade rating current | A | 63 | |
| Behaviour of electricity | |||
| Rated operating voltage Ue | VAC | 230 | |
| Rated current In | A | 6, 10, 16, 20, 25, 32, 40, 50, 63 | |
| Rated residual operating current IΔn | mA | 10, 15, 30, 50, 100, 200 | |
| Leakage current tripping type | A/AC | ||
| Rated insulation voltage Ui | V | 500 | |
| Rated impulse voltage Uimp | kV | 4 | |
| Fragmentation type | M | ||
| Maximum Fracture Capacity Icn | kA | 6 | |
| Operation interruption capability Is % Icn | 100% | ||
| Curve Type | B, C, D | ||
| Trip Type | Electronic type | ||
| Life length (O-CO) | Machinery | Actual average value | 10000 |
| Standard specified value | 2000 | ||
| Electrical | Actual average value | 6000 | |
| Standard specified value | 2000 | ||
| Control and instruction | |||
| Auxiliary contact | □ | ||
| Alarm contact | □ | ||
| Shunt release | □ | ||
| Under-voltage trip device | □ | ||
| Overvoltage trip device | □ | ||
| Connection and installation | |||
| Levels of protection | All sides | IP40 | |
| Wiring port | IP20 | ||
| Handle lock | ON/OFF position | ||
| Wiring capability | mm² | 1~35 | |
| Use ambient temperature | ℃ | -30~+70 | |
| Dampness-heat resistant | Category 2 | ||
| Height | m | ≤2000 | |
| Relative air humidity | No more than 95% at +20℃; no more than 50% at +40℃ | ||
| Class of pollution | 3 | ||
| Installation environment | Where there is no significant vibration or impact | ||
| Installation type | Level III | ||
| Way to install | DIN standard rail | ||
| Weight | – | ||
