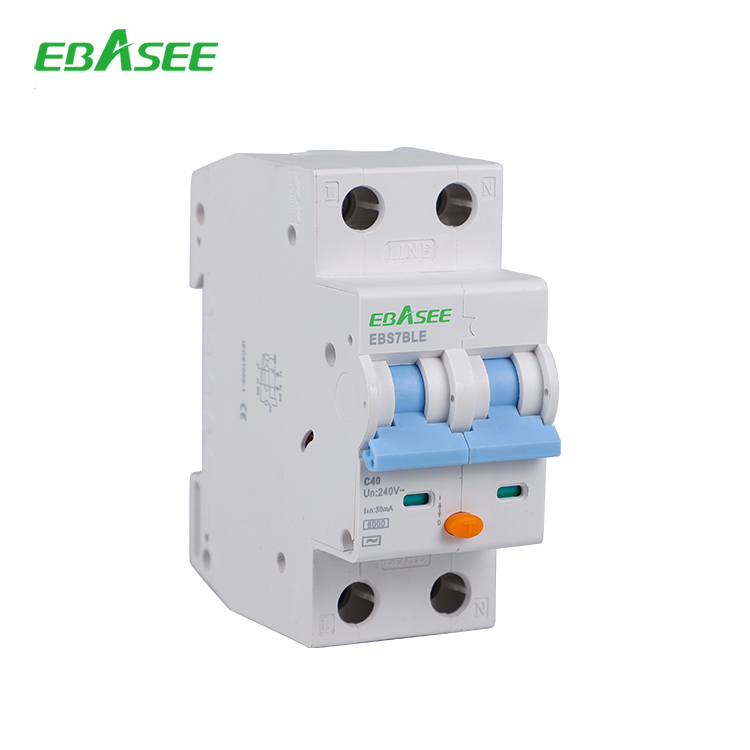

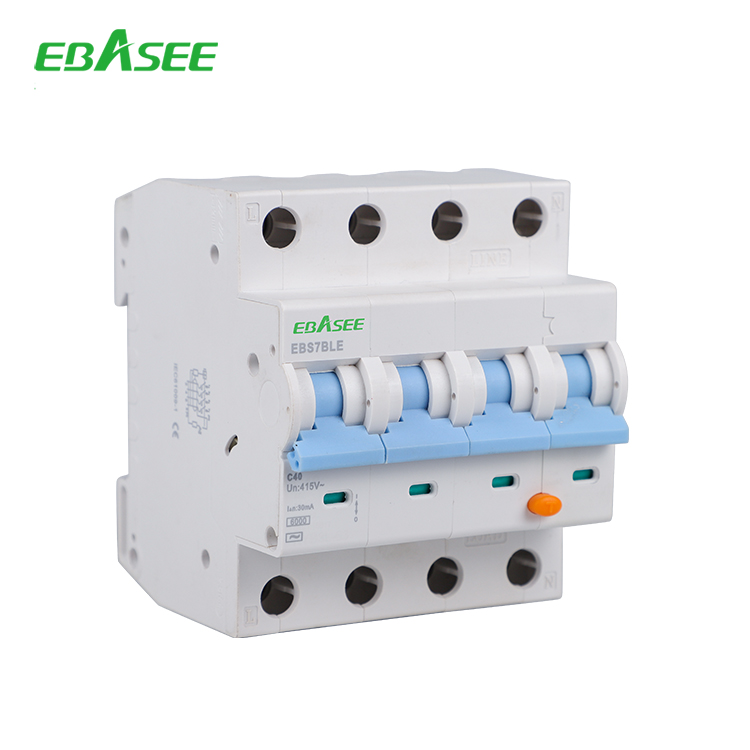

Suitable for industrial, commercial, high-rise and civil residences circuit protection.
| Type | Standard | IEC/EN 61009-1 | |
| Electrical features | Poles | P | 1P+N, 2P, 3P+N, 4P |
| Type (wave form of the earth leakage sensed) | A, AC | ||
| Thermo-magnetic release characteristic | B, C, D | ||
| Rated current In | A | 25, 32, 40, 50, 63 | |
| Rated voltage Ue | V | 230/400 | |
| Rated sensitivity IΔn | A | 0.03, 0.1, 0.3 | |
| Rated residual making and breaking capacity IΔm | A | 500 (In≤40A) 630 (In>40A) | |
| Rated short-circuit capacity Icn | A | 6000 | |
| Break time under IΔn | s | ≤0.1 | |
| Rated frequency | Hz | 50/60 | |
| Rated impulse withstand voltage (1.2/50) Uimp | V | 4000 | |
| Dielectric test voltage at ind. Freq. for 1 min | kV | 2 | |
| Insulation voltage Ui | V | 500 | |
| Pollution degree | 2 | ||
| Mechanical features | Electrical life | t | 4000 |
| Mechanical life | t | 10000 | |
| Contact position indicator | Yes | ||
| Protection degree | IP20 | ||
| Ambient temperature (with daily average≤35℃) | ℃ | -5~+40 | |
| Storage temperature | ℃ | -25~+70 | |
| Installation | Terminal connection type | Cable/Pin-type busbar | |
| Terminal size top/bottom for cable | mm² | 25 | |
| AWG | 18-3 | ||
| Terminal size top/bottom for busbar | mm² | 25 | |
| AWG | 18-3 | ||
| Tightening torque | N*m | 2 | |
| In-lbs | 18 | ||
| Mounting | On DIN rail EN60715 (35mm) by means of fast clip device | ||
| Connection | From top | ||
Residential Buildings · Commercial Buildings · Industrial Facilities · Distribution Panels · Lighting Circuits · Power Distribution · Solar PV Systems
Q1: Can I get samples for testing?
Yes. Samples are available for quality and performance testing.
Q2: Do you support OEM/private labeling?
Yes. We support OEM/ODM, including private labeling and customized packaging.
Q3: What certifications are available for this model?
CE, CB, TÜV and other certifications are available depending on the model. Please contact us for details.
Q4: Can you supply different poles and tripping curves?
Yes. Different poles and B/C/D tripping curves are available depending on the model.
Q5: What is the typical production lead time?
Typically around 35 days, depending on order quantity and customization requirements.
 |
|||
