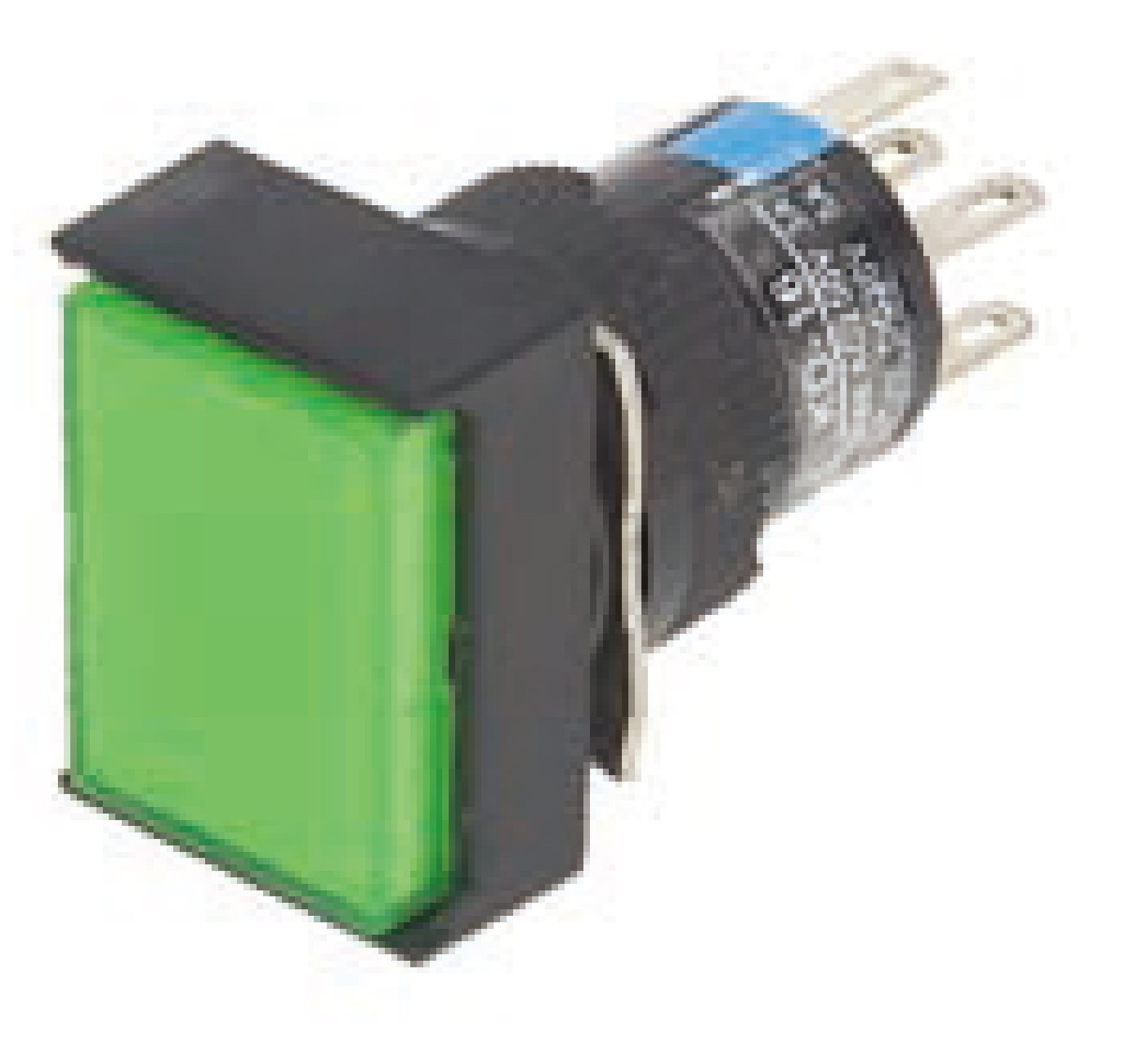

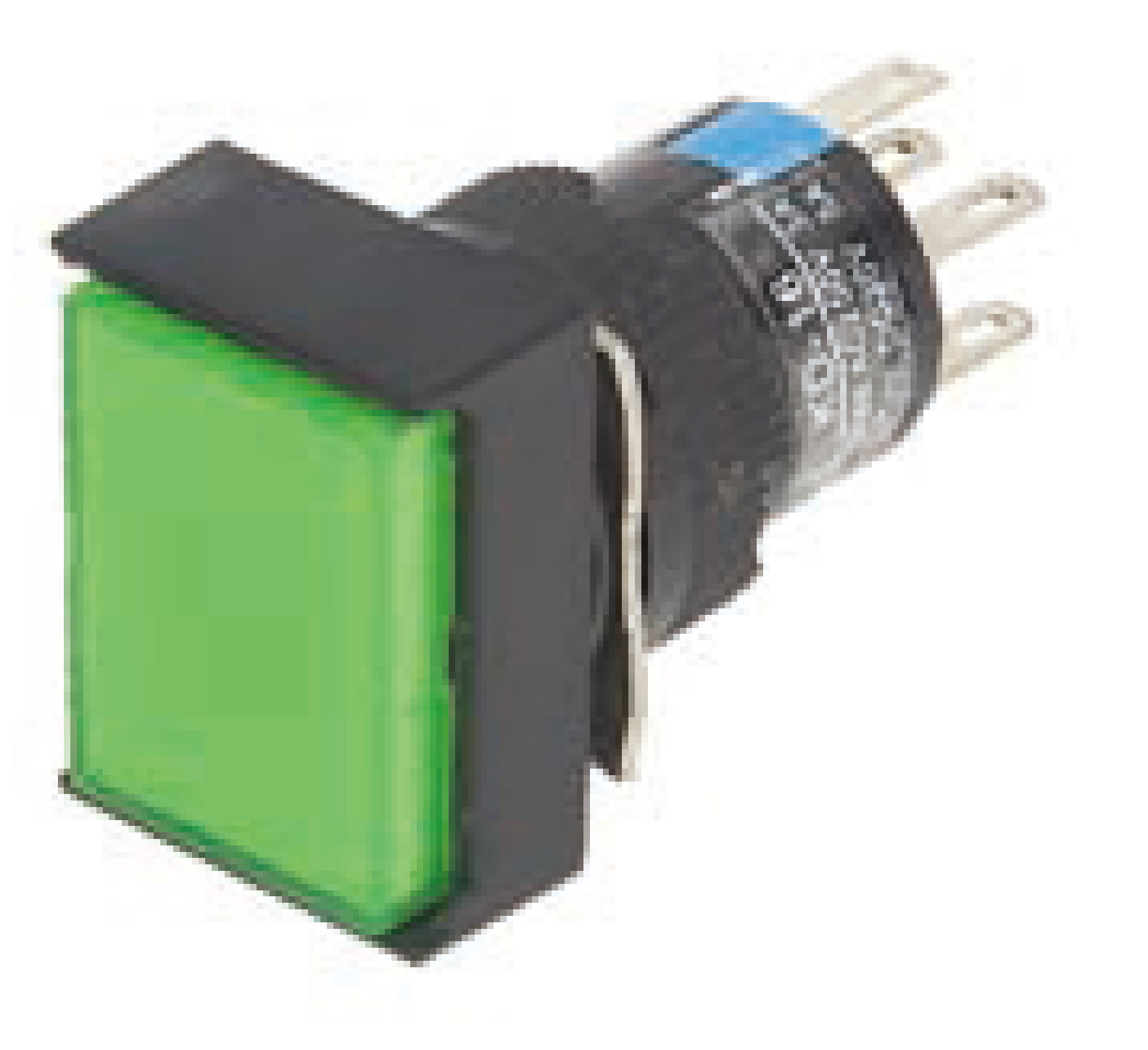

Specification: Products front shampe have roundness（ø18mm)、square（18x18mm)、rectangle（18x24mm)three specifications，including signal light、button、button with pilot light、rotary button、key button、emergency stop button、buzzer，installation apertureø16mm，part of products can be equipped with adjustable ring so that the product is installed in ø22mm installation.
Performance: Products with stable performance, low contact resistance, high impact resistance, vibration resistance and other
characteristics,conform with IEC60947-5-1, GB14048.5 standards.
Structure: Switching element “fast moving” structure, each switching element comprises a normally open a normally closed, each button can be configured with up to two switching elements.
Protection grade: Self-protection class IP40, IP65 optional, part of the product can be up to IP67 after the installation of the sealing.
1.Switch Rating
| Thermal current Ith | 5A temperature does not exceed the maximum allowable current ratings | |||
| Rated voltage | 24V | 125V(110V) | 250V(220V) | |
| DC | 1A | 0.2A | 0.1A | |
|
AC |
P.F=1 | 5A | 3A | |
| P.F=0.7 | 5A | 2A | ||
2.Lamp Specifications
| Lamp beads type | bi-directional LED beads(General Configuration) | Neon bulb lamp beads | |||
|
Rated voltage |
AC/DC 6V | AC/DC 12V | AC/DV 24V |
AC110V |
AC220V |
| AC/DC 110V | AC/DC 220V | ||||
| Lamp beads color | |||||
| Lamp bead life | |||||
| Voltage limits | about 30000 hours | about 20000 hours | |||
3.Performance Characteristics
| Type | Standard | IEC/EN 61009-1 |
|
Ambient Temperature |
-+55℃ (no freezing) | |
| Lighting switch must be air circulation around it | ||
| Ambient humidity | 45-85%RH (No condensation) | |
| Contact material | Silver alloy | |
| Contact resistance | ≤50MΩ | |
| Insulation resistance | ≥100MΩ | |
|
aximum voltage |
Between the contacts and the lamp beads pin | 2000V,AC50HZ,1min |
| Between same terminal of poles | 1000V,AC50HZ,1min | |
| Between different terminal of poles | 2000V,AC50HZ,1min | |
| Vibration resistance | 50HZ,amplitude about1.2mm | |
| Impact resistance | ≥10g | |
| Life
machinery |
automatic reset button | 1million times |
| automatic reset button、select button | 500,000 times | |
| key button、emergency stop | 100,000times | |
| electrical | 50,000times | |
| Solder heat resistance | 230 is not more than 3 seconds | |
| Operating stroke | (button) 3mm |

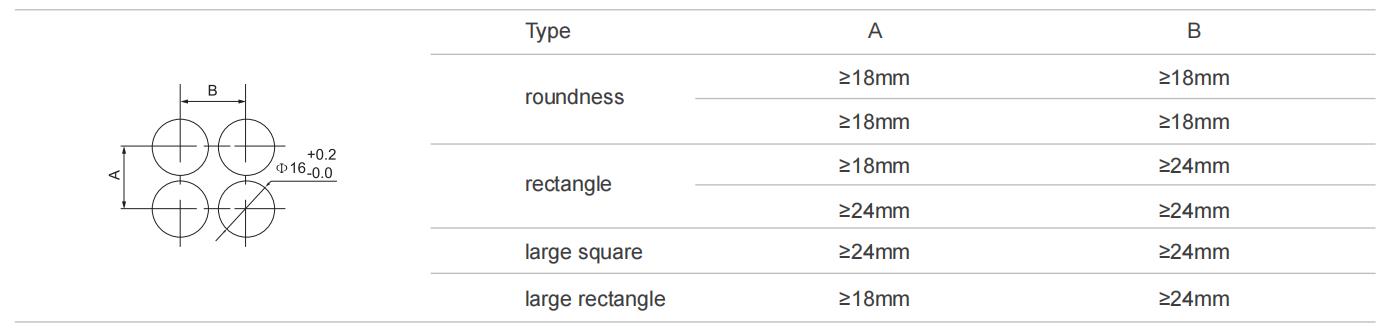

4.Mounting Dimension

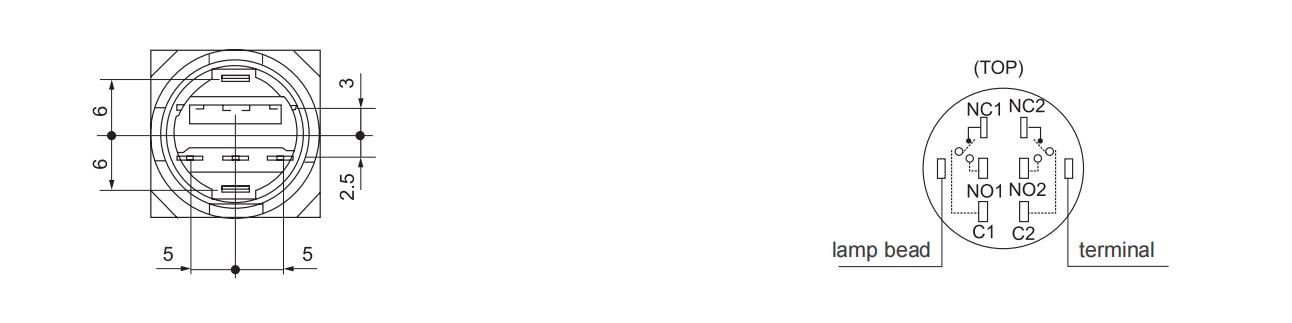

5.Bottom Preview & Terminal Arrangement
