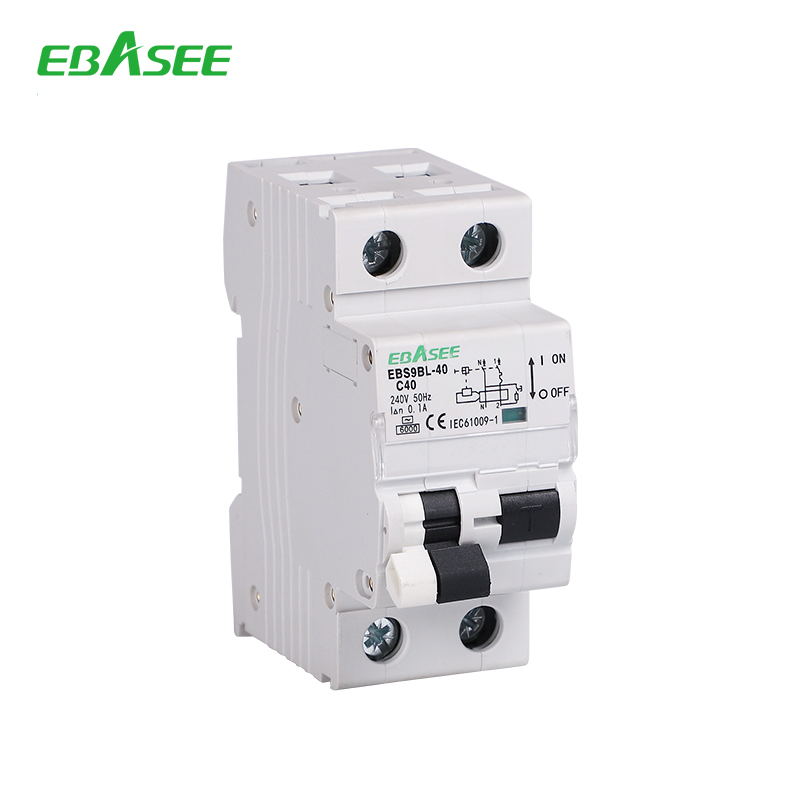

EBS9BL-40 Residual Current Circuit Breaker with Over Current Protection

Function

Residual current circuit breakers are used in housing ,tertiary sector and industry.
•Control electric circuits.
•Protect people against indirect contacts and additional protection against direct contacts.
•Protect installations against fire hazard due to insulation faults.
•Wide variety of rated tripping currents

Specifications

Type Standard IEC/EN 61009-1
















Electrical features

Poles P 1P+N
Type(wave form of the earth leakage sensed) AC
Thermo-magnetic release characteristic B, C
Rated current In A 6, 10, 16, 20, 25, 32, 40
Rated voltage Ue V 240
Rated sensitivity lΔn A 0.03, 0.1, 0.3
Rated residual making and breaking capacity lΔm A 500(In≤40A)
Rated short-circuit capacity lcn A 6000
Break time under lΔn s ≤0.1
Rated frequency Hz 50/60
Rated impulse withstand voltage(1.2/50)Uimp V 4000
Dielectric test voltage at ind.Freq.for 1min kV 2
Insulation voltage Ui V 250
Pollution degree 2






Mechanical features

Electrical life t 4000
Mechanical life t 10000
Contact position indicator Yes
Protection degree IP20
Ambient temperature(with daily average≤35℃) -5~+40
Storage temperature -25~+70










Installation

Terminal connection type Cable/Pin-type busbar


Terminal size top/bottom for cable

mm² 16
AWG 18-5


Terminal size top/bottom for busbar

mm² 16
AWG 18-5


Tightening torque

N*m 2
In-Ibs 18
Mounting On DIN rail EN60715(35mm)by means of fast clip device
Connection From top



Dimensions

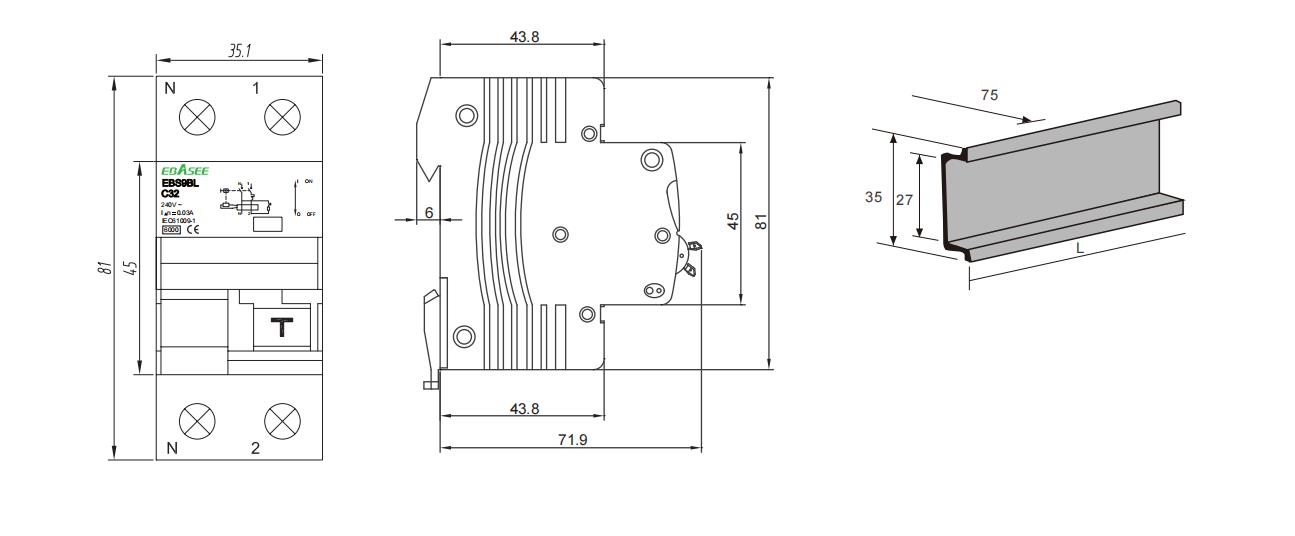

EBS9BL-40 RCBO Dimensions

EBASEE-EBS9BL-40-RCBO.pdf
7 MB
