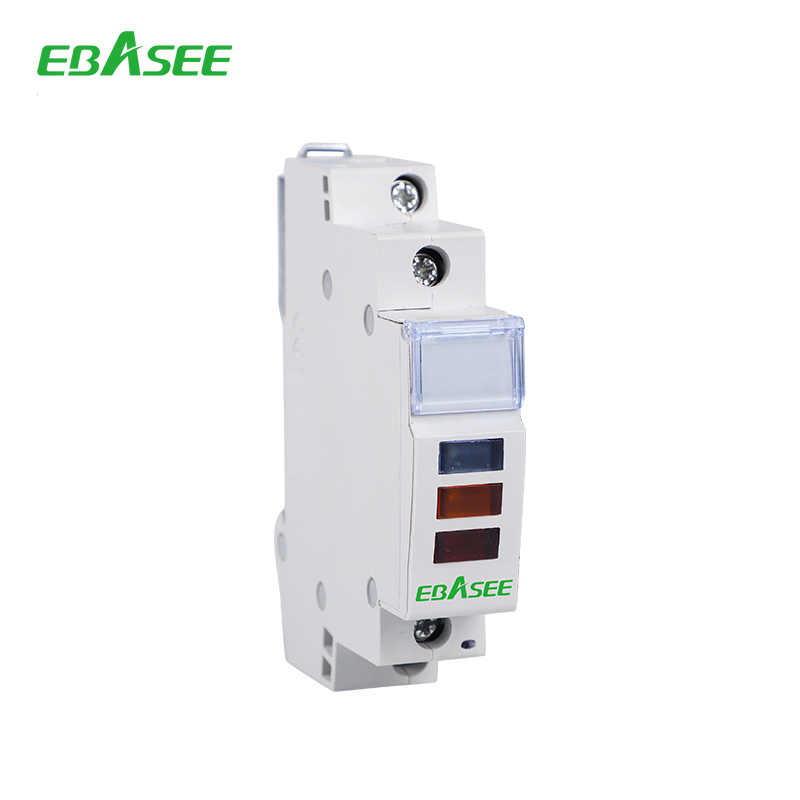

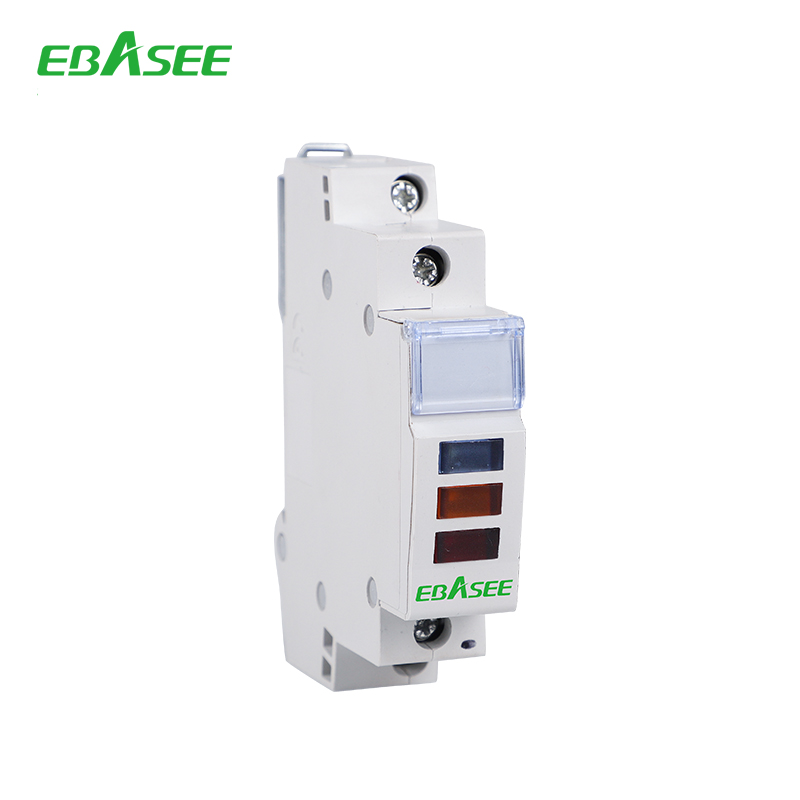

EBS9D/3F Indicating Light

Function

EBS9D/3F indicator light can be used in 50/60Hz 230V AC power circuit for alarm or indication with light signal. It can be used together with our other modular products or separately. lEC 60947.

Specifications

Type Standard lEC/EN 60947-5-1






Electrical features

Illumination Nelon, LED
Rated voltage Ue V 230
Max.power W 1.2 W(Nelon);0.6 W(LED)
Rated frequency Hz 50/60
Color Red, Green, Yellow, White


Mechanical features

Service duration H 15,000 hours(Nelon),30,000 hours(LED)
Protection grade IP20
Ambient temperature(with daily average≤35℃) -5~+40


Installation

Terminal size top / bottom for cable and pin-type busbar mm² 35
AWG 18-1/0



Dimensions

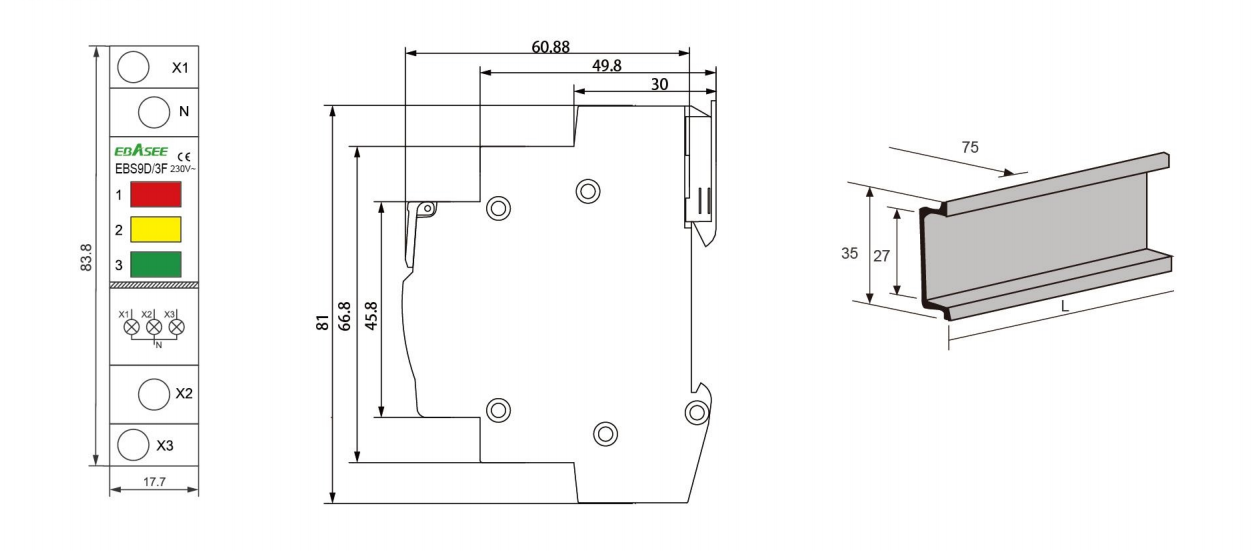

EBS9D-3F indicating light dimension

EBASEE-EBS9D-3F-Indicating-Light.pdf
9 MB
