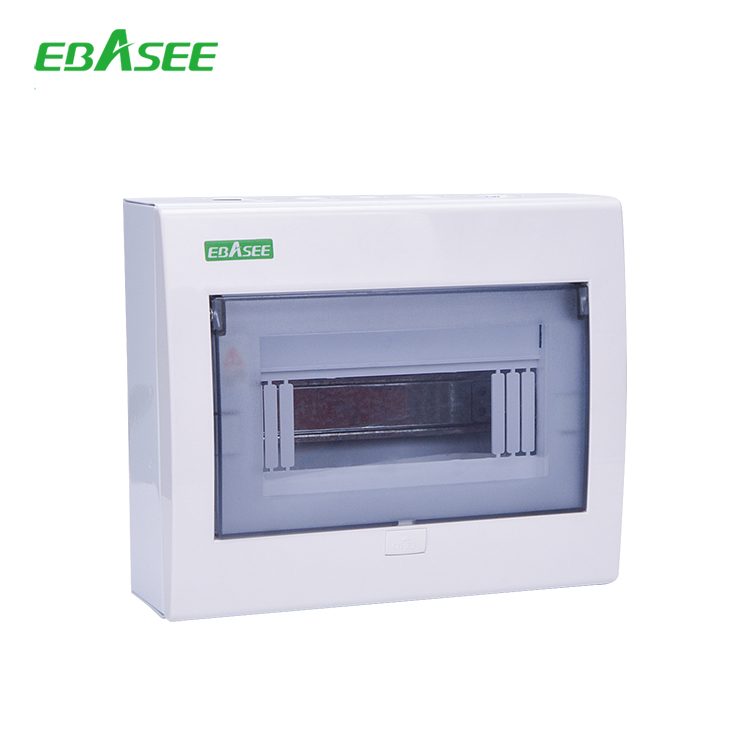

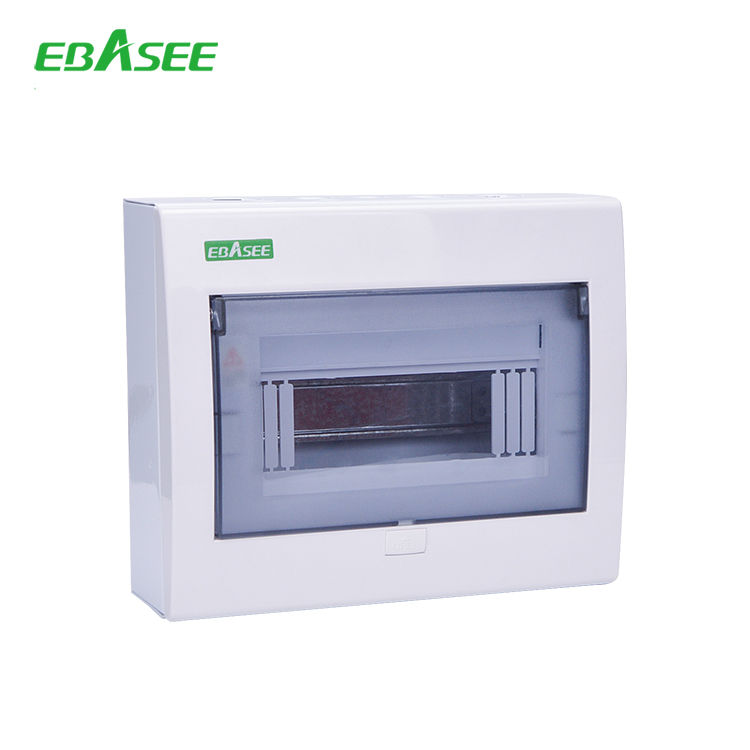

EBS7D Switch Distribution Box

Function

EBS7D series lighting box is divided into two kinds,flush mounted type and surface mounted type.
It is with plastic panel and iron bottom, up-down pushbutton auto-opening type. The din-rail can be adjustable.Two terminals(ground connection and zero connection)in the box are easy for the user wiring and routing .This product is applicable to the modular terminal circuit
with AC of 50Hz,rated voltages of 220V and 380V.

Specifications

Model Flush Mounted Specifications(mm)
4loop 130×140×80
7loop 195×190×80
10loop 248×190×80
13loop 305×190×80
15loop 340×190×80
18loop 393×190×80
20loop 430×210×80
26loop 298×350×80
30loop 340×350×80
36loop 390×350×80



Model Surface Mounted Specifications(mm)
4loop 140×160×80
7loop 210×210×80
10loop 255×210×80
13loop 322×210×80
15loop 360×210*80
18loop 416×210×80
20loop 450×230×80
26loop 325×375×80
30loop 360×375×80
36loop 415×375×80
EBASEE-EBS7D-Distribution-Box-Consumer-Units.pdf
6 MB
