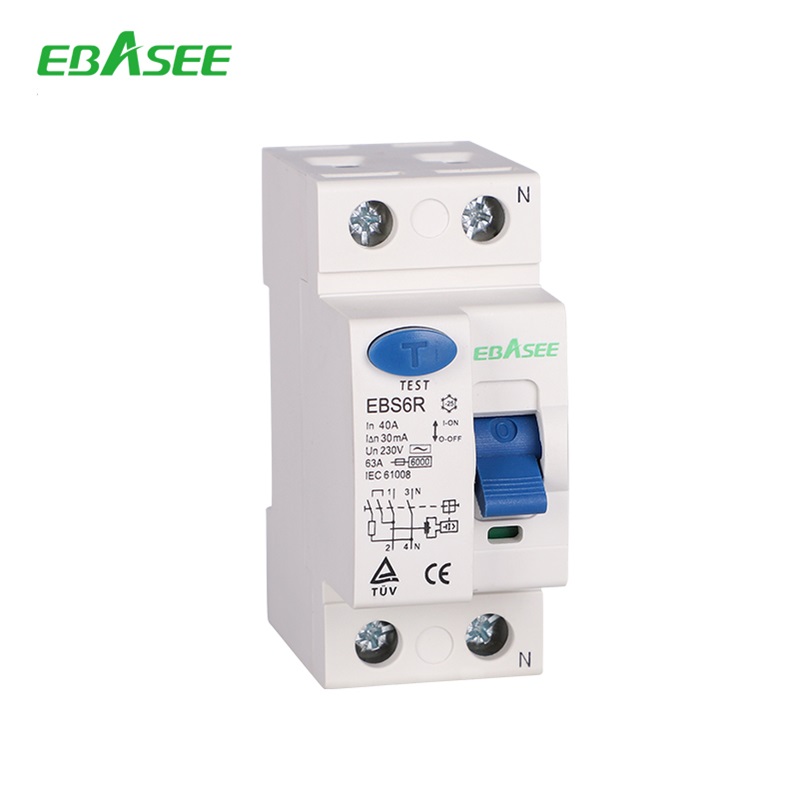

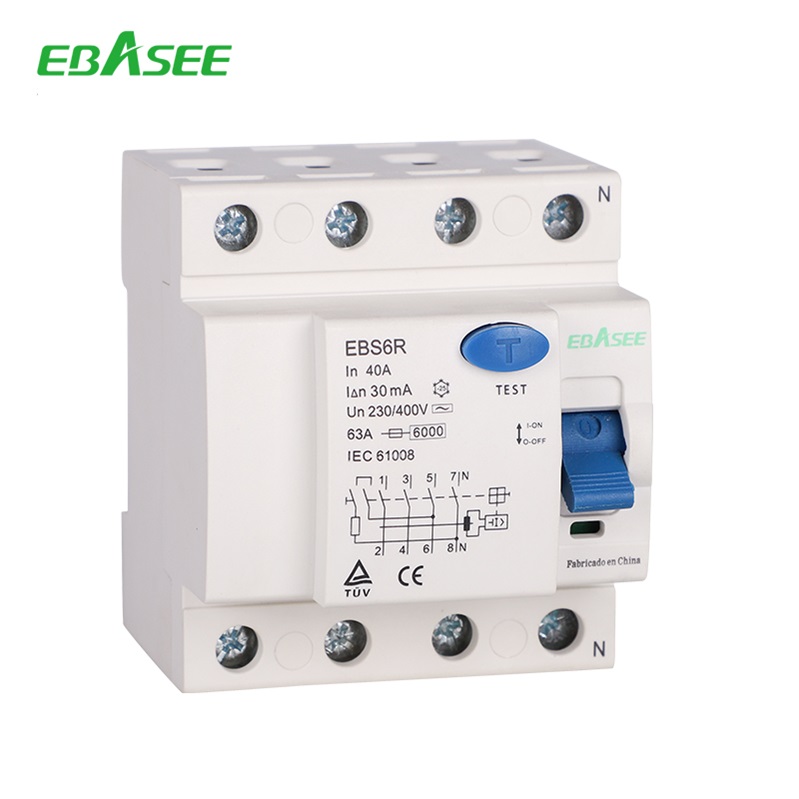

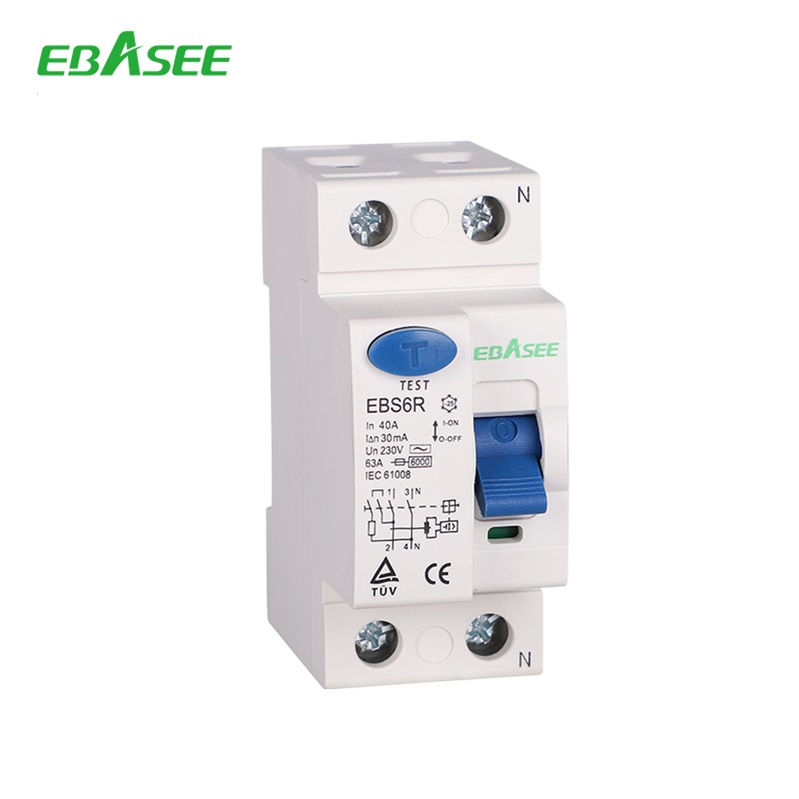

Residual current circuit breakers are used in housing ,tertiary sector and industry.
| Type | Standard | IEC/EN 61008-1 | ||
|
Electrical features |
Leakage type | Electromagnetic type, Electronic type | ||
| Rated current In | A | 16, 25, 40, 63 | ||
| Type (wave form of the earth leakage sensed) | A, AC,S | |||
| Poles | P | 2,4 | ||
| Rated voltage Ue | V | 240/415 | ||
| Insulation voltage Ui | V | 500 | ||
| Rated frequency | Hz | 50/60 | ||
| Rated breaking capacity Inc=IΔc | A | 6000 | ||
| SCPD fuse | A | 6000 | ||
| Rated impulse withstand voltage (1.2/50) Uimp | V | 6000 | ||
| Dielectric test voltage at ind. Freq. for 1min | kV | 2.5 | ||
| Rated sensitivity IΔn | A | 0.01, 0.03, 0.1, 0.3 | ||
| Rated residual making and breaking capacity IΔm | A | 500(In≤40A);630(In＞40A) | ||
| Pollution grade | 2 | |||
|
Mechanical features |
Electrical life | t | 4000 | |
| Mechanical life | t | 8000 | ||
| Protection grade | IP20 | |||
| Ambient temperature(with daily average≤35C) | ℃ | -25~+40 | ||
| Storage temperature | ℃ | -25~+70 | ||
|

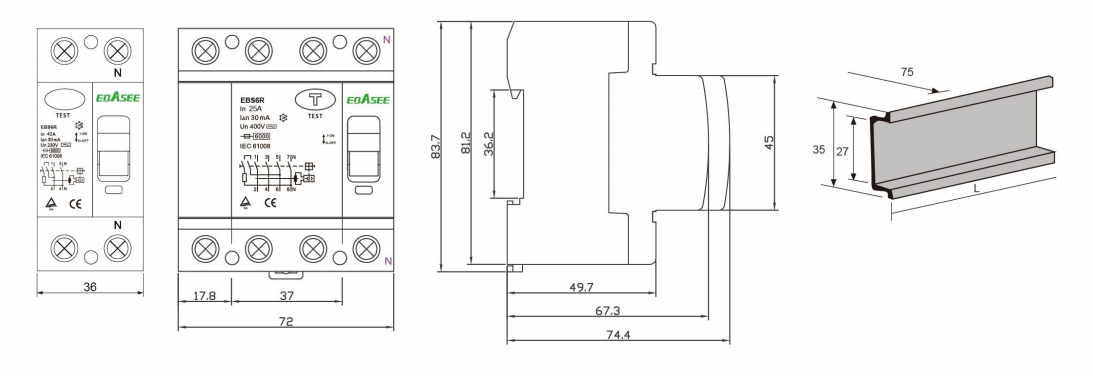

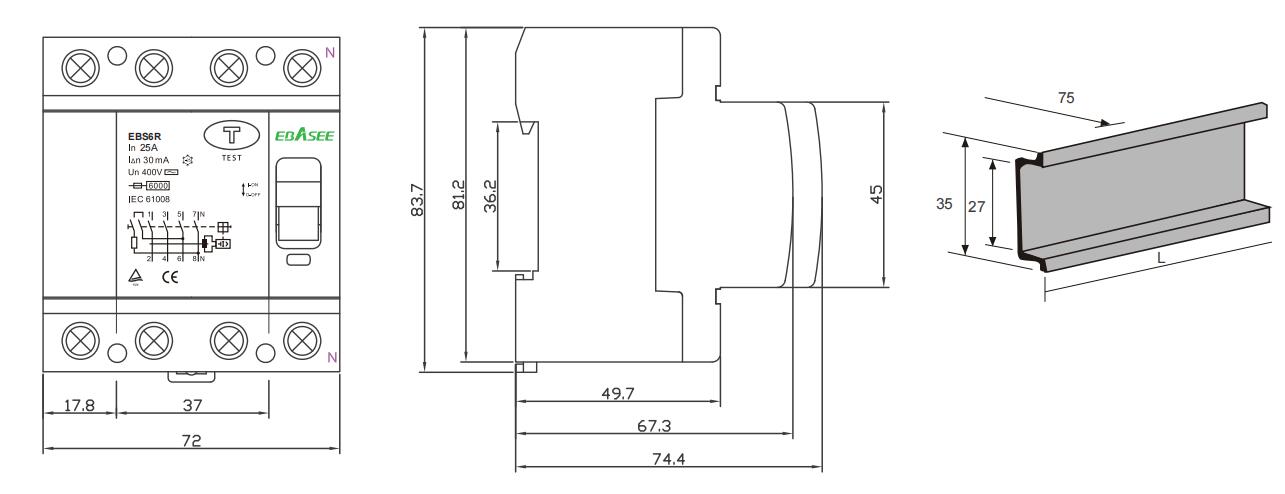

Installation |
Terminal connection type | Cable/Pin-type busbar/U-type bar | ||
| Terminal size top/bottom for cable | mm² | 25 | ||
| AWG | 18/3 | |||
| Terminal size top/bottom for busbar | mm² | 25 | ||
| AWG | 18/3 | |||
| Tightening torque | N*m | 2.5 | ||
| In-Ibs | 22 | |||
| Mounting | On DIN rail EN 60715(35mm)by means of fast clip device | |||
| Connection | From top and bottom | |||
