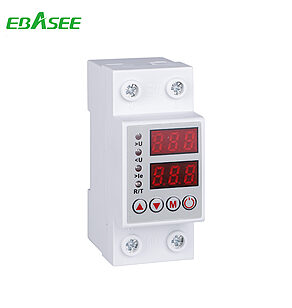

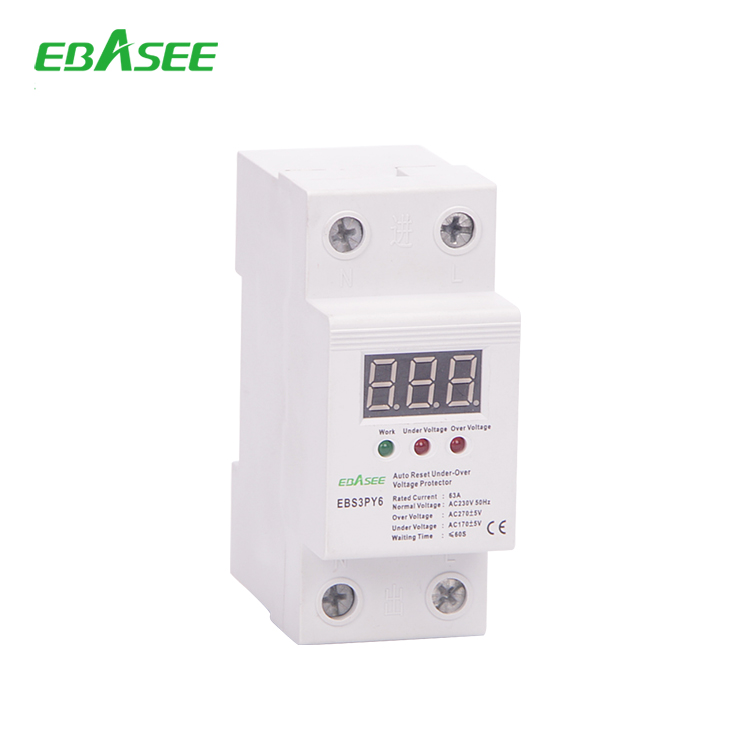

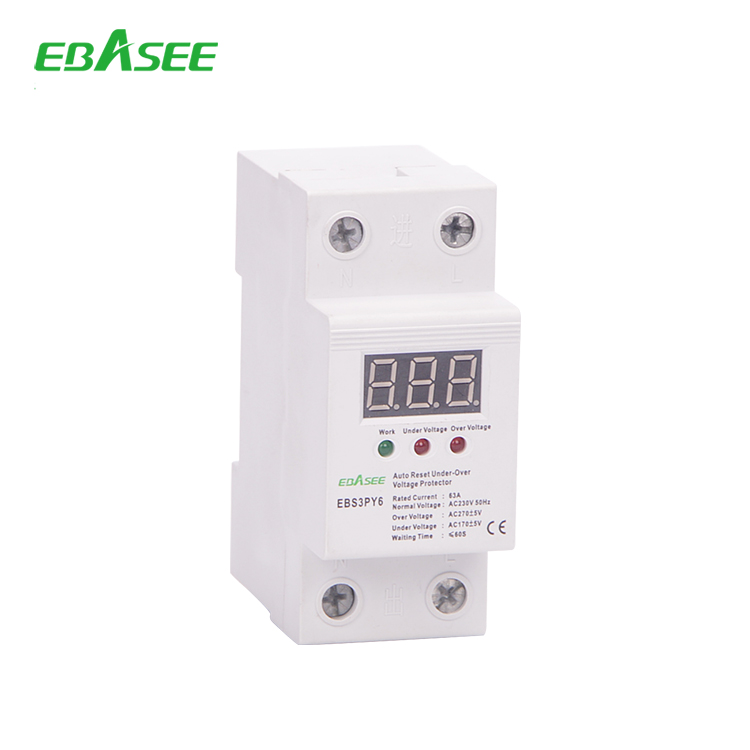

EBS3PY6 Self-recovery Over and Under Voltage Delay Protector


Self-recovery Over&Under Voltage Delay Protector is EBASEE’s development of a new generation of products. It has reasonable design,  assembling imported components and domestic famous components, with advanced manufacturing process. It can cut off power supply quickly and reliably under the condition of high voltage surge and under-voltage, to protect household appliances, when the voltage recovery normal, it can connect circuits automatically after a delay, to recover power, which can protect electric appliance to avoid the impact of the
moment when the power supply is connected, all the functions of automation, no need manual operations, select and use double lights indicator.


Standard IEC60364
Poles P 2P
Rated current In A 10,16,20,25,32,40,50,63,80
Rated voltage Ue V AC230V/50Hz
Over-voltage action cut-off value V AC275±5V
Normal-voltage action cut-off value V AC255±5V
Under-voltage action cut-off value V AC160±5V
Normal-voltage action cut-off value V AC190±5V
Breaking capacity Icn A 3000A(≤40A);L,6000A(≥50A)
Storage temperature C -5C~45C
Ambient temperature C 45~90% RH, 40C
Altitude (meters) Max 2,000
Electricd/Mechnical life (times) ≥100000

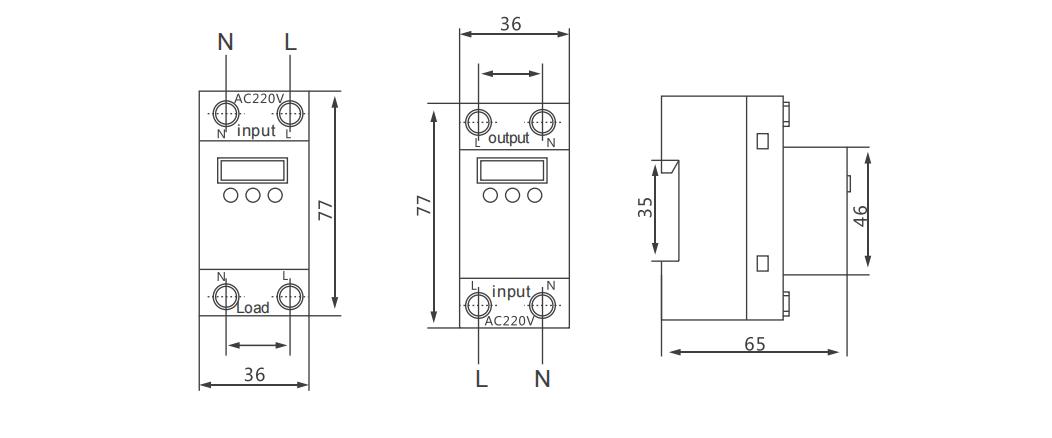

Size 84X35X66mm  (L*W*H)
Installation installed on 35mm DIN rail
