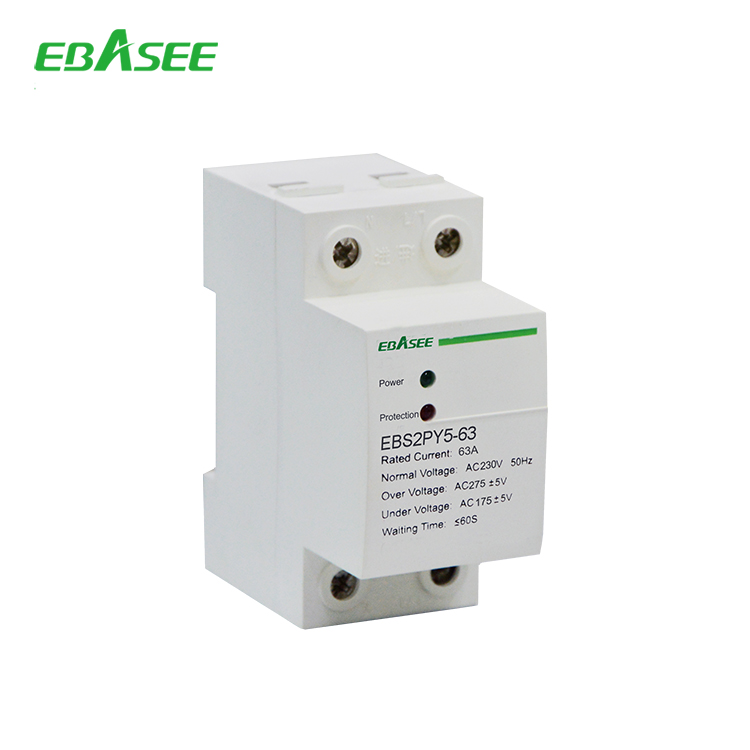

EBS2P5 Over & Under Voltage Protector

Function

Over&Under Voltage Delay Protector is EBASEE’s development of a new generation of products. It has reasonable design, assembling imported components and domestic famous components, with advanced manufacturing process. It can cut off power supply quickly and reliably under the condition of high voltage surge and under-voltage, to protect household appliances.

Specifications

Standard EBS2PY5(Single  Phase) EBSTPY5(Three  Phases)
Rated  AC  voltage 230V/50H2 380V/50Hz
Max  Passing  Current 20A, 32A, 40A, 63A 20A, 32A, 40A, 63A
Max.   Loading   powe 4.4kVA,6.6kVA,8.8kVA 4.4kVA,6.6kVA,8.8kVA
Over-voltage action cut-off value 275±5VAC 460±5VAC
Under-voltage action cut-off value 175+5VAO 300±5VAC
Electricity transmitting delay after cut-off ≤60s ≤60s
Self  power   consumptior ≤2W ≤2W
Mechanical life  (times’ ≥100000 ≥100000
Dimension    (Length×Width×Height) 77×36×68mm 77×73×66mm
Connection   capacity 63A<25mm2   Insulated   wire 63A<25mm²   Insulated   wire



Dimensions

EBS2P5 Over and Under Voltage Protector Dimensions



EBASEE-EBS2P5-EBSTP5-Over-and-Under-Voltage-Protector-1.pdf
10 MB
