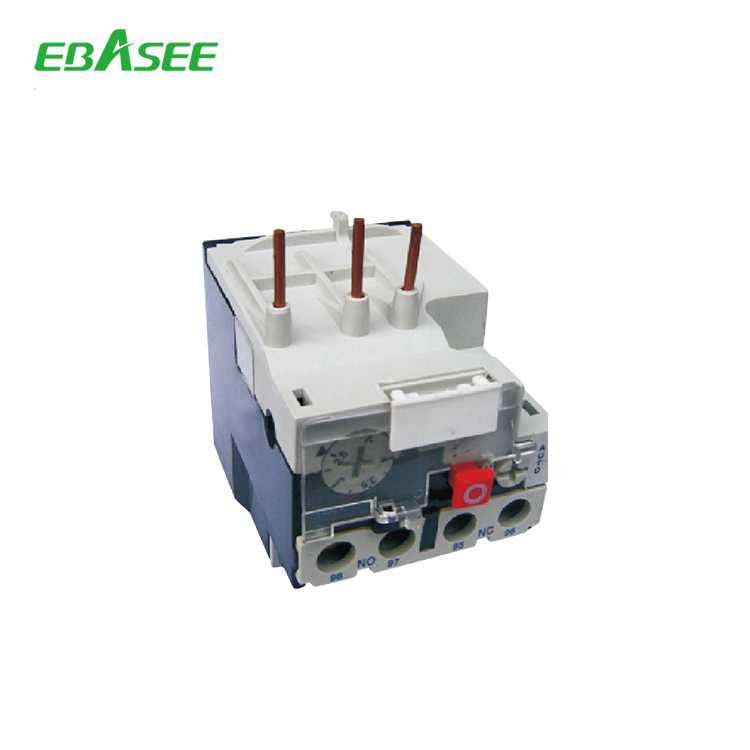

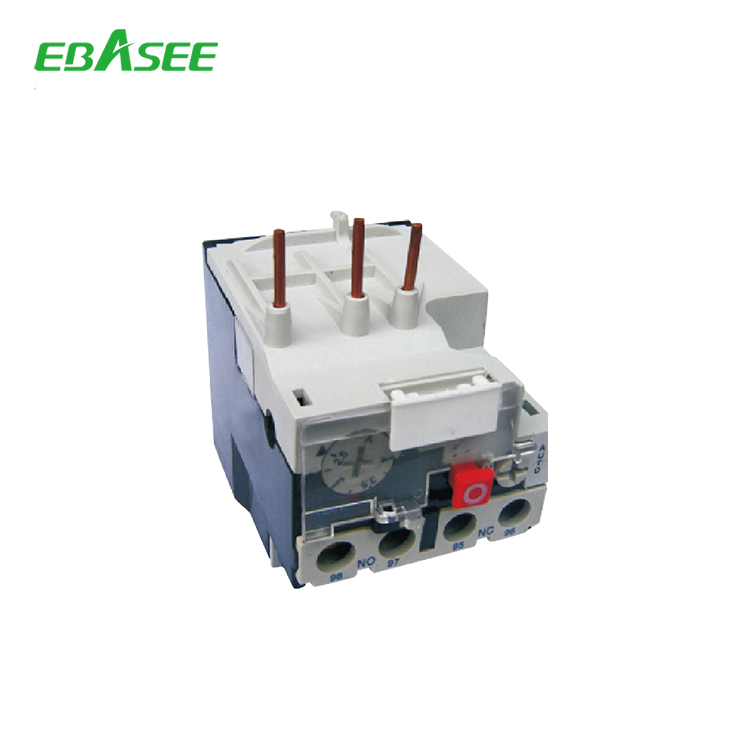

EBS1TR-K Series overload relays apply to circuit of AC 50Hz or 60Hz, rated voltage to below 660V and rated current 0.1A~18A for AC motor overload and single phase protection during long time or intermittent long time service,which can also protect three phase serious imbalance and long starting time of motor or long time operation, can also be used for corresponding AC contactor for electromagnetic starter.
Thermal relay can be combined/connected with contactor or installed separately. Standard: IEC 60947-4-1
| Setting range(A) | 0.10~0.16
1.6~ 2.5 |
0.16~0.25
2.5~4 |
0.25~0.4
4~6 |
0.4~0.63
5.5~8 |
0.63~1
7~10 |
1~1.6
9~13 |

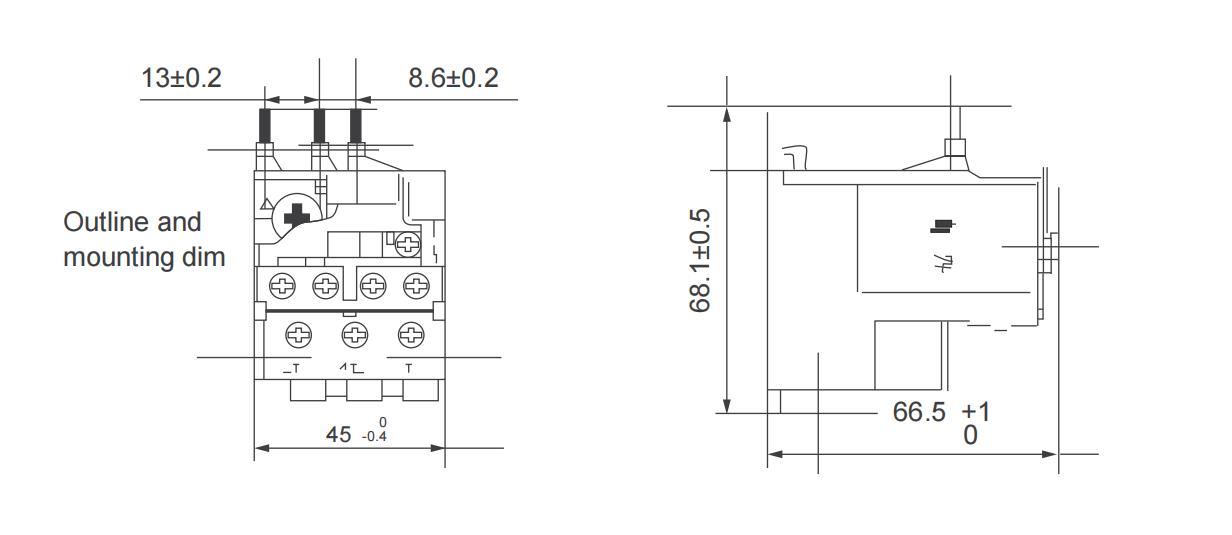

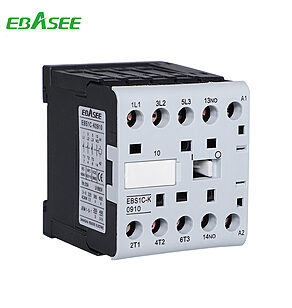

| For contactor | EBS1C-K06/09 EBS1C-09 EBS1C-12 EBS1C-18 | |||||
| Contactor parameter | Ith=10A,1NO+1NC | |||||
| Relay setting range | Fuses to be used with selected relay |
Type code |
||
| aM Type(A) | gG Type(A) | |||
EBS1TR-K 3 Pins |
0.1~0.16 | 0.25 | 0.5 | 1TR-K0301 |
| 0.16~0.25 | 0.25 | 0.5 | 1TR-K0302 | |
| 0.25~0.3 | 0.5 | 1 | 1TR-K0303 | |
| 0.3~0.54 | 1 | 1.6 | 1TR-K0304 | |
| 0.54~0.8 | 1 | 2 | 1TR-K0305 | |
| 0.8~1.2 | 2 | 6 | 1TR-K0306 | |
| 1.2~1.8 | 4 | 8 | 1TR-K0307 | |
| 1.8~2.6 | 4 | 10 | 1TR-K0308 | |
| 2.6~3.7 | 6 | 16 | 1TR-K0310 | |
| 3.7~5.5 | 8 | 20 | 1TR-K0312 | |
| 5.5~8 | 10 | 25 | 1TR-K0314 | |
| 8~11.5 | 16 | 32 | 1TR-K0316 | |
|
EBS1TR-K 5 Pins |
0.1~0.16 | 0.25 | 0.5 | 1TR-K0501 |
| 0.16~0.25 | 0.25 | 0.5 | 1TR-K0502 | |
| 0.25~0.3 | 0.5 | 1 | 1TR-K0505 | |
| 0.3~0.54 | 1 | 1.6 | 1TR-K0504 | |
| 0.54~0.8 | 1 | 2 | 1TR-K0505 | |
| 0.8~1.2 | 2 | 6 | 1TR-K0506 | |
| 1.2~1.8 | 4 | 8 | 1TR-K0507 | |
| 1.8~2.6 | 4 | 10 | 1TR-K0508 | |
| 2.6~3.7 | 6 | 16 | 1TR-K0510 | |
| 3.7~5.5 | 8 | 20 | 1TR-K0512 | |
| 5.5~8 | 10 | 25 | 1TR-K0514 | |
| 8~11.5 | 16 | 32 | 1TR-K0516 | |
