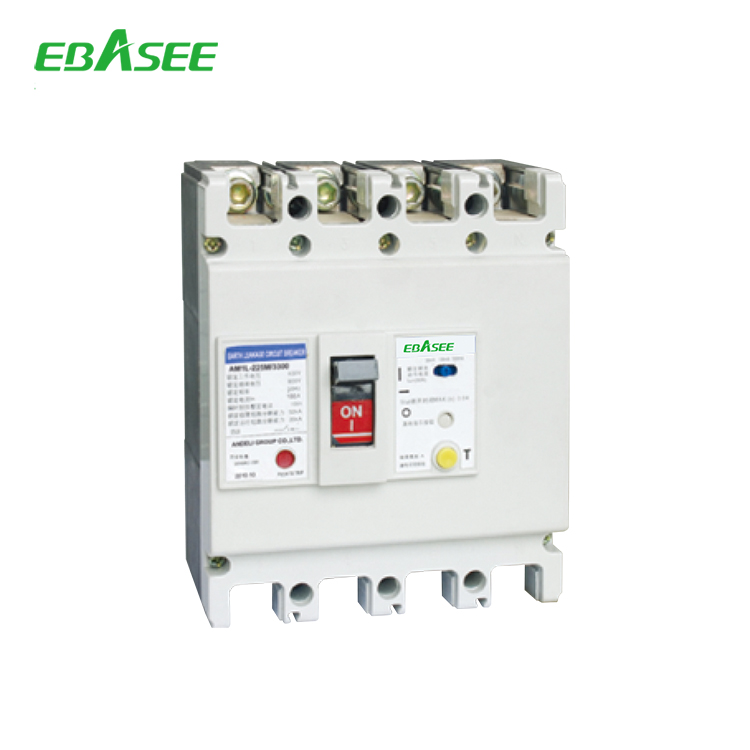

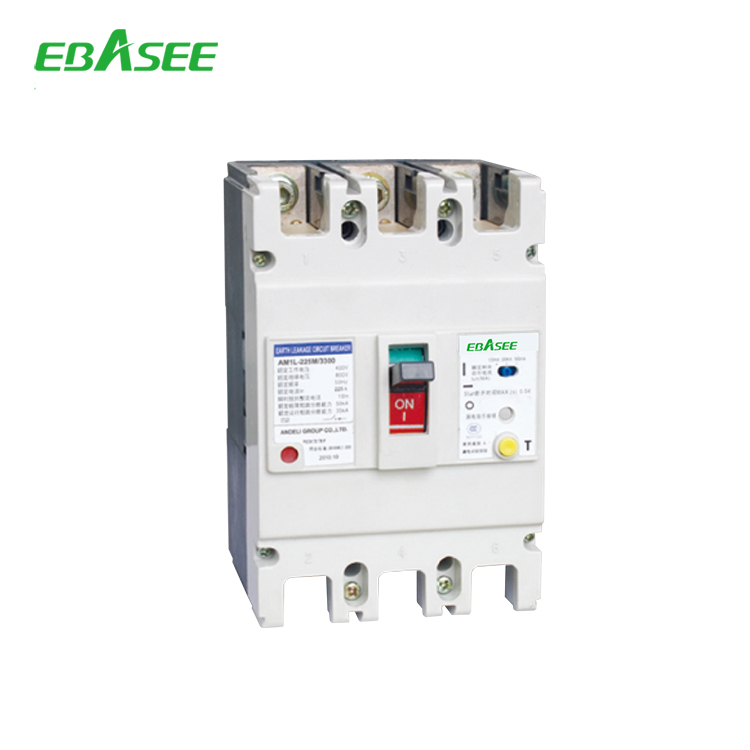

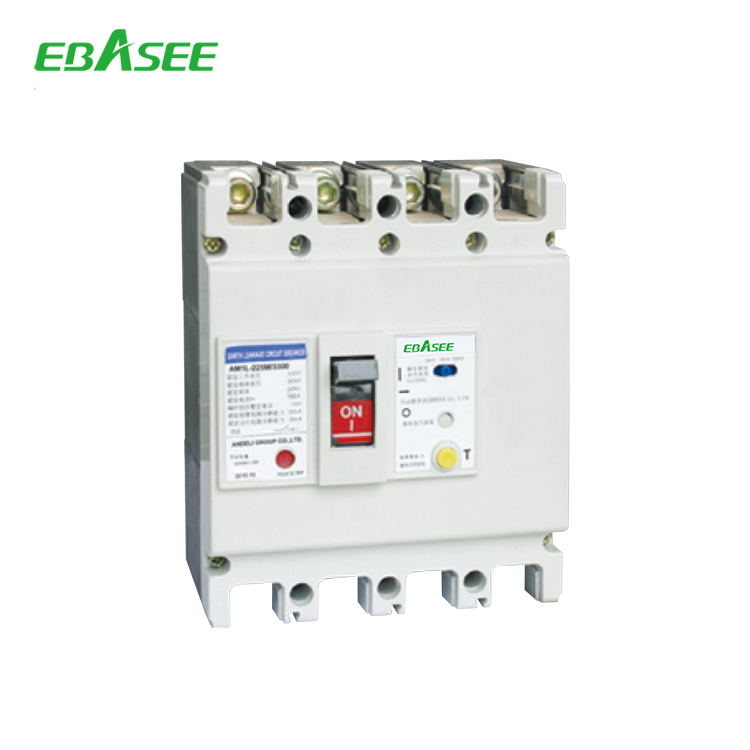

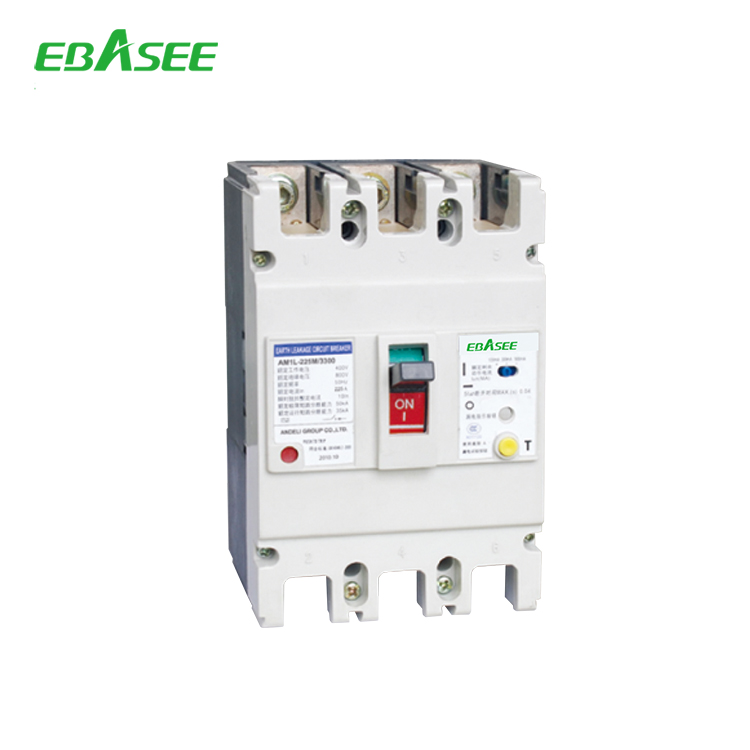

EBS1ML Moulded Case Circuit Breaker

Function

EBS1ML series earth leakage circuit breaker are of the new type earth leakage breakers which have been developed by the company using international advanced design and manufacturing technology. Suitable for a line of AC50/60Hz,rated voltage up to 400V,rated current 16A to 630A.And it is as infrequent changeover of circuit or infrequent starting of motor.The breaker has overload,short-circuit and under-voltage protective functions,which can protect the circuit and the power equipment against damage,meanwhile,it can provide protection against fire dangerous that caused by these long-time existed grounding fault that can not be detected by the over-current protection.

Specifications

Type EBS1ML-100 EBS1ML-225 EBS1ML-400 EBS1ML-630
Frame current Inm(A) 100 225 400 630
Rated current In(A) (10)16,20,25,32,

40,50,63,80,100

100,125,160,

180, 200,225

225,250,

315,350, 400

400,500,630
Pole number voltage 3 4 3 4 3 4 3 4
Rated insulation voltage AC800V
Rated working AC400V
Rated impulse with stand voltage Uimp(V)

800V

Arc-over distance(mm) ≯50
Breaking capacity grade M H M H M M
Limiting shortcircuit breaking capacity Icu(Ka)

AC400V



50



85



50



50



85



50



65



65

Service short circuit breaking capacity Ics(Ka) AC401V 35 50 35 35 50 35 42 42
Rated residual operating current I△n(mA) Non-delay type 100/300/500
Delay type 100/300/500 300/500/1000
Rated residual

non-operating current I△n (mA)



1/2I△n

Operation performance Electrical 1500 1000 1000 1000
(time) Mechanical 8500 7000 4000 4000



Dimensions

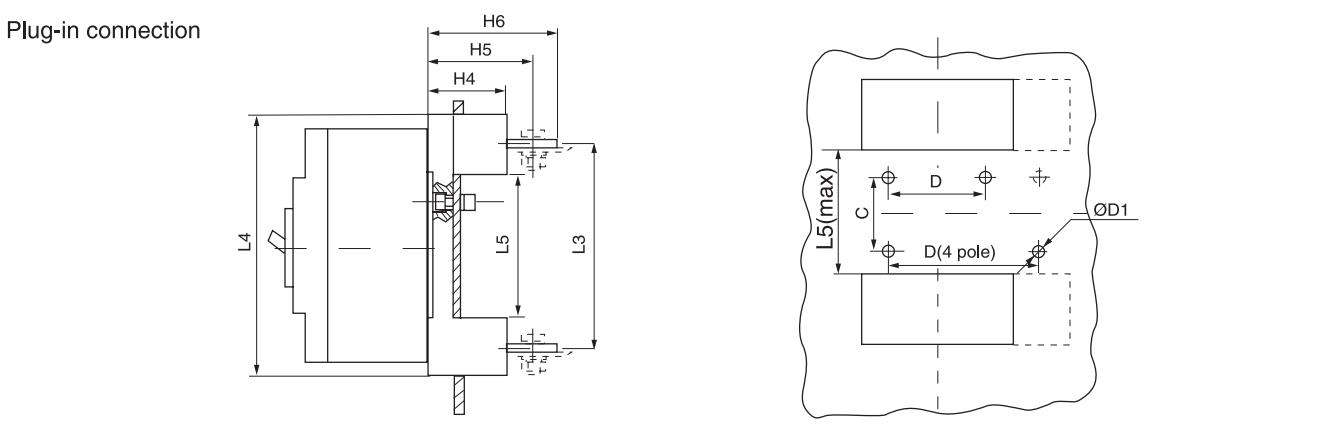

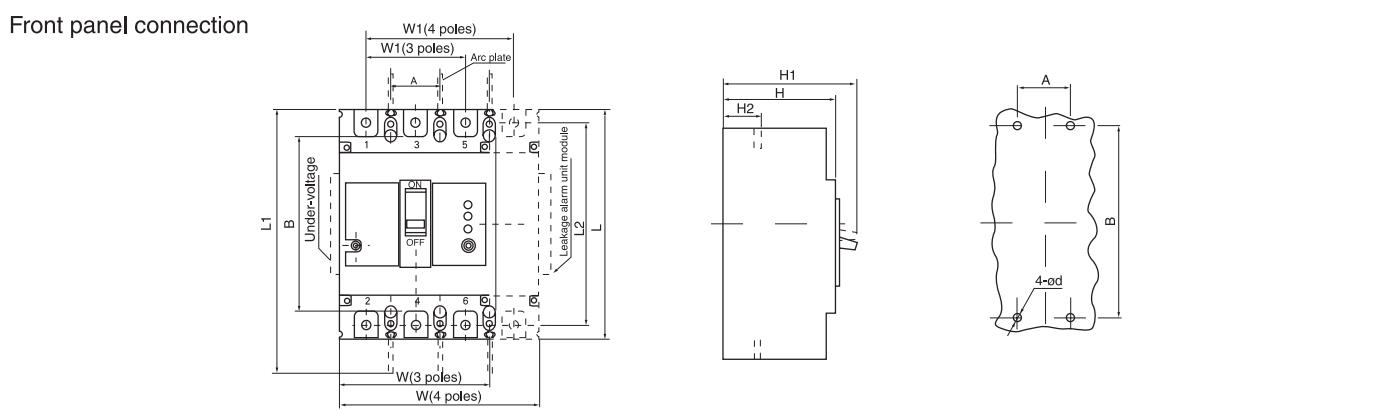

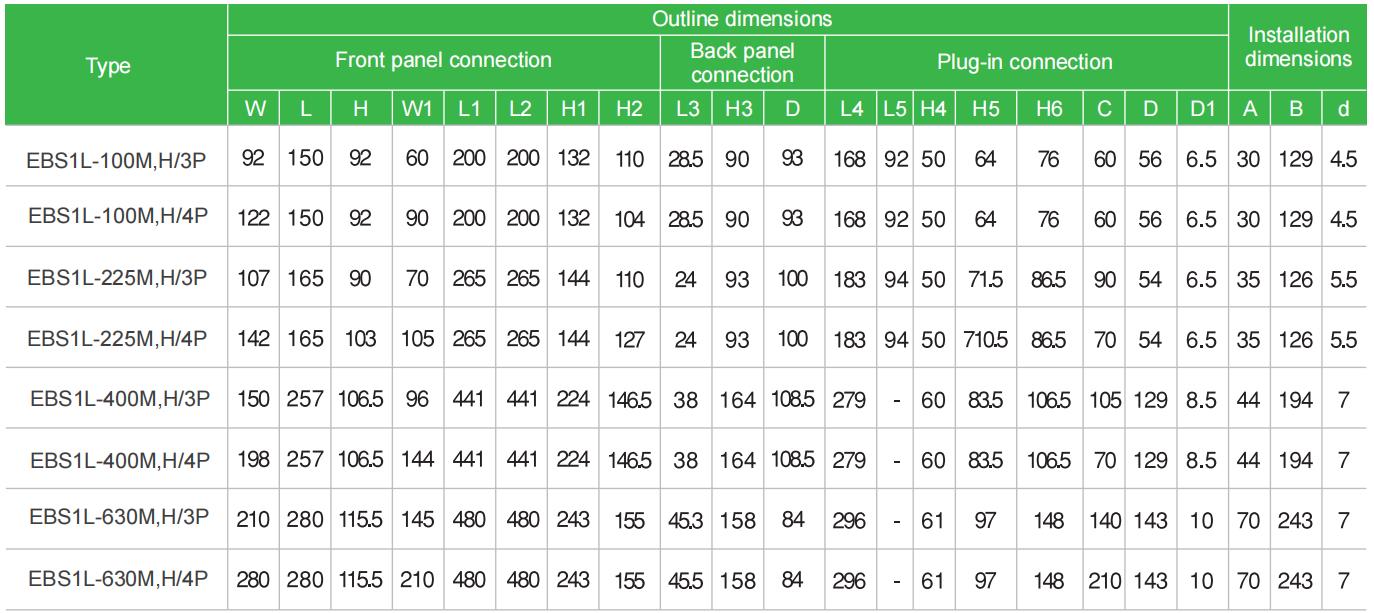

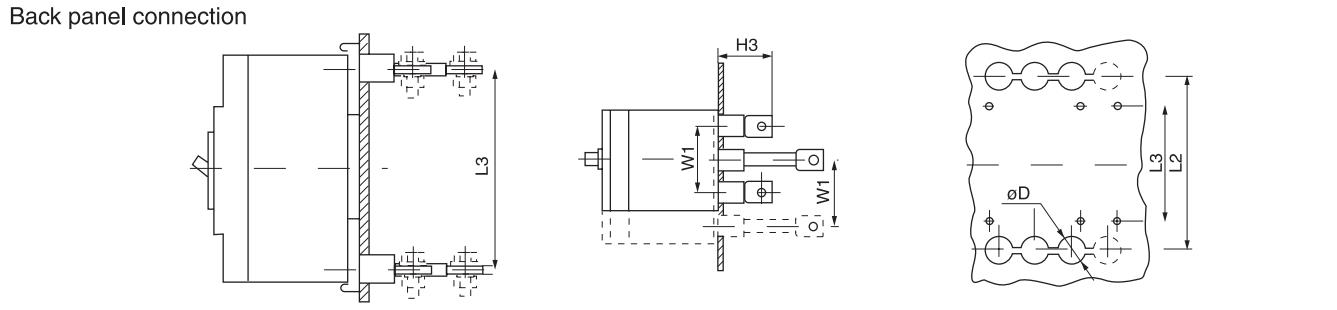

EBS1ML Earth Leakage Moulded Case Circuit Breaker Dimensions

EBS1ML Earth Leakage Moulded Case Circuit Breaker Dimensions EBS1ML Earth Leakage Moulded Case Circuit Breaker Dimensions EBS1ML Earth Leakage Moulded Case Circuit Breaker Dimensions

EBASEE-EBS1ML-Moulded-Case-Circuit-Breaker-MCCB.pdf
7 MB
